IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

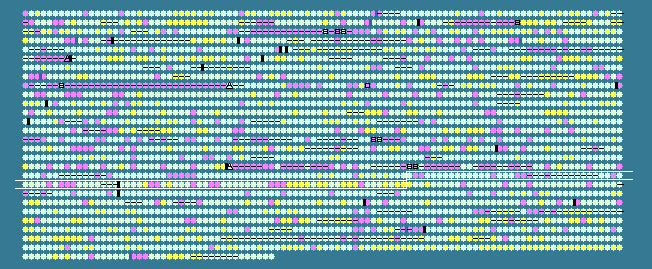

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1865	 48.89	0	2038194..2039498	-	434	15641892	-	VC1890	-	NADH dehydrogenase
1866	 39.72	-1	2039584..2039724	+	46	15641893	-	VC1891	-	hypothetical protein
1867	 43.52	0	2039841..2040380	-	179	15641894	-	VC1892	-	hypothetical protein
1868	 49.25	0	2040560..2041420	-	286	15641895	-	VC1893	-	hypothetical protein
1869	 45.35	0	2041448..2042038	-	196	15641896	-	VC1894	-	hypothetical protein
1870	 46.15	0	2042091..2042480	-	129	15641897	-	VC1895	-	hypothetical protein
1871	 48.13	0	2042480..2043898	-	472	15641898	-	VC1896	-	hypothetical protein
1872	 47.86	0	2043911..2044261	-	116	15641899	-	VC1897	-	Hit family protein
1873	 48.54	0	2044494..2046512	+	672	15641900	-	VC1898	-	methyl-accepting chemotaxis protein
1874	 48.26	0	2046682..2047833	+	383	15641901	-	VC1899	-	hypothetical protein
1875	 44.88	0	2048068..2048907	-	279	15641902	-	VC1900	-	fatty acid metabolism regulator
1876	 46.96	0	2049552..2051144	+	530	15641903	nhaB	VC1901	-	sodium/proton antiporter
1877	 48.85	0	2051224..2051745	+	173	15641904	-	VC1902	-	disulfide bond formation protein B
1878	 49.15	0	2051820..2054702	-	960	15641905	-	VC1903	-	cell division protein FtsK, putative
1879	 42.83	-1	2054880..2055374	-	164	15641906	-	VC1904	-	leucine-responsive transcriptional regulator
1880	 48.27	0	2055531..2056655	+	374	15641907	-	VC1905	-	alanine dehydrogenase
1881	 48.04	0	2056697..2057893	-	398	15641908	-	VC1906	-	hypothetical protein
1882	 46.26	0	2057955..2058929	-	324	15641909	cysB	VC1907	-	transcriptional regulator CysB
1883	 42.67	-1	2059015..2059164	-	49	15641910	-	VC1908	-	hypothetical protein
1884	 41.70	-1	2059194..2059982	+	262	15641911	-	VC1909	-	hypothetical protein
1885	 43.11	-1	2060044..2060820	+	258	15641912	-	VC1910	-	tRNA-(MS[2]IO[6]A)-hydroxylase
1886	 48.42	0	2060878..2061573	-	231	15641913	-	VC1911	-	orotidine 5'-phosphate decarboxylase
1887	 45.47	0	2061646..2062815	-	389	15641914	-	VC1912	-	hypothetical protein
1888	 41.49	-1	2062827..2063108	-	93	15641915	-	VC1913	-	hypothetical protein
1889	 47.67	0	2063247..2063525	-	92	15641916	ihfB	VC1914	-	integration host factor subunit beta
1890	 46.44	0	2063813..2065483	-	556	15641917	rpsA	VC1915	-	30S ribosomal protein S1
1891	 49.13	0	2065592..2066281	-	229	15641918	cmk	VC1916	-	cytidylate kinase
1892	 46.79	0	2066452..2066763	-	103	15641919	-	VC1917	-	hypothetical protein
1893	 46.02	0	2066898..2068757	-	619	15641920	-	VC1918	-	peptidyl-prolyl cis-trans isomerse D
1894	 48.72	0	2068910..2069182	-	90	15641921	-	VC1919	-	DNA-binding protein HU-beta
1895	 48.92	0	2069366..2071726	-	786	15641922	-	VC1920	-	ATP-dependent protease LA
1896	 47.54	0	2071849..2073129	-	426	15641923	clpX	VC1921	-	ATP-dependent protease ATP-binding subunit
1897	 46.43	0	2073209..2073811	-	200	15641924	clpP	VC1922	-	ATP-dependent Clp protease proteolytic subunit
1898	 47.93	0	2073941..2075242	-	433	15641925	tig	VC1923	-	trigger factor
1899	 43.57	0	2075349..2075768	+	139	15641926	-	VC1924	-	hypothetical protein
1900	 49.44	0	2075741..2077534	+	597	15641927	-	VC1925	-	C4-dicarboxylate transport sensor protein
1901	 49.52	0	2077537..2078877	+	446	15641928	-	VC1926	-	C4-dicarboxylate transport transcriptional regulatory protein
1902	 50.59	0	2078993..2080354	-	453	15641929	-	VC1927	-	C4-dicarboxylate transport protein
1903	 46.64	0	2080358..2081056	-	232	15641930	-	VC1928	-	C4-dicarboxylate transport protein DctQ, putative
1904	 48.75	0	2081087..2082085	-	332	15641931	-	VC1929	-	C4-dicarboxylate-binding periplasmic protein
1905	 36.46	-2	2082173..2082268	-	31	15641932	-	VC1930	-	hypothetical protein
1906	 50.49	0	2082317..2083843	-	508	15641933	-	VC1931	-	hypothetical protein
1907	 41.52	-1	2084014..2084184	-	56	15641934	-	VC1932	-	hypothetical protein
1908	 43.31	0	2084346..2084816	+	156	15641935	-	VC1933	-	hypothetical protein
1909	 43.24	0	2084780..2086747	+	655	15641936	-	VC1934	-	GGDEF family protein
1910	 50.33	0	2086826..2087584	+	252	15641937	-	VC1935	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase-related protein
1911	 45.23	0	2087587..2088519	+	310	15641938	-	VC1936	-	phosphatidate cytidylyltransferase, putative
1912	 46.43	0	2088527..2089198	+	223	15641939	-	VC1937	-	hypothetical protein
1913	 46.00	0	2089288..2089737	+	149	15641940	-	VC1938	-	hypothetical protein
1914	 47.50	0	2090031..2090651	+	206	15641941	-	VC1939	-	hypothetical protein
1915	 47.96	0	2090698..2091360	-	220	15641942	-	VC1940	-	hypothetical protein
1916	 46.99	0	2091673..2092968	-	431	15641943	-	VC1941	-	hypothetical protein
1917	 49.79	0	2093523..2094458	+	311	15641944	-	VC1942	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
1918	 50.54	0	2094433..2094525	+	30	15641945	-	VC1943	-	hypothetical protein
1919	 48.03	0	2094741..2095604	+	287	15641946	-	VC1944	-	PvcB protein
1920	 48.29	0	2095589..2097052	+	487	15641947	-	VC1945	-	hypothetical protein
1921	 50.93	0	2097041..2097148	-	35	15641948	-	VC1946	-	hypothetical protein
1922	 42.90	-1	2097183..2098112	-	309	15641949	-	VC1947	-	LysR family transcriptional regulator
1923	 36.46	-2	2098271..2098462	+	63	15641950	-	VC1948	-	hypothetical protein
1924	 44.39	0	2098432..2100258	+	608	15641951	-	VC1949	-	pvcA protein
1925	 52.33	+1	2100348..2102795	-	815	15641952	-	VC1950	-	biotin sulfoxide reductase
1926	 49.86	0	2102818..2103924	-	368	15641953	-	VC1951	-	cytochrome c-type protein YecK
1927	 50.37	0	2104179..2106719	-	846	15641954	-	VC1952	-	chitinase
1928	 48.93	0	2106983..2108200	-	405	15641955	-	VC1953	-	NupC family protein
1929	 33.33	-2	2108248..2108349	+	33	15641956	-	VC1954	-	hypothetical protein
1930	 50.32	0	2108531..2109478	-	315	15641957	-	VC1955	-	LysR family transcriptional regulator
1931	 47.53	0	2109642..2110613	-	323	15641958	-	VC1956	-	lytic murein transglycosylase, putative
1932	 43.37	0	2110638..2110946	-	102	15641959	-	VC1957	-	hypothetical protein
1933	 42.06	-1	2110977..2111102	+	41	15641960	-	VC1958	-	hypothetical protein
1934	 48.57	0	2111116..2111778	+	220	15641961	minC	VC1959	-	septum formation inhibitor
1935	 48.98	0	2111781..2112611	+	276	15641962	-	VC1960	-	septum site-determining protein MinD
1936	 47.73	0	2112616..2112879	+	87	15641963	minE	VC1961	-	cell division topological specificity factor MinE
1937	 48.17	0	2113168..2113659	+	163	15641964	-	VC1962	-	lipoprotein
1938	 45.98	0	2113726..2114223	-	165	15641965	-	VC1963	-	hypothetical protein
1939	 48.86	0	2114204..2115079	-	291	15641966	-	VC1964	-	hypothetical protein
1940	 44.67	0	2115273..2115863	+	196	15641967	-	VC1965	-	hypothetical protein
1941	 49.60	0	2115867..2117747	+	626	15641968	-	VC1966	-	hypothetical protein
1942	 43.84	0	2117923..2119977	+	684	15641969	-	VC1967	-	methyl-accepting chemotaxis protein
1943	 43.41	0	2120030..2120575	-	181	15641970	-	VC1968	-	transcriptional regulator
1944	 41.67	-1	2120587..2120682	-	31	15641971	-	VC1969	-	hypothetical protein
1945	 51.80	+1	2120663..2121826	+	387	15641972	-	VC1970	-	benzoate transport protein
1946	 53.11	+1	2121855..2123285	-	476	15641973	-	VC1971	-	O-succinylbenzoic acid--CoA ligase
1947	 52.75	+1	2123261..2124259	-	332	15641974	-	VC1972	-	O-succinylbenzoate synthase
1948	 53.29	+1	2124347..2125213	-	288	161581999	-	VC1973	-	naphthoate synthase
1949	 50.76	0	2125238..2126029	-	263	15641976	-	VC1974	-	acyl-CoA thioester hydrolase YfbB
1950	 53.36	+1	2126019..2127731	-	570	15641977	-	VC1975	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
1951	 52.75	+1	2127728..2129035	-	435	15641978	-	VC1976	-	menaquinone-specific isochorismate synthase
1952	 49.88	0	2129250..2130464	+	404	15641979	-	VC1977	-	aminotransferase AlaT
1953	 49.29	0	2130500..2131201	+	233	15641980	-	VC1978	-	hypothetical protein
1954	 52.41	+1	2131258..2132583	+	441	15641981	-	VC1979	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
1955	 51.24	0	2132577..2133179	-	200	15641982	-	VC1980	-	hypothetical protein
1956	 52.47	+1	2133066..2133734	+	222	15641983	-	VC1981	-	hypothetical protein
1957	 40.54	-1	2133691..2133801	+	36	15641984	-	VC1982	-	hypothetical protein
1958	 48.59	0	2133810..2135657	-	615	15641985	-	VC1983	-	peptidase, putative
1959	 50.09	0	2135870..2137015	-	381	15641986	-	VC1984	-	ribonuclease D
1960	 50.62	0	2137101..2138801	-	566	15641987	-	VC1985	-	long-chain-fatty-acid--CoA ligase
1961	 51.46	0	2138926..2139780	-	284	15641988	-	VC1986	-	hypothetical protein
1962	 50.41	0	2139777..2140385	-	202	15641989	-	VC1987	-	outer membrane lipoprotein Slp, putative
1963	 51.96	+1	2140351..2140656	-	101	15641990	-	VC1988	-	hypothetical protein
1964	 52.66	+1	2140716..2141429	-	237	15641991	-	VC1989	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
