IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

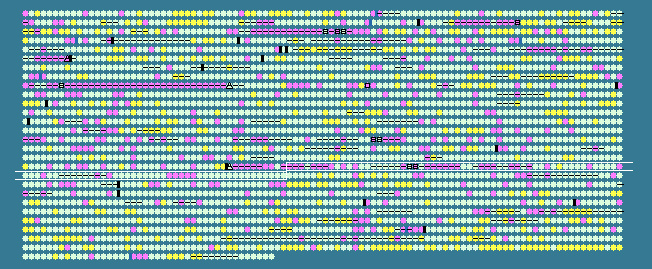

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1745	 43.87	0	1913628..1916009	-	793	15641772	-	VC1769	-	DNA methylase HsdM, putative
1746	 41.72	-1	1916150..1918213	-	687	15641773	-	VC1770	-	hypothetical protein
1747	 41.85	-1	1918195..1921857	-	1220	15641774	-	VC1771	-	hypothetical protein
1748	 44.83	0	1921885..1922745	+	286	15641775	-	VC1772	-	hypothetical protein
1749	 36.13	-2	1922810..1923880	-	356	15641776	-	VC1773	-	hypothetical protein
1750	 41.65	-1	1923895..1925049	-	384	15641777	-	VC1774	-	hypothetical protein
1751	 43.61	0	1925231..1926067	-	278	15641778	-	VC1775	-	hypothetical protein
1752	 43.14	-1	1926196..1927092	-	298	15641779	-	VC1776	-	N-acetylneuraminate lyase, putative
1753	 45.33	0	1927130..1928413	-	427	15641780	-	VC1777	-	hypothetical protein
1754	 41.19	-1	1928421..1928942	-	173	15641781	-	VC1778	-	hypothetical protein
1755	 44.62	0	1928993..1929958	-	321	15641782	-	VC1779	-	C4-dicarboxylate-binding periplasmic protein
1756	 34.01	-2	1929989..1930282	+	97	15641783	-	VC1780	-	hypothetical protein
1757	 47.16	0	1930173..1930895	+	240	15641784	-	VC1781	-	N-acetylmannosamine-6-phosphate 2-epimerase
1758	 45.02	0	1930883..1931746	+	287	15641785	-	VC1782	-	N-acetylmannosamine kinase
1759	 44.94	0	1931750..1932886	+	378	15641786	-	VC1783	-	N-acetylglucosamine-6-phosphate deacetylase
1760	 45.17	0	1933231..1935654	+	807	15641787	-	VC1784	-	neuraminidase
1761	 44.44	0	1935801..1936007	-	68	15641788	-	VC1785	-	transcriptional regulator
1762	 48.85	0	1936121..1936597	+	158	15641789	-	VC1786	-	DNA repair protein RadC, putative
1763	 45.65	0	1936594..1936731	+	45	15641790	-	VC1787	-	hypothetical protein
1764	 43.10	-1	1936827..1937522	-	231	15641791	-	VC1788	-	hypothetical protein
1765	 44.44	0	1937519..1938391	-	290	15641792	-	VC1789	-	transposase OrfAB, subunit B
1766	 43.19	0	1938388..1938732	-	114	15641793	-	VC1790	-	transposase OrfAB, subunit A
1767	 44.00	0	1938739..1939779	-	346	15641794	-	VC1791	-	hypothetical protein
1768	 42.78	-1	1939914..1940273	-	119	15641795	-	VC1792	-	hypothetical protein
1769	 39.15	-1	1940322..1940699	-	125	15641796	-	VC1793	-	hypothetical protein
1770	 37.82	-2	1940754..1941332	-	192	15641797	-	VC1794	-	hypothetical protein
1771	 38.94	-1	1941351..1941671	-	106	15641798	-	VC1795	-	transcriptional regulator, putative
1772	 39.73	-1	1941658..1942032	-	124	15641799	-	VC1796	-	middle operon regulator-related protein
1773	 40.04	-1	1942842..1943303	-	153	15641800	-	VC1797	-	hypothetical protein
1774	 44.53	0	1943306..1944457	-	383	15641801	-	VC1798	-	eha protein
1775	 47.72	0	1944387..1946144	-	585	15641802	-	VC1799	-	hypothetical protein
1776	 44.24	0	1946151..1947122	-	323	15641803	-	VC1800	-	hypothetical protein
1777	 34.71	-2	1947461..1947823	-	120	15641804	-	VC1801	-	hypothetical protein
1778	 38.82	-2	1947786..1948022	-	78	15641805	-	VC1802	-	hypothetical protein
1779	 40.48	-1	1948112..1948573	+	153	15641806	-	VC1803	-	hypothetical protein
1780	 48.25	0	1948800..1949114	+	104	15641807	-	VC1804	-	hypothetical protein
1781	 45.41	0	1949165..1949611	+	148	15641808	-	VC1805	-	hypothetical protein
1782	 43.36	0	1949718..1950704	+	328	15641809	-	VC1806	-	hypothetical protein
1783	 29.20	-2	1951671..1952516	+	281	15641810	-	VC1808	-	hypothetical protein
1784	 47.19	0	1952631..1952861	-	76	15641811	-	VC1809	-	transcriptional regulator, putative
1785	 43.63	0	1953461..1953664	+	67	15641812	-	VC1810	-	hypothetical protein
1786	 47.05	0	1953656..1954129	-	157	15641813	-	VC1811	-	hypothetical protein
1787	 45.95	0	1954253..1954672	-	139	15641814	-	VC1812	-	hypothetical protein
1788	 41.94	-1	1954641..1954733	-	30	15641815	-	VC1813	-	hypothetical protein
1789	 50.58	0	1954789..1956174	+	461	15641816	-	VC1814	-	deoxyribodipyrimidine photolyase
1790	 52.82	+1	1956171..1956878	+	235	15641817	-	VC1815	-	C factor cell-cell signaling protein
1791	 45.37	0	1956889..1957104	-	71	15641818	-	VC1816	-	hypothetical protein
1792	 50.40	0	1957201..1958964	-	587	15641819	-	VC1817	-	sigma-54 dependent transcriptional regulator
1793	 45.10	0	1959132..1959233	-	33	15641820	-	VC1818	-	hypothetical protein
1794	 49.57	0	1959245..1960765	+	506	15641821	-	VC1819	-	aldehyde dehydrogenase
1795	 37.41	-2	1961098..1961538	+	146	15641822	-	VC1820	-	PTS system, fructose-specific IIA component
1796	 49.79	0	1961550..1962953	+	467	15641823	-	VC1821	-	PTS system, fructose-specific IIBC component
1797	 49.52	0	1963028..1964893	-	621	15641824	-	VC1822	-	PTS system, fructose-specific IIABC component
1798	 49.33	0	1965110..1965409	+	99	15641825	-	VC1823	-	PTS system, fructose-specific IIB component
1799	 47.69	0	1965418..1966197	+	259	15641826	-	VC1824	-	PTS system, nitrogen regulatory IIA component, putative
1800	 42.74	-1	1966189..1967028	-	279	15641827	-	VC1825	-	transcriptional regulator
1801	 50.37	0	1967400..1969301	+	633	15641828	-	VC1826	-	PTS system, fructose-specific IIABC component
1802	 46.10	0	1969417..1970583	+	388	15641829	-	VC1827	-	mannose-6-phosphate isomerase
1803	 46.58	0	1970703..1971155	-	150	15641830	-	VC1828	-	hypothetical protein
1804	 42.59	-1	1971344..1971451	-	35	15641831	-	VC1829	-	hypothetical protein
1805	 44.79	0	1971429..1971524	+	31	15641832	-	VC1830	-	hypothetical protein
1806	 45.05	0	1971491..1973701	-	736	15641833	-	VC1831	-	sensor histidine kinase
1807	 45.03	0	1973909..1974481	+	190	15641834	-	VC1832	-	hypothetical protein
1808	 46.70	0	1974555..1975616	-	353	15641835	-	VC1833	-	quinolinate synthetase
1809	 46.80	0	1975790..1976554	-	254	15641836	-	VC1834	-	hypothetical protein
1810	 47.40	0	1976570..1977088	-	172	15641837	-	VC1835	-	peptidoglycan-associated lipoprotein
1811	 45.38	0	1977120..1978472	-	450	15641838	tolB	VC1836	-	translocation protein TolB
1812	 47.15	0	1978487..1979557	-	356	15641839	-	VC1837	-	tolA protein
1813	 43.08	-1	1979575..1980015	-	146	15641840	-	VC1838	-	tolR membrane protein
1814	 46.20	0	1980018..1980701	-	227	15641841	-	VC1839	-	tolQ protein
1815	 43.38	0	1980691..1981158	-	155	15641842	-	VC1840	-	hypothetical protein
1816	 47.80	0	1981267..1981584	-	105	15641843	-	VC1841	-	hypothetical protein
1817	 44.44	0	1981577..1981684	-	35	15641844	-	VC1842	-	hypothetical protein
1818	 47.05	0	1981697..1982833	-	378	15641845	-	VC1843	-	cytochrome d ubiquinol oxidase, subunit II
1819	 47.05	0	1982851..1984476	-	541	15641846	-	VC1844	-	cytochrome d ubiquinol oxidase, subunit I
1820	 47.16	0	1984896..1985900	-	334	15641847	ruvB	VC1845	-	Holliday junction DNA helicase B
1821	 48.29	0	1985956..1986570	-	204	15641848	ruvA	VC1846	-	Holliday junction DNA helicase motor protein
1822	 49.62	0	1986667..1987188	-	173	15641849	ruvC	VC1847	-	Holliday junction resolvase
1823	 46.59	0	1987276..1988655	-	459	15641850	cysS	VC1848	-	cysteinyl-tRNA synthetase
1824	 46.06	0	1988801..1989295	+	164	15641851	-	VC1849	-	peptidyl-prolyl cis-trans isomerase B
1825	 43.76	0	1989336..1990064	+	242	15641852	-	VC1850	-	UDP-2,3-diacylglucosamine hydrolase
1826	 43.62	0	1990171..1991385	+	404	15641853	-	VC1851	-	hypothetical protein
1827	 43.42	0	1991447..1991902	+	151	15641854	-	VC1852	-	hypothetical protein
1828	 37.04	-2	1991934..1992608	-	224	15641855	-	VC1853	-	hypothetical protein
1829	 41.92	-1	1992727..1993833	-	368	15641856	-	VC1854	-	porin, putative
1830	 46.48	0	1994271..1996346	+	691	161582001	dinG	VC1855	-	ATP-dependent DNA helicase DinG
1831	 50.00	0	1996384..1997163	+	259	15641858	-	VC1856	-	hypothetical protein
1832	 46.63	0	1997148..1997711	+	187	15641859	-	VC1857	-	primosomal replication protein N``
1833	 47.89	0	1997712..1997924	+	70	15641860	-	VC1858	-	hypothetical protein
1834	 47.71	0	1997948..2000068	-	706	15641861	-	VC1859	-	methyl-accepting chemotaxis protein
1835	 46.10	0	2000266..2001072	+	268	15641862	-	VC1860	-	exonuclease III
1836	 46.61	0	2001131..2001808	-	225	15641863	-	VC1861	-	amino acid ABC transporter, permease protein
1837	 48.53	0	2001811..2002593	-	260	15641864	-	VC1862	-	amino acid ABC transporter, permease protein
1838	 46.62	0	2002699..2003481	-	260	15641865	-	VC1863	-	amino acid ABC transporter, periplasmic amino acid-binding protein
1839	 47.08	0	2003660..2004430	-	256	15641866	-	VC1864	-	amino acid ABC transporter, ATP-binding protein
1840	 49.94	0	2005135..2006688	+	517	15641867	-	VC1865	-	hypothetical protein
1841	 47.93	0	2006867..2009230	+	787	15641868	-	VC1866	-	formate acetyltransferase
1842	 48.01	0	2009366..2010394	+	342	15641869	-	VC1867	-	hypothetical protein
1843	 47.26	0	2010412..2012292	-	626	15641870	-	VC1868	-	methyl-accepting chemotaxis protein
1844	 46.15	0	2012625..2013365	+	246	15641871	pflA	VC1869	-	pyruvate formate lyase-activating enzyme 1
47.43	MEAN

4.26	STD DEV
