IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

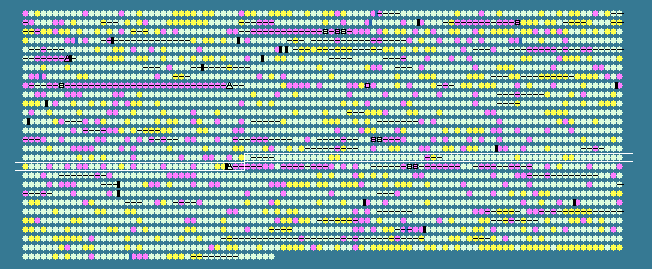

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1638	 44.59	0	1794166..1794387	+	73	15641665	-	VC1661	-	hypothetical protein
1639	 48.69	0	1794393..1794659	-	88	15641666	-	VC1662	-	hypothetical protein
1640	 47.07	0	1794806..1795249	+	147	15641667	-	VC1663	-	heat shock protein HslJ
1641	 49.17	0	1795457..1796605	+	382	15641668	-	VC1664	-	hypothetical protein
1642	 50.09	0	1796619..1798319	+	566	15641669	-	VC1665	-	ABC transporter, permease protein, putative
1643	 48.72	0	1798285..1798947	+	220	15641670	-	VC1666	-	ABC transporter, ATP-binding protein, putative
1644	 49.28	0	1798940..1799560	+	206	15641671	-	VC1667	-	hypothetical protein
1645	 48.02	0	1799619..1800326	-	235	15641672	-	VC1668	-	pseudouridine synthase Rlu family protein
1646	 46.92	0	1800425..1801771	-	448	15641673	-	VC1669	-	sodium-dependent transporter, putative
1647	 48.93	0	1802327..1803781	+	484	15641674	cls	VC1670	-	cardiolipin synthetase
1648	 50.46	0	1803862..1805052	+	396	15641675	-	VC1671	-	cystathionine beta-lyase
1649	 48.28	0	1805139..1805720	-	193	15641676	-	VC1672	-	DNA-3-methyladenine glycosidase I
1650	 49.87	0	1805807..1808920	-	1037	15641677	-	VC1673	-	AcrB/AcrD/AcrF family transporter
1651	 49.64	0	1808898..1810007	-	369	15641678	-	VC1674	-	periplasmic linker protein, putative
1652	 51.07	0	1809979..1811010	-	343	15641679	-	VC1675	-	multidrug resistance protein, putative
1653	 52.04	+1	1811182..1811598	-	138	15641680	-	VC1676	-	phage shock protein C
1654	 49.15	0	1811564..1811797	-	77	15641681	pspB	VC1677	-	phage shock protein B
1655	 46.79	0	1811811..1812479	-	222	15641682	-	VC1678	-	phage shock protein A
1656	 50.44	0	1812689..1813705	+	338	15641683	-	VC1679	-	psp operon transcriptional activator
1657	 49.17	0	1813819..1815441	+	540	15641684	-	VC1680	-	peptide ABC transporter, periplasmic peptide-binding protein
1658	 47.98	0	1815441..1816403	+	320	15641685	-	VC1681	-	peptide ABC transporter, permease protein
1659	 48.99	0	1816390..1817277	+	295	15641686	-	VC1682	-	peptide ABC transporter, permease protein
1660	 50.00	0	1817277..1818272	+	331	15641687	-	VC1683	-	peptide ABC transporter, ATP-binding protein
1661	 49.56	0	1818269..1819057	+	262	15641688	-	VC1684	-	peptide ABC transporter, ATP-binding protein
1662	 50.84	0	1819058..1819828	+	256	15641689	-	VC1685	-	hypothetical protein
1663	 45.95	0	1819865..1820419	-	184	15641690	-	VC1686	-	hypothetical protein
1664	 48.23	0	1820389..1821294	-	301	15641691	-	VC1687	-	putative manganese-dependent inorganic pyrophosphatase
1665	 49.60	0	1821441..1822688	+	415	15641692	-	VC1688	-	hypothetical protein
1666	 49.38	0	1822752..1823312	-	186	15641693	-	VC1689	-	hypothetical protein
1667	 50.49	0	1823364..1824488	-	374	15641694	-	VC1690	-	alpha-1,6-galactosidase, putative
1668	 42.42	-1	1824544..1824642	+	32	15641695	-	VC1691	-	hypothetical protein
1669	 51.44	0	1824695..1827157	-	820	15641696	-	VC1692	-	trimethylamine-N-oxide reductase
1670	 49.54	0	1827181..1828365	-	394	15641697	-	VC1693	-	cytochrome c-type protein TorC
1671	 45.21	0	1828412..1828630	-	72	15641698	-	VC1694	-	napE protein
1672	 46.38	0	1829274..1830116	-	280	15641699	-	VC1695	-	formate transporter 1, putative
1673	 47.51	0	1830321..1830701	+	126	15641700	-	VC1696	-	DNA-binding protein inhibitor Id-2-related protein
1674	 49.46	0	1830805..1831635	+	276	15641701	-	VC1697	-	hypothetical protein
1675	 47.07	0	1831628..1832275	+	215	15641702	-	VC1698	-	hypothetical protein
1676	 44.81	0	1832408..1832677	+	89	15641703	-	VC1699	-	hypothetical protein
1677	 45.79	0	1832906..1833451	+	181	15641704	-	VC1700	-	intracellular septation protein A
1678	 48.53	0	1833589..1834029	+	146	15641705	-	VC1701	-	hypothetical protein
1679	 50.51	0	1834104..1834400	+	98	15641706	-	VC1702	-	YciI-like protein
1680	 50.00	0	1834309..1834800	+	163	15641707	-	VC1703	-	hypothetical protein
1681	 50.35	0	1835075..1837360	-	761	15641708	-	VC1704	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
1682	 48.96	0	1837614..1837709	+	31	15641709	-	VC1705	-	hypothetical protein
1683	 52.18	+1	1837756..1838673	+	305	15641710	-	VC1706	-	transcriptional activator MetR
1684	 44.61	0	1838680..1838883	-	67	15641711	-	VC1707	-	hypothetical protein
1685	 48.91	0	1838997..1839683	-	228	15641712	-	VC1708	-	hypothetical protein
1686	 48.14	0	1839907..1842675	+	922	15641713	-	VC1709	-	zinc protease
1687	 47.62	0	1842809..1845265	-	818	15641714	-	VC1710	-	hypothetical protein
1688	 50.80	0	1845545..1847914	+	789	15641715	-	VC1711	-	hypothetical protein
1689	 48.29	0	1847962..1848576	-	204	15641716	-	VC1712	-	hypothetical protein
1690	 48.87	0	1848654..1849097	+	147	15641717	-	VC1713	-	AsnC family transcriptional regulator
1691	 52.23	+1	1849179..1853654	-	1491	15641718	mukB	VC1714	-	cell division protein MukB
1692	 52.15	+1	1853651..1854394	-	247	15641719	-	VC1715	-	condesin subunit E
1693	 50.15	0	1854354..1855691	-	445	15641720	-	VC1716	-	condesin subunit F
1694	 48.40	0	1855703..1856485	-	260	15641721	-	VC1717	-	putative metallothionein SmtA
1695	 49.71	0	1856575..1857423	+	282	15641722	-	VC1718	-	hypothetical protein
1696	 47.80	0	1857523..1858227	-	234	15641723	-	VC1719	-	DNA-binding transcriptional regulator TorR
1697	 46.46	0	1858452..1859114	+	220	15641724	torD	VC1720	-	chaperone protein TorD
1698	 48.37	0	1859521..1860531	+	336	15641725	-	VC1721	-	LacI family transcription regulator
1699	 44.90	0	1860890..1861477	+	195	15641726	-	VC1722	-	hypothetical protein
1700	 47.25	0	1861832..1862521	+	229	15641727	-	VC1723	-	hypothetical protein
1701	 54.49	+1	1862555..1862866	+	103	15641728	-	VC1724	-	hypothetical protein
1702	 47.50	0	1862871..1863689	-	272	15641729	-	VC1725	-	beta-ketoadipate enol-lactone hydrolase, putative
1703	 48.80	0	1863877..1865331	-	484	15641730	glgA	VC1726	-	glycogen synthase
1704	 46.55	0	1865333..1866550	-	405	15641731	glgC	VC1727	-	glucose-1-phosphate adenylyltransferase
1705	 38.52	-2	1866682..1866816	+	44	15641732	-	VC1728	-	hypothetical protein
1706	 46.85	0	1866932..1867042	+	36	15641733	-	VC1729	-	hypothetical protein
1707	 50.32	0	1867219..1869849	-	876	15641734	-	VC1730	-	DNA topoisomerase I
1708	 38.15	-2	1870186..1870434	+	82	15641735	-	VC1731	-	hypothetical protein
1709	 50.66	0	1870525..1871805	-	426	15641736	-	VC1732	-	3-phosphoshikimate 1-carboxyvinyltransferase
1710	 43.14	-1	1871809..1872012	+	67	15641737	-	VC1733	-	hypothetical protein
1711	 42.86	-1	1871987..1872091	+	34	15641738	-	VC1734	-	hypothetical protein
1712	 50.55	0	1872072..1872803	+	243	15641739	aat	VC1735	-	leucyl/phenylalanyl-tRNA--protein transferase
1713	 46.30	0	1872807..1873508	+	233	15641740	-	VC1736	-	arginyl-tRNA-protein transferase
1714	 43.84	0	1873592..1873810	+	72	15641741	infA	VC1737	-	translation initiation factor IF-1
1715	 50.33	0	1874114..1875013	-	299	15641742	-	VC1738	-	hypothetical protein
1716	 49.16	0	1875028..1875324	-	98	15641743	-	VC1739	-	hypothetical protein
1717	 51.60	0	1875517..1877799	-	760	15641744	-	VC1740	-	acyl-CoA dehydrogenase
1718	 47.70	0	1877855..1878529	-	224	15641745	-	VC1741	-	TetR family transcriptional regulator
1719	 42.03	-1	1878784..1878921	+	45	15641746	-	VC1742	-	hypothetical protein
1720	 49.32	0	1878900..1879925	+	341	15641747	-	VC1743	-	hypothetical protein
1721	 48.58	0	1879970..1880251	+	93	15641748	-	VC1744	-	hypothetical protein
1722	 50.24	0	1880232..1881698	-	488	15641749	-	VC1745	-	succinate-semialdehyde dehydrogenase
1723	 47.78	0	1881716..1882345	-	209	15641750	-	VC1746	-	TetR family transcriptional regulator
1724	 39.56	-1	1882271..1882495	+	74	15641751	-	VC1747	-	hypothetical protein
1725	 46.91	0	1882572..1883396	+	274	15641752	-	VC1748	-	hypothetical protein
1726	 45.23	0	1883296..1884522	+	408	15641753	-	VC1749	-	hypothetical protein
1727	 44.12	0	1884533..1885654	+	373	15641754	-	VC1750	-	hypothetical protein
1728	 45.39	0	1885670..1886548	-	292	15641755	-	VC1751	-	hypothetical protein
1729	 42.86	-1	1887312..1887437	+	41	15641756	-	VC1752	-	hypothetical protein
1730	 45.21	0	1887601..1888905	+	434	15641757	-	VC1753	-	paraquat-inducible protein A
1731	 45.80	0	1888902..1890545	+	547	15641758	-	VC1754	-	paraquat-inducible protein B
1732	 48.70	0	1890542..1891120	+	192	15641759	-	VC1755	-	hypothetical protein
1733	 51.14	0	1891336..1892430	+	364	15641760	-	VC1756	-	periplasmic linker protein, putative
1734	 52.93	+1	1892430..1895480	+	1016	15641761	-	VC1757	-	AcrB/AcrD/AcrF family transporter
1735	 44.09	0	1896092..1897327	+	411	15641762	-	VC1758	-	phage family integrase
1736	 41.09	-1	1898009..1900831	-	940	15641763	-	VC1760	-	helicase, putative
1737	 40.23	-1	1900851..1901459	-	202	15641764	-	VC1761	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
