IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

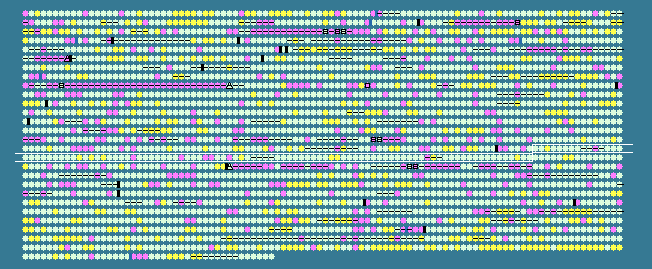

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1586	 48.55	0	1718077..1719693	-	538	15641613	-	VC1605	-	sensor kinase citA, putative
1587	 48.08	0	1720423..1721853	+	476	15641614	-	VC1606	-	hypothetical protein
1588	 51.38	0	1721865..1722839	+	324	15641615	-	VC1607	-	hypothetical protein
1589	 49.74	0	1722843..1724006	+	387	15641616	-	VC1608	-	hypothetical protein
1590	 49.14	0	1723925..1725151	+	408	15641617	-	VC1609	-	hypothetical protein
1591	 47.33	0	1725155..1725604	-	149	15641618	-	VC1610	-	hypothetical protein
1592	 48.75	0	1725652..1726611	+	319	15641619	-	VC1611	-	homoserine O-succinyltransferase
1593	 45.94	0	1726820..1727533	+	237	15641620	-	VC1612	-	fimbrial biogenesis and twitching motility protein, putative
1594	 44.00	0	1727537..1727761	-	74	15641621	-	VC1613	-	hypothetical protein
1595	 46.65	0	1727960..1729048	-	362	15641622	-	VC1614	-	putative SAM-dependent methyltransferase
1596	 43.66	0	1729045..1729557	-	170	15641623	-	VC1615	-	hypothetical protein
1597	 44.02	0	1729725..1729958	+	77	15641624	-	VC1616	-	glutaredoxin, putative
1598	 44.56	0	1729989..1730879	-	296	15641625	-	VC1617	-	LysR family transcriptional regulator
1599	 49.84	0	1730964..1732181	+	405	15641626	-	VC1618	-	multidrug resistance protein, putative
1600	 44.63	0	1732238..1732786	+	182	15641627	-	VC1619	-	hypothetical protein
1601	 46.26	0	1741764..1743101	+	445	15641628	-	VC1621	-	agglutination protein
1602	 46.64	0	1743103..1743741	+	212	15641629	-	VC1622	-	outer membrane protein, putative
1603	 45.79	0	1743877..1745040	-	387	15641630	-	VC1623	-	carboxynorspermidine decarboxylase
1604	 47.71	0	1745276..1746520	-	414	15641631	-	VC1624	-	hypothetical protein
1605	 47.52	0	1750016..1751164	-	382	15641632	nhaA	VC1627	-	pH-dependent sodium/proton antiporter
1606	 49.15	0	1751443..1752561	-	372	15641633	-	VC1628	-	hypothetical protein
1607	 48.39	0	1752562..1755072	-	836	15641634	-	VC1629	-	hypothetical protein
1608	 49.85	0	1754996..1755679	-	227	15641635	-	VC1630	-	ABC transporter, ATP-binding protein
1609	 50.47	0	1755793..1757169	-	458	15641636	-	VC1631	-	hypothetical protein
1610	 51.01	0	1757297..1758733	+	478	15641637	-	VC1632	-	hypothetical protein
1611	 46.07	0	1758800..1759537	-	245	15641638	-	VC1633	-	hypothetical protein
1612	 51.58	0	1759459..1760664	-	401	15641639	-	VC1634	-	bicyclomycin/multidrug efflux system
1613	 47.99	0	1760983..1761678	-	231	15641640	-	VC1635	-	ribosomal small subunit pseudouridine synthase A
1614	 51.32	0	1761623..1763596	+	657	15641641	-	VC1636	-	helicase-related protein
1615	 46.81	0	1763861..1764268	+	135	15641642	-	VC1637	-	hypothetical protein
1616	 49.09	0	1764280..1764939	+	219	15641643	-	VC1638	-	DNA-binding response regulator
1617	 49.39	0	1764914..1766302	+	462	15641644	-	VC1639	-	sensor histidine kinase
1618	 48.03	0	1766460..1766738	+	92	15641645	-	VC1640	-	50S ribosomal protein L25
1619	 38.50	-2	1766888..1767661	-	257	15641646	-	VC1641	-	hypothetical protein
1620	 48.01	0	1767753..1768154	-	133	15641647	-	VC1642	-	hypothetical protein
1621	 47.29	0	1768345..1770135	+	596	15641648	-	VC1643	-	methyl-accepting chemotaxis protein
1622	 47.71	0	1770467..1771711	+	414	15641649	-	VC1644	-	hypothetical protein
1623	 46.03	0	1771809..1772438	-	209	15641650	-	VC1645	-	hypothetical protein
1624	 46.08	0	1772606..1772809	-	67	15641651	-	VC1646	-	hypothetical protein
1625	 48.43	0	1772850..1774763	+	637	15641652	-	VC1647	-	hypothetical protein
1626	 50.00	0	1774727..1774822	+	31	15641653	-	VC1648	-	hypothetical protein
1627	 42.50	-1	1774844..1776490	-	548	15641654	-	VC1649	-	trypsin, putative
1628	 48.03	0	1776818..1779274	+	818	15641655	-	VC1650	-	collagenase
1629	 44.95	0	1779308..1780969	-	553	15641656	-	VC1651	-	response regulator VieB
1630	 46.89	0	1780981..1782735	-	584	15641657	-	VC1652	-	response regulator VieA
1631	 43.82	0	1782740..1786180	-	1146	15641658	-	VC1653	-	sensory box sensor histidine kinase/response regulator VieS
1632	 42.34	-1	1786522..1786632	+	36	15641659	-	VC1654	-	hypothetical protein
1633	 49.93	0	1786971..1788326	+	451	15641660	-	VC1655	-	magnesium transporter
1634	 48.73	0	1788409..1789272	-	287	15641661	-	VC1656	-	hypothetical protein
1635	 40.43	-1	1789284..1789424	+	46	15641662	-	VC1657	-	hypothetical protein
1636	 47.85	0	1789608..1790861	+	417	15641663	-	VC1658	-	serine transporter
1637	 52.00	+1	1791030..1791977	+	315	15641664	-	VC1659	-	hypothetical protein
1638	 44.59	0	1794166..1794387	+	73	15641665	-	VC1661	-	hypothetical protein
1639	 48.69	0	1794393..1794659	-	88	15641666	-	VC1662	-	hypothetical protein
1640	 47.07	0	1794806..1795249	+	147	15641667	-	VC1663	-	heat shock protein HslJ
1641	 49.17	0	1795457..1796605	+	382	15641668	-	VC1664	-	hypothetical protein
1642	 50.09	0	1796619..1798319	+	566	15641669	-	VC1665	-	ABC transporter, permease protein, putative
1643	 48.72	0	1798285..1798947	+	220	15641670	-	VC1666	-	ABC transporter, ATP-binding protein, putative
1644	 49.28	0	1798940..1799560	+	206	15641671	-	VC1667	-	hypothetical protein
1645	 48.02	0	1799619..1800326	-	235	15641672	-	VC1668	-	pseudouridine synthase Rlu family protein
1646	 46.92	0	1800425..1801771	-	448	15641673	-	VC1669	-	sodium-dependent transporter, putative
1647	 48.93	0	1802327..1803781	+	484	15641674	cls	VC1670	-	cardiolipin synthetase
1648	 50.46	0	1803862..1805052	+	396	15641675	-	VC1671	-	cystathionine beta-lyase
1649	 48.28	0	1805139..1805720	-	193	15641676	-	VC1672	-	DNA-3-methyladenine glycosidase I
1650	 49.87	0	1805807..1808920	-	1037	15641677	-	VC1673	-	AcrB/AcrD/AcrF family transporter
1651	 49.64	0	1808898..1810007	-	369	15641678	-	VC1674	-	periplasmic linker protein, putative
1652	 51.07	0	1809979..1811010	-	343	15641679	-	VC1675	-	multidrug resistance protein, putative
1653	 52.04	+1	1811182..1811598	-	138	15641680	-	VC1676	-	phage shock protein C
1654	 49.15	0	1811564..1811797	-	77	15641681	pspB	VC1677	-	phage shock protein B
1655	 46.79	0	1811811..1812479	-	222	15641682	-	VC1678	-	phage shock protein A
1656	 50.44	0	1812689..1813705	+	338	15641683	-	VC1679	-	psp operon transcriptional activator
1657	 49.17	0	1813819..1815441	+	540	15641684	-	VC1680	-	peptide ABC transporter, periplasmic peptide-binding protein
1658	 47.98	0	1815441..1816403	+	320	15641685	-	VC1681	-	peptide ABC transporter, permease protein
1659	 48.99	0	1816390..1817277	+	295	15641686	-	VC1682	-	peptide ABC transporter, permease protein
1660	 50.00	0	1817277..1818272	+	331	15641687	-	VC1683	-	peptide ABC transporter, ATP-binding protein
1661	 49.56	0	1818269..1819057	+	262	15641688	-	VC1684	-	peptide ABC transporter, ATP-binding protein
1662	 50.84	0	1819058..1819828	+	256	15641689	-	VC1685	-	hypothetical protein
1663	 45.95	0	1819865..1820419	-	184	15641690	-	VC1686	-	hypothetical protein
1664	 48.23	0	1820389..1821294	-	301	15641691	-	VC1687	-	putative manganese-dependent inorganic pyrophosphatase
1665	 49.60	0	1821441..1822688	+	415	15641692	-	VC1688	-	hypothetical protein
1666	 49.38	0	1822752..1823312	-	186	15641693	-	VC1689	-	hypothetical protein
1667	 50.49	0	1823364..1824488	-	374	15641694	-	VC1690	-	alpha-1,6-galactosidase, putative
1668	 42.42	-1	1824544..1824642	+	32	15641695	-	VC1691	-	hypothetical protein
1669	 51.44	0	1824695..1827157	-	820	15641696	-	VC1692	-	trimethylamine-N-oxide reductase
1670	 49.54	0	1827181..1828365	-	394	15641697	-	VC1693	-	cytochrome c-type protein TorC
1671	 45.21	0	1828412..1828630	-	72	15641698	-	VC1694	-	napE protein
1672	 46.38	0	1829274..1830116	-	280	15641699	-	VC1695	-	formate transporter 1, putative
1673	 47.51	0	1830321..1830701	+	126	15641700	-	VC1696	-	DNA-binding protein inhibitor Id-2-related protein
1674	 49.46	0	1830805..1831635	+	276	15641701	-	VC1697	-	hypothetical protein
1675	 47.07	0	1831628..1832275	+	215	15641702	-	VC1698	-	hypothetical protein
1676	 44.81	0	1832408..1832677	+	89	15641703	-	VC1699	-	hypothetical protein
1677	 45.79	0	1832906..1833451	+	181	15641704	-	VC1700	-	intracellular septation protein A
1678	 48.53	0	1833589..1834029	+	146	15641705	-	VC1701	-	hypothetical protein
1679	 50.51	0	1834104..1834400	+	98	15641706	-	VC1702	-	YciI-like protein
1680	 50.00	0	1834309..1834800	+	163	15641707	-	VC1703	-	hypothetical protein
1681	 50.35	0	1835075..1837360	-	761	15641708	-	VC1704	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
1682	 48.96	0	1837614..1837709	+	31	15641709	-	VC1705	-	hypothetical protein
1683	 52.18	+1	1837756..1838673	+	305	15641710	-	VC1706	-	transcriptional activator MetR
1684	 44.61	0	1838680..1838883	-	67	15641711	-	VC1707	-	hypothetical protein
1685	 48.91	0	1838997..1839683	-	228	15641712	-	VC1708	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
