IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

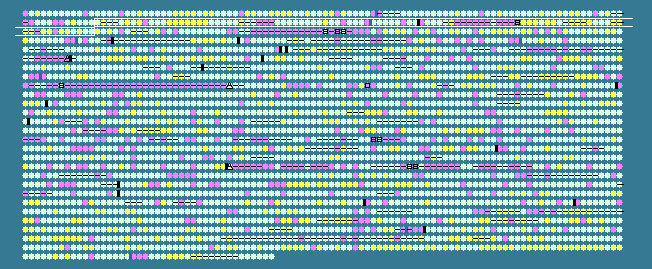

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
113	 46.94	0	108252..108920	+	222	15640145	-	VC0113	-	methyltransferase-related protein
114	 51.18	0	108920..109468	+	182	15640146	-	VC0114	-	hypothetical protein
115	 50.00	0	109475..109966	+	163	15640147	-	VC0115	-	hypothetical protein
116	 47.96	0	110051..111493	+	480	15640148	-	VC0116	-	coproporphyrinogen III oxidase
117	 50.79	0	111557..112753	-	398	15640149	-	VC0117	-	hemY protein
118	 52.00	+1	112750..113949	-	399	15640150	-	VC0118	-	uroporphyrin-III C-methyltransferase, putative
119	 50.32	0	113933..114715	-	260	15640151	hemD	VC0119	-	uroporphyrinogen-III synthase
120	 54.19	+1	114761..115714	-	317	15640152	hemC	VC0120	-	porphobilinogen deaminase
121	 39.46	-1	115891..116037	-	48	15640153	-	VC0121	-	hypothetical protein
122	 48.82	0	116053..118584	+	843	15640154	cyaA	VC0122	-	adenylate cyclase
123	 48.57	0	118690..119004	-	104	15640155	cyaY	VC0123	-	frataxin-like protein
124	 50.40	0	119229..120482	+	417	15640156	-	VC0125	-	diaminopimelate decarboxylase
125	 52.23	+1	120494..121324	+	276	161582035	dapF	VC0126	-	diaminopimelate epimerase
126	 52.50	+1	121338..122036	+	232	15640158	-	VC0127	-	hypothetical protein
127	 51.82	+1	122005..122940	+	311	15640159	xerC	VC0128	-	site-specific tyrosine recombinase XerC
128	 52.08	+1	122943..123662	+	239	15640160	-	VC0129	-	hypothetical protein
129	 52.09	+1	123772..126261	+	829	15640161	-	VC0130	-	GGDEF family protein
130	 54.77	+1	126294..126890	-	198	15640162	-	VC0131	-	hypothetical protein
131	 52.43	+1	126887..128431	-	514	15640163	-	VC0132	-	hypothetical protein
132	 47.09	0	128444..128632	+	62	15640164	-	VC0133	-	hypothetical protein
133	 47.95	0	128715..129542	-	275	15640165	-	VC0134	-	hypothetical protein
134	 47.00	0	129657..130673	-	338	15640166	-	VC0135	-	lysophospholipase L2
135	 47.90	0	130748..131365	+	205	15640167	rhtB	VC0136	-	homoserine/homoserine lactone efflux protein
136	 48.73	0	131313..132611	+	432	15640168	-	VC0137	-	hypothetical protein
137	 54.17	+1	132619..132738	-	39	15640169	-	VC0138	-	hypothetical protein
138	 46.50	0	132791..133261	-	156	15640170	-	VC0139	-	DPS family protein
139	 45.45	0	133431..133760	-	109	15640171	-	VC0140	-	hypothetical protein
140	 40.95	-1	133799..133903	+	34	15640172	-	VC0141	-	hypothetical protein
141	 43.09	-1	133965..134333	+	122	15640173	-	VC0142	-	hypothetical protein
142	 25.58	-2	134836..135093	+	85	15640174	-	VC0143	-	hypothetical protein
143	 48.57	0	135210..135839	+	209	15640175	-	VC0144	-	hypothetical protein
144	 44.57	0	135888..136154	-	88	15640176	-	VC0145	-	hypothetical protein
145	 49.83	0	136151..136750	-	199	15640177	-	VC0146	-	hypothetical protein
146	 49.66	0	136954..138129	+	391	15640178	-	VC0147	-	cell division protein FtsY
147	 50.85	0	138151..138852	+	233	15640179	-	VC0148	-	cell division ATP-binding protein FtsE
148	 48.74	0	138842..139834	+	330	15640180	-	VC0149	-	cell division protein FtsX
149	 49.94	0	140004..140864	+	286	15640181	-	VC0150	-	RNA polymerase factor sigma-32
150	 49.32	0	141066..142466	-	466	15640182	-	VC0151	-	soluble pyridine nucleotide transhydrogenase
151	 51.87	+1	142774..143415	+	213	15640183	-	VC0152	-	DNA-binding transcriptional repressor FabR
152	 48.12	0	143455..143826	+	123	15640184	-	VC0153	-	hypothetical protein
153	 47.84	0	143863..144972	-	369	15640185	-	VC0154	-	tRNA (uracil-5-)-methyltransferase
154	 43.25	0	145370..147205	+	611	15640186	-	VC0156	-	vitamin B12 receptor
155	 46.64	0	147278..148885	-	535	15640187	-	VC0157	-	alkaline serine protease
156	 47.62	0	149278..150075	+	265	15640188	-	VC0158	-	glutamate racemase
157	 44.44	0	150041..150499	-	152	15640189	-	VC0159	-	RNA-binding protein
158	 35.00	-2	150905..151024	+	39	15640190	-	VC0160	-	hypothetical protein
159	 48.16	0	156407..157303	-	298	15640191	-	VC0161	-	DNA-binding transcriptional regulator IlvY
160	 47.61	0	157441..158925	+	494	15640192	-	VC0162	-	ketol-acid reductoisomerase
161	 46.03	0	159052..159303	-	83	15640193	-	VC0163	-	hypothetical protein
162	 50.05	0	159419..162529	-	1036	15640194	-	VC0164	-	multidrug resistance protein, putative
163	 47.15	0	162541..163647	-	368	15640195	-	VC0165	-	hypothetical protein
164	 42.38	-1	163666..164262	-	198	15640196	-	VC0166	-	TetR family transcriptional regulator
165	 48.76	0	164408..166423	+	671	15640197	-	VC0167	-	ATP-dependent DNA helicase Rep
166	 50.25	0	166490..166897	-	135	15640198	-	VC0168	-	cytochrome c5
167	 30.36	-2	168232..168399	-	55	15640199	-	VC0169	-	hypothetical protein
168	 50.29	0	168532..170247	+	571	15640200	-	VC0170	-	peptide ABC transporter, ATP-binding protein
169	 47.70	0	170267..171895	+	542	15640201	-	VC0171	-	peptide ABC transporter, periplasmic peptide-binding protein
170	 50.15	0	171999..173027	+	342	15640202	-	VC0172	-	peptide ABC transporter, permease protein
171	 50.69	0	173030..173968	+	312	15640203	-	VC0173	-	peptide ABC transporter, permease protein
172	 52.00	+1	174143..175090	+	315	15640204	-	VC0174	-	hypothetical protein
173	 36.90	-2	175343..176941	-	532	15640205	-	VC0175	-	deoxycytidylate deaminase-related protein
174	 39.16	-1	177450..177758	-	102	15640206	-	VC0176	-	transcriptional regulator, putative
175	 37.77	-2	177861..178424	+	187	15640207	-	VC0177	-	hypothetical protein
176	 42.51	-1	179338..180405	+	355	15640208	-	VC0178	-	patatin-related protein
177	 41.80	-1	180419..181729	+	436	15640209	-	VC0179	-	hypothetical protein
178	 43.53	0	181732..183486	+	584	15640210	-	VC0180	-	hypothetical protein
179	 45.65	0	183476..183946	+	156	15640211	-	VC0181	-	hypothetical protein
180	 37.27	-2	183957..184388	-	143	15640212	-	VC0182	-	hypothetical protein
181	 37.55	-2	184360..186471	-	703	15640213	-	VC0183	-	hypothetical protein
182	 39.61	-1	186481..188169	-	562	15640214	-	VC0184	-	hypothetical protein
183	 36.95	-2	188166..189380	-	404	15640215	-	VC0185	-	transposase, putative
184	 52.16	+1	189457..190821	-	454	15640216	-	VC0186	-	glutathione reductase
185	 51.19	0	190915..191754	-	279	15640217	-	VC0187	-	hypothetical protein
186	 52.13	+1	192034..194076	+	680	15640218	-	VC0188	-	oligopeptidase A
187	 48.48	0	194101..194199	+	32	15640219	-	VC0189	-	hypothetical protein
188	 53.08	+1	194214..196385	+	723	15640220	uvrD	VC0190	-	DNA-dependent helicase II
189	 51.42	0	197130..197798	-	222	15640221	-	VC0191	-	hypothetical protein
190	 50.06	0	197873..198685	-	270	15640222	-	VC0192	-	AraC/XylS family transcriptional regulator
191	 46.88	0	198722..198817	-	31	15640223	-	VC0193	-	hypothetical protein
192	 55.29	+1	198833..200599	-	588	15640224	-	VC0194	-	gamma-glutamyltranspeptidase
193	 52.26	+1	200761..201669	-	302	15640225	-	VC0195	-	rarD protein
194	 52.89	+1	201830..203665	+	611	161582034	-	VC0196	-	ATP-dependent DNA helicase RecQ
195	 52.67	+1	203658..203957	+	99	15640227	-	VC0197	-	gene 3 protein-related protein
196	 50.00	0	204113..204490	+	125	15640228	-	VC0198	-	hypothetical protein
197	 50.71	0	204526..206361	-	611	15640229	-	VC0199	-	hemolysin secretion ATP-binding protein, putative
198	 49.56	0	206433..208589	+	718	15640230	-	VC0200	-	iron(III) compound receptor
199	 52.33	+1	208648..209505	+	285	15640231	-	VC0201	-	iron(III) ABC transporter, ATP-binding protein
200	 53.54	+1	209496..210455	+	319	15640232	-	VC0202	-	iron(III) ABC transporter, periplasmic iron-compound-binding protein
201	 56.01	+2	210452..212413	+	653	15640233	-	VC0203	-	iron-hydroxamate transporter permease subunit
202	 53.36	+1	212440..213288	-	282	15640234	-	VC0204	-	hypothetical protein
203	 35.94	-2	213331..213522	+	63	15640235	-	VC0205	-	hypothetical protein
204	 53.70	+1	213504..214421	+	305	15640236	murQ	VC0206	-	N-acetylmuramic acid-6-phosphate etherase
205	 51.90	+1	214449..215897	+	482	15640237	murP	VC0207	-	N-acetylmuramic acid phosphotransfer permease
206	 43.35	0	216004..216492	-	162	15640238	-	VC0208	-	hypothetical protein
207	 52.13	+1	216558..217424	-	288	15640239	-	VC0209	-	hypothetical protein
208	 52.72	+1	217588..218304	+	238	161582033	rph	VC0210	-	ribonuclease PH
209	 48.13	0	218670..219311	+	213	161582032	pyrE	VC0211	-	orotate phosphoribosyltransferase
210	 52.76	+1	219397..220374	-	325	15640242	-	VC0212	-	lipid A biosynthesis (KDO)2-(lauroyl)-lipid IVA acyltransferase
211	 49.53	0	220385..221341	-	318	15640243	-	VC0213	-	lipid A biosynthesis lauroyl acyltransferase
212	 48.05	0	221338..221928	-	196	161582031	slmA	VC0214	-	nucleoid occlusion protein
47.43	MEAN

4.26	STD DEV
