IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

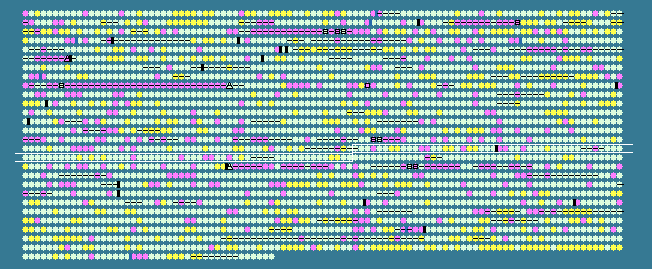

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1556	 47.49	0	1686477..1686935	-	152	15641583	-	VC1575	-	hypothetical protein
1557	 44.34	0	1686965..1687282	-	105	15641584	-	VC1576	-	hypothetical protein
1558	 47.20	0	1687438..1688259	-	273	15641585	-	VC1577	-	hypothetical protein
1559	 35.86	-2	1688261..1688497	-	78	15641586	-	VC1578	-	hypothetical protein
1560	 45.72	0	1688481..1690151	-	556	15641587	-	VC1579	-	enterobactin synthetase component F-related protein
1561	 48.57	0	1690215..1691126	-	303	15641588	-	VC1580	-	LysR family transcriptional regulator
1562	 52.68	+1	1691206..1692756	+	516	15641589	-	VC1581	-	NADH dehydrogenase subunit L
1563	 54.07	+1	1692681..1695269	+	862	15641590	-	VC1582	-	hypothetical protein
1564	 50.78	0	1695314..1695829	-	171	15641591	-	VC1583	-	superoxide dismutase, Cu-Zn
1565	 46.56	0	1695869..1696435	-	188	15641592	-	VC1584	-	ankB protein
1566	 44.84	0	1696499..1698202	-	567	15641593	-	VC1585	-	catalase
1567	 38.24	-2	1698376..1698477	-	33	15641594	-	VC1586	-	hypothetical protein
1568	 39.68	-1	1698457..1698897	+	146	15641595	-	VC1587	-	hypothetical protein
1569	 48.07	0	1699073..1699954	-	293	15641596	-	VC1588	-	LysR family transcriptional regulator
1570	 48.85	0	1700060..1700845	+	261	15641597	-	VC1589	-	alpha-acetolactate decarboxylase
1571	 52.11	+1	1700984..1702687	+	567	15641598	-	VC1590	-	acetolactate synthase
1572	 52.17	+1	1702684..1703442	+	252	15641599	-	VC1591	-	short chain dehydrogenase/reductase family oxidoreductase
1573	 45.73	0	1703680..1704534	+	284	15641600	-	VC1592	-	hypothetical protein
1574	 42.79	-1	1704617..1705906	+	429	15641601	-	VC1593	-	GGDEF family protein
1575	 51.45	0	1705924..1706955	-	343	161582003	galM	VC1594	-	aldose 1-epimerase
1576	 51.97	+1	1706985..1708202	-	405	15641603	-	VC1595	-	galactokinase
1577	 49.20	0	1708211..1709275	-	354	161582002	-	VC1596	-	galactose-1-phosphate uridylyltransferase
1578	 49.02	0	1709719..1711152	-	477	15641605	-	VC1597	-	multidrug transporter, putative
1579	 45.58	0	1711301..1712125	+	274	15641606	-	VC1598	-	ABC transporter, periplasmic substrate-binding protein-related protein
1580	 42.66	-1	1712741..1713802	+	353	15641607	-	VC1599	-	GGDEF family protein
1581	 42.75	-1	1713805..1714494	-	229	15641608	-	VC1600	-	hypothetical protein
1582	 44.15	0	1714609..1715412	-	267	15641609	-	VC1601	-	hypothetical protein
1583	 45.19	0	1715544..1716530	-	328	15641610	-	VC1602	-	chemotaxis protein CheV
1584	 43.50	0	1716549..1717325	-	258	15641611	-	VC1603	-	hypothetical protein
1585	 49.20	0	1717391..1718077	-	228	15641612	-	VC1604	-	response regulator
1586	 48.55	0	1718077..1719693	-	538	15641613	-	VC1605	-	sensor kinase citA, putative
1587	 48.08	0	1720423..1721853	+	476	15641614	-	VC1606	-	hypothetical protein
1588	 51.38	0	1721865..1722839	+	324	15641615	-	VC1607	-	hypothetical protein
1589	 49.74	0	1722843..1724006	+	387	15641616	-	VC1608	-	hypothetical protein
1590	 49.14	0	1723925..1725151	+	408	15641617	-	VC1609	-	hypothetical protein
1591	 47.33	0	1725155..1725604	-	149	15641618	-	VC1610	-	hypothetical protein
1592	 48.75	0	1725652..1726611	+	319	15641619	-	VC1611	-	homoserine O-succinyltransferase
1593	 45.94	0	1726820..1727533	+	237	15641620	-	VC1612	-	fimbrial biogenesis and twitching motility protein, putative
1594	 44.00	0	1727537..1727761	-	74	15641621	-	VC1613	-	hypothetical protein
1595	 46.65	0	1727960..1729048	-	362	15641622	-	VC1614	-	putative SAM-dependent methyltransferase
1596	 43.66	0	1729045..1729557	-	170	15641623	-	VC1615	-	hypothetical protein
1597	 44.02	0	1729725..1729958	+	77	15641624	-	VC1616	-	glutaredoxin, putative
1598	 44.56	0	1729989..1730879	-	296	15641625	-	VC1617	-	LysR family transcriptional regulator
1599	 49.84	0	1730964..1732181	+	405	15641626	-	VC1618	-	multidrug resistance protein, putative
1600	 44.63	0	1732238..1732786	+	182	15641627	-	VC1619	-	hypothetical protein
1601	 46.26	0	1741764..1743101	+	445	15641628	-	VC1621	-	agglutination protein
1602	 46.64	0	1743103..1743741	+	212	15641629	-	VC1622	-	outer membrane protein, putative
1603	 45.79	0	1743877..1745040	-	387	15641630	-	VC1623	-	carboxynorspermidine decarboxylase
1604	 47.71	0	1745276..1746520	-	414	15641631	-	VC1624	-	hypothetical protein
1605	 47.52	0	1750016..1751164	-	382	15641632	nhaA	VC1627	-	pH-dependent sodium/proton antiporter
1606	 49.15	0	1751443..1752561	-	372	15641633	-	VC1628	-	hypothetical protein
1607	 48.39	0	1752562..1755072	-	836	15641634	-	VC1629	-	hypothetical protein
1608	 49.85	0	1754996..1755679	-	227	15641635	-	VC1630	-	ABC transporter, ATP-binding protein
1609	 50.47	0	1755793..1757169	-	458	15641636	-	VC1631	-	hypothetical protein
1610	 51.01	0	1757297..1758733	+	478	15641637	-	VC1632	-	hypothetical protein
1611	 46.07	0	1758800..1759537	-	245	15641638	-	VC1633	-	hypothetical protein
1612	 51.58	0	1759459..1760664	-	401	15641639	-	VC1634	-	bicyclomycin/multidrug efflux system
1613	 47.99	0	1760983..1761678	-	231	15641640	-	VC1635	-	ribosomal small subunit pseudouridine synthase A
1614	 51.32	0	1761623..1763596	+	657	15641641	-	VC1636	-	helicase-related protein
1615	 46.81	0	1763861..1764268	+	135	15641642	-	VC1637	-	hypothetical protein
1616	 49.09	0	1764280..1764939	+	219	15641643	-	VC1638	-	DNA-binding response regulator
1617	 49.39	0	1764914..1766302	+	462	15641644	-	VC1639	-	sensor histidine kinase
1618	 48.03	0	1766460..1766738	+	92	15641645	-	VC1640	-	50S ribosomal protein L25
1619	 38.50	-2	1766888..1767661	-	257	15641646	-	VC1641	-	hypothetical protein
1620	 48.01	0	1767753..1768154	-	133	15641647	-	VC1642	-	hypothetical protein
1621	 47.29	0	1768345..1770135	+	596	15641648	-	VC1643	-	methyl-accepting chemotaxis protein
1622	 47.71	0	1770467..1771711	+	414	15641649	-	VC1644	-	hypothetical protein
1623	 46.03	0	1771809..1772438	-	209	15641650	-	VC1645	-	hypothetical protein
1624	 46.08	0	1772606..1772809	-	67	15641651	-	VC1646	-	hypothetical protein
1625	 48.43	0	1772850..1774763	+	637	15641652	-	VC1647	-	hypothetical protein
1626	 50.00	0	1774727..1774822	+	31	15641653	-	VC1648	-	hypothetical protein
1627	 42.50	-1	1774844..1776490	-	548	15641654	-	VC1649	-	trypsin, putative
1628	 48.03	0	1776818..1779274	+	818	15641655	-	VC1650	-	collagenase
1629	 44.95	0	1779308..1780969	-	553	15641656	-	VC1651	-	response regulator VieB
1630	 46.89	0	1780981..1782735	-	584	15641657	-	VC1652	-	response regulator VieA
1631	 43.82	0	1782740..1786180	-	1146	15641658	-	VC1653	-	sensory box sensor histidine kinase/response regulator VieS
1632	 42.34	-1	1786522..1786632	+	36	15641659	-	VC1654	-	hypothetical protein
1633	 49.93	0	1786971..1788326	+	451	15641660	-	VC1655	-	magnesium transporter
1634	 48.73	0	1788409..1789272	-	287	15641661	-	VC1656	-	hypothetical protein
1635	 40.43	-1	1789284..1789424	+	46	15641662	-	VC1657	-	hypothetical protein
1636	 47.85	0	1789608..1790861	+	417	15641663	-	VC1658	-	serine transporter
1637	 52.00	+1	1791030..1791977	+	315	15641664	-	VC1659	-	hypothetical protein
1638	 44.59	0	1794166..1794387	+	73	15641665	-	VC1661	-	hypothetical protein
1639	 48.69	0	1794393..1794659	-	88	15641666	-	VC1662	-	hypothetical protein
1640	 47.07	0	1794806..1795249	+	147	15641667	-	VC1663	-	heat shock protein HslJ
1641	 49.17	0	1795457..1796605	+	382	15641668	-	VC1664	-	hypothetical protein
1642	 50.09	0	1796619..1798319	+	566	15641669	-	VC1665	-	ABC transporter, permease protein, putative
1643	 48.72	0	1798285..1798947	+	220	15641670	-	VC1666	-	ABC transporter, ATP-binding protein, putative
1644	 49.28	0	1798940..1799560	+	206	15641671	-	VC1667	-	hypothetical protein
1645	 48.02	0	1799619..1800326	-	235	15641672	-	VC1668	-	pseudouridine synthase Rlu family protein
1646	 46.92	0	1800425..1801771	-	448	15641673	-	VC1669	-	sodium-dependent transporter, putative
1647	 48.93	0	1802327..1803781	+	484	15641674	cls	VC1670	-	cardiolipin synthetase
1648	 50.46	0	1803862..1805052	+	396	15641675	-	VC1671	-	cystathionine beta-lyase
1649	 48.28	0	1805139..1805720	-	193	15641676	-	VC1672	-	DNA-3-methyladenine glycosidase I
1650	 49.87	0	1805807..1808920	-	1037	15641677	-	VC1673	-	AcrB/AcrD/AcrF family transporter
1651	 49.64	0	1808898..1810007	-	369	15641678	-	VC1674	-	periplasmic linker protein, putative
1652	 51.07	0	1809979..1811010	-	343	15641679	-	VC1675	-	multidrug resistance protein, putative
1653	 52.04	+1	1811182..1811598	-	138	15641680	-	VC1676	-	phage shock protein C
1654	 49.15	0	1811564..1811797	-	77	15641681	pspB	VC1677	-	phage shock protein B
1655	 46.79	0	1811811..1812479	-	222	15641682	-	VC1678	-	phage shock protein A
47.43	MEAN

4.26	STD DEV
