IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

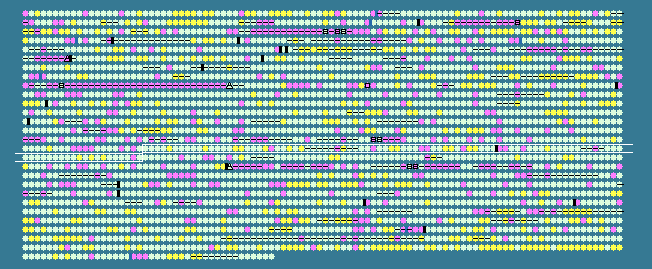

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1521	 49.13	0	1652340..1653713	+	457	161582004	-	VC1540	-	multidrug efflux protein
1522	 47.76	0	1653917..1654900	+	327	15641549	-	VC1541	-	hypothetical protein
1523	 49.82	0	1654907..1655755	-	282	15641550	-	VC1542	-	DNA ligase
1524	 48.35	0	1656062..1657240	-	392	15641551	-	VC1543	-	hypothetical protein
1525	 52.01	+1	1657237..1657857	-	206	15641552	-	VC1544	-	tonB2 protein
1526	 50.12	0	1657857..1658261	-	134	15641553	-	VC1545	-	TonB system transport protein ExbD2
1527	 49.72	0	1658258..1658800	-	180	15641554	-	VC1546	-	TonB system transport protein ExbB2
1528	 50.87	0	1658807..1660180	-	457	15641555	-	VC1547	-	biopolymer transport protein ExbB-related protein
1529	 48.48	0	1660180..1660938	-	252	15641556	-	VC1548	-	hypothetical protein
1530	 48.35	0	1661257..1662561	+	434	15641557	-	VC1549	-	glycerol-3-phosphate ABC transporter, periplasmic glycerol-3-phosphate-binding protein
1531	 51.02	0	1662637..1663518	+	293	15641558	-	VC1550	-	glycerol-3-phosphate ABC transporter, permease protein
1532	 46.50	0	1663528..1664370	+	280	15641559	-	VC1551	-	glycerol-3-phosphate ABC transporter, permease protein
1533	 49.75	0	1664360..1665541	+	393	15641560	-	VC1552	-	glycerol-3-phosphate transporter ATP-binding subunit
1534	 48.82	0	1665566..1666327	+	253	15641561	-	VC1553	-	glycerol-3-phosphate regulon repressor
1535	 47.90	0	1666355..1667068	+	237	15641562	-	VC1554	-	glycerophosphoryl diester phosphodiesterase, putative
1536	 51.27	0	1667144..1667656	-	170	15641563	-	VC1555	-	hypothetical protein
1537	 52.07	+1	1667625..1667987	-	120	15641564	-	VC1556	-	hypothetical protein
1538	 48.50	0	1668122..1669156	-	344	15641565	-	VC1557	-	LacI family transcription regulator
1539	 47.32	0	1669192..1670628	-	478	15641566	-	VC1558	-	6-phospho-beta-glucosidase
1540	 48.04	0	1670919..1671020	+	33	15641567	-	VC1559	-	hypothetical protein
1541	 51.13	0	1671041..1673215	+	724	15641568	-	VC1560	-	catalase/peroxidase
1542	 43.12	-1	1673280..1674209	-	309	15641569	-	VC1561	-	LysR family transcriptional regulator
1543	 44.25	0	1674273..1675445	+	390	15641570	-	VC1562	-	beta-lactamase-related protein
1544	 47.39	0	1675595..1676611	+	338	15641571	-	VC1563	-	hypothetical protein
1545	 51.22	0	1676602..1676724	+	40	15641572	-	VC1564	-	hypothetical protein
1546	 49.05	0	1676745..1678004	+	419	15641573	-	VC1565	-	outer membrane protein TolC, putative
1547	 50.95	0	1678004..1679218	+	404	15641574	-	VC1566	-	hypothetical protein
1548	 50.70	0	1679222..1680499	+	425	15641575	-	VC1567	-	hypothetical protein
1549	 50.00	0	1680499..1681200	+	233	15641576	-	VC1568	-	ABC transporter, ATP-binding protein
1550	 50.00	0	1681166..1681267	+	33	15641577	-	VC1569	-	hypothetical protein
1551	 50.65	0	1681274..1682266	-	330	15641578	-	VC1570	-	quinol oxidase, subunit II
1552	 50.75	0	1682263..1683600	-	445	15641579	-	VC1571	-	quinol oxidase, subunit I
1553	 43.57	0	1684123..1684503	+	126	15641580	-	VC1572	-	hypothetical protein
1554	 51.44	0	1684519..1685904	+	461	15641581	fumC	VC1573	-	fumarate hydratase
1555	 44.79	0	1686049..1686432	-	127	15641582	-	VC1574	-	hypothetical protein
1556	 47.49	0	1686477..1686935	-	152	15641583	-	VC1575	-	hypothetical protein
1557	 44.34	0	1686965..1687282	-	105	15641584	-	VC1576	-	hypothetical protein
1558	 47.20	0	1687438..1688259	-	273	15641585	-	VC1577	-	hypothetical protein
1559	 35.86	-2	1688261..1688497	-	78	15641586	-	VC1578	-	hypothetical protein
1560	 45.72	0	1688481..1690151	-	556	15641587	-	VC1579	-	enterobactin synthetase component F-related protein
1561	 48.57	0	1690215..1691126	-	303	15641588	-	VC1580	-	LysR family transcriptional regulator
1562	 52.68	+1	1691206..1692756	+	516	15641589	-	VC1581	-	NADH dehydrogenase subunit L
1563	 54.07	+1	1692681..1695269	+	862	15641590	-	VC1582	-	hypothetical protein
1564	 50.78	0	1695314..1695829	-	171	15641591	-	VC1583	-	superoxide dismutase, Cu-Zn
1565	 46.56	0	1695869..1696435	-	188	15641592	-	VC1584	-	ankB protein
1566	 44.84	0	1696499..1698202	-	567	15641593	-	VC1585	-	catalase
1567	 38.24	-2	1698376..1698477	-	33	15641594	-	VC1586	-	hypothetical protein
1568	 39.68	-1	1698457..1698897	+	146	15641595	-	VC1587	-	hypothetical protein
1569	 48.07	0	1699073..1699954	-	293	15641596	-	VC1588	-	LysR family transcriptional regulator
1570	 48.85	0	1700060..1700845	+	261	15641597	-	VC1589	-	alpha-acetolactate decarboxylase
1571	 52.11	+1	1700984..1702687	+	567	15641598	-	VC1590	-	acetolactate synthase
1572	 52.17	+1	1702684..1703442	+	252	15641599	-	VC1591	-	short chain dehydrogenase/reductase family oxidoreductase
1573	 45.73	0	1703680..1704534	+	284	15641600	-	VC1592	-	hypothetical protein
1574	 42.79	-1	1704617..1705906	+	429	15641601	-	VC1593	-	GGDEF family protein
1575	 51.45	0	1705924..1706955	-	343	161582003	galM	VC1594	-	aldose 1-epimerase
1576	 51.97	+1	1706985..1708202	-	405	15641603	-	VC1595	-	galactokinase
1577	 49.20	0	1708211..1709275	-	354	161582002	-	VC1596	-	galactose-1-phosphate uridylyltransferase
1578	 49.02	0	1709719..1711152	-	477	15641605	-	VC1597	-	multidrug transporter, putative
1579	 45.58	0	1711301..1712125	+	274	15641606	-	VC1598	-	ABC transporter, periplasmic substrate-binding protein-related protein
1580	 42.66	-1	1712741..1713802	+	353	15641607	-	VC1599	-	GGDEF family protein
1581	 42.75	-1	1713805..1714494	-	229	15641608	-	VC1600	-	hypothetical protein
1582	 44.15	0	1714609..1715412	-	267	15641609	-	VC1601	-	hypothetical protein
1583	 45.19	0	1715544..1716530	-	328	15641610	-	VC1602	-	chemotaxis protein CheV
1584	 43.50	0	1716549..1717325	-	258	15641611	-	VC1603	-	hypothetical protein
1585	 49.20	0	1717391..1718077	-	228	15641612	-	VC1604	-	response regulator
1586	 48.55	0	1718077..1719693	-	538	15641613	-	VC1605	-	sensor kinase citA, putative
1587	 48.08	0	1720423..1721853	+	476	15641614	-	VC1606	-	hypothetical protein
1588	 51.38	0	1721865..1722839	+	324	15641615	-	VC1607	-	hypothetical protein
1589	 49.74	0	1722843..1724006	+	387	15641616	-	VC1608	-	hypothetical protein
1590	 49.14	0	1723925..1725151	+	408	15641617	-	VC1609	-	hypothetical protein
1591	 47.33	0	1725155..1725604	-	149	15641618	-	VC1610	-	hypothetical protein
1592	 48.75	0	1725652..1726611	+	319	15641619	-	VC1611	-	homoserine O-succinyltransferase
1593	 45.94	0	1726820..1727533	+	237	15641620	-	VC1612	-	fimbrial biogenesis and twitching motility protein, putative
1594	 44.00	0	1727537..1727761	-	74	15641621	-	VC1613	-	hypothetical protein
1595	 46.65	0	1727960..1729048	-	362	15641622	-	VC1614	-	putative SAM-dependent methyltransferase
1596	 43.66	0	1729045..1729557	-	170	15641623	-	VC1615	-	hypothetical protein
1597	 44.02	0	1729725..1729958	+	77	15641624	-	VC1616	-	glutaredoxin, putative
1598	 44.56	0	1729989..1730879	-	296	15641625	-	VC1617	-	LysR family transcriptional regulator
1599	 49.84	0	1730964..1732181	+	405	15641626	-	VC1618	-	multidrug resistance protein, putative
1600	 44.63	0	1732238..1732786	+	182	15641627	-	VC1619	-	hypothetical protein
1601	 46.26	0	1741764..1743101	+	445	15641628	-	VC1621	-	agglutination protein
1602	 46.64	0	1743103..1743741	+	212	15641629	-	VC1622	-	outer membrane protein, putative
1603	 45.79	0	1743877..1745040	-	387	15641630	-	VC1623	-	carboxynorspermidine decarboxylase
1604	 47.71	0	1745276..1746520	-	414	15641631	-	VC1624	-	hypothetical protein
1605	 47.52	0	1750016..1751164	-	382	15641632	nhaA	VC1627	-	pH-dependent sodium/proton antiporter
1606	 49.15	0	1751443..1752561	-	372	15641633	-	VC1628	-	hypothetical protein
1607	 48.39	0	1752562..1755072	-	836	15641634	-	VC1629	-	hypothetical protein
1608	 49.85	0	1754996..1755679	-	227	15641635	-	VC1630	-	ABC transporter, ATP-binding protein
1609	 50.47	0	1755793..1757169	-	458	15641636	-	VC1631	-	hypothetical protein
1610	 51.01	0	1757297..1758733	+	478	15641637	-	VC1632	-	hypothetical protein
1611	 46.07	0	1758800..1759537	-	245	15641638	-	VC1633	-	hypothetical protein
1612	 51.58	0	1759459..1760664	-	401	15641639	-	VC1634	-	bicyclomycin/multidrug efflux system
1613	 47.99	0	1760983..1761678	-	231	15641640	-	VC1635	-	ribosomal small subunit pseudouridine synthase A
1614	 51.32	0	1761623..1763596	+	657	15641641	-	VC1636	-	helicase-related protein
1615	 46.81	0	1763861..1764268	+	135	15641642	-	VC1637	-	hypothetical protein
1616	 49.09	0	1764280..1764939	+	219	15641643	-	VC1638	-	DNA-binding response regulator
1617	 49.39	0	1764914..1766302	+	462	15641644	-	VC1639	-	sensor histidine kinase
1618	 48.03	0	1766460..1766738	+	92	15641645	-	VC1640	-	50S ribosomal protein L25
1619	 38.50	-2	1766888..1767661	-	257	15641646	-	VC1641	-	hypothetical protein
1620	 48.01	0	1767753..1768154	-	133	15641647	-	VC1642	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
