IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

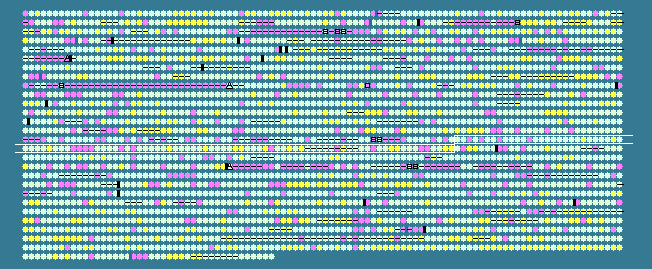

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1473	 45.40	0	1596497..1597507	-	336	15641500	-	VC1491	-	dihydroorotate dehydrogenase 2
1474	 46.80	0	1597581..1602422	-	1613	15641501	-	VC1492	-	hypothetical protein
1475	 38.82	-2	1602611..1602847	-	78	15641502	-	VC1493	-	hypothetical protein
1476	 47.76	0	1602881..1605487	-	868	15641503	-	VC1494	-	aminopeptidase N
1477	 43.38	0	1605686..1606402	-	238	15641504	-	VC1495	-	hypothetical protein
1478	 44.24	0	1606511..1608508	-	665	15641505	-	VC1496	-	carboxy-terminal protease
1479	 46.89	0	1608526..1609152	-	208	15641506	-	VC1497	-	putative solute/DNA competence effector
1480	 43.70	0	1609253..1609831	-	192	15641507	-	VC1498	-	hypothetical protein
1481	 46.48	0	1609776..1611608	+	610	15641508	-	VC1499	-	ABC transporter, ATP-binding protein
1482	 48.17	0	1611642..1612901	+	419	15641509	-	VC1500	-	PqiA family protein
1483	 49.05	0	1612911..1615550	+	879	15641510	-	VC1501	-	hypothetical protein
1484	 48.74	0	1615581..1617092	+	503	15641511	yebU	VC1502	-	rRNA (cytosine-C(5)-)-methyltransferase RsmF
1485	 43.92	0	1617274..1618170	-	298	15641512	-	VC1503	-	hypothetical protein
1486	 47.76	0	1618209..1618700	+	163	15641513	-	VC1504	-	hypothetical protein
1487	 45.88	0	1618697..1619557	+	286	15641514	-	VC1505	-	hypothetical protein
1488	 47.80	0	1619550..1620026	-	158	15641515	-	VC1506	-	hypothetical protein
1489	 48.06	0	1620176..1621363	+	395	15641516	-	VC1507	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1490	 47.00	0	1621375..1621857	+	160	15641517	-	VC1508	-	nucleotide-binding protein
1491	 50.77	0	1621992..1622771	-	259	15641518	-	VC1509	-	NAD-dependent deacetylase
1492	 47.99	0	1622869..1623291	-	140	15641519	-	VC1510	-	hypothetical protein
1493	 49.53	0	1623278..1624351	-	357	15641520	-	VC1511	-	formate dehydrogenase, cytochrome B556 subunit
1494	 53.04	+1	1624352..1624960	-	202	15641521	-	VC1512	-	formate dehydrogenase, iron-sulfur subunit
1495	 48.99	0	1627838..1628035	-	65	15641522	-	VC1514	-	hypothetical protein
1496	 50.23	0	1628113..1628769	-	218	15641523	-	VC1515	-	chaperone, formate dehydrogenase-specific, putative
1497	 50.30	0	1628795..1630456	-	553	15641524	-	VC1516	-	iron-sulfur cluster-binding protein
1498	 48.65	0	1630655..1631320	-	221	15641525	-	VC1517	-	hypothetical protein
1499	 53.25	+1	1631247..1631723	-	158	15641526	-	VC1518	-	hypothetical protein
1500	 48.92	0	1631768..1632781	+	337	15641527	-	VC1519	-	formate dehydrogenase accessory protein
1501	 48.84	0	1632888..1634480	-	530	15641528	-	VC1520	-	ABC transporter, ATP-binding protein
1502	 47.64	0	1634692..1636725	-	677	15641529	-	VC1521	-	sensor histidine kinase
1503	 50.79	0	1636715..1638169	-	484	15641530	-	VC1522	-	sigma-54 dependent response regulator
1504	 46.62	0	1638461..1639288	+	275	15641531	-	VC1523	-	hypothetical protein
1505	 51.65	0	1639295..1639993	+	232	15641532	-	VC1524	-	ABC transporter, permease protein
1506	 48.96	0	1640002..1640724	+	240	15641533	-	VC1525	-	ABC transporter, ATP-binding protein
1507	 48.69	0	1640678..1641289	+	203	15641534	mobA	VC1526	-	molybdopterin-guanine dinucleotide biosynthesis protein A
1508	 50.36	0	1641286..1643106	+	606	15641535	-	VC1527	-	molybdopterin biosynthesis MoeA protein
1509	 39.90	-1	1643196..1643576	-	126	15641536	-	VC1528	-	hypothetical protein
1510	 39.91	-1	1643549..1643974	-	141	15641537	-	VC1529	-	hypothetical protein
1511	 38.89	-2	1643985..1644146	-	53	15641538	-	VC1530	-	hypothetical protein
1512	 42.39	-1	1644190..1644465	+	91	15641539	-	VC1531	-	hypothetical protein
1513	 49.72	0	1644672..1645580	-	302	15641540	-	VC1532	-	N-acetyl-D-glucosamine kinase
1514	 47.29	0	1645743..1646480	-	245	15641541	-	VC1533	-	hypothetical protein
1515	 48.42	0	1646457..1647371	+	304	15641542	-	VC1534	-	hypothetical protein
1516	 48.71	0	1647373..1648965	-	530	15641543	-	VC1535	-	methyl-accepting chemotaxis protein
1517	 43.61	0	1648958..1649395	-	145	15641544	-	VC1536	-	hypothetical protein
1518	 46.11	0	1649484..1649984	+	166	15641545	-	VC1537	-	lipoprotein NlpC
1519	 43.29	0	1649994..1650425	-	143	15641546	-	VC1538	-	hypothetical protein
1520	 44.87	0	1650858..1651724	+	288	15641547	-	VC1539	-	hypothetical protein
1521	 49.13	0	1652340..1653713	+	457	161582004	-	VC1540	-	multidrug efflux protein
1522	 47.76	0	1653917..1654900	+	327	15641549	-	VC1541	-	hypothetical protein
1523	 49.82	0	1654907..1655755	-	282	15641550	-	VC1542	-	DNA ligase
1524	 48.35	0	1656062..1657240	-	392	15641551	-	VC1543	-	hypothetical protein
1525	 52.01	+1	1657237..1657857	-	206	15641552	-	VC1544	-	tonB2 protein
1526	 50.12	0	1657857..1658261	-	134	15641553	-	VC1545	-	TonB system transport protein ExbD2
1527	 49.72	0	1658258..1658800	-	180	15641554	-	VC1546	-	TonB system transport protein ExbB2
1528	 50.87	0	1658807..1660180	-	457	15641555	-	VC1547	-	biopolymer transport protein ExbB-related protein
1529	 48.48	0	1660180..1660938	-	252	15641556	-	VC1548	-	hypothetical protein
1530	 48.35	0	1661257..1662561	+	434	15641557	-	VC1549	-	glycerol-3-phosphate ABC transporter, periplasmic glycerol-3-phosphate-binding protein
1531	 51.02	0	1662637..1663518	+	293	15641558	-	VC1550	-	glycerol-3-phosphate ABC transporter, permease protein
1532	 46.50	0	1663528..1664370	+	280	15641559	-	VC1551	-	glycerol-3-phosphate ABC transporter, permease protein
1533	 49.75	0	1664360..1665541	+	393	15641560	-	VC1552	-	glycerol-3-phosphate transporter ATP-binding subunit
1534	 48.82	0	1665566..1666327	+	253	15641561	-	VC1553	-	glycerol-3-phosphate regulon repressor
1535	 47.90	0	1666355..1667068	+	237	15641562	-	VC1554	-	glycerophosphoryl diester phosphodiesterase, putative
1536	 51.27	0	1667144..1667656	-	170	15641563	-	VC1555	-	hypothetical protein
1537	 52.07	+1	1667625..1667987	-	120	15641564	-	VC1556	-	hypothetical protein
1538	 48.50	0	1668122..1669156	-	344	15641565	-	VC1557	-	LacI family transcription regulator
1539	 47.32	0	1669192..1670628	-	478	15641566	-	VC1558	-	6-phospho-beta-glucosidase
1540	 48.04	0	1670919..1671020	+	33	15641567	-	VC1559	-	hypothetical protein
1541	 51.13	0	1671041..1673215	+	724	15641568	-	VC1560	-	catalase/peroxidase
1542	 43.12	-1	1673280..1674209	-	309	15641569	-	VC1561	-	LysR family transcriptional regulator
1543	 44.25	0	1674273..1675445	+	390	15641570	-	VC1562	-	beta-lactamase-related protein
1544	 47.39	0	1675595..1676611	+	338	15641571	-	VC1563	-	hypothetical protein
1545	 51.22	0	1676602..1676724	+	40	15641572	-	VC1564	-	hypothetical protein
1546	 49.05	0	1676745..1678004	+	419	15641573	-	VC1565	-	outer membrane protein TolC, putative
1547	 50.95	0	1678004..1679218	+	404	15641574	-	VC1566	-	hypothetical protein
1548	 50.70	0	1679222..1680499	+	425	15641575	-	VC1567	-	hypothetical protein
1549	 50.00	0	1680499..1681200	+	233	15641576	-	VC1568	-	ABC transporter, ATP-binding protein
1550	 50.00	0	1681166..1681267	+	33	15641577	-	VC1569	-	hypothetical protein
1551	 50.65	0	1681274..1682266	-	330	15641578	-	VC1570	-	quinol oxidase, subunit II
1552	 50.75	0	1682263..1683600	-	445	15641579	-	VC1571	-	quinol oxidase, subunit I
1553	 43.57	0	1684123..1684503	+	126	15641580	-	VC1572	-	hypothetical protein
1554	 51.44	0	1684519..1685904	+	461	15641581	fumC	VC1573	-	fumarate hydratase
1555	 44.79	0	1686049..1686432	-	127	15641582	-	VC1574	-	hypothetical protein
1556	 47.49	0	1686477..1686935	-	152	15641583	-	VC1575	-	hypothetical protein
1557	 44.34	0	1686965..1687282	-	105	15641584	-	VC1576	-	hypothetical protein
1558	 47.20	0	1687438..1688259	-	273	15641585	-	VC1577	-	hypothetical protein
1559	 35.86	-2	1688261..1688497	-	78	15641586	-	VC1578	-	hypothetical protein
1560	 45.72	0	1688481..1690151	-	556	15641587	-	VC1579	-	enterobactin synthetase component F-related protein
1561	 48.57	0	1690215..1691126	-	303	15641588	-	VC1580	-	LysR family transcriptional regulator
1562	 52.68	+1	1691206..1692756	+	516	15641589	-	VC1581	-	NADH dehydrogenase subunit L
1563	 54.07	+1	1692681..1695269	+	862	15641590	-	VC1582	-	hypothetical protein
1564	 50.78	0	1695314..1695829	-	171	15641591	-	VC1583	-	superoxide dismutase, Cu-Zn
1565	 46.56	0	1695869..1696435	-	188	15641592	-	VC1584	-	ankB protein
1566	 44.84	0	1696499..1698202	-	567	15641593	-	VC1585	-	catalase
1567	 38.24	-2	1698376..1698477	-	33	15641594	-	VC1586	-	hypothetical protein
1568	 39.68	-1	1698457..1698897	+	146	15641595	-	VC1587	-	hypothetical protein
1569	 48.07	0	1699073..1699954	-	293	15641596	-	VC1588	-	LysR family transcriptional regulator
1570	 48.85	0	1700060..1700845	+	261	15641597	-	VC1589	-	alpha-acetolactate decarboxylase
1571	 52.11	+1	1700984..1702687	+	567	15641598	-	VC1590	-	acetolactate synthase
1572	 52.17	+1	1702684..1703442	+	252	15641599	-	VC1591	-	short chain dehydrogenase/reductase family oxidoreductase
47.43	MEAN

4.26	STD DEV
