IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

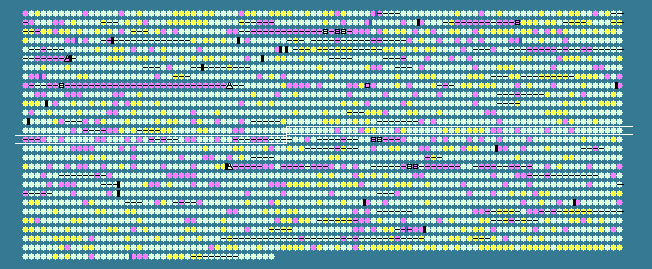

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1345	 47.91	0	1448729..1449826	-	365	15641372	-	VC1360	-	amino acid ABC transporter, permease protein
1346	 46.77	0	1449829..1451034	-	401	15641373	-	VC1361	-	amino acid ABC transporter, permease protein
1347	 47.81	0	1451160..1452188	-	342	15641374	-	VC1362	-	amino acid ABC transporter, periplasmic amino acid-binding protein
1348	 45.79	0	1452643..1453581	+	312	15641375	-	VC1363	-	siroheme synthase component enzyme
1349	 47.81	0	1453647..1454468	-	273	15641376	-	VC1364	-	hypothetical protein
1350	 47.97	0	1454744..1455481	+	245	15641377	-	VC1365	-	hypothetical protein
1351	 48.71	0	1455494..1456189	+	231	15641378	-	VC1366	-	queuosine biosynthesis protein QueC
1352	 45.41	0	1456161..1458164	-	667	15641379	-	VC1367	-	GGDEF family protein
1353	 41.37	-1	1458335..1458583	+	82	15641380	-	VC1368	-	hypothetical protein
1354	 45.82	0	1458740..1459756	+	338	15641381	-	VC1369	-	hypothetical protein
1355	 44.29	0	1459753..1461084	+	443	15641382	-	VC1370	-	GGDEF family protein
1356	 44.64	0	1461135..1461815	-	226	15641383	-	VC1371	-	hypothetical protein
1357	 43.77	0	1462189..1463367	+	392	15641384	-	VC1372	-	GGDEF family protein
1358	 51.56	0	1463479..1466325	-	948	15641385	-	VC1373	-	DnaK-related protein
1359	 52.69	+1	1466367..1468262	-	631	15641386	-	VC1374	-	DnaK-related protein
1360	 48.83	0	1468262..1468990	-	242	15641387	-	VC1375	-	hypothetical protein
1361	 45.53	0	1469402..1470967	+	521	15641388	-	VC1376	-	GGDEF family protein
1362	 47.46	0	1471032..1471562	+	176	15641389	-	VC1377	-	hypothetical protein
1363	 42.08	-1	1471564..1471746	+	60	15641390	-	VC1378	-	hypothetical protein
1364	 50.97	0	1471848..1472312	-	154	15641391	-	VC1379	-	hypothetical protein
1365	 49.86	0	1472359..1472709	-	116	15641392	-	VC1380	-	hypothetical protein
1366	 48.10	0	1472744..1472953	-	69	15641393	-	VC1381	-	hypothetical protein
1367	 50.48	0	1472998..1476840	+	1280	161582005	-	VC1382	-	ATP-dependent RNA helicase HrpA
1368	 44.70	0	1476818..1476949	-	43	15641395	-	VC1383	-	hypothetical protein
1369	 48.45	0	1476980..1477462	+	160	15641396	-	VC1384	-	hypothetical protein
1370	 48.65	0	1477495..1477605	-	36	15641397	-	VC1385	-	hypothetical protein
1371	 52.77	+1	1477679..1479031	+	450	15641398	-	VC1386	-	putative chaperone
1372	 44.44	0	1479065..1479163	+	32	15641399	-	VC1387	-	hypothetical protein
1373	 50.93	0	1479156..1480172	+	338	15641400	lplA	VC1388	-	lipoate-protein ligase A
1374	 47.78	0	1480408..1480587	+	59	15641401	-	VC1389	-	hypothetical protein
1375	 52.79	+1	1480565..1481515	-	316	15641402	-	VC1390	-	LysR family transcriptional regulator
1376	 52.45	+1	1481602..1483008	+	468	15641403	-	VC1391	-	multidrug transporter, putative
1377	 53.40	+1	1483164..1484678	+	504	15641404	-	VC1392	-	deoxyribodipyrimidine photolyase, putative
1378	 48.89	0	1484824..1485138	+	104	15641405	-	VC1393	-	sugE protein
1379	 42.72	-1	1485193..1486428	-	411	15641406	-	VC1394	-	methyl-accepting chemotaxis protein
1380	 42.53	-1	1486808..1487068	-	86	15641407	-	VC1396	-	hypothetical protein
1381	 46.02	0	1487058..1489343	-	761	15641408	-	VC1397	-	chemotaxis protein CheA
1382	 44.27	0	1489340..1489714	-	124	15641409	-	VC1398	-	chemotaxis protein CheY
1383	 40.72	-1	1489689..1490555	-	288	15641410	-	VC1399	-	chemotaxis protein methyltransferase CheR
1384	 45.21	0	1490566..1491222	-	218	15641411	-	VC1400	-	hypothetical protein
1385	 48.75	0	1491209..1492285	-	358	15641412	-	VC1401	-	protein-glutamate methylesterase CheB
1386	 44.47	0	1492306..1493868	-	520	15641413	-	VC1402	-	purine-binding chemotaxis protein Chew, putative
1387	 44.81	0	1493881..1495806	-	641	15641414	-	VC1403	-	methyl-accepting chemotaxis protein
1388	 27.64	-2	1495940..1496062	-	40	15641415	-	VC1404	-	hypothetical protein
1389	 44.80	0	1496302..1498089	+	595	15641416	-	VC1405	-	methyl-accepting chemotaxis protein
1390	 44.50	0	1498168..1499484	+	438	15641417	-	VC1406	-	methyl-accepting chemotaxis protein
1391	 48.99	0	1499666..1500859	+	397	15641418	-	VC1407	-	ATP-dependent RNA helicase RhlE
1392	 43.78	0	1500918..1501520	-	200	15641419	-	VC1408	-	TetR family transcriptional regulator
1393	 48.87	0	1501627..1503081	+	484	15641420	-	VC1409	-	multidrug resistance protein, putative
1394	 49.71	0	1503062..1504282	+	406	15641421	-	VC1410	-	multidrug resistance protein VceA
1395	 46.81	0	1504292..1505827	+	511	15641422	-	VC1411	-	multidrug resistance protein VceB
1396	 44.44	0	1505781..1505897	+	38	15641423	-	VC1412	-	hypothetical protein
1397	 44.73	0	1505902..1507638	-	578	15641424	-	VC1413	-	methyl-accepting chemotaxis protein
1398	 48.13	0	1507860..1509434	-	524	15641425	-	VC1414	-	thermostable carboxypeptidase 1
1399	 49.52	0	1509632..1510150	+	172	15641426	-	VC1415	-	hcp protein
1400	 49.48	0	1510278..1513769	+	1163	15641427	-	VC1416	-	vgrG protein
1401	 42.86	-1	1513748..1514608	+	286	15641428	-	VC1417	-	hypothetical protein
1402	 39.25	-1	1514611..1516536	+	641	15641429	-	VC1418	-	hypothetical protein
1403	 34.68	-2	1516533..1517276	+	247	15641430	-	VC1419	-	hypothetical protein
1404	 39.84	-1	1517421..1518158	+	245	15641431	-	VC1420	-	hypothetical protein
1405	 44.60	0	1518246..1518884	+	212	15641432	-	VC1421	-	hypothetical protein
1406	 49.89	0	1518957..1520333	-	458	15641433	-	VC1422	-	sodium/alanine symporter
1407	 42.72	-1	1521011..1521745	+	244	15641434	-	VC1423	-	hypothetical protein
1408	 44.99	0	1521892..1522929	-	345	15641435	-	VC1424	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
1409	 44.96	0	1523041..1524141	-	366	15641436	-	VC1425	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
1410	 45.01	0	1524175..1524945	-	256	15641437	potC	VC1426	-	spermidine/putrescine ABC transporter membrane protein
1411	 44.83	0	1524945..1525805	-	286	15641438	potB	VC1427	-	spermidine/putrescine ABC transporter membrane protein
1412	 44.89	0	1525786..1526919	-	377	15641439	potA	VC1428	-	putrescine/spermidine ABC transporter ATPase protein
1413	 43.03	-1	1527205..1528050	+	281	15641440	-	VC1429	-	hypothetical protein
1414	 43.66	0	1528040..1528843	+	267	15641441	-	VC1430	-	bax protein, putative
1415	 44.09	0	1528845..1529504	+	219	15641442	-	VC1431	-	hypothetical protein
1416	 44.37	0	1529581..1530513	-	310	15641443	-	VC1432	-	hypothetical protein
1417	 46.52	0	1530639..1531586	-	315	15641444	-	VC1433	-	universal stress protein UspE
1418	 43.29	0	1531716..1532468	-	250	15641445	-	VC1434	-	fumarate/nitrate reduction transcriptional regulator
1419	 49.78	0	1532558..1533232	-	224	15641446	-	VC1435	-	hypothetical protein
1420	 41.82	-1	1533229..1533393	-	54	15641447	-	VC1436	-	FixS-related protein
1421	 46.78	0	1533397..1535769	-	790	15641448	-	VC1437	-	cation transporter E1-E2 family ATPase
1422	 42.98	-1	1535774..1536250	-	158	15641449	-	VC1438	-	hypothetical protein
1423	 46.18	0	1536329..1537309	-	326	15641450	-	VC1439	-	cytochrome c oxidase, subunit CcoP
1424	 43.03	-1	1537317..1537481	-	54	15641451	-	VC1440	-	cytochrome c oxidase, subunit CcoQ
1425	 44.61	0	1537493..1538113	-	206	15641452	-	VC1441	-	cytochrome c oxidase, subunit CcoO
1426	 47.63	0	1538127..1539560	-	477	15641453	-	VC1442	-	cytochrome c oxidase, subunit CcoN
1427	 46.98	0	1539789..1540169	+	126	15641454	-	VC1443	-	hypothetical protein
1428	 43.10	-1	1540238..1541455	+	405	15641455	-	VC1444	-	hypothetical protein
1429	 38.92	-1	1541452..1543170	+	572	15641456	-	VC1445	-	sensor histidine kinase/response regulator
1430	 49.58	0	1543231..1545396	-	721	15641457	-	VC1446	-	toxin secretion transporter, putative
1431	 50.43	0	1545399..1546802	-	467	15641458	-	VC1447	-	RTX toxin transporter
1432	 45.08	0	1546757..1548919	-	720	15641459	-	VC1448	-	RTX toxin transporter
1433	 41.67	-1	1549277..1549636	+	119	15641460	-	VC1449	-	hypothetical protein
1434	 49.13	0	1549662..1550123	+	153	15641461	-	VC1450	-	RTX toxin activating protein
1435	 48.67	0	1550108..1563784	+	4558	15641462	-	VC1451	-	RTX toxin RtxA
1436	 37.33	-2	1564152..1564376	-	74	15641463	-	VC1452	-	RstC protein
1437	 45.33	0	1564470..1564844	-	124	15641464	-	VC1453	-	RstB1 protein
1438	 45.56	0	1564822..1565901	-	359	15641465	-	VC1454	-	RstA1 protein
1439	 37.76	-2	1566027..1566365	+	112	15641466	-	VC1455	-	transcriptional repressor RstR
1440	 32.53	-2	1566967..1567341	-	124	15641467	-	VC1456	-	cholera enterotoxin, B subunit
1441	 38.48	-2	1567338..1568114	-	258	15641468	-	VC1457	-	cholera enterotoxin, A subunit
1442	 49.17	0	1568213..1569412	-	399	15641469	-	VC1458	-	zona occludens toxin
1443	 44.56	0	1569409..1569702	-	97	15641470	-	VC1459	-	accessory cholera enterotoxin
1444	 48.68	0	1569699..1570982	-	427	15641471	-	VC1460	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
