IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

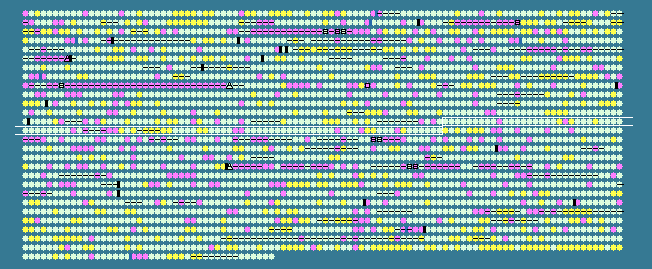

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1271	 44.93	0	1360359..1361117	+	252	15641298	-	VC1285	-	hypothetical protein
1272	 48.97	0	1361218..1362240	+	340	15641299	-	VC1286	-	LacI family transcription regulator
1273	 50.88	0	1362386..1364551	-	721	15641300	-	VC1287	-	glucosyltransferase MdoH
1274	 48.35	0	1364570..1366207	-	545	15641301	mdoG	VC1288	-	glucan biosynthesis protein G
1275	 48.84	0	1366600..1368495	+	631	15641302	-	VC1289	-	methyl-accepting chemotaxis protein
1276	 50.35	0	1368634..1369344	-	236	15641303	-	VC1290	-	DNA polymerase III subunit epsilon
1277	 47.65	0	1369341..1371254	-	637	15641304	-	VC1291	-	hypothetical protein
1278	 45.10	0	1371469..1371570	+	33	15641305	-	VC1292	-	hypothetical protein
1279	 48.45	0	1371535..1372725	-	396	161582008	-	VC1293	-	aromatic amino acid aminotransferase
1280	 40.32	-1	1372937..1373122	-	61	15641307	-	VC1294	-	hypothetical protein
1281	 48.34	0	1373094..1374572	-	492	15641308	-	VC1295	-	hypothetical protein
1282	 49.23	0	1375081..1375929	+	282	15641309	-	VC1296	-	phosphomethylpyrimidine kinase
1283	 49.75	0	1375995..1377395	-	466	161582007	asnC	VC1297	-	asparaginyl-tRNA synthetase
1284	 46.26	0	1377542..1379173	-	543	15641311	-	VC1298	-	methyl-accepting chemotaxis protein
1285	 44.44	0	1379571..1379939	+	122	15641312	-	VC1299	-	6-pyruvoyl tetrahydrobiopterin synthase, putative
1286	 49.63	0	1380028..1381389	-	453	15641313	-	VC1300	-	L-serine dehydratase 1
1287	 47.05	0	1381482..1382735	-	417	15641314	-	VC1301	-	serine transporter
1288	 46.18	0	1383034..1383648	-	204	15641315	-	VC1302	-	MutT/nudix family protein
1289	 48.87	0	1383845..1385221	-	458	15641316	-	VC1303	-	para-aminobenzoate synthase component I
1290	 51.12	0	1385397..1386914	+	505	15641317	-	VC1304	-	fumarate hydratase, class I, putative
1291	 39.25	-1	1387063..1387248	+	61	15641318	-	VC1305	-	hypothetical protein
1292	 51.46	0	1387473..1388846	+	457	15641319	-	VC1306	-	hypothetical protein
1293	 48.83	0	1389975..1391516	+	513	15641320	-	VC1308	-	transcriptional regulator TyrR
1294	 45.31	0	1391516..1392091	+	191	15641321	-	VC1309	-	ribosomal-protein-alanine acetyltransferase
1295	 50.84	0	1392186..1392659	+	157	15641322	-	VC1310	-	hypothetical protein
1296	 50.97	0	1392727..1393605	-	292	15641323	-	VC1311	-	hypothetical protein
1297	 49.67	0	1393726..1394949	-	407	161582006	alr	VC1312	-	alanine racemase
1298	 48.65	0	1395061..1396692	-	543	15641325	-	VC1313	-	methyl-accepting chemotaxis protein
1299	 47.27	0	1397026..1398489	+	487	15641326	-	VC1314	-	transporter, putative
1300	 49.78	0	1398499..1399848	+	449	15641327	-	VC1315	-	sensor histidine kinase
1301	 48.85	0	1399817..1400293	+	158	15641328	-	VC1316	-	chemotaxis protein CheY, putative
1302	 48.86	0	1400321..1401241	-	306	15641329	-	VC1317	-	hypothetical protein
1303	 46.90	0	1401339..1402112	-	257	15641330	-	VC1318	-	outer membrane protein OmpV
1304	 46.71	0	1402325..1403647	-	440	15641331	-	VC1319	-	sensor histidine kinase
1305	 47.09	0	1403673..1404377	-	234	15641332	-	VC1320	-	DNA-binding response regulator
1306	 48.54	0	1404753..1407824	+	1023	15641333	-	VC1321	-	hypothetical protein
1307	 45.83	0	1407905..1408120	-	71	15641334	-	VC1322	-	hypothetical protein
1308	 46.79	0	1408099..1408581	-	160	15641335	-	VC1323	-	hypothetical protein
1309	 34.92	-2	1408946..1409134	-	62	15641336	-	VC1324	-	hypothetical protein
1310	 50.15	0	1409080..1410054	+	324	15641337	-	VC1325	-	galactoside ABC transporter, periplasmic D-galactose/D-glucose-binding protein
1311	 38.46	-2	1410122..1410277	-	51	15641338	-	VC1326	-	hypothetical protein
1312	 46.28	0	1410224..1411768	+	514	15641339	-	VC1327	-	galactose/methyl galaxtoside transporter ATP-binding protein
1313	 47.63	0	1411773..1412786	+	337	15641340	mglC	VC1328	-	beta-methylgalactoside transporter inner membrane component
1314	 38.03	-2	1413196..1413834	+	212	15641341	-	VC1329	-	opacity protein-related protein
1315	 37.80	-2	1414155..1414982	+	275	15641342	-	VC1330	-	hypothetical protein
1316	 41.09	-1	1414990..1415118	-	42	15641343	-	VC1331	-	hypothetical protein
1317	 51.90	+1	1415133..1416662	-	509	15641344	-	VC1332	-	hypothetical protein
1318	 48.55	0	1416672..1417223	-	183	15641345	-	VC1333	-	hypothetical protein
1319	 52.57	+1	1417421..1418392	-	323	15641346	-	VC1334	-	hypothetical protein
1320	 49.58	0	1419022..1419729	+	235	15641347	-	VC1335	-	GntR family transcriptional regulator
1321	 52.32	+1	1419710..1420636	+	308	15641348	prpB	VC1336	-	2-methylisocitrate lyase
1322	 52.65	+1	1420812..1421945	+	377	15641349	-	VC1337	-	methylcitrate synthase
1323	 54.55	+1	1422041..1424647	+	868	15641350	-	VC1338	-	aconitate hydratase
1324	 54.53	+1	1424656..1425858	+	400	15641351	-	VC1339	-	hypothetical protein
1325	 53.24	+1	1425842..1427740	+	632	15641352	-	VC1340	-	prpE protein
1326	 46.33	0	1427914..1428390	+	158	15641353	-	VC1341	-	acetyltransferase, putative
1327	 47.93	0	1428471..1429868	+	465	15641354	-	VC1342	-	MutT/nudix family protein
1328	 49.05	0	1429934..1431040	-	368	15641355	-	VC1343	-	M20A family peptidase
1329	 48.20	0	1431464..1432573	+	369	15641356	-	VC1344	-	4-hydroxyphenylpyruvate dioxygenase
1330	 52.07	+1	1432566..1433702	+	378	15641357	-	VC1345	-	oxidoreductase, putative
1331	 51.47	0	1433709..1434728	+	339	15641358	-	VC1346	-	hypothetical protein
1332	 48.77	0	1434725..1435372	+	215	15641359	-	VC1347	-	glutathione S-transferase, putative
1333	 45.70	0	1435354..1436679	-	441	15641360	-	VC1348	-	response regulator
1334	 46.25	0	1436615..1440610	+	1331	15641361	-	VC1349	-	sensory box sensor histidine kinase/response regulator
1335	 46.62	0	1440716..1441189	-	157	15641362	-	VC1350	-	antioxidant, putative
1336	 37.95	-2	1441403..1441597	-	64	15641363	-	VC1351	-	hypothetical protein
1337	 43.01	-1	1441610..1441702	+	30	15641364	-	VC1352	-	hypothetical protein
1338	 47.94	0	1441840..1444770	+	976	15641365	-	VC1353	-	GGDEF family protein
1339	 46.30	0	1444812..1446068	-	418	15641366	-	VC1354	-	hypothetical protein
1340	 44.21	0	1446242..1446526	+	94	15641367	-	VC1355	-	acylphosphatase
1341	 45.15	0	1446592..1446921	-	109	15641368	-	VC1356	-	sulfite reductase, gamma subunit-related protein
1342	 45.83	0	1446887..1447006	-	39	15641369	-	VC1357	-	hypothetical protein
1343	 44.49	0	1447035..1447706	-	223	15641370	-	VC1358	-	hypothetical protein
1344	 44.84	0	1447951..1448706	-	251	15641371	-	VC1359	-	amino acid ABC transporter, ATP-binding protein
1345	 47.91	0	1448729..1449826	-	365	15641372	-	VC1360	-	amino acid ABC transporter, permease protein
1346	 46.77	0	1449829..1451034	-	401	15641373	-	VC1361	-	amino acid ABC transporter, permease protein
1347	 47.81	0	1451160..1452188	-	342	15641374	-	VC1362	-	amino acid ABC transporter, periplasmic amino acid-binding protein
1348	 45.79	0	1452643..1453581	+	312	15641375	-	VC1363	-	siroheme synthase component enzyme
1349	 47.81	0	1453647..1454468	-	273	15641376	-	VC1364	-	hypothetical protein
1350	 47.97	0	1454744..1455481	+	245	15641377	-	VC1365	-	hypothetical protein
1351	 48.71	0	1455494..1456189	+	231	15641378	-	VC1366	-	queuosine biosynthesis protein QueC
1352	 45.41	0	1456161..1458164	-	667	15641379	-	VC1367	-	GGDEF family protein
1353	 41.37	-1	1458335..1458583	+	82	15641380	-	VC1368	-	hypothetical protein
1354	 45.82	0	1458740..1459756	+	338	15641381	-	VC1369	-	hypothetical protein
1355	 44.29	0	1459753..1461084	+	443	15641382	-	VC1370	-	GGDEF family protein
1356	 44.64	0	1461135..1461815	-	226	15641383	-	VC1371	-	hypothetical protein
1357	 43.77	0	1462189..1463367	+	392	15641384	-	VC1372	-	GGDEF family protein
1358	 51.56	0	1463479..1466325	-	948	15641385	-	VC1373	-	DnaK-related protein
1359	 52.69	+1	1466367..1468262	-	631	15641386	-	VC1374	-	DnaK-related protein
1360	 48.83	0	1468262..1468990	-	242	15641387	-	VC1375	-	hypothetical protein
1361	 45.53	0	1469402..1470967	+	521	15641388	-	VC1376	-	GGDEF family protein
1362	 47.46	0	1471032..1471562	+	176	15641389	-	VC1377	-	hypothetical protein
1363	 42.08	-1	1471564..1471746	+	60	15641390	-	VC1378	-	hypothetical protein
1364	 50.97	0	1471848..1472312	-	154	15641391	-	VC1379	-	hypothetical protein
1365	 49.86	0	1472359..1472709	-	116	15641392	-	VC1380	-	hypothetical protein
1366	 48.10	0	1472744..1472953	-	69	15641393	-	VC1381	-	hypothetical protein
1367	 50.48	0	1472998..1476840	+	1280	161582005	-	VC1382	-	ATP-dependent RNA helicase HrpA
1368	 44.70	0	1476818..1476949	-	43	15641395	-	VC1383	-	hypothetical protein
1369	 48.45	0	1476980..1477462	+	160	15641396	-	VC1384	-	hypothetical protein
1370	 48.65	0	1477495..1477605	-	36	15641397	-	VC1385	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
