IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

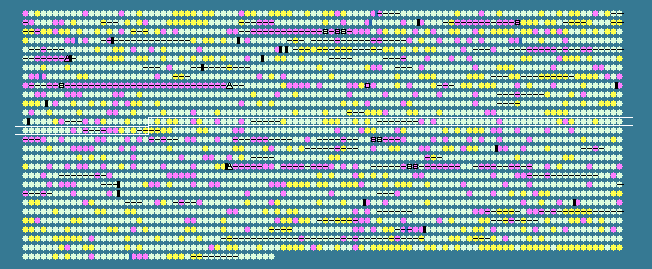

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1222	 49.44	0	1310478..1310924	+	148	15641249	-	VC1236	-	PilB-related protein
1223	 52.43	+1	1311451..1312560	+	369	15641250	cobT	VC1237	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
1224	 50.00	0	1312560..1313345	+	261	15641251	cobS	VC1238	-	cobalamin synthase
1225	 52.22	+1	1313354..1313893	+	179	15641252	cobU	VC1239	-	adenosylcobinamide kinase/adenosylcobinamide-phosphate guanylyltransferase
1226	 52.07	+1	1313900..1314502	+	200	15641253	-	VC1240	-	alpha-ribazole-5`-phosphate phosphatase CobC, putative
1227	 48.15	0	1314660..1314767	+	35	15641254	-	VC1241	-	hypothetical protein
1228	 49.47	0	1314818..1315846	+	342	15641255	-	VC1242	-	succinylglutamate desuccinylase
1229	 38.10	-2	1315816..1315962	-	48	15641256	-	VC1243	-	hypothetical protein
1230	 52.68	+1	1315915..1316922	+	335	15641257	-	VC1244	-	vtamin B12-transporter permease
1231	 50.66	0	1316909..1317664	+	251	15641258	-	VC1245	-	vitamin B12-transporter ATPase
1232	 45.31	0	1318049..1318624	-	191	15641259	-	VC1246	-	hypothetical protein
1233	 42.17	-1	1318803..1319198	-	131	15641260	-	VC1247	-	hypothetical protein
1234	 50.40	0	1319246..1320856	-	536	15641261	-	VC1248	-	methyl-accepting chemotaxis protein
1235	 47.17	0	1321087..1321599	-	170	15641262	-	VC1249	-	hypothetical protein
1236	 46.11	0	1321865..1322764	-	299	15641263	-	VC1250	-	hypothetical protein
1237	 35.35	-2	1322777..1322875	-	32	15641264	-	VC1251	-	hypothetical protein
1238	 48.96	0	1322928..1324175	+	415	15641265	-	VC1252	-	competence damage protein CinA, putative
1239	 48.02	0	1324348..1324776	-	142	15641266	-	VC1253	-	hypothetical protein
1240	 45.52	0	1324877..1325155	-	92	15641267	-	VC1254	-	iron-sulfur cluster-binding protein, putative
1241	 46.12	0	1325155..1326288	-	377	161582009	nrdB	VC1255	-	ribonucleotide-diphosphate reductase subunit beta
1242	 48.78	0	1326384..1328669	-	761	15641269	-	VC1256	-	ribonucleotide-diphosphate reductase subunit alpha
1243	 48.78	0	1329118..1329855	-	245	15641270	-	VC1257	-	3-demethylubiquinone-9 3-methyltransferase
1244	 51.17	0	1330207..1332891	+	894	15641271	-	VC1258	-	DNA gyrase, subunit A
1245	 49.55	0	1333104..1334102	+	332	15641272	-	VC1259	-	hypothetical protein
1246	 47.11	0	1334129..1335028	-	299	15641273	-	VC1260	-	AraC/XylS family transcriptional regulator
1247	 48.56	0	1335279..1336493	+	404	15641274	-	VC1261	-	hypothetical protein
1248	 46.89	0	1336676..1336852	+	58	15641275	-	VC1262	-	hypothetical protein
1249	 45.47	0	1337023..1337673	+	216	15641276	ribA	VC1263	-	GTP cyclohydrolase II
1250	 50.00	0	1337809..1339116	+	435	15641277	-	VC1264	-	iron-regulated protein A, putative
1251	 52.38	+1	1339323..1340708	+	461	15641278	-	VC1265	-	hypothetical protein
1252	 52.58	+1	1340718..1341725	+	335	15641279	-	VC1266	-	hypothetical protein
1253	 53.00	+1	1341706..1342788	+	360	15641280	-	VC1267	-	hypothetical protein
1254	 47.68	0	1343035..1344609	+	524	15641281	-	VC1268	-	hypothetical protein
1255	 48.09	0	1344755..1345303	+	182	15641282	-	VC1269	-	hypothetical protein
1256	 51.75	+1	1345367..1346023	+	218	15641283	-	VC1270	-	glyoxylase II family protein
1257	 48.95	0	1346017..1346733	-	238	15641284	-	VC1271	-	hypothetical protein
1258	 52.35	+1	1346837..1347262	+	141	15641285	-	VC1272	-	hypothetical protein
1259	 48.92	0	1347537..1348742	+	401	15641286	-	VC1273	-	extracellular solute-binding protein
1260	 45.88	0	1348844..1349377	+	177	15641287	-	VC1274	-	hypothetical protein
1261	 50.08	0	1349387..1350670	+	427	15641288	-	VC1275	-	hypothetical protein
1262	 46.61	0	1350777..1352132	+	451	15641289	-	VC1276	-	sensor histidine kinase
1263	 47.31	0	1352113..1352763	+	216	15641290	-	VC1277	-	LuxR family transcriptional regulator
1264	 50.00	0	1352765..1353244	-	159	15641291	-	VC1278	-	MarR family transcriptional regulator
1265	 48.37	0	1353601..1355223	+	540	15641292	-	VC1279	-	BCCT family transporter
1266	 44.91	0	1355388..1356683	-	431	15641293	-	VC1280	-	hypothetical protein
1267	 40.85	-1	1356926..1357231	+	101	15641294	-	VC1281	-	PTS system, cellobiose-specific IIB component
1268	 45.71	0	1357310..1358650	+	446	15641295	-	VC1282	-	PTS system, cellobiose-specific IIC component
1269	 42.86	-1	1358697..1359032	+	111	15641296	-	VC1283	-	PTS system, cellobiose-specific IIA component
1270	 46.41	0	1359014..1360336	+	440	15641297	-	VC1284	-	6-phospho-beta-glucosidase
1271	 44.93	0	1360359..1361117	+	252	15641298	-	VC1285	-	hypothetical protein
1272	 48.97	0	1361218..1362240	+	340	15641299	-	VC1286	-	LacI family transcription regulator
1273	 50.88	0	1362386..1364551	-	721	15641300	-	VC1287	-	glucosyltransferase MdoH
1274	 48.35	0	1364570..1366207	-	545	15641301	mdoG	VC1288	-	glucan biosynthesis protein G
1275	 48.84	0	1366600..1368495	+	631	15641302	-	VC1289	-	methyl-accepting chemotaxis protein
1276	 50.35	0	1368634..1369344	-	236	15641303	-	VC1290	-	DNA polymerase III subunit epsilon
1277	 47.65	0	1369341..1371254	-	637	15641304	-	VC1291	-	hypothetical protein
1278	 45.10	0	1371469..1371570	+	33	15641305	-	VC1292	-	hypothetical protein
1279	 48.45	0	1371535..1372725	-	396	161582008	-	VC1293	-	aromatic amino acid aminotransferase
1280	 40.32	-1	1372937..1373122	-	61	15641307	-	VC1294	-	hypothetical protein
1281	 48.34	0	1373094..1374572	-	492	15641308	-	VC1295	-	hypothetical protein
1282	 49.23	0	1375081..1375929	+	282	15641309	-	VC1296	-	phosphomethylpyrimidine kinase
1283	 49.75	0	1375995..1377395	-	466	161582007	asnC	VC1297	-	asparaginyl-tRNA synthetase
1284	 46.26	0	1377542..1379173	-	543	15641311	-	VC1298	-	methyl-accepting chemotaxis protein
1285	 44.44	0	1379571..1379939	+	122	15641312	-	VC1299	-	6-pyruvoyl tetrahydrobiopterin synthase, putative
1286	 49.63	0	1380028..1381389	-	453	15641313	-	VC1300	-	L-serine dehydratase 1
1287	 47.05	0	1381482..1382735	-	417	15641314	-	VC1301	-	serine transporter
1288	 46.18	0	1383034..1383648	-	204	15641315	-	VC1302	-	MutT/nudix family protein
1289	 48.87	0	1383845..1385221	-	458	15641316	-	VC1303	-	para-aminobenzoate synthase component I
1290	 51.12	0	1385397..1386914	+	505	15641317	-	VC1304	-	fumarate hydratase, class I, putative
1291	 39.25	-1	1387063..1387248	+	61	15641318	-	VC1305	-	hypothetical protein
1292	 51.46	0	1387473..1388846	+	457	15641319	-	VC1306	-	hypothetical protein
1293	 48.83	0	1389975..1391516	+	513	15641320	-	VC1308	-	transcriptional regulator TyrR
1294	 45.31	0	1391516..1392091	+	191	15641321	-	VC1309	-	ribosomal-protein-alanine acetyltransferase
1295	 50.84	0	1392186..1392659	+	157	15641322	-	VC1310	-	hypothetical protein
1296	 50.97	0	1392727..1393605	-	292	15641323	-	VC1311	-	hypothetical protein
1297	 49.67	0	1393726..1394949	-	407	161582006	alr	VC1312	-	alanine racemase
1298	 48.65	0	1395061..1396692	-	543	15641325	-	VC1313	-	methyl-accepting chemotaxis protein
1299	 47.27	0	1397026..1398489	+	487	15641326	-	VC1314	-	transporter, putative
1300	 49.78	0	1398499..1399848	+	449	15641327	-	VC1315	-	sensor histidine kinase
1301	 48.85	0	1399817..1400293	+	158	15641328	-	VC1316	-	chemotaxis protein CheY, putative
1302	 48.86	0	1400321..1401241	-	306	15641329	-	VC1317	-	hypothetical protein
1303	 46.90	0	1401339..1402112	-	257	15641330	-	VC1318	-	outer membrane protein OmpV
1304	 46.71	0	1402325..1403647	-	440	15641331	-	VC1319	-	sensor histidine kinase
1305	 47.09	0	1403673..1404377	-	234	15641332	-	VC1320	-	DNA-binding response regulator
1306	 48.54	0	1404753..1407824	+	1023	15641333	-	VC1321	-	hypothetical protein
1307	 45.83	0	1407905..1408120	-	71	15641334	-	VC1322	-	hypothetical protein
1308	 46.79	0	1408099..1408581	-	160	15641335	-	VC1323	-	hypothetical protein
1309	 34.92	-2	1408946..1409134	-	62	15641336	-	VC1324	-	hypothetical protein
1310	 50.15	0	1409080..1410054	+	324	15641337	-	VC1325	-	galactoside ABC transporter, periplasmic D-galactose/D-glucose-binding protein
1311	 38.46	-2	1410122..1410277	-	51	15641338	-	VC1326	-	hypothetical protein
1312	 46.28	0	1410224..1411768	+	514	15641339	-	VC1327	-	galactose/methyl galaxtoside transporter ATP-binding protein
1313	 47.63	0	1411773..1412786	+	337	15641340	mglC	VC1328	-	beta-methylgalactoside transporter inner membrane component
1314	 38.03	-2	1413196..1413834	+	212	15641341	-	VC1329	-	opacity protein-related protein
1315	 37.80	-2	1414155..1414982	+	275	15641342	-	VC1330	-	hypothetical protein
1316	 41.09	-1	1414990..1415118	-	42	15641343	-	VC1331	-	hypothetical protein
1317	 51.90	+1	1415133..1416662	-	509	15641344	-	VC1332	-	hypothetical protein
1318	 48.55	0	1416672..1417223	-	183	15641345	-	VC1333	-	hypothetical protein
1319	 52.57	+1	1417421..1418392	-	323	15641346	-	VC1334	-	hypothetical protein
1320	 49.58	0	1419022..1419729	+	235	15641347	-	VC1335	-	GntR family transcriptional regulator
1321	 52.32	+1	1419710..1420636	+	308	15641348	prpB	VC1336	-	2-methylisocitrate lyase
47.43	MEAN

4.26	STD DEV
