IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

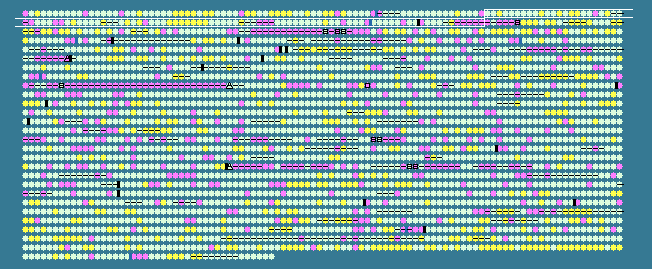

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
78	 44.51	0	76782..77327	+	181	15640110	-	VC0078	-	ferritin
79	 47.53	0	77403..77726	+	107	15640111	-	VC0079	-	universal stress protein UspB
80	 51.96	+1	77859..79055	+	398	15640112	-	VC0080	-	hypothetical protein
81	 50.66	0	79052..79963	-	303	15640113	-	VC0081	-	hypothetical protein
82	 50.58	0	80077..81618	+	513	15640114	-	VC0082	-	hypothetical protein
83	 49.55	0	81663..82445	+	260	15640115	ubiE	VC0083	-	ubiquinone/menaquinone biosynthesis methyltransferase
84	 50.80	0	82454..83077	+	207	15640116	-	VC0084	-	hypothetical protein
85	 49.17	0	83074..84708	+	544	15640117	ubiB	VC0085	-	putative ubiquinone biosynthesis protein UbiB
86	 44.58	0	84768..85016	+	82	15640118	tatA	VC0086	-	twin argininte translocase protein A
87	 52.99	+1	85020..85421	+	133	15640119	-	VC0087	-	sec-independent translocase
88	 48.47	0	85510..86262	+	250	15640120	-	VC0088	-	hypothetical protein
89	 47.70	0	86574..87575	+	333	15640121	-	VC0089	-	cytochrome c551 peroxidase
90	 51.28	0	87681..89045	-	454	15640122	-	VC0090	-	DNA-damage-inducible protein F
91	 50.34	0	89116..89985	-	289	15640123	-	VC0091	-	O-methyltransferase-related protein
92	 52.70	+1	90013..90642	-	209	15640124	-	VC0092	-	LexA repressor
93	 51.79	+1	90962..93388	+	808	161582036	-	VC0093	-	glycerol-3-phosphate acyltransferase
94	 49.59	0	93464..94318	-	284	15640126	ubiA	VC0094	-	4-hydroxybenzoate octaprenyltransferase
95	 46.74	0	94319..94870	-	183	15640127	-	VC0095	-	chorismate--pyruvate lyase
96	 39.39	-1	94893..94991	-	32	15640128	-	VC0096	-	hypothetical protein
97	 45.74	0	95062..95472	+	136	15640129	-	VC0097	-	flagellar basal body-associated protein FliL-like protein
98	 51.67	0	95592..97571	-	659	15640130	-	VC0098	-	methyl-accepting chemotaxis protein
99	 48.32	0	97946..98779	-	277	15640131	-	VC0099	-	glpG protein
100	 46.11	0	98786..99106	-	106	15640132	glpE	VC0100	-	thiosulfate sulfurtransferase
101	 36.57	-2	99187..99402	-	71	15640133	-	VC0101	-	hypothetical protein
102	 38.30	-2	99635..99775	-	46	15640134	-	VC0102	-	hypothetical protein
103	 45.96	0	99867..100634	-	255	15640135	-	VC0103	-	hypothetical protein
104	 47.41	0	100690..100824	-	44	15640136	-	VC0104	-	hypothetical protein
105	 49.62	0	100811..101854	+	347	15640137	-	VC0105	-	delta-aminolevulinic acid dehydratase
106	 43.06	-1	101958..102389	+	143	15640138	-	VC0106	-	hypothetical protein
107	 36.23	-2	102908..103045	-	45	15640139	-	VC0107	-	hypothetical protein
108	 50.20	0	103098..105902	+	934	15640140	-	VC0108	-	DNA polymerase I
109	 54.39	+1	105855..105968	-	37	15640141	-	VC0109	-	hypothetical protein
110	 44.44	0	106165..106299	+	44	15640142	-	VC0110	-	hypothetical protein
111	 47.66	0	106649..107311	-	220	15640143	-	VC0111	-	GTPase EngB
112	 48.81	0	107409..108080	+	223	15640144	-	VC0112	-	cytochrome c4
113	 46.94	0	108252..108920	+	222	15640145	-	VC0113	-	methyltransferase-related protein
114	 51.18	0	108920..109468	+	182	15640146	-	VC0114	-	hypothetical protein
115	 50.00	0	109475..109966	+	163	15640147	-	VC0115	-	hypothetical protein
116	 47.96	0	110051..111493	+	480	15640148	-	VC0116	-	coproporphyrinogen III oxidase
117	 50.79	0	111557..112753	-	398	15640149	-	VC0117	-	hemY protein
118	 52.00	+1	112750..113949	-	399	15640150	-	VC0118	-	uroporphyrin-III C-methyltransferase, putative
119	 50.32	0	113933..114715	-	260	15640151	hemD	VC0119	-	uroporphyrinogen-III synthase
120	 54.19	+1	114761..115714	-	317	15640152	hemC	VC0120	-	porphobilinogen deaminase
121	 39.46	-1	115891..116037	-	48	15640153	-	VC0121	-	hypothetical protein
122	 48.82	0	116053..118584	+	843	15640154	cyaA	VC0122	-	adenylate cyclase
123	 48.57	0	118690..119004	-	104	15640155	cyaY	VC0123	-	frataxin-like protein
124	 50.40	0	119229..120482	+	417	15640156	-	VC0125	-	diaminopimelate decarboxylase
125	 52.23	+1	120494..121324	+	276	161582035	dapF	VC0126	-	diaminopimelate epimerase
126	 52.50	+1	121338..122036	+	232	15640158	-	VC0127	-	hypothetical protein
127	 51.82	+1	122005..122940	+	311	15640159	xerC	VC0128	-	site-specific tyrosine recombinase XerC
128	 52.08	+1	122943..123662	+	239	15640160	-	VC0129	-	hypothetical protein
129	 52.09	+1	123772..126261	+	829	15640161	-	VC0130	-	GGDEF family protein
130	 54.77	+1	126294..126890	-	198	15640162	-	VC0131	-	hypothetical protein
131	 52.43	+1	126887..128431	-	514	15640163	-	VC0132	-	hypothetical protein
132	 47.09	0	128444..128632	+	62	15640164	-	VC0133	-	hypothetical protein
133	 47.95	0	128715..129542	-	275	15640165	-	VC0134	-	hypothetical protein
134	 47.00	0	129657..130673	-	338	15640166	-	VC0135	-	lysophospholipase L2
135	 47.90	0	130748..131365	+	205	15640167	rhtB	VC0136	-	homoserine/homoserine lactone efflux protein
136	 48.73	0	131313..132611	+	432	15640168	-	VC0137	-	hypothetical protein
137	 54.17	+1	132619..132738	-	39	15640169	-	VC0138	-	hypothetical protein
138	 46.50	0	132791..133261	-	156	15640170	-	VC0139	-	DPS family protein
139	 45.45	0	133431..133760	-	109	15640171	-	VC0140	-	hypothetical protein
140	 40.95	-1	133799..133903	+	34	15640172	-	VC0141	-	hypothetical protein
141	 43.09	-1	133965..134333	+	122	15640173	-	VC0142	-	hypothetical protein
142	 25.58	-2	134836..135093	+	85	15640174	-	VC0143	-	hypothetical protein
143	 48.57	0	135210..135839	+	209	15640175	-	VC0144	-	hypothetical protein
144	 44.57	0	135888..136154	-	88	15640176	-	VC0145	-	hypothetical protein
145	 49.83	0	136151..136750	-	199	15640177	-	VC0146	-	hypothetical protein
146	 49.66	0	136954..138129	+	391	15640178	-	VC0147	-	cell division protein FtsY
147	 50.85	0	138151..138852	+	233	15640179	-	VC0148	-	cell division ATP-binding protein FtsE
148	 48.74	0	138842..139834	+	330	15640180	-	VC0149	-	cell division protein FtsX
149	 49.94	0	140004..140864	+	286	15640181	-	VC0150	-	RNA polymerase factor sigma-32
150	 49.32	0	141066..142466	-	466	15640182	-	VC0151	-	soluble pyridine nucleotide transhydrogenase
151	 51.87	+1	142774..143415	+	213	15640183	-	VC0152	-	DNA-binding transcriptional repressor FabR
152	 48.12	0	143455..143826	+	123	15640184	-	VC0153	-	hypothetical protein
153	 47.84	0	143863..144972	-	369	15640185	-	VC0154	-	tRNA (uracil-5-)-methyltransferase
154	 43.25	0	145370..147205	+	611	15640186	-	VC0156	-	vitamin B12 receptor
155	 46.64	0	147278..148885	-	535	15640187	-	VC0157	-	alkaline serine protease
156	 47.62	0	149278..150075	+	265	15640188	-	VC0158	-	glutamate racemase
157	 44.44	0	150041..150499	-	152	15640189	-	VC0159	-	RNA-binding protein
158	 35.00	-2	150905..151024	+	39	15640190	-	VC0160	-	hypothetical protein
159	 48.16	0	156407..157303	-	298	15640191	-	VC0161	-	DNA-binding transcriptional regulator IlvY
160	 47.61	0	157441..158925	+	494	15640192	-	VC0162	-	ketol-acid reductoisomerase
161	 46.03	0	159052..159303	-	83	15640193	-	VC0163	-	hypothetical protein
162	 50.05	0	159419..162529	-	1036	15640194	-	VC0164	-	multidrug resistance protein, putative
163	 47.15	0	162541..163647	-	368	15640195	-	VC0165	-	hypothetical protein
164	 42.38	-1	163666..164262	-	198	15640196	-	VC0166	-	TetR family transcriptional regulator
165	 48.76	0	164408..166423	+	671	15640197	-	VC0167	-	ATP-dependent DNA helicase Rep
166	 50.25	0	166490..166897	-	135	15640198	-	VC0168	-	cytochrome c5
167	 30.36	-2	168232..168399	-	55	15640199	-	VC0169	-	hypothetical protein
168	 50.29	0	168532..170247	+	571	15640200	-	VC0170	-	peptide ABC transporter, ATP-binding protein
169	 47.70	0	170267..171895	+	542	15640201	-	VC0171	-	peptide ABC transporter, periplasmic peptide-binding protein
170	 50.15	0	171999..173027	+	342	15640202	-	VC0172	-	peptide ABC transporter, permease protein
171	 50.69	0	173030..173968	+	312	15640203	-	VC0173	-	peptide ABC transporter, permease protein
172	 52.00	+1	174143..175090	+	315	15640204	-	VC0174	-	hypothetical protein
173	 36.90	-2	175343..176941	-	532	15640205	-	VC0175	-	deoxycytidylate deaminase-related protein
174	 39.16	-1	177450..177758	-	102	15640206	-	VC0176	-	transcriptional regulator, putative
175	 37.77	-2	177861..178424	+	187	15640207	-	VC0177	-	hypothetical protein
176	 42.51	-1	179338..180405	+	355	15640208	-	VC0178	-	patatin-related protein
177	 41.80	-1	180419..181729	+	436	15640209	-	VC0179	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
