IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

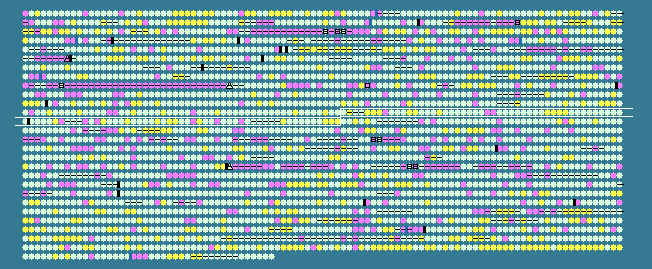

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1154	 48.37	0	1240676..1242052	-	458	15641181	-	VC1168	-	proton/glutamate symporter
1155	 51.55	0	1242248..1243054	-	268	15641182	trpA	VC1169	-	tryptophan synthase subunit alpha
1156	 50.46	0	1243054..1244244	-	396	15641183	-	VC1170	-	tryptophan synthase subunit beta
1157	 49.86	0	1244285..1245694	-	469	15641184	-	VC1171	-	bifunctional indole-3-glycerol phosphate synthase/phosphoribosylanthranilate isomerase
1158	 52.15	+1	1245700..1246698	-	332	161582011	trpD	VC1172	-	anthranilate phosphoribosyltransferase
1159	 52.78	+1	1246719..1247330	-	203	15641186	-	VC1173	-	anthranilate synthase component II
1160	 51.34	0	1247327..1248898	-	523	15641187	-	VC1174	-	anthranilate synthase component I
1161	 43.01	-1	1248908..1249000	-	30	15641188	-	VC1175	-	hypothetical protein
1162	 45.65	0	1249032..1249169	-	45	15641189	-	VC1176	-	hypothetical protein
1163	 49.48	0	1249234..1250106	+	290	15641190	-	VC1177	-	hypothetical protein
1164	 50.40	0	1250109..1250729	+	206	15641191	-	VC1178	-	hypothetical protein
1165	 51.86	+1	1250862..1251827	+	321	15641192	-	VC1179	-	pseudouridine synthase family 1 protein
1166	 51.80	+1	1251995..1253716	-	573	15641193	-	VC1180	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
1167	 50.78	0	1253709..1255496	-	595	15641194	-	VC1181	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
1168	 50.47	0	1255616..1256572	-	318	15641195	-	VC1182	-	thioredoxin reductase
1169	 48.18	0	1257047..1257706	+	219	15641196	-	VC1183	-	hypothetical protein
1170	 51.64	0	1257681..1258931	+	416	15641197	-	VC1184	-	NifS-related protein
1171	 49.02	0	1259189..1260520	+	443	15641198	-	VC1185	-	GGDEF family protein
1172	 48.50	0	1260621..1261385	-	254	15641199	-	VC1186	-	sanA protein
1173	 47.97	0	1261358..1261726	-	122	15641200	-	VC1187	-	hypothetical protein
1174	 50.37	0	1261730..1263496	-	588	15641201	-	VC1188	-	malate dehydrogenase
1175	 44.68	0	1263812..1264234	+	140	15641202	-	VC1189	-	hypothetical protein
1176	 46.88	0	1264436..1265653	-	405	15641203	hemH	VC1190	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1177	 47.37	0	1265708..1266106	-	132	15641204	-	VC1191	-	hypothetical protein
1178	 26.85	-2	1266153..1266260	+	35	15641205	-	VC1192	-	hypothetical protein
1179	 40.91	-1	1266398..1266595	-	65	15641206	-	VC1193	-	hypothetical protein
1180	 46.82	0	1266731..1267783	-	350	15641207	-	VC1194	-	hypothetical protein
1181	 50.74	0	1267848..1268519	-	223	15641208	-	VC1195	-	putative lipoprotein
1182	 44.78	0	1268619..1269308	-	229	15641209	-	VC1196	-	hypothetical protein
1183	 44.40	0	1269433..1270128	-	231	15641210	-	VC1197	-	hypothetical protein
1184	 48.92	0	1270299..1273364	+	1021	15641211	-	VC1198	-	hypothetical protein
1185	 48.29	0	1273414..1273881	+	155	15641212	-	VC1199	-	hypothetical protein
1186	 44.80	0	1274131..1275342	+	403	15641213	-	VC1200	-	trypsin, putative
1187	 48.07	0	1275417..1276142	-	241	15641214	-	VC1201	-	hypothetical protein
1188	 53.32	+1	1276291..1277826	-	511	15641215	hutH	VC1202	-	histidine ammonia-lyase
1189	 53.89	+1	1277838..1279535	-	565	15641216	-	VC1203	-	urocanate hydratase
1190	 52.52	+1	1279554..1280564	-	336	15641217	-	VC1204	-	formimidoylglutamase
1191	 53.02	+1	1280554..1281762	-	402	15641218	-	VC1205	-	imidazolonepropionase
1192	 49.93	0	1281866..1282576	-	236	15641219	-	VC1206	-	histidine utilization repressor
1193	 48.63	0	1282693..1283640	-	315	15641220	-	VC1207	-	hypothetical protein
1194	 49.53	0	1283779..1284099	-	106	15641221	-	VC1208	-	dsDNA-mimic protein
1195	 44.62	0	1284104..1284670	-	188	161582010	-	VC1209	-	elongation factor P
1196	 49.81	0	1284862..1285656	+	264	15641223	-	VC1210	-	hypothetical protein
1197	 45.25	0	1285750..1287864	+	704	15641224	-	VC1211	-	hypothetical protein
1198	 48.18	0	1287836..1290199	-	787	15641225	-	VC1212	-	DNA polymerase II
1199	 47.60	0	1290575..1291219	+	214	15641226	-	VC1213	-	response regulator
1200	 49.21	0	1291219..1293051	+	610	15641227	uvrC	VC1214	-	excinuclease ABC subunit C
1201	 47.31	0	1293099..1293656	+	185	15641228	-	VC1215	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1202	 47.54	0	1294549..1295667	+	372	15641229	-	VC1216	-	GGDEF family protein
1203	 50.62	0	1295664..1296149	-	161	15641230	-	VC1217	-	hypothetical protein
1204	 45.30	0	1296292..1296408	+	38	15641231	-	VC1218	-	hypothetical protein
1205	 50.20	0	1296440..1297423	+	327	15641232	pheS	VC1219	-	phenylalanyl-tRNA synthetase subunit alpha
1206	 52.18	+1	1297450..1299837	+	795	15641233	pheT	VC1220	-	phenylalanyl-tRNA synthetase subunit beta
1207	 40.74	-1	1300120..1300254	+	44	15641234	-	VC1221	-	hypothetical protein
1208	 47.14	0	1300276..1300572	+	98	15641235	ihfA	VC1222	-	integration host factor subunit alpha
1209	 48.10	0	1300556..1300792	-	78	15641236	-	VC1223	-	hypothetical protein
1210	 47.56	0	1300701..1301480	-	259	15641237	-	VC1224	-	hypothetical protein
1211	 39.84	-1	1301552..1301797	+	81	15641238	-	VC1225	-	hypothetical protein
1212	 49.62	0	1301949..1302605	+	218	15641239	-	VC1226	-	thiopurine S-methyltransferase
1213	 43.27	0	1302558..1302728	-	56	15641240	-	VC1227	-	hypothetical protein
1214	 51.69	+1	1302698..1303879	-	393	15641241	purT	VC1228	-	phosphoribosylglycinamide formyltransferase 2
1215	 49.20	0	1304027..1304902	-	291	15641242	-	VC1229	-	hypothetical protein
1216	 45.83	0	1304979..1305098	+	39	15641243	-	VC1230	-	hypothetical protein
1217	 50.56	0	1305061..1305948	-	295	15641244	-	VC1231	-	cytidine deaminase
1218	 51.41	0	1306118..1306792	-	224	15641245	-	VC1232	-	hypothetical protein
1219	 47.44	0	1306783..1307172	-	129	15641246	-	VC1233	-	hypothetical protein
1220	 50.81	0	1307189..1308613	-	474	15641247	sbcB	VC1234	-	exonuclease I
1221	 50.42	0	1308759..1310174	-	471	15641248	-	VC1235	-	sodium/dicarboxylate symporter
1222	 49.44	0	1310478..1310924	+	148	15641249	-	VC1236	-	PilB-related protein
1223	 52.43	+1	1311451..1312560	+	369	15641250	cobT	VC1237	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
1224	 50.00	0	1312560..1313345	+	261	15641251	cobS	VC1238	-	cobalamin synthase
1225	 52.22	+1	1313354..1313893	+	179	15641252	cobU	VC1239	-	adenosylcobinamide kinase/adenosylcobinamide-phosphate guanylyltransferase
1226	 52.07	+1	1313900..1314502	+	200	15641253	-	VC1240	-	alpha-ribazole-5`-phosphate phosphatase CobC, putative
1227	 48.15	0	1314660..1314767	+	35	15641254	-	VC1241	-	hypothetical protein
1228	 49.47	0	1314818..1315846	+	342	15641255	-	VC1242	-	succinylglutamate desuccinylase
1229	 38.10	-2	1315816..1315962	-	48	15641256	-	VC1243	-	hypothetical protein
1230	 52.68	+1	1315915..1316922	+	335	15641257	-	VC1244	-	vtamin B12-transporter permease
1231	 50.66	0	1316909..1317664	+	251	15641258	-	VC1245	-	vitamin B12-transporter ATPase
1232	 45.31	0	1318049..1318624	-	191	15641259	-	VC1246	-	hypothetical protein
1233	 42.17	-1	1318803..1319198	-	131	15641260	-	VC1247	-	hypothetical protein
1234	 50.40	0	1319246..1320856	-	536	15641261	-	VC1248	-	methyl-accepting chemotaxis protein
1235	 47.17	0	1321087..1321599	-	170	15641262	-	VC1249	-	hypothetical protein
1236	 46.11	0	1321865..1322764	-	299	15641263	-	VC1250	-	hypothetical protein
1237	 35.35	-2	1322777..1322875	-	32	15641264	-	VC1251	-	hypothetical protein
1238	 48.96	0	1322928..1324175	+	415	15641265	-	VC1252	-	competence damage protein CinA, putative
1239	 48.02	0	1324348..1324776	-	142	15641266	-	VC1253	-	hypothetical protein
1240	 45.52	0	1324877..1325155	-	92	15641267	-	VC1254	-	iron-sulfur cluster-binding protein, putative
1241	 46.12	0	1325155..1326288	-	377	161582009	nrdB	VC1255	-	ribonucleotide-diphosphate reductase subunit beta
1242	 48.78	0	1326384..1328669	-	761	15641269	-	VC1256	-	ribonucleotide-diphosphate reductase subunit alpha
1243	 48.78	0	1329118..1329855	-	245	15641270	-	VC1257	-	3-demethylubiquinone-9 3-methyltransferase
1244	 51.17	0	1330207..1332891	+	894	15641271	-	VC1258	-	DNA gyrase, subunit A
1245	 49.55	0	1333104..1334102	+	332	15641272	-	VC1259	-	hypothetical protein
1246	 47.11	0	1334129..1335028	-	299	15641273	-	VC1260	-	AraC/XylS family transcriptional regulator
1247	 48.56	0	1335279..1336493	+	404	15641274	-	VC1261	-	hypothetical protein
1248	 46.89	0	1336676..1336852	+	58	15641275	-	VC1262	-	hypothetical protein
1249	 45.47	0	1337023..1337673	+	216	15641276	ribA	VC1263	-	GTP cyclohydrolase II
1250	 50.00	0	1337809..1339116	+	435	15641277	-	VC1264	-	iron-regulated protein A, putative
1251	 52.38	+1	1339323..1340708	+	461	15641278	-	VC1265	-	hypothetical protein
1252	 52.58	+1	1340718..1341725	+	335	15641279	-	VC1266	-	hypothetical protein
1253	 53.00	+1	1341706..1342788	+	360	15641280	-	VC1267	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
