IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

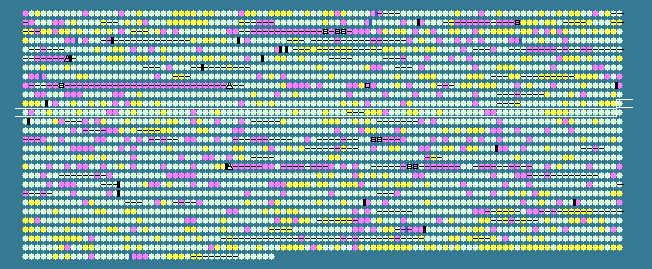

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1100	 50.59	0	1184009..1184947	+	312	15641127	-	VC1114	-	biotin synthesis protein BioC
1101	 47.98	0	1184923..1185639	+	238	15641128	bioD	VC1115	-	dithiobiotin synthetase
1102	 43.33	0	1185721..1185930	-	69	15641129	-	VC1116	-	hypothetical protein
1103	 49.42	0	1186157..1187020	+	287	15641130	-	VC1117	-	heat shock protein HtpX
1104	 45.45	0	1187230..1187658	+	142	15641131	-	VC1118	-	transcriptional regulator, putative
1105	 51.10	0	1187655..1188380	+	241	15641132	-	VC1119	-	short chain dehydrogenase
1106	 48.71	0	1188391..1189671	+	426	15641133	-	VC1120	-	hypothetical protein
1107	 48.27	0	1189671..1190480	+	269	15641134	-	VC1121	-	hypothetical protein
1108	 47.27	0	1190413..1191711	+	432	15641135	-	VC1122	-	cyclopropane-fatty-acyl-phospholipid synthase
1109	 48.89	0	1191714..1192253	+	179	15641136	-	VC1123	-	hypothetical protein
1110	 50.97	0	1192186..1192752	+	188	15641137	-	VC1124	-	hypothetical protein
1111	 45.45	0	1192749..1193276	+	175	15641138	-	VC1125	-	hypothetical protein
1112	 49.53	0	1193367..1194737	-	456	15641139	-	VC1126	-	adenylosuccinate lyase
1113	 50.00	0	1194795..1195412	-	205	15641140	-	VC1127	-	hypothetical protein
1114	 47.63	0	1195435..1196553	-	372	15641141	trmU	VC1128	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1115	 42.91	-1	1196815..1198119	+	434	15641142	-	VC1129	-	inosine-guanosine kinase
1116	 43.24	0	1198167..1198580	-	137	15641143	-	VC1130	-	DNA-binding protein H-NS
1117	 48.00	0	1199268..1200869	+	533	15641144	-	VC1131	-	hypothetical protein
1118	 49.18	0	1201260..1202174	+	304	15641145	hisG	VC1132	-	ATP phosphoribosyltransferase
1119	 51.70	+1	1202179..1203474	+	431	15641146	hisD	VC1133	-	histidinol dehydrogenase
1120	 49.38	0	1203478..1204518	+	346	15641147	-	VC1134	-	histidinol-phosphate aminotransferase
1121	 49.81	0	1204570..1205643	+	357	15641148	-	VC1135	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
1122	 50.65	0	1205643..1206254	+	203	15641149	hisH	VC1136	-	imidazole glycerol phosphate synthase subunit HisH
1123	 50.14	0	1206297..1207034	+	245	15641150	-	VC1137	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1124	 51.03	0	1207016..1207789	+	257	15641151	-	VC1138	-	imidazole glycerol phosphate synthase subunit HisF
1125	 49.76	0	1207786..1208418	+	210	15641152	-	VC1139	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
1126	 47.65	0	1208619..1209491	-	290	15641153	-	VC1140	-	pseudouridine synthase family 1 protein
1127	 49.15	0	1209652..1211877	+	741	15641154	-	VC1141	-	isocitrate dehydrogenase
1128	 45.89	0	1211976..1212206	-	76	15641155	-	VC1142	-	cold shock-like protein CspD
1129	 42.37	-1	1212670..1212990	+	106	15641156	clpS	VC1143	-	ATP-dependent Clp protease adaptor protein ClpS
1130	 48.66	0	1213029..1215299	+	756	15641157	clpA	VC1144	-	ATP-dependent Clp protease ATP-binding subunit
1131	 47.35	0	1215368..1217044	-	558	15641158	-	VC1145	-	hypothetical protein
1132	 44.70	0	1217246..1217509	-	87	161582012	grxA	VC1146	-	glutaredoxin 1
1133	 51.69	+1	1217797..1219065	+	422	15641160	-	VC1147	-	iron-containing alcohol dehydrogenase
1134	 46.32	0	1219156..1220010	-	284	15641161	-	VC1148	-	DNA-binding transcriptional regulator HexR
1135	 48.27	0	1220318..1221964	-	548	15641162	-	VC1149	-	glutamate decarboxylase, putative
1136	 46.04	0	1222074..1222679	-	201	15641163	-	VC1150	-	hypothetical protein
1137	 48.23	0	1222772..1223677	-	301	15641164	-	VC1151	-	hypothetical protein
1138	 44.12	0	1223698..1224633	-	311	15641165	-	VC1152	-	hypothetical protein
1139	 45.81	0	1224975..1225583	+	202	15641166	-	VC1153	-	hypothetical protein
1140	 50.82	0	1225679..1226227	-	182	15641167	-	VC1154	-	hypothetical protein
1141	 47.44	0	1226418..1226963	-	181	15641168	-	VC1155	-	response regulator
1142	 46.53	0	1226912..1228207	-	431	15641169	-	VC1156	-	sensor histidine kinase
1143	 46.17	0	1228096..1228866	-	256	15641170	-	VC1157	-	response regulator
1144	 47.24	0	1229089..1230354	+	421	15641171	-	VC1158	-	hypothetical protein
1145	 48.77	0	1230431..1231570	+	379	15641172	-	VC1159	-	phosphoserine aminotransferase
1146	 51.11	0	1231651..1232640	-	329	15641173	-	VC1160	-	hypothetical protein
1147	 49.11	0	1232640..1234148	-	502	15641174	-	VC1161	-	gonadoliberin III-related protein
1148	 49.05	0	1234157..1234894	-	245	15641175	-	VC1162	-	hypothetical protein
1149	 50.62	0	1235014..1235985	-	323	15641176	-	VC1163	-	hypothetical protein
1150	 49.66	0	1236097..1236837	-	246	15641177	-	VC1164	-	hypothetical protein
1151	 51.95	+1	1236963..1237832	-	289	15641178	-	VC1165	-	hypothetical protein
1152	 50.17	0	1238124..1239899	+	591	15641179	aspS	VC1166	-	aspartyl-tRNA synthetase
1153	 48.88	0	1239996..1240574	+	192	15641180	-	VC1167	-	thymidine kinase
1154	 48.37	0	1240676..1242052	-	458	15641181	-	VC1168	-	proton/glutamate symporter
1155	 51.55	0	1242248..1243054	-	268	15641182	trpA	VC1169	-	tryptophan synthase subunit alpha
1156	 50.46	0	1243054..1244244	-	396	15641183	-	VC1170	-	tryptophan synthase subunit beta
1157	 49.86	0	1244285..1245694	-	469	15641184	-	VC1171	-	bifunctional indole-3-glycerol phosphate synthase/phosphoribosylanthranilate isomerase
1158	 52.15	+1	1245700..1246698	-	332	161582011	trpD	VC1172	-	anthranilate phosphoribosyltransferase
1159	 52.78	+1	1246719..1247330	-	203	15641186	-	VC1173	-	anthranilate synthase component II
1160	 51.34	0	1247327..1248898	-	523	15641187	-	VC1174	-	anthranilate synthase component I
1161	 43.01	-1	1248908..1249000	-	30	15641188	-	VC1175	-	hypothetical protein
1162	 45.65	0	1249032..1249169	-	45	15641189	-	VC1176	-	hypothetical protein
1163	 49.48	0	1249234..1250106	+	290	15641190	-	VC1177	-	hypothetical protein
1164	 50.40	0	1250109..1250729	+	206	15641191	-	VC1178	-	hypothetical protein
1165	 51.86	+1	1250862..1251827	+	321	15641192	-	VC1179	-	pseudouridine synthase family 1 protein
1166	 51.80	+1	1251995..1253716	-	573	15641193	-	VC1180	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
1167	 50.78	0	1253709..1255496	-	595	15641194	-	VC1181	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
1168	 50.47	0	1255616..1256572	-	318	15641195	-	VC1182	-	thioredoxin reductase
1169	 48.18	0	1257047..1257706	+	219	15641196	-	VC1183	-	hypothetical protein
1170	 51.64	0	1257681..1258931	+	416	15641197	-	VC1184	-	NifS-related protein
1171	 49.02	0	1259189..1260520	+	443	15641198	-	VC1185	-	GGDEF family protein
1172	 48.50	0	1260621..1261385	-	254	15641199	-	VC1186	-	sanA protein
1173	 47.97	0	1261358..1261726	-	122	15641200	-	VC1187	-	hypothetical protein
1174	 50.37	0	1261730..1263496	-	588	15641201	-	VC1188	-	malate dehydrogenase
1175	 44.68	0	1263812..1264234	+	140	15641202	-	VC1189	-	hypothetical protein
1176	 46.88	0	1264436..1265653	-	405	15641203	hemH	VC1190	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1177	 47.37	0	1265708..1266106	-	132	15641204	-	VC1191	-	hypothetical protein
1178	 26.85	-2	1266153..1266260	+	35	15641205	-	VC1192	-	hypothetical protein
1179	 40.91	-1	1266398..1266595	-	65	15641206	-	VC1193	-	hypothetical protein
1180	 46.82	0	1266731..1267783	-	350	15641207	-	VC1194	-	hypothetical protein
1181	 50.74	0	1267848..1268519	-	223	15641208	-	VC1195	-	putative lipoprotein
1182	 44.78	0	1268619..1269308	-	229	15641209	-	VC1196	-	hypothetical protein
1183	 44.40	0	1269433..1270128	-	231	15641210	-	VC1197	-	hypothetical protein
1184	 48.92	0	1270299..1273364	+	1021	15641211	-	VC1198	-	hypothetical protein
1185	 48.29	0	1273414..1273881	+	155	15641212	-	VC1199	-	hypothetical protein
1186	 44.80	0	1274131..1275342	+	403	15641213	-	VC1200	-	trypsin, putative
1187	 48.07	0	1275417..1276142	-	241	15641214	-	VC1201	-	hypothetical protein
1188	 53.32	+1	1276291..1277826	-	511	15641215	hutH	VC1202	-	histidine ammonia-lyase
1189	 53.89	+1	1277838..1279535	-	565	15641216	-	VC1203	-	urocanate hydratase
1190	 52.52	+1	1279554..1280564	-	336	15641217	-	VC1204	-	formimidoylglutamase
1191	 53.02	+1	1280554..1281762	-	402	15641218	-	VC1205	-	imidazolonepropionase
1192	 49.93	0	1281866..1282576	-	236	15641219	-	VC1206	-	histidine utilization repressor
1193	 48.63	0	1282693..1283640	-	315	15641220	-	VC1207	-	hypothetical protein
1194	 49.53	0	1283779..1284099	-	106	15641221	-	VC1208	-	dsDNA-mimic protein
1195	 44.62	0	1284104..1284670	-	188	161582010	-	VC1209	-	elongation factor P
1196	 49.81	0	1284862..1285656	+	264	15641223	-	VC1210	-	hypothetical protein
1197	 45.25	0	1285750..1287864	+	704	15641224	-	VC1211	-	hypothetical protein
1198	 48.18	0	1287836..1290199	-	787	15641225	-	VC1212	-	DNA polymerase II
1199	 47.60	0	1290575..1291219	+	214	15641226	-	VC1213	-	response regulator
47.43	MEAN

4.26	STD DEV
