IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

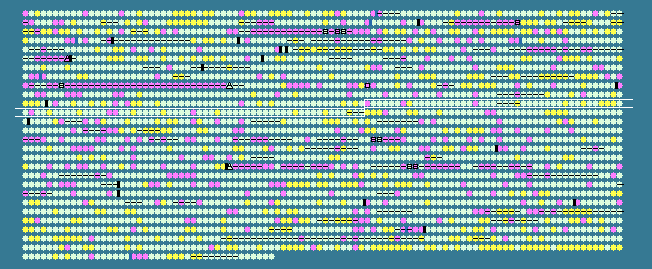

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1058	 31.94	-2	1139201..1139344	+	47	15641085	-	VC1072	-	hypothetical protein
1059	 50.81	0	1139646..1142912	+	1088	15641086	-	VC1073	-	chitinase, putative
1060	 50.18	0	1143002..1143832	-	276	15641087	-	VC1074	-	hypothetical protein
1061	 50.64	0	1144116..1144658	+	180	15641088	-	VC1075	-	hypothetical protein
1062	 47.26	0	1144671..1145510	+	279	15641089	-	VC1076	-	AraC/XylS family transcriptional regulator
1063	 45.40	0	1145507..1145995	-	162	15641090	-	VC1077	-	hypothetical protein
1064	 41.84	-1	1146074..1146214	-	46	15641091	-	VC1078	-	hypothetical protein
1065	 54.14	+1	1146259..1147248	-	329	15641092	-	VC1079	-	hypothetical protein
1066	 47.54	0	1147494..1147859	+	121	15641093	-	VC1080	-	hypothetical protein
1067	 46.37	0	1147856..1148998	+	380	15641094	-	VC1081	-	response regulator
1068	 47.54	0	1149033..1149398	+	121	15641095	-	VC1082	-	response regulator
1069	 44.27	0	1149395..1149979	+	194	15641096	-	VC1083	-	hypothetical protein
1070	 45.00	0	1149990..1151309	+	439	15641097	-	VC1084	-	sensory box sensor histidine kinase
1071	 46.59	0	1151321..1152625	+	434	15641098	-	VC1085	-	sensor histidine kinase
1072	 44.75	0	1152625..1154235	+	536	15641099	-	VC1086	-	response regulator
1073	 46.06	0	1154252..1155595	+	447	15641100	-	VC1087	-	response regulator
1074	 45.42	0	1155624..1157228	-	534	15641101	-	VC1088	-	sensor histidine kinase
1075	 46.86	0	1157232..1158044	-	270	15641102	-	VC1089	-	periplasmic binding protein-related protein
1076	 34.72	-2	1158069..1158212	-	47	15641103	-	VC1090	-	hypothetical protein
1077	 46.20	0	1158668..1160299	+	543	15641104	-	VC1091	-	oligopeptide ABC transporter, periplasmic oligopeptide-binding protein
1078	 46.47	0	1160448..1161368	+	306	15641105	oppB	VC1092	-	oligopeptide transporter permease
1079	 49.72	0	1161382..1162284	+	300	15641106	-	VC1093	-	oligopeptide ABC transporter, permease protein
1080	 49.95	0	1162309..1163283	+	324	15641107	oppD	VC1094	-	oligopeptide transporter ATP-binding component
1081	 48.27	0	1163262..1164272	+	336	15641108	-	VC1095	-	oligopeptide ABC transporter, ATP-binding protein
1082	 47.26	0	1164422..1165369	+	315	15641109	-	VC1096	-	hypothetical protein
1083	 51.79	+1	1165467..1167611	-	714	15641110	-	VC1097	-	phosphate acetyltransferase
1084	 50.54	0	1167747..1168943	-	398	15641111	-	VC1098	-	acetate kinase
1085	 49.89	0	1169290..1169748	+	152	15641112	-	VC1099	-	hypothetical protein
1086	 44.53	0	1169871..1170281	-	136	15641113	-	VC1100	-	hypothetical protein
1087	 48.55	0	1170719..1171684	+	321	15641114	-	VC1101	-	hypothetical protein
1088	 50.30	0	1171760..1172743	+	327	15641115	-	VC1102	-	ABC transporter, permease protein, putative
1089	 50.44	0	1172740..1173534	+	264	15641116	-	VC1103	-	ABC transporter, ATP-binding protein
1090	 44.76	0	1173701..1175170	+	489	15641117	-	VC1104	-	GGDEF family protein
1091	 50.93	0	1175203..1176174	-	323	15641118	-	VC1105	-	hypothetical protein
1092	 50.63	0	1176331..1176960	+	209	15641119	-	VC1106	-	preprotein translocase SecA subunit-related protein
1093	 47.07	0	1177056..1177652	+	198	15641120	lolA	VC1107	-	outer-membrane lipoprotein carrier protein
1094	 52.44	+1	1177677..1179026	+	449	15641121	-	VC1108	-	recombination factor protein RarA
1095	 44.79	0	1179026..1179121	+	31	15641122	-	VC1109	-	hypothetical protein
1096	 49.46	0	1179130..1180437	+	435	15641123	-	VC1110	-	seryl-tRNA synthetase
1097	 50.97	0	1180544..1181830	-	428	15641124	-	VC1111	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1098	 51.09	0	1181957..1183009	+	350	15641125	-	VC1112	-	biotin synthase
1099	 52.47	+1	1182993..1184147	+	384	15641126	-	VC1113	-	8-amino-7-oxononanoate synthase
1100	 50.59	0	1184009..1184947	+	312	15641127	-	VC1114	-	biotin synthesis protein BioC
1101	 47.98	0	1184923..1185639	+	238	15641128	bioD	VC1115	-	dithiobiotin synthetase
1102	 43.33	0	1185721..1185930	-	69	15641129	-	VC1116	-	hypothetical protein
1103	 49.42	0	1186157..1187020	+	287	15641130	-	VC1117	-	heat shock protein HtpX
1104	 45.45	0	1187230..1187658	+	142	15641131	-	VC1118	-	transcriptional regulator, putative
1105	 51.10	0	1187655..1188380	+	241	15641132	-	VC1119	-	short chain dehydrogenase
1106	 48.71	0	1188391..1189671	+	426	15641133	-	VC1120	-	hypothetical protein
1107	 48.27	0	1189671..1190480	+	269	15641134	-	VC1121	-	hypothetical protein
1108	 47.27	0	1190413..1191711	+	432	15641135	-	VC1122	-	cyclopropane-fatty-acyl-phospholipid synthase
1109	 48.89	0	1191714..1192253	+	179	15641136	-	VC1123	-	hypothetical protein
1110	 50.97	0	1192186..1192752	+	188	15641137	-	VC1124	-	hypothetical protein
1111	 45.45	0	1192749..1193276	+	175	15641138	-	VC1125	-	hypothetical protein
1112	 49.53	0	1193367..1194737	-	456	15641139	-	VC1126	-	adenylosuccinate lyase
1113	 50.00	0	1194795..1195412	-	205	15641140	-	VC1127	-	hypothetical protein
1114	 47.63	0	1195435..1196553	-	372	15641141	trmU	VC1128	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1115	 42.91	-1	1196815..1198119	+	434	15641142	-	VC1129	-	inosine-guanosine kinase
1116	 43.24	0	1198167..1198580	-	137	15641143	-	VC1130	-	DNA-binding protein H-NS
1117	 48.00	0	1199268..1200869	+	533	15641144	-	VC1131	-	hypothetical protein
1118	 49.18	0	1201260..1202174	+	304	15641145	hisG	VC1132	-	ATP phosphoribosyltransferase
1119	 51.70	+1	1202179..1203474	+	431	15641146	hisD	VC1133	-	histidinol dehydrogenase
1120	 49.38	0	1203478..1204518	+	346	15641147	-	VC1134	-	histidinol-phosphate aminotransferase
1121	 49.81	0	1204570..1205643	+	357	15641148	-	VC1135	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
1122	 50.65	0	1205643..1206254	+	203	15641149	hisH	VC1136	-	imidazole glycerol phosphate synthase subunit HisH
1123	 50.14	0	1206297..1207034	+	245	15641150	-	VC1137	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1124	 51.03	0	1207016..1207789	+	257	15641151	-	VC1138	-	imidazole glycerol phosphate synthase subunit HisF
1125	 49.76	0	1207786..1208418	+	210	15641152	-	VC1139	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
1126	 47.65	0	1208619..1209491	-	290	15641153	-	VC1140	-	pseudouridine synthase family 1 protein
1127	 49.15	0	1209652..1211877	+	741	15641154	-	VC1141	-	isocitrate dehydrogenase
1128	 45.89	0	1211976..1212206	-	76	15641155	-	VC1142	-	cold shock-like protein CspD
1129	 42.37	-1	1212670..1212990	+	106	15641156	clpS	VC1143	-	ATP-dependent Clp protease adaptor protein ClpS
1130	 48.66	0	1213029..1215299	+	756	15641157	clpA	VC1144	-	ATP-dependent Clp protease ATP-binding subunit
1131	 47.35	0	1215368..1217044	-	558	15641158	-	VC1145	-	hypothetical protein
1132	 44.70	0	1217246..1217509	-	87	161582012	grxA	VC1146	-	glutaredoxin 1
1133	 51.69	+1	1217797..1219065	+	422	15641160	-	VC1147	-	iron-containing alcohol dehydrogenase
1134	 46.32	0	1219156..1220010	-	284	15641161	-	VC1148	-	DNA-binding transcriptional regulator HexR
1135	 48.27	0	1220318..1221964	-	548	15641162	-	VC1149	-	glutamate decarboxylase, putative
1136	 46.04	0	1222074..1222679	-	201	15641163	-	VC1150	-	hypothetical protein
1137	 48.23	0	1222772..1223677	-	301	15641164	-	VC1151	-	hypothetical protein
1138	 44.12	0	1223698..1224633	-	311	15641165	-	VC1152	-	hypothetical protein
1139	 45.81	0	1224975..1225583	+	202	15641166	-	VC1153	-	hypothetical protein
1140	 50.82	0	1225679..1226227	-	182	15641167	-	VC1154	-	hypothetical protein
1141	 47.44	0	1226418..1226963	-	181	15641168	-	VC1155	-	response regulator
1142	 46.53	0	1226912..1228207	-	431	15641169	-	VC1156	-	sensor histidine kinase
1143	 46.17	0	1228096..1228866	-	256	15641170	-	VC1157	-	response regulator
1144	 47.24	0	1229089..1230354	+	421	15641171	-	VC1158	-	hypothetical protein
1145	 48.77	0	1230431..1231570	+	379	15641172	-	VC1159	-	phosphoserine aminotransferase
1146	 51.11	0	1231651..1232640	-	329	15641173	-	VC1160	-	hypothetical protein
1147	 49.11	0	1232640..1234148	-	502	15641174	-	VC1161	-	gonadoliberin III-related protein
1148	 49.05	0	1234157..1234894	-	245	15641175	-	VC1162	-	hypothetical protein
1149	 50.62	0	1235014..1235985	-	323	15641176	-	VC1163	-	hypothetical protein
1150	 49.66	0	1236097..1236837	-	246	15641177	-	VC1164	-	hypothetical protein
1151	 51.95	+1	1236963..1237832	-	289	15641178	-	VC1165	-	hypothetical protein
1152	 50.17	0	1238124..1239899	+	591	15641179	aspS	VC1166	-	aspartyl-tRNA synthetase
1153	 48.88	0	1239996..1240574	+	192	15641180	-	VC1167	-	thymidine kinase
1154	 48.37	0	1240676..1242052	-	458	15641181	-	VC1168	-	proton/glutamate symporter
1155	 51.55	0	1242248..1243054	-	268	15641182	trpA	VC1169	-	tryptophan synthase subunit alpha
1156	 50.46	0	1243054..1244244	-	396	15641183	-	VC1170	-	tryptophan synthase subunit beta
1157	 49.86	0	1244285..1245694	-	469	15641184	-	VC1171	-	bifunctional indole-3-glycerol phosphate synthase/phosphoribosylanthranilate isomerase
47.43	MEAN

4.26	STD DEV
