IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

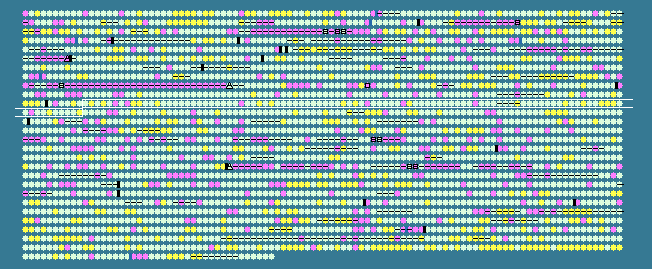

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1011	 49.71	0	1094196..1094708	+	170	15641038	-	VC1025	-	molybdenum cofactor biosynthesis protein B
1012	 51.55	0	1094716..1095198	+	160	15641039	moaC	VC1026	-	molybdenum cofactor biosynthesis protein C
1013	 50.41	0	1095195..1095440	+	81	15641040	moaD	VC1027	-	molybdopterin synthase small subunit
1014	 52.32	+1	1095442..1095894	+	150	15641041	-	VC1028	-	molybdenum cofactor biosynthesis protein E
1015	 47.59	0	1095909..1096883	-	324	15641042	-	VC1029	-	GGDEF family protein
1016	 40.86	-1	1096938..1097030	-	30	15641043	-	VC1030	-	hypothetical protein
1017	 48.30	0	1097088..1097528	+	146	15641044	-	VC1031	-	inosine monophosphate dehydrogenase-related protein
1018	 43.43	0	1097461..1097658	-	65	15641045	-	VC1032	-	hypothetical protein
1019	 53.62	+1	1097641..1099947	+	768	15641046	zntA	VC1033	-	zinc/cadmium/mercury/lead-transporting ATPase
1020	 52.51	+1	1100393..1101169	+	258	15641047	-	VC1034	-	uridine phosphorylase
1021	 46.42	0	1101242..1102135	-	297	15641048	-	VC1035	-	hypothetical protein
1022	 49.03	0	1102361..1104412	-	683	161582014	metG	VC1036	-	methionyl-tRNA synthetase
1023	 51.78	+1	1104498..1105646	+	382	15641050	-	VC1037	-	mrp protein
1024	 48.94	0	1105805..1106464	+	219	15641051	-	VC1038	-	uridine kinase
1025	 47.63	0	1106562..1108673	+	703	15641052	-	VC1039	-	asmA protein
1026	 49.34	0	1108745..1109350	-	201	15641053	-	VC1040	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
1027	 49.15	0	1109436..1109903	+	155	15641054	-	VC1041	-	phosphotyrosine protein phosphatase
1028	 47.81	0	1109930..1111228	-	432	15641055	-	VC1042	-	long-chain fatty acid transport protein
1029	 45.69	0	1111531..1112817	-	428	15641056	-	VC1043	-	long-chain fatty acid transport protein
1030	 47.38	0	1113077..1113838	-	253	15641057	-	VC1044	-	hypothetical protein
1031	 44.44	0	1113801..1114367	-	188	15641058	-	VC1045	-	RNA polymerase sigma factor
1032	 49.21	0	1114748..1116202	+	484	15641059	fadI	VC1046	-	3-ketoacyl-CoA thiolase
1033	 49.74	0	1116202..1118328	+	708	161582013	fadJ	VC1047	-	multifunctional fatty acid oxidation complex subunit alpha
1034	 50.82	0	1118454..1119002	+	182	15641061	-	VC1048	-	hypothetical protein
1035	 47.00	0	1119081..1119980	-	299	15641062	-	VC1049	-	LysR family transcriptional regulator
1036	 45.80	0	1120189..1121295	+	368	15641063	-	VC1050	-	response regulator
1037	 43.94	0	1121465..1121596	+	43	15641064	-	VC1051	-	hypothetical protein
1038	 45.61	0	1121596..1121994	+	132	15641065	-	VC1052	-	hypothetical protein
1039	 48.90	0	1122126..1122671	+	181	15641066	-	VC1053	-	adenine phosphoribosyltransferase
1040	 51.56	0	1122690..1124768	+	692	15641067	-	VC1054	-	DNA polymerase III subunits gamma and tau
1041	 48.76	0	1124806..1125168	+	120	15641068	-	VC1055	-	hypothetical protein
1042	 52.57	+1	1125183..1125785	+	200	15641069	recR	VC1056	-	recombination protein RecR
1043	 50.79	0	1125895..1126146	-	83	15641070	-	VC1057	-	proteinase inhibitor, putative
1044	 47.03	0	1126281..1126718	+	145	15641071	-	VC1058	-	hypothetical protein
1045	 48.39	0	1126812..1127555	-	247	15641072	-	VC1059	-	short chain dehydrogenase
1046	 49.02	0	1127705..1128775	+	356	15641073	-	VC1060	-	putative periplasmic protease
1047	 50.00	0	1128900..1129967	-	355	15641074	-	VC1061	-	cysteine synthase/cystathionine beta-synthase family protein
1048	 44.51	0	1130011..1130547	+	178	15641075	-	VC1062	-	AsnC family transcriptional regulator
1049	 48.66	0	1130556..1131416	-	286	15641076	-	VC1063	-	acyl-CoA thioesterase II
1050	 45.83	0	1131567..1131998	+	143	15641077	-	VC1064	-	lipoprotein-related protein
1051	 48.84	0	1132052..1132354	-	100	15641078	-	VC1065	-	methylated-DNA--protein-cysteine methyltransferase-related protein
1052	 48.92	0	1132405..1133148	+	247	15641079	-	VC1066	-	hypothetical protein
1053	 45.24	0	1133235..1135316	+	693	15641080	-	VC1067	-	hypothetical protein
1054	 51.75	+1	1135858..1136199	+	113	15641081	-	VC1068	-	ArsR family transcriptional regulator
1055	 48.00	0	1136296..1137297	+	333	15641082	-	VC1069	-	glyceraldehyde-3-phosphate dehydrogenase
1056	 54.22	+1	1137311..1137808	+	165	15641083	-	VC1070	-	phosphatase, putative
1057	 50.73	0	1137847..1139082	+	411	15641084	-	VC1071	-	transporter, putative
1058	 31.94	-2	1139201..1139344	+	47	15641085	-	VC1072	-	hypothetical protein
1059	 50.81	0	1139646..1142912	+	1088	15641086	-	VC1073	-	chitinase, putative
1060	 50.18	0	1143002..1143832	-	276	15641087	-	VC1074	-	hypothetical protein
1061	 50.64	0	1144116..1144658	+	180	15641088	-	VC1075	-	hypothetical protein
1062	 47.26	0	1144671..1145510	+	279	15641089	-	VC1076	-	AraC/XylS family transcriptional regulator
1063	 45.40	0	1145507..1145995	-	162	15641090	-	VC1077	-	hypothetical protein
1064	 41.84	-1	1146074..1146214	-	46	15641091	-	VC1078	-	hypothetical protein
1065	 54.14	+1	1146259..1147248	-	329	15641092	-	VC1079	-	hypothetical protein
1066	 47.54	0	1147494..1147859	+	121	15641093	-	VC1080	-	hypothetical protein
1067	 46.37	0	1147856..1148998	+	380	15641094	-	VC1081	-	response regulator
1068	 47.54	0	1149033..1149398	+	121	15641095	-	VC1082	-	response regulator
1069	 44.27	0	1149395..1149979	+	194	15641096	-	VC1083	-	hypothetical protein
1070	 45.00	0	1149990..1151309	+	439	15641097	-	VC1084	-	sensory box sensor histidine kinase
1071	 46.59	0	1151321..1152625	+	434	15641098	-	VC1085	-	sensor histidine kinase
1072	 44.75	0	1152625..1154235	+	536	15641099	-	VC1086	-	response regulator
1073	 46.06	0	1154252..1155595	+	447	15641100	-	VC1087	-	response regulator
1074	 45.42	0	1155624..1157228	-	534	15641101	-	VC1088	-	sensor histidine kinase
1075	 46.86	0	1157232..1158044	-	270	15641102	-	VC1089	-	periplasmic binding protein-related protein
1076	 34.72	-2	1158069..1158212	-	47	15641103	-	VC1090	-	hypothetical protein
1077	 46.20	0	1158668..1160299	+	543	15641104	-	VC1091	-	oligopeptide ABC transporter, periplasmic oligopeptide-binding protein
1078	 46.47	0	1160448..1161368	+	306	15641105	oppB	VC1092	-	oligopeptide transporter permease
1079	 49.72	0	1161382..1162284	+	300	15641106	-	VC1093	-	oligopeptide ABC transporter, permease protein
1080	 49.95	0	1162309..1163283	+	324	15641107	oppD	VC1094	-	oligopeptide transporter ATP-binding component
1081	 48.27	0	1163262..1164272	+	336	15641108	-	VC1095	-	oligopeptide ABC transporter, ATP-binding protein
1082	 47.26	0	1164422..1165369	+	315	15641109	-	VC1096	-	hypothetical protein
1083	 51.79	+1	1165467..1167611	-	714	15641110	-	VC1097	-	phosphate acetyltransferase
1084	 50.54	0	1167747..1168943	-	398	15641111	-	VC1098	-	acetate kinase
1085	 49.89	0	1169290..1169748	+	152	15641112	-	VC1099	-	hypothetical protein
1086	 44.53	0	1169871..1170281	-	136	15641113	-	VC1100	-	hypothetical protein
1087	 48.55	0	1170719..1171684	+	321	15641114	-	VC1101	-	hypothetical protein
1088	 50.30	0	1171760..1172743	+	327	15641115	-	VC1102	-	ABC transporter, permease protein, putative
1089	 50.44	0	1172740..1173534	+	264	15641116	-	VC1103	-	ABC transporter, ATP-binding protein
1090	 44.76	0	1173701..1175170	+	489	15641117	-	VC1104	-	GGDEF family protein
1091	 50.93	0	1175203..1176174	-	323	15641118	-	VC1105	-	hypothetical protein
1092	 50.63	0	1176331..1176960	+	209	15641119	-	VC1106	-	preprotein translocase SecA subunit-related protein
1093	 47.07	0	1177056..1177652	+	198	15641120	lolA	VC1107	-	outer-membrane lipoprotein carrier protein
1094	 52.44	+1	1177677..1179026	+	449	15641121	-	VC1108	-	recombination factor protein RarA
1095	 44.79	0	1179026..1179121	+	31	15641122	-	VC1109	-	hypothetical protein
1096	 49.46	0	1179130..1180437	+	435	15641123	-	VC1110	-	seryl-tRNA synthetase
1097	 50.97	0	1180544..1181830	-	428	15641124	-	VC1111	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1098	 51.09	0	1181957..1183009	+	350	15641125	-	VC1112	-	biotin synthase
1099	 52.47	+1	1182993..1184147	+	384	15641126	-	VC1113	-	8-amino-7-oxononanoate synthase
1100	 50.59	0	1184009..1184947	+	312	15641127	-	VC1114	-	biotin synthesis protein BioC
1101	 47.98	0	1184923..1185639	+	238	15641128	bioD	VC1115	-	dithiobiotin synthetase
1102	 43.33	0	1185721..1185930	-	69	15641129	-	VC1116	-	hypothetical protein
1103	 49.42	0	1186157..1187020	+	287	15641130	-	VC1117	-	heat shock protein HtpX
1104	 45.45	0	1187230..1187658	+	142	15641131	-	VC1118	-	transcriptional regulator, putative
1105	 51.10	0	1187655..1188380	+	241	15641132	-	VC1119	-	short chain dehydrogenase
1106	 48.71	0	1188391..1189671	+	426	15641133	-	VC1120	-	hypothetical protein
1107	 48.27	0	1189671..1190480	+	269	15641134	-	VC1121	-	hypothetical protein
1108	 47.27	0	1190413..1191711	+	432	15641135	-	VC1122	-	cyclopropane-fatty-acyl-phospholipid synthase
1109	 48.89	0	1191714..1192253	+	179	15641136	-	VC1123	-	hypothetical protein
1110	 50.97	0	1192186..1192752	+	188	15641137	-	VC1124	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
