IslandPath Analysis: Vibrio cholerae O1 biovar El Tor str. N16961

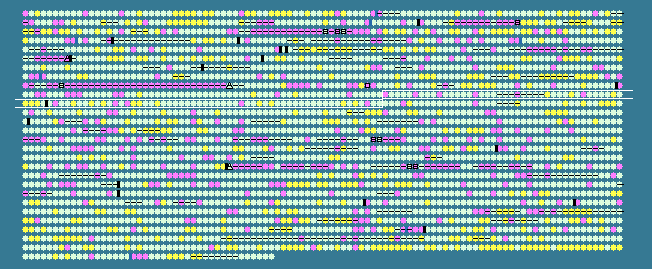

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.43 STD DEV: 4.26
Vibrio cholerae O1 biovar eltor str. N16961 chromosome I, complete sequence - 1..2961149
2742 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
961	 39.58	-1	1039017..1039832	+	271	15640989	-	VC0973	-	hypothetical protein
962	 49.05	0	1039893..1040312	+	139	15640990	-	VC0974	-	MerR family transcriptional regulator
963	 48.25	0	1040356..1040925	-	189	15640991	-	VC0975	-	hypothetical protein
964	 45.49	0	1040813..1041733	-	306	15640992	-	VC0976	-	hypothetical protein
965	 45.60	0	1042164..1043084	-	306	15640993	-	VC0977	-	hypothetical protein
966	 36.75	-2	1043256..1043372	-	38	15640994	-	VC0978	-	hypothetical protein
967	 48.07	0	1043447..1044274	-	275	15640995	-	VC0979	-	short chain dehydrogenase
968	 48.25	0	1045625..1046194	+	189	15640996	-	VC0981	-	phosphodiesterase
969	 49.66	0	1046275..1046568	-	97	15640997	-	VC0982	-	selenoprotein W-related protein
970	 42.72	-1	1046609..1047130	-	173	15640998	-	VC0983	-	regulatory protein ToxS
971	 45.42	0	1047140..1048024	-	294	15640999	-	VC0984	-	cholera toxin transcriptional activator
972	 45.75	0	1048252..1050159	+	635	15641000	-	VC0985	-	heat shock protein 90
973	 46.98	0	1050494..1051138	+	214	15641001	adk	VC0986	-	adenylate kinase
974	 47.18	0	1051253..1052227	+	324	15641002	hemH	VC0987	-	ferrochelatase
975	 46.41	0	1052327..1053871	-	514	15641003	tppB	VC0988	-	putative tripeptide transporter permease
976	 38.67	-2	1054133..1054282	+	49	15641004	-	VC0989	-	hypothetical protein
977	 45.18	0	1054316..1054813	+	165	15641005	rfaH	VC0990	-	transcriptional activator RfaH
978	 46.49	0	1054961..1056625	-	554	15641006	asnB	VC0991	-	asparagine synthetase B
979	 47.51	0	1056821..1058407	-	528	15641007	-	VC0992	-	glutathione-regulated potassium-efflux system protein KefB, putative
980	 46.91	0	1058502..1059716	-	404	15641008	-	VC0993	-	N-acetylglucosamine repressor
981	 45.82	0	1059719..1060855	-	378	15641009	nagA	VC0994	-	N-acetylglucosamine-6-phosphate deacetylase
982	 48.98	0	1061324..1062895	+	523	15641010	-	VC0995	-	PTS system, N-acetylglucosamine-specific IIABC component
983	 40.20	-1	1063024..1063125	+	33	15641011	-	VC0996	-	hypothetical protein
984	 46.56	0	1063143..1064813	+	556	15641012	-	VC0997	-	glutaminyl-tRNA synthetase
985	 49.49	0	1064978..1069843	+	1621	15641013	-	VC0998	-	hypothetical protein
986	 50.82	0	1069965..1070759	+	264	15641014	truA	VC0999	-	tRNA pseudouridine synthase A
987	 49.84	0	1070933..1071859	+	308	15641015	-	VC1000	-	acetyl-CoA carboxylase subunit beta
988	 50.95	0	1071904..1073169	+	421	15641016	-	VC1001	-	folylpolyglutamate synthase/dihydrofolate synthase
989	 47.07	0	1073170..1073766	+	198	15641017	-	VC1002	-	dedD protein
990	 46.75	0	1073829..1074320	+	163	15641018	-	VC1003	-	bacteriocin production protein
991	 48.65	0	1074353..1075867	+	504	15641019	-	VC1004	-	amidophosphoribosyltransferase
992	 51.13	0	1075995..1077320	-	441	15641020	-	VC1005	-	hypothetical protein
993	 46.58	0	1077421..1078152	-	243	15641021	-	VC1006	-	ribonuclease T
994	 43.06	-1	1078165..1078308	-	47	15641022	-	VC1007	-	hypothetical protein
995	 48.14	0	1078369..1079253	+	294	15641023	-	VC1008	-	sodium-type flagellar protein MotY
996	 48.07	0	1079302..1079742	-	146	15641024	-	VC1009	-	hypothetical protein
997	 46.85	0	1079901..1080455	-	184	15641025	-	VC1010	-	lactoylglutathione lyase
998	 47.35	0	1080358..1080999	-	213	15641026	-	VC1011	-	endonuclease III
999	 51.37	0	1081026..1081718	-	230	15641027	-	VC1012	-	SoxR-reducing system protein RsxE
1000	 48.73	0	1081720..1082349	-	209	15641028	-	VC1013	-	electron transport complex protein RnfG
1001	 53.39	+1	1082361..1083407	-	348	15641029	rnfD	VC1014	-	electron transport complex protein RnfD
1002	 52.91	+1	1083407..1085812	-	801	15641030	-	VC1015	-	electron transport complex protein RnfC
1003	 52.21	+1	1085740..1086327	-	195	15641031	-	VC1016	-	electron transport complex protein RnfB
1004	 48.28	0	1086327..1086908	-	193	161582015	-	VC1017	-	Na(+)-translocating NADH-quinone reductase subunit E
1005	 48.08	0	1087790..1089819	+	676	15642773	uvrB	VC1018	-	excinuclease ABC subunit B
1006	 41.29	-1	1089757..1089957	-	66	15641033	-	VC1020	-	hypothetical protein
1007	 49.85	0	1090250..1091617	+	455	15641034	-	VC1021	-	LuxO repressor protein
1008	 46.49	0	1091621..1091962	+	113	15641035	-	VC1022	-	phosphorelay protein
1009	 51.18	0	1091951..1092841	-	296	15641036	-	VC1023	-	hypothetical protein
1010	 47.76	0	1093132..1094136	+	334	15641037	moaA	VC1024	-	molybdenum cofactor biosynthesis protein A
1011	 49.71	0	1094196..1094708	+	170	15641038	-	VC1025	-	molybdenum cofactor biosynthesis protein B
1012	 51.55	0	1094716..1095198	+	160	15641039	moaC	VC1026	-	molybdenum cofactor biosynthesis protein C
1013	 50.41	0	1095195..1095440	+	81	15641040	moaD	VC1027	-	molybdopterin synthase small subunit
1014	 52.32	+1	1095442..1095894	+	150	15641041	-	VC1028	-	molybdenum cofactor biosynthesis protein E
1015	 47.59	0	1095909..1096883	-	324	15641042	-	VC1029	-	GGDEF family protein
1016	 40.86	-1	1096938..1097030	-	30	15641043	-	VC1030	-	hypothetical protein
1017	 48.30	0	1097088..1097528	+	146	15641044	-	VC1031	-	inosine monophosphate dehydrogenase-related protein
1018	 43.43	0	1097461..1097658	-	65	15641045	-	VC1032	-	hypothetical protein
1019	 53.62	+1	1097641..1099947	+	768	15641046	zntA	VC1033	-	zinc/cadmium/mercury/lead-transporting ATPase
1020	 52.51	+1	1100393..1101169	+	258	15641047	-	VC1034	-	uridine phosphorylase
1021	 46.42	0	1101242..1102135	-	297	15641048	-	VC1035	-	hypothetical protein
1022	 49.03	0	1102361..1104412	-	683	161582014	metG	VC1036	-	methionyl-tRNA synthetase
1023	 51.78	+1	1104498..1105646	+	382	15641050	-	VC1037	-	mrp protein
1024	 48.94	0	1105805..1106464	+	219	15641051	-	VC1038	-	uridine kinase
1025	 47.63	0	1106562..1108673	+	703	15641052	-	VC1039	-	asmA protein
1026	 49.34	0	1108745..1109350	-	201	15641053	-	VC1040	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
1027	 49.15	0	1109436..1109903	+	155	15641054	-	VC1041	-	phosphotyrosine protein phosphatase
1028	 47.81	0	1109930..1111228	-	432	15641055	-	VC1042	-	long-chain fatty acid transport protein
1029	 45.69	0	1111531..1112817	-	428	15641056	-	VC1043	-	long-chain fatty acid transport protein
1030	 47.38	0	1113077..1113838	-	253	15641057	-	VC1044	-	hypothetical protein
1031	 44.44	0	1113801..1114367	-	188	15641058	-	VC1045	-	RNA polymerase sigma factor
1032	 49.21	0	1114748..1116202	+	484	15641059	fadI	VC1046	-	3-ketoacyl-CoA thiolase
1033	 49.74	0	1116202..1118328	+	708	161582013	fadJ	VC1047	-	multifunctional fatty acid oxidation complex subunit alpha
1034	 50.82	0	1118454..1119002	+	182	15641061	-	VC1048	-	hypothetical protein
1035	 47.00	0	1119081..1119980	-	299	15641062	-	VC1049	-	LysR family transcriptional regulator
1036	 45.80	0	1120189..1121295	+	368	15641063	-	VC1050	-	response regulator
1037	 43.94	0	1121465..1121596	+	43	15641064	-	VC1051	-	hypothetical protein
1038	 45.61	0	1121596..1121994	+	132	15641065	-	VC1052	-	hypothetical protein
1039	 48.90	0	1122126..1122671	+	181	15641066	-	VC1053	-	adenine phosphoribosyltransferase
1040	 51.56	0	1122690..1124768	+	692	15641067	-	VC1054	-	DNA polymerase III subunits gamma and tau
1041	 48.76	0	1124806..1125168	+	120	15641068	-	VC1055	-	hypothetical protein
1042	 52.57	+1	1125183..1125785	+	200	15641069	recR	VC1056	-	recombination protein RecR
1043	 50.79	0	1125895..1126146	-	83	15641070	-	VC1057	-	proteinase inhibitor, putative
1044	 47.03	0	1126281..1126718	+	145	15641071	-	VC1058	-	hypothetical protein
1045	 48.39	0	1126812..1127555	-	247	15641072	-	VC1059	-	short chain dehydrogenase
1046	 49.02	0	1127705..1128775	+	356	15641073	-	VC1060	-	putative periplasmic protease
1047	 50.00	0	1128900..1129967	-	355	15641074	-	VC1061	-	cysteine synthase/cystathionine beta-synthase family protein
1048	 44.51	0	1130011..1130547	+	178	15641075	-	VC1062	-	AsnC family transcriptional regulator
1049	 48.66	0	1130556..1131416	-	286	15641076	-	VC1063	-	acyl-CoA thioesterase II
1050	 45.83	0	1131567..1131998	+	143	15641077	-	VC1064	-	lipoprotein-related protein
1051	 48.84	0	1132052..1132354	-	100	15641078	-	VC1065	-	methylated-DNA--protein-cysteine methyltransferase-related protein
1052	 48.92	0	1132405..1133148	+	247	15641079	-	VC1066	-	hypothetical protein
1053	 45.24	0	1133235..1135316	+	693	15641080	-	VC1067	-	hypothetical protein
1054	 51.75	+1	1135858..1136199	+	113	15641081	-	VC1068	-	ArsR family transcriptional regulator
1055	 48.00	0	1136296..1137297	+	333	15641082	-	VC1069	-	glyceraldehyde-3-phosphate dehydrogenase
1056	 54.22	+1	1137311..1137808	+	165	15641083	-	VC1070	-	phosphatase, putative
1057	 50.73	0	1137847..1139082	+	411	15641084	-	VC1071	-	transporter, putative
1058	 31.94	-2	1139201..1139344	+	47	15641085	-	VC1072	-	hypothetical protein
1059	 50.81	0	1139646..1142912	+	1088	15641086	-	VC1073	-	chitinase, putative
1060	 50.18	0	1143002..1143832	-	276	15641087	-	VC1074	-	hypothetical protein
47.43	MEAN

4.26	STD DEV
