IslandPath Analysis: Treponema pallidum subsp. pallidum SS14

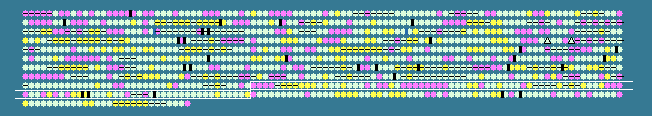

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.36
Treponema pallidum subsp. pallidum SS14, complete genome - 1..1139457
1028 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
839	 47.03	-1	921889..924063	+	724	189026075	-	TPASS_0851	-	hypothetical protein
840	 48.45	-1	924092..925090	-	332	189026076	lgt	TPASS_0852	-	prolipoprotein diacylglyceryl transferase
841	 46.97	-1	925241..926377	-	378	189026077	ylxH2	TPASS_0853	-	ATP-binding protein
842	 48.50	-1	926432..931033	-	1533	189026078	-	TPASS_0854	-	hypothetical protein
843	 56.26	0	931030..934413	-	1127	189026079	-	TPASS_0855	-	hypothetical protein
844	 58.49	+1	934569..935546	+	325	189026080	-	TPASS_0856	-	hypothetical protein
845	 64.49	+2	935549..935869	-	106	189026081	-	TPASS_0857	-	hypothetical protein
846	 57.70	+1	935854..937080	+	408	189026082	-	TPASS_0858	-	hypothetical protein
847	 64.52	+2	937162..937860	+	232	189026083	-	TPASS_0859	-	hypothetical protein
848	 59.20	+1	937925..938647	+	240	189026084	-	TPASS_0860	-	hypothetical protein
849	 56.87	0	938722..940629	-	635	189026085	glmS	TPASS_0861	-	glucosamine-fructose-6-phosphate aminotransferase
850	 54.09	0	940866..941660	-	264	189026086	fklB	TPASS_0862	-	peptidyl-prolyl cis-trans isomerase, FKBP-type, 22 kDa
851	 57.94	+1	941795..943078	+	427	189026087	nifS2	TPASS_0863	-	nitrogen fixation protein
852	 55.58	0	943137..944777	-	546	189026088	-	TPASS_0864	-	hypothetical protein
853	 54.33	0	944811..946253	-	480	189026089	-	TPASS_0865	-	hypothetical protein
854	 57.53	+1	948246..948431	-	61	189026090	-	TPASS_0867	-	hypothetical protein
855	 52.94	0	948600..948956	+	118	189026091	flaB1	TPASS_0868	-	flagellar filament 34.5 kDa core protein
856	 55.27	0	949468..949704	+	78	189026092	-	TPASS_0869	-	hypothetical protein
857	 53.50	0	949732..950589	+	285	189026093	flaB3	TPASS_0870	-	flagellar filament 31 kDa core protein
858	 46.30	-1	950650..950811	-	53	189026094	-	TPASS_0871	-	hypothetical protein
859	 53.90	0	950887..953055	+	722	189026095	fliD	TPASS_0872	-	flagellar filament cap protein
860	 46.60	-1	953067..953669	+	200	189026096	-	TPASS_0873	-	hypothetical protein
861	 46.38	-1	953666..953941	+	91	189026097	-	TPASS_0874	-	hypothetical protein
862	 56.86	0	953981..954388	+	135	189026098	-	TPASS_0875	-	hypothetical protein
863	 52.40	0	954435..955100	+	221	189026099	-	TPASS_0876	-	hypothetical protein
864	 43.35	-2	955105..956202	+	365	189026100	-	TPASS_0877	-	hypothetical protein
865	 44.06	-2	956215..957165	-	316	189026101	-	TPASS_0878	-	hypothetical protein
866	 43.45	-2	957171..958652	-	493	189026102	-	TPASS_0879	-	hypothetical protein
867	 42.15	-2	958649..959374	-	241	189026103	-	TPASS_0880	-	possible membrane spanning protein
868	 46.84	-1	959364..960170	-	268	189026104	natA	TPASS_0881	-	ABC transporter, ATP-binding protein
869	 42.91	-2	960249..961751	-	500	189026105	-	TPASS_0882	-	hypothetical protein
870	 37.89	-2	961717..962814	-	365	189026106	-	TPASS_0883	-	hypothetical integral membrane protein
871	 45.09	-1	962832..963920	-	362	189026107	-	TPASS_0884	-	hypothetical integral membrane protein
872	 56.24	0	963950..964390	-	146	189026108	dut	TPASS_0885	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
873	 53.53	0	964387..966495	-	702	189026109	pnp	TPASS_0886	-	polyribonucleotide nucleotidyltransferase
874	 53.33	0	966643..966912	-	89	189026110	rpsO	TPASS_0887	-	ribosomal protein S15
875	 60.51	+1	966928..967755	-	275	189026111	ribF	TPASS_0888	-	riboflavin kinase/FMN adenylyltransferase
876	 56.40	0	967759..968859	-	366	189026112	truB	TPASS_0889	-	tRNA pseudouridine 55 synthase
877	 49.08	0	968837..969217	-	126	189026113	rbfA	TPASS_0890	-	ribosome-binding factor A
878	 52.87	0	969214..971742	-	842	189026114	infB	TPASS_0891	-	translation initiation factor 2
879	 49.66	0	971918..973375	-	485	189026115	nusA	TPASS_0892	-	N utilization substance protein A
880	 58.17	+1	973425..973895	-	156	189026116	-	TPASS_0893	-	hypothetical protein
881	 51.22	0	974070..975092	-	340	189026117	-	TPASS_0894	-	hypothetical protein
882	 53.85	0	975099..975605	-	168	189026118	-	TPASS_0895	-	hypothetical protein
883	 49.67	0	975627..975779	-	50	189026119	-	TPASS_0896	-	hypothetical protein
884	 36.23	-2	975761..977278	-	505	189026120	tprK	TPASS_0897	-	protein TprK
885	 58.04	+1	977275..980994	-	1239	189026121	-	TPASS_0898	-	possible ATP-dependent nuclease, subunit A
886	 53.74	0	980991..981578	-	195	189026122	-	TPASS_0899	-	hypothetical protein
887	 55.81	0	981557..983950	-	797	189026123	-	TPASS_0900	-	hypothetical protein
888	 51.31	0	983989..985401	-	470	189026124	-	TPASS_0901	-	hypothetical integral membrane protein
889	 55.78	0	985442..986323	-	293	189026125	est	TPASS_0902	-	carboxylesterase
890	 57.72	+1	986325..987923	+	532	189026126	murD	TPASS_0903	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
891	 50.00	0	987916..988167	+	83	189026127	-	TPASS_0904	-	hypothetical protein
892	 59.95	+1	988130..988501	+	123	189026128	rpsP	TPASS_0905	-	ribosomal protein S16
893	 55.56	0	988510..988752	+	80	189026129	-	TPASS_0906	-	hypothetical protein
894	 57.14	0	988815..989339	+	174	189026130	-	TPASS_0907	-	hypothetical protein
895	 55.64	0	989336..990088	+	250	189026131	trmD	TPASS_0908	-	tRNA (guanine-N1)-methyltransferase
896	 52.15	0	990060..990431	+	123	189026132	rplS	TPASS_0909	-	ribosomal protein L19
897	 57.11	0	990428..991348	+	306	189026133	-	TPASS_0910	-	hypothetical protein
898	 48.41	-1	991370..991621	+	83	189026134	-	TPASS_0911	-	hypothetical protein
899	 47.69	-1	991634..992956	+	440	189026135	-	TPASS_0912	-	hypothetical protein
900	 48.82	0	992940..993320	+	126	189026136	-	TPASS_0913	-	hypothetical protein
901	 47.80	-1	993492..993878	+	128	189026137	-	TPASS_0914	-	hypothetical protein
902	 49.89	0	993952..995286	+	444	189026138	-	TPASS_0915	-	hypothetical protein
903	 55.81	0	995343..995471	+	42	189026139	-	TPASS_0916	-	hypothetical protein
904	 48.37	-1	995455..996804	+	449	189026140	mgtE	TPASS_0917	-	Mg2+ transport protein
905	 61.50	+1	996819..997592	+	257	189026141	-	TPASS_0918	-	hypothetical integral membrane protein
906	 49.06	0	997618..997935	-	105	189026142	trx	TPASS_0919	-	thioredoxin
907	 54.57	0	998158..1000587	+	809	189026143	-	TPASS_0920	-	hypothetical protein
908	 49.40	0	1000695..1002032	+	445	189026144	-	TPASS_0921	-	NADH oxidase
909	 65.21	+2	1002166..1003059	-	297	189026145	-	TPASS_0922	-	hypothetical protein
910	 56.57	0	1003098..1004117	-	339	189026146	-	TPASS_0923	-	hypothetical protein
911	 56.46	0	1004441..1006027	+	528	189026147	tex	TPASS_0924	-	protein Tex
912	 53.06	0	1007144..1007584	+	146	189026148	-	TPASS_0925	-	flavodoxin
913	 56.27	0	1007735..1009273	-	512	189026149	-	TPASS_0926	-	possible signal peptidase I
914	 52.79	0	1009365..1009955	+	196	189026150	-	TPASS_0927	-	hypothetical protein
915	 59.38	+1	1010050..1010790	+	246	189026151	-	TPASS_0928	-	hypothetical protein
916	 55.25	0	1010802..1011572	+	256	189026152	-	TPASS_0929	-	hypothetical protein
917	 50.64	0	1011596..1013317	+	573	189026153	-	TPASS_0930	-	hypothetical protein
918	 46.19	-1	1013401..1014831	-	476	189026154	-	TPASS_0931	-	hypothetical protein
919	 53.76	0	1014841..1014933	-	30	189026155	-	TPASS_0932	-	hypothetical protein
920	 51.32	0	1014943..1016565	-	540	189026156	murE	TPASS_0933	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
921	 49.18	0	1016701..1017924	+	407	189026157	-	TPASS_0934	-	possible glutamate transporter
922	 50.37	0	1017917..1018855	-	312	189026158	-	TPASS_0935	-	possible N-acetylphosphinothricin-tripetide-deacetylase
923	 52.23	0	1019049..1020122	-	357	189026159	-	TPASS_0936	-	possible hemolysin
924	 53.62	0	1020294..1020929	-	211	189026160	-	TPASS_0937	-	hypothetical protein
925	 55.11	0	1020926..1021756	-	276	189026161	-	TPASS_0938	-	hypothetical protein
926	 51.48	0	1021821..1025375	-	1184	189026162	-	TPASS_0939	-	pyruvate oxidoreductase
927	 54.61	0	1025391..1025531	-	46	189026163	-	TPASS_0940	-	hypothetical protein
928	 50.29	0	1025570..1026088	-	172	189026164	-	TPASS_0941	-	hypothetical protein
929	 56.34	0	1026165..1026629	-	154	189026165	-	TPASS_0942	-	hypothetical protein
930	 51.23	0	1026635..1027081	-	148	189026166	fliS	TPASS_0943	-	flagellar protein
931	 53.20	0	1027130..1028302	-	390	189026167	-	TPASS_0944	-	hypothetical protein
932	 54.34	0	1028473..1029129	-	218	189026168	cfxE	TPASS_0945	-	ribulose-phosphate 3-epimerase
933	 57.25	+1	1029281..1029949	+	222	189026169	gidB	TPASS_0946	-	glucose-inhibited division protein B
934	 52.47	0	1029994..1030641	-	215	189026170	cyp	TPASS_0947	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-binding
935	 51.44	0	1030638..1031333	-	231	189026171	jag	TPASS_0948	-	spoIIIJ-associated protein
936	 51.30	0	1031349..1033346	-	665	189026172	-	TPASS_0949	-	membrane protein
937	 55.79	0	1033622..1033906	-	94	189026173	-	TPASS_0950	-	hypothetical protein
938	 59.62	+1	1033910..1034065	-	51	189026174	rpmH	TPASS_0951	-	ribosomal protein L34
52.88	MEAN

4.36	STD DEV
