IslandPath Analysis: Treponema pallidum subsp. pallidum SS14

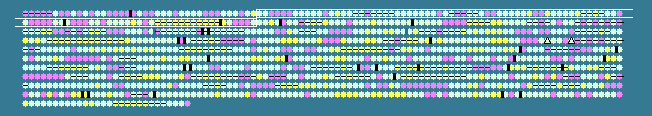

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.36
Treponema pallidum subsp. pallidum SS14, complete genome - 1..1139457
1028 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
40	 55.41	0	49502..50434	+	310	189025276	-	TPASS_0042	-	hypothetical protein
41	 51.62	0	50415..52547	+	710	189025277	-	TPASS_0043	-	possible soluble lytic transglycosylase
42	 49.34	0	52587..54479	+	630	189025278	gidA	TPASS_0044	-	glucose inhibited division protein A
43	 43.33	-2	54535..55434	-	299	189025279	-	TPASS_0045	-	possible adenosine deaminase
44	 49.00	0	55796..56497	-	233	189025280	-	TPASS_0046	-	hypothetical protein
45	 46.74	-1	56515..57036	-	173	189025281	-	TPASS_0047	-	hypothetical protein
46	 51.85	0	57042..57473	-	143	189025282	-	TPASS_0048	-	hypothetical protein
47	 53.84	0	57495..58523	-	342	189025283	-	TPASS_0049	-	hypothetical protein
48	 53.37	0	58816..59424	-	202	189025284	-	TPASS_0050	-	hypothetical protein
49	 49.81	0	59575..60630	+	351	189025285	prfA	TPASS_0051	-	peptide chain release factor 1
50	 55.21	0	60600..61646	+	348	189025286	hemK	TPASS_0052	-	protoporphyrinogen oxidase
51	 45.08	-1	61735..62790	-	351	189025287	nrdB	TPASS_0053	-	ribonucleoside-diphosphate reductase, subunit beta
52	 53.12	0	62961..63920	+	319	189025288	-	TPASS_0054	-	hypothetical protein
53	 57.81	+1	64127..64363	+	78	189025289	-	TPASS_0055	-	hypothetical protein
54	 54.04	0	64360..66141	+	593	189025290	oadA	TPASS_0056	-	oxaloacetate decarboxylase, subunit alpha
55	 52.48	0	66153..67562	+	469	189025291	oadB	TPASS_0057	-	oxaloacetate decarboxylase, subunit beta
56	 53.00	0	67637..68953	-	438	189025292	dnaB	TPASS_0058	-	replicative DNA helicase DnaB
57	 53.95	0	68937..69164	-	75	189025293	-	TPASS_0059	-	hypothetical protein
58	 47.98	-1	69170..69640	-	156	189025294	rplI	TPASS_0060	-	ribosomal protein L9
59	 51.33	0	69746..70045	-	99	189025295	rpsR	TPASS_0061	-	ribosomal protein S18
60	 53.86	0	70162..70692	-	176	189025296	ssb	TPASS_0062	-	single-strand DNA binding protein Ssb
61	 53.55	0	70701..70982	-	93	189025297	rpsF	TPASS_0063	-	ribosomal protein S6
62	 49.65	0	71124..71699	+	191	189025298	-	TPASS_0064	-	hypothetical protein
63	 49.83	0	71773..72360	+	195	189025299	-	TPASS_0065	-	hypothetical protein
64	 52.06	0	72344..72658	+	104	189025300	-	TPASS_0066	-	hypothetical protein
65	 50.42	0	72646..73827	+	393	189025301	-	TPASS_0067	-	hypothetical protein
66	 53.18	0	74008..75030	+	340	189025302	-	TPASS_0068	-	hypothetical protein
67	 52.54	0	75086..75616	-	176	189025303	-	TPASS_0069	-	hypothetical protein
68	 52.97	0	75466..75852	-	128	189025304	-	TPASS_0070	-	hypothetical protein
69	 49.87	0	75903..78539	-	878	189025305	clpB	TPASS_0071	-	ATP-dependent Clp protease, subunit B
70	 48.72	0	78743..79015	+	90	189025306	-	TPASS_0072	-	hypothetical protein
71	 52.53	0	79085..80626	-	513	189025307	-	TPASS_0073	-	hypothetical protein
72	 55.11	0	80931..82340	+	469	189025308	y4oP	TPASS_0074	-	sugar ABC transporter, periplasmic binding protein
73	 49.38	0	82459..83349	+	296	189025309	y4oQ	TPASS_0075	-	sugar ABC transporter, permease protein
74	 48.42	-1	83389..84210	+	273	189025310	y4oR	TPASS_0076	-	sugar ABC transporter, permease protein
75	 50.22	0	84251..85867	+	538	189025311	cap	TPASS_0077	-	capsular polysaccharide biosynthesis protein
76	 50.04	0	85872..87110	+	412	189025312	spsC	TPASS_0078	-	spore coat polysaccharide biosynthesis protein
77	 50.16	0	87038..89260	+	740	189025313	-	TPASS_0079	-	hypothetical protein
78	 42.95	-2	89257..89724	+	155	189025314	-	TPASS_0080	-	quinoline 2-oxidoreductase
79	 46.64	-1	89731..90579	+	282	189025315	-	TPASS_0081	-	hypothetical protein
80	 52.69	0	90626..92428	-	600	189025316	fhlA	TPASS_0082	-	formate hydrogenlyase transcriptional activator FhlA
81	 54.18	0	93174..94454	+	426	189025317	-	TPASS_0083	-	hypothetical protein
82	 53.42	0	94434..94667	-	77	189025318	-	TPASS_0084	-	hypothetical protein
83	 49.66	0	94781..95227	-	148	189025319	ptsN1	TPASS_0085	-	PTS system, nitrogen regulatory IIA component
84	 53.65	0	95308..96252	+	314	189025320	-	TPASS_0086	-	hypothetical protein
85	 57.41	+1	96255..96794	-	179	189025321	-	TPASS_0087	-	hypothetical protein
86	 48.62	0	96778..97392	-	204	189025322	-	TPASS_0088	-	hypothetical protein
87	 45.39	-1	97422..98657	-	411	189025323	-	TPASS_0089	-	cyclic nucleotide binding protein
88	 57.75	+1	98740..99804	-	354	189025324	murB	TPASS_0090	-	UDP-N-acetylmuramate dehydrogenase
89	 54.51	0	99986..101548	+	520	189025325	cysS	TPASS_0091	-	cysteinyl-tRNA synthetase
90	 54.19	0	101619..102107	+	162	189025326	rpoE	TPASS_0092	-	RNA polymerase sigma-24 factor
91	 55.25	0	102091..102738	+	215	189025327	-	TPASS_0093	-	hypothetical protein
92	 51.43	0	102876..103886	+	336	189025328	pta	TPASS_0094	-	phosphate acetyltransferase
93	 56.65	0	103886..105832	+	648	189025329	-	TPASS_0095	-	hypothetical protein
94	 53.44	0	105906..106268	-	120	189025330	-	TPASS_0096	-	possible dnaK suppressor
95	 54.79	0	106438..106656	+	72	189025331	infA	TPASS_0097	-	translation initiation factor 1
96	 60.22	+1	106716..107366	-	216	189025332	-	TPASS_0098	-	possible heat-shock protein
97	 55.56	0	107370..108125	-	251	189025333	smbA	TPASS_0099	-	uridylate kinase
98	 54.89	0	108320..108922	+	200	189025334	-	TPASS_0100	-	possible thioredoxin
99	 55.35	0	108915..109709	+	264	189025335	ccdA	TPASS_0101	-	cytochrome c biogenesis protein
100	 45.09	-1	109747..111720	-	657	189025336	rep	TPASS_0102	-	Rep helicase, single-stranded DNA-dependent ATPase
101	 52.74	0	111785..113608	+	607	189025337	-	TPASS_0103	-	possible ATP-dependent DNA helicase
102	 48.43	-1	113855..115636	+	593	189025338	ushA	TPASS_0104	-	5'-nucleotidase
103	 44.76	-1	115803..118796	+	997	189025339	polA	TPASS_0105	-	DNA polymerase I
104	 49.18	0	118828..120360	-	510	189025340	-	TPASS_0106	-	possible carnitine transporter
105	 47.02	-1	120341..121918	-	525	189025341	licC	TPASS_0107	-	protein LicC
106	 51.08	0	122272..123657	-	461	189025342	pfk	TPASS_0108	-	pyrophosphate--fructose 6-phosphate 1-phosphotransferase
107	 55.29	0	123759..124637	-	292	189025343	-	TPASS_0109	-	possible rRNA methylase
108	 49.60	0	125178..126911	+	577	189025344	-	TPASS_0110	-	hypothetical protein
109	 47.90	-1	126971..128398	+	475	189025345	rpoN	TPASS_0111	-	RNA polymerase sigma-54 factor
110	 46.86	-1	128395..129747	-	450	189025346	pepC	TPASS_0112	-	aminopeptidase C
111	 46.61	-1	129889..130875	+	328	189025347	hflK	TPASS_0113	-	Lambda CII stability-governing protein
112	 49.60	0	130880..131875	+	331	189025348	hflC	TPASS_0114	-	Lambda CII stability-governing protein
113	 54.32	0	131900..132709	-	269	189025349	thiD	TPASS_0115	-	phosphomethypyrimidine kinase
114	 45.34	-1	132860..134866	+	668	189025350	uvrB	TPASS_0116	-	excinuclease ABC, subunit B
115	 56.09	0	134898..136694	-	598	189025351	tprC	TPASS_0117	-	protein TprC
116	 55.61	0	136774..138039	-	421	189025352	-	TPASS_0118	-	hypothetical protein
117	 55.15	0	138137..138796	-	219	189025353	yaeE	TPASS_0119	-	amino acid ABC transporter, permease protein
118	 51.98	0	138796..139605	-	269	189025354	-	TPASS_0120	-	amino acid ABC transporter, ATP-binding protein
119	 57.21	0	139735..140802	+	355	189025355	-	TPASS_0121	-	hypothetical protein
120	 53.96	0	141022..142878	-	618	189025356	pckA	TPASS_0122	-	phosphoenolpyruvate carboxykinase
121	 48.89	0	142984..145554	+	856	189025357	-	TPASS_0123	-	hypothetical protein
122	 52.57	0	145568..146674	+	368	189025358	-	TPASS_0124	-	possible GTP-binding protein
123	 56.60	0	146751..147545	+	264	189025359	exoA	TPASS_0125	-	exodeoxyribonuclease
124	 59.13	+1	147609..148484	-	291	189025360	-	TPASS_0126	-	hypothetical protein
125	 54.86	0	149847..150227	+	126	189025361	-	TPASS_0127	-	hypothetical protein
126	 62.64	+2	150729..151076	+	115	189025362	-	TPASS_0128	-	hypothetical protein
127	 59.54	+1	151061..151537	+	158	189025363	-	TPASS_0129	-	hypothetical protein
128	 58.81	+1	151866..152285	-	139	189025364	-	TPASS_0130	-	hypothetical protein
129	 56.09	0	152357..154153	-	598	189025365	tprD	TPASS_0131	-	protein TprD
130	 65.38	+2	154331..154408	-	25	189025366	-	TPASS_0132	-	hypothetical protein
131	 56.77	0	154393..155625	-	410	189025367	-	TPASS_0133	-	hypothetical protein
132	 57.29	+1	155622..156752	-	376	189025368	-	TPASS_0134	-	hypothetical protein
133	 59.02	+1	156704..157645	-	313	189025369	-	TPASS_0135	-	hypothetical protein
134	 60.72	+1	157985..159463	+	492	189025370	-	TPASS_0136	-	hypothetical protein
135	 53.62	0	159442..159579	+	45	189025371	-	TPASS_0137	-	hypothetical protein
136	 49.05	0	159716..160453	-	245	189025372	-	TPASS_0138	-	hypothetical protein
137	 48.05	-1	160461..161153	-	230	189025373	-	TPASS_0139	-	hypothetical protein
138	 47.16	-1	161193..162920	-	575	189025374	ntpJ	TPASS_0140	-	K+ transport protein
139	 55.99	0	163092..163625	+	177	189025375	dat	TPASS_0141	-	methylated-DNA-protein-cysteine S-methyltransferase
52.88	MEAN

4.36	STD DEV
