IslandPath Analysis: Treponema pallidum subsp. pallidum SS14

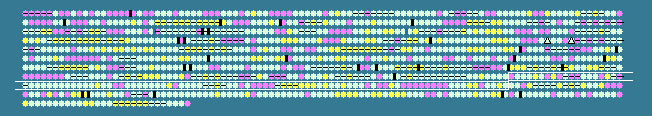

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.36
Treponema pallidum subsp. pallidum SS14, complete genome - 1..1139457
1028 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
782	 49.32	0	860479..862098	+	539	189026018	-	TPASS_0793	-	hypothetical protein
783	 53.23	0	862135..863325	-	396	189026019	metK	TPASS_0794	-	S-adenosylmethionine synthetase
784	 55.35	0	863379..863537	+	52	189026020	-	TPASS_0795	-	hypothetical protein
785	 56.11	0	863526..864614	-	362	189026021	-	TPASS_0796	-	hypothetical protein
786	 56.69	0	864674..865465	-	263	189026022	proC	TPASS_0797	-	1-pyrroline-5-carboxylate reductase
787	 53.86	0	865516..867951	-	811	189026023	metG	TPASS_0798	-	methionyl-tRNA synthetase
788	 46.41	-1	867984..868136	+	50	189026024	-	TPASS_0799	-	hypothetical protein
789	 57.84	+1	868279..869751	+	490	189026025	dacC	TPASS_0800	-	serine-type D-Ala-D-Ala carboxypeptidase
790	 48.85	0	869812..872241	-	809	189026026	clpA	TPASS_0801	-	ATP-dependent Clp protease, subunit A
791	 55.15	0	872287..872616	+	109	189026027	-	TPASS_0802	-	hypothetical protein
792	 49.38	0	872630..873838	+	402	189026028	-	TPASS_0803	-	hypothetical protein
793	 47.77	-1	873916..875079	+	387	189026029	ugpC	TPASS_0804	-	sugar ABC transporter, ATP-binding protein
794	 55.53	0	874930..877209	-	759	189026030	rnb	TPASS_0805	-	exoribonuclease II
795	 55.64	0	877206..878702	-	498	189026031	-	TPASS_0806	-	possible protein FemA
796	 55.03	0	878831..879019	+	62	189026032	rpmF	TPASS_0807	-	ribosomal protein L32
797	 48.10	-1	879080..879316	+	78	189026033	acpP	TPASS_0808	-	acyl carrier protein
798	 56.86	0	879313..880077	+	254	189026034	rnc	TPASS_0809	-	ribonuclease III
799	 55.04	0	880108..881019	+	303	189026035	dam	TPASS_0810	-	DNA adenine methyltransferase
800	 44.44	-1	881090..881215	-	41	189026036	-	TPASS_0811	-	hypothetical protein
801	 55.01	0	882626..883912	-	428	189026037	-	TPASS_0813	-	hypothetical protein
802	 53.14	0	884135..885058	+	307	189026038	trxB	TPASS_0814	-	thioredoxin reductase
803	 52.13	0	885180..886163	+	327	189026039	-	TPASS_0815	-	hypothetical protein
804	 52.10	0	886235..886900	-	221	189026040	-	TPASS_0816	-	hypothetical protein
805	 52.35	0	887038..888336	-	432	189026041	eno	TPASS_0817	-	enolase
806	 52.29	0	888333..888485	-	50	189026042	-	TPASS_0818	-	hypothetical protein
807	 51.23	0	888512..889444	-	310	189026043	-	TPASS_0819	-	hypothetical protein
808	 55.64	0	889472..890242	-	256	189026044	-	TPASS_0820	-	hypothetical protein
809	 53.90	0	890338..891144	-	268	189026045	tpn32	TPASS_0821	-	lipoprotein Tpn32
810	 55.30	0	891225..892130	-	301	189026046	-	TPASS_0822	-	hypothetical protein
811	 55.30	0	892218..892604	-	128	189026047	rbo	TPASS_0823	-	desulfoferrodoxin
812	 56.05	0	893001..894893	+	630	189026048	dxs	TPASS_0824	-	deoxyxylulose-5-phosphate synthase
813	 62.90	+2	894890..895075	+	61	189026049	-	TPASS_0825	-	hypothetical protein
814	 51.09	0	895062..895883	+	273	189026050	-	TPASS_0826	-	hypothetical protein
815	 53.44	0	895546..896823	+	425	189026051	-	TPASS_0827	-	hypothetical protein
816	 49.21	0	896820..897197	+	125	189026052	acpS	TPASS_0828	-	holo-acyl-carrier protein synthase
817	 45.76	-1	897194..898078	+	294	189026053	-	TPASS_0829	-	hypothetical protein
818	 50.89	0	898075..898917	+	280	189026054	hisT	TPASS_0830	-	pseudouridylate synthase
819	 50.17	0	898927..900696	-	589	189026055	argS	TPASS_0831	-	arginyl-tRNA synthetase
820	 55.88	0	900719..901534	-	271	189026056	-	TPASS_0832	-	hypothetical protein
821	 56.02	0	901601..902323	+	240	189026057	-	TPASS_0833	-	hypothetical protein
822	 51.88	0	902380..903630	-	416	189026058	tyrS	TPASS_0834	-	tyrosyl-tRNA synthetase
823	 53.37	0	903717..906521	-	934	189026059	-	TPASS_0835	-	possible ankyrin
824	 53.09	0	906662..907486	-	274	189026060	-	TPASS_0836	-	hypothetical protein
825	 57.90	+1	907634..909412	+	592	189026061	thrS	TPASS_0837	-	threonyl-tRNA synthetase
826	 46.55	-1	909461..911125	-	554	189026062	-	TPASS_0838	-	ABC transporter, ATP-binding protein
827	 50.50	0	911200..912207	-	335	189026063	-	TPASS_0839	-	hypothetical protein
828	 49.78	0	912312..914561	+	749	189026064	-	TPASS_0840	-	hypothetical integral membrane protein
829	 52.88	0	914623..916080	-	485	189026065	htrA2	TPASS_0841	-	periplasmic serine protease DO
830	 55.08	0	916392..917159	-	255	189026066	map	TPASS_0842	-	methionine aminopeptidase
831	 54.67	0	917283..918107	-	274	189026067	-	TPASS_0843	-	possible heat shock protein
832	 54.89	0	918200..919252	+	350	189026068	gap	TPASS_0844	-	glyceraldehyde 3-phosphate dehydrogenase
833	 61.93	+2	919307..919897	-	196	189026069	-	TPASS_0845	-	hypothetical protein
834	 53.82	0	919878..920204	-	108	189026070	-	TPASS_0846	-	hypothetical protein
835	 50.30	0	920204..920539	-	111	189026071	-	TPASS_0847	-	hypothetical protein
836	 52.30	0	920533..920901	-	122	189026072	rplT	TPASS_0848	-	ribosomal protein L20
837	 45.27	-1	920934..921134	-	66	189026073	rpmI	TPASS_0849	-	ribosomal protein L35
838	 51.48	0	921187..921726	-	179	189026074	infC	TPASS_0850	-	translation initiation factor 3
839	 47.03	-1	921889..924063	+	724	189026075	-	TPASS_0851	-	hypothetical protein
840	 48.45	-1	924092..925090	-	332	189026076	lgt	TPASS_0852	-	prolipoprotein diacylglyceryl transferase
841	 46.97	-1	925241..926377	-	378	189026077	ylxH2	TPASS_0853	-	ATP-binding protein
842	 48.50	-1	926432..931033	-	1533	189026078	-	TPASS_0854	-	hypothetical protein
843	 56.26	0	931030..934413	-	1127	189026079	-	TPASS_0855	-	hypothetical protein
844	 58.49	+1	934569..935546	+	325	189026080	-	TPASS_0856	-	hypothetical protein
845	 64.49	+2	935549..935869	-	106	189026081	-	TPASS_0857	-	hypothetical protein
846	 57.70	+1	935854..937080	+	408	189026082	-	TPASS_0858	-	hypothetical protein
847	 64.52	+2	937162..937860	+	232	189026083	-	TPASS_0859	-	hypothetical protein
848	 59.20	+1	937925..938647	+	240	189026084	-	TPASS_0860	-	hypothetical protein
849	 56.87	0	938722..940629	-	635	189026085	glmS	TPASS_0861	-	glucosamine-fructose-6-phosphate aminotransferase
850	 54.09	0	940866..941660	-	264	189026086	fklB	TPASS_0862	-	peptidyl-prolyl cis-trans isomerase, FKBP-type, 22 kDa
851	 57.94	+1	941795..943078	+	427	189026087	nifS2	TPASS_0863	-	nitrogen fixation protein
852	 55.58	0	943137..944777	-	546	189026088	-	TPASS_0864	-	hypothetical protein
853	 54.33	0	944811..946253	-	480	189026089	-	TPASS_0865	-	hypothetical protein
854	 57.53	+1	948246..948431	-	61	189026090	-	TPASS_0867	-	hypothetical protein
855	 52.94	0	948600..948956	+	118	189026091	flaB1	TPASS_0868	-	flagellar filament 34.5 kDa core protein
856	 55.27	0	949468..949704	+	78	189026092	-	TPASS_0869	-	hypothetical protein
857	 53.50	0	949732..950589	+	285	189026093	flaB3	TPASS_0870	-	flagellar filament 31 kDa core protein
858	 46.30	-1	950650..950811	-	53	189026094	-	TPASS_0871	-	hypothetical protein
859	 53.90	0	950887..953055	+	722	189026095	fliD	TPASS_0872	-	flagellar filament cap protein
860	 46.60	-1	953067..953669	+	200	189026096	-	TPASS_0873	-	hypothetical protein
861	 46.38	-1	953666..953941	+	91	189026097	-	TPASS_0874	-	hypothetical protein
862	 56.86	0	953981..954388	+	135	189026098	-	TPASS_0875	-	hypothetical protein
863	 52.40	0	954435..955100	+	221	189026099	-	TPASS_0876	-	hypothetical protein
864	 43.35	-2	955105..956202	+	365	189026100	-	TPASS_0877	-	hypothetical protein
865	 44.06	-2	956215..957165	-	316	189026101	-	TPASS_0878	-	hypothetical protein
866	 43.45	-2	957171..958652	-	493	189026102	-	TPASS_0879	-	hypothetical protein
867	 42.15	-2	958649..959374	-	241	189026103	-	TPASS_0880	-	possible membrane spanning protein
868	 46.84	-1	959364..960170	-	268	189026104	natA	TPASS_0881	-	ABC transporter, ATP-binding protein
869	 42.91	-2	960249..961751	-	500	189026105	-	TPASS_0882	-	hypothetical protein
870	 37.89	-2	961717..962814	-	365	189026106	-	TPASS_0883	-	hypothetical integral membrane protein
871	 45.09	-1	962832..963920	-	362	189026107	-	TPASS_0884	-	hypothetical integral membrane protein
872	 56.24	0	963950..964390	-	146	189026108	dut	TPASS_0885	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
873	 53.53	0	964387..966495	-	702	189026109	pnp	TPASS_0886	-	polyribonucleotide nucleotidyltransferase
874	 53.33	0	966643..966912	-	89	189026110	rpsO	TPASS_0887	-	ribosomal protein S15
875	 60.51	+1	966928..967755	-	275	189026111	ribF	TPASS_0888	-	riboflavin kinase/FMN adenylyltransferase
876	 56.40	0	967759..968859	-	366	189026112	truB	TPASS_0889	-	tRNA pseudouridine 55 synthase
877	 49.08	0	968837..969217	-	126	189026113	rbfA	TPASS_0890	-	ribosome-binding factor A
878	 52.87	0	969214..971742	-	842	189026114	infB	TPASS_0891	-	translation initiation factor 2
879	 49.66	0	971918..973375	-	485	189026115	nusA	TPASS_0892	-	N utilization substance protein A
880	 58.17	+1	973425..973895	-	156	189026116	-	TPASS_0893	-	hypothetical protein
881	 51.22	0	974070..975092	-	340	189026117	-	TPASS_0894	-	hypothetical protein
52.88	MEAN

4.36	STD DEV
