IslandPath Analysis: Treponema pallidum subsp. pallidum SS14

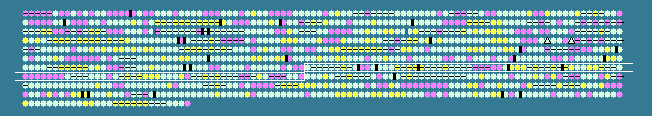

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.36
Treponema pallidum subsp. pallidum SS14, complete genome - 1..1139457
1028 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
648	 51.96	0	721835..723085	-	416	189025884	flgL	TPASS_0659	-	flagellar hook-associated protein 3
649	 51.17	0	723119..724996	-	625	189025885	flgK	TPASS_0660	-	flagellar hook-associated protein 1
650	 55.36	0	725102..725614	-	170	189025886	-	TPASS_0661	-	hypothetical protein
651	 53.35	0	725737..726735	-	332	189025887	cbbA	TPASS_0662	-	fructose-bisphosphate aldolase
652	 54.73	0	727002..727730	+	242	189025888	-	TPASS_0663	-	possible outer membrane protein
653	 54.55	0	727727..728452	+	241	189025889	flaA2	TPASS_0664	-	flagellar filament outer layer protein
654	 57.54	+1	728470..729225	-	251	189025890	-	TPASS_0665	-	hypothetical protein
655	 53.74	0	729222..729515	-	97	189025891	-	TPASS_0666	-	hypothetical protein
656	 50.18	0	729559..731226	-	555	189025892	udk	TPASS_0667	-	uridine kinase
657	 44.61	-1	731457..732059	-	200	189025893	-	TPASS_0668	-	hypothetical integral membrane protein
658	 44.38	-1	732056..735568	-	1170	189025894	dnaE	TPASS_0669	-	DNA polymerase III, subunit alpha
659	 54.41	0	735722..736912	-	396	189025895	ddlA	TPASS_0670	-	D-alanine--D-alanine ligase
660	 49.95	0	736914..737948	-	344	189025896	-	TPASS_0671	-	possible sn-1,2-diacylglycerol cholinephosphotransferase
661	 51.91	0	737979..739367	-	462	189025897	glyS	TPASS_0672	-	glycyl-tRNA synthetase
662	 56.32	0	739502..741115	-	537	189025898	gltX	TPASS_0673	-	glutamyl-tRNA synthetase
663	 63.38	+2	741293..741901	+	202	189025899	-	TPASS_0674	-	hypothetical protein
664	 53.95	0	741907..742905	+	332	189025900	-	TPASS_0675	-	hypothetical protein
665	 60.57	+1	742917..743195	-	92	189025901	-	TPASS_0676	-	hypothetical protein
666	 58.95	+1	743217..743825	-	202	189025902	-	TPASS_0677	-	hypothetical protein
667	 59.85	+1	744079..745002	+	307	189025903	-	TPASS_0678	-	hypothetical protein
668	 52.83	0	744999..745316	+	105	189025904	-	TPASS_0679	-	hypothetical protein
669	 52.88	0	745357..746415	-	352	189025905	gcp	TPASS_0680	-	o-sialoglycoprotein endopeptidase
670	 55.82	0	746466..747599	-	377	189025906	alr	TPASS_0681	-	alanine racemase
671	 57.05	0	747628..748230	-	200	189025907	ftsJ	TPASS_0682	-	cell division protein
672	 53.88	0	748323..749417	+	364	189025908	-	TPASS_0683	-	octaprenyl-diphosphate synthase
673	 54.62	0	749710..750921	+	403	189025909	mglB2	TPASS_0684	-	methylgalactoside ABC transporter, periplasmic galactose-binding protein
674	 50.70	0	751041..752531	+	496	189025910	mglA	TPASS_0685	-	methylgalactoside ABC transporter, ATP binding protein
675	 51.94	0	752546..754141	+	531	189025911	mglC	TPASS_0686	-	methylgalactoside ABC transporter, permease protein
676	 42.50	-2	754269..756329	-	686	189025912	recG	TPASS_0687	-	DNA recombinase
677	 38.95	-2	756385..757398	-	337	189025913	mccF	TPASS_0688	-	immunity protein
678	 43.82	-2	757399..758781	-	460	189025914	-	TPASS_0689	-	GTP-binding protein
679	 44.50	-1	758817..759398	-	193	189025915	-	TPASS_0690	-	hypothetical protein
680	 46.77	-1	759391..760149	-	252	189025916	-	TPASS_0691	-	hypothetical protein
681	 51.06	0	760177..761400	-	407	189025917	recA	TPASS_0692	-	protein RecA
682	 56.69	0	761661..762983	-	440	189025918	-	TPASS_0693	-	hypothetical protein
683	 58.55	+1	763143..763820	+	225	189025919	-	TPASS_0694	-	possible 5,10-methenyltetrahydrofolate synthetase
684	 59.87	+1	763908..765701	+	597	189025920	-	TPASS_0695	-	possible phosphoribosylglycinamide formyltransferase
685	 54.48	0	765689..766525	-	278	189025921	-	TPASS_0696	-	possible nicotinamidase
686	 56.49	0	766587..767195	-	202	189025922	-	TPASS_0697	-	hypothetical protein
687	 53.11	0	767226..767771	-	181	189025923	-	TPASS_0698	-	hypothetical protein
688	 54.95	0	767768..767878	-	36	189025924	-	TPASS_0699	-	hypothetical protein
689	 57.00	0	767884..768276	-	130	189025925	-	TPASS_0700	-	hypothetical protein
690	 51.47	0	768414..768617	-	67	189025926	-	TPASS_0701	-	possible DNA-directed RNA polymerase
691	 60.34	+1	768787..769323	-	178	189025927	-	TPASS_0702	-	hypothetical protein
692	 57.71	+1	769338..770018	-	226	189025928	-	TPASS_0703	-	hypothetical protein
693	 53.23	0	770018..772138	-	706	189025929	recJ	TPASS_0704	-	single-stranded-DNA-specific exonuclease
694	 55.56	0	772281..774935	-	884	189025930	pbp2	TPASS_0705	-	penicillin-binding protein
695	 56.42	0	775232..776158	-	308	189025931	-	TPASS_0706	-	hypothetical protein
696	 63.54	+2	776220..776699	-	159	189025932	-	TPASS_0707	-	hypothetical protein
697	 58.33	+1	776765..777280	+	171	189025933	-	TPASS_0708	-	hypothetical protein
698	 50.82	0	777336..778124	+	262	189025934	-	TPASS_0709	-	RNA polymerase sigma-28 factor
699	 52.31	0	778133..780103	+	656	189025935	-	TPASS_0710	-	hypothetical protein
700	 53.05	0	780140..780712	+	190	189025936	-	TPASS_0711	-	hypothetical protein
701	 44.15	-2	780727..781641	-	304	189025937	ylxH1	TPASS_0712	-	ATP-binding protein
702	 42.85	-2	781613..782926	-	437	189025938	flhF	TPASS_0713	-	flagellar-associated GTP-binding protein
703	 42.98	-2	782961..785084	-	707	189025939	flhA	TPASS_0714	-	flagellar biosynthesis protein
704	 41.56	-2	785093..786223	-	376	189025940	flhB	TPASS_0715	-	flagellar biosynthetic protein
705	 43.73	-2	786220..787017	-	265	189025941	fliR	TPASS_0716	-	flagellar biosynthetic protein
706	 47.72	-1	787030..787314	-	94	189025942	fliQ	TPASS_0717	-	flagellar biosynthetic protein
707	 48.53	0	787333..788148	-	271	189025943	fliP	TPASS_0718	-	flagellar biosynthetic protein
708	 55.77	0	788145..788933	-	262	189025944	-	TPASS_0719	-	hypothetical protein
709	 52.53	0	788869..789915	-	348	189025945	fliY	TPASS_0720	-	flagellar motor switch protein
710	 51.21	0	789908..790942	-	344	189025946	fliM	TPASS_0721	-	flagellar motor switch protein
711	 50.46	0	790964..791512	-	182	189025947	fliL	TPASS_0722	-	flagellar protein
712	 55.56	0	791491..791625	-	44	189025948	-	TPASS_0723	-	hypothetical protein
713	 51.88	0	791622..792338	-	238	189025949	motB	TPASS_0724	-	flagellar motor rotation protein
714	 51.28	0	792344..793123	-	259	189025950	motA	TPASS_0725	-	flagellar motor rotation protein
715	 45.45	-1	793139..793336	-	65	189025951	flbD	TPASS_0726	-	flagellar protein
716	 50.65	0	793394..794785	-	463	189025952	flgE	TPASS_0727	-	flagellar hook protein
717	 53.90	0	794856..795317	-	153	189025953	flgD	TPASS_0728	-	flagellar hook assembly scaffolding protein
718	 62.65	+2	795393..797036	-	547	189025954	tap1	TPASS_0729	-	treponemal aqueous protein
719	 55.37	0	797005..798102	+	365	189025955	-	TPASS_0730	-	hypothetical protein
720	 58.93	+1	798122..798832	+	236	189025956	-	TPASS_0731	-	hypothetical protein
721	 62.03	+2	798797..799744	-	315	189025957	folD	TPASS_0732	-	methylenetetrahydrofolate dehydrogenase
722	 59.24	+1	799840..800499	+	219	189025958	-	TPASS_0733	-	hypothetical protein
723	 57.41	+1	800532..801233	-	233	189025959	deoD	TPASS_0734	-	purine nucleoside phosphorylase
724	 55.11	0	801315..802871	-	518	189025960	gltA	TPASS_0735	-	glutamate synthase
725	 51.84	0	802874..803716	-	280	189025961	hydG	TPASS_0736	-	hydrogenase, gamma chain
726	 52.10	0	803950..805260	+	436	189025962	msmE	TPASS_0737	-	sugar ABC transporter, periplasmic binding protein
727	 58.93	+1	805306..805641	-	111	189025963	-	TPASS_0738	-	hypothetical protein
728	 45.86	-1	805638..806834	-	398	189025964	-	TPASS_0739	-	hypothetical protein
729	 55.38	0	806908..807474	-	188	189025965	-	TPASS_0740	-	hypothetical protein
730	 55.28	0	807602..808216	-	204	189025966	-	TPASS_0741	-	hypothetical protein
731	 57.74	+1	808213..809343	-	376	189025967	obg	TPASS_0742	-	GTP-binding protein
732	 54.17	0	809461..809724	-	87	189025968	rpmA	TPASS_0743	-	ribosomal protein L27
733	 56.88	0	809755..810081	-	108	189025969	-	TPASS_0744	-	hypothetical protein
734	 51.89	0	810094..810411	-	105	189025970	rplU	TPASS_0745	-	ribosomal protein L21
735	 51.07	0	810518..813223	-	901	189025971	-	TPASS_0746	-	pyruvate, phosphate dikinase
736	 50.14	0	813233..814267	-	344	189025972	-	TPASS_0747	-	hypothetical protein
737	 48.26	-1	814356..816392	-	678	189025973	cfpA	TPASS_0748	-	cytoplasmic filament protein A
738	 37.84	-2	816370..816591	-	73	189025974	-	TPASS_0749	-	hypothetical protein
739	 52.23	0	816561..817232	+	223	189025975	-	TPASS_0750	-	hypothetical protein
740	 56.58	0	817269..817982	+	237	189025976	-	TPASS_0751	-	hypothetical protein/laminin-binding protein
741	 54.59	0	818120..819262	-	380	189025977	-	TPASS_0752	-	hypothetical protein
742	 47.72	-1	819343..819627	-	94	189025978	-	TPASS_0753	-	hypothetical protein
743	 48.80	0	819624..820994	-	456	189025979	-	TPASS_0754	-	hypothetical protein
744	 48.43	-1	821036..821578	-	180	189025980	ptsN2	TPASS_0755	-	PTS system, nitrogen regulatory IIA component
745	 55.42	0	821778..822737	-	319	189025981	fmt	TPASS_0756	-	methionyl-tRNA formyltransferase
746	 55.42	0	822741..823229	-	162	189025982	def	TPASS_0757	-	polypeptide deformylase
747	 48.57	0	823270..823479	-	69	189025983	rpsU	TPASS_0758	-	ribosomal protein S21
52.88	MEAN

4.36	STD DEV
