IslandPath Analysis: Treponema pallidum subsp. pallidum SS14

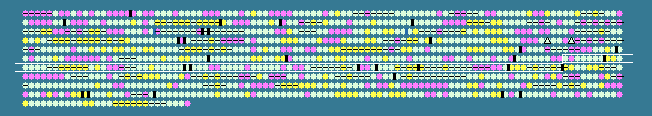

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.36
Treponema pallidum subsp. pallidum SS14, complete genome - 1..1139457
1028 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
591	 52.52	0	654374..655525	-	383	189025827	dxr	TPASS_0601	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
592	 48.50	-1	655501..656364	-	287	189025828	cdsA	TPASS_0602	-	phosphatidate cytidylyltransferase
593	 52.98	0	656361..657047	-	228	189025829	-	TPASS_0603	-	hypothetical protein
594	 52.90	0	657053..657604	-	183	189025830	-	TPASS_0604	-	ribosome recycling factor
595	 55.90	0	657708..658580	-	290	189025831	tsf	TPASS_0605	-	translation elongation factor TS
596	 50.00	0	658671..659546	-	291	189025832	rpsB	TPASS_0606	-	ribosomal protein S2
597	 54.42	0	659515..659661	-	48	189025833	-	TPASS_0607	-	hypothetical protein
598	 58.02	+1	659911..660801	-	296	189025834	-	TPASS_0608	-	hypothetical protein
599	 59.29	+1	661119..662690	+	523	189025835	asnS	TPASS_0609	-	asparaginyl-tRNA synthetase
600	 54.85	0	662700..664781	+	693	189025836	tprH	TPASS_0610	-	protein TprH
601	 54.74	0	664923..665702	+	259	189025837	-	TPASS_0611	-	ABC transporter, ATP-binding protein
602	 52.01	0	665783..667222	+	479	189025838	-	TPASS_0612	-	hypothetical protein
603	 52.83	0	667249..668397	+	382	189025839	-	TPASS_0613	-	hypothetical protein
604	 54.40	0	668394..669608	+	404	189025840	nifS1	TPASS_0614	-	nitrogen fixation protein
605	 54.05	0	669659..670102	+	147	189025841	nifU	TPASS_0615	-	nitrogen fixation protein
606	 55.16	0	670123..670887	+	254	189025842	rpiA	TPASS_0616	-	ribose 5-phosphate isomerase
607	 59.14	+1	670914..671192	-	92	189025843	-	TPASS_0617	-	hypothetical protein
608	 60.83	+1	671288..671647	-	119	189025844	-	TPASS_0618	-	hypothetical protein
609	 60.76	+1	671703..672515	-	270	189025845	-	TPASS_0619	-	hypothetical protein
610	 57.32	+1	672512..674341	-	609	189025846	tprI	TPASS_0620	-	protein TprI
611	 56.43	0	674399..676675	-	758	189025847	tprJ	TPASS_0621	-	protein TprJ
612	 55.39	0	676735..678516	-	593	189025848	-	TPASS_0622	-	hypothetical protein
613	 60.13	+1	677933..680272	+	779	189025849	dniR	TPASS_0623	-	membrane-bound lytic murein transglycosylase D
614	 55.00	0	680276..681706	+	476	189025850	-	TPASS_0624	-	hypothetical protein
615	 49.27	0	681706..682458	+	250	189025851	-	TPASS_0625	-	hypothetical protein
616	 49.15	0	682455..683630	+	391	189025852	-	TPASS_0626	-	possible exonuclease
617	 46.56	-1	683627..686770	+	1047	189025853	sbcC	TPASS_0627	-	exonuclease
618	 51.55	0	686767..688248	+	493	189025854	-	TPASS_0628	-	hypothetical protein
619	 56.36	0	688419..689243	+	274	189025855	-	TPASS_0629	-	hypothetical protein
620	 49.67	0	689413..690324	+	303	189025856	cheR	TPASS_0630	-	chemotaxis protein methyltransferase
621	 53.38	0	690371..691582	+	403	189025857	cheB	TPASS_0631	-	protein-glutamate methylesterase
622	 56.61	0	691687..692700	+	337	189025858	trpS	TPASS_0632	-	tryptophanyl-tRNA synthetase
623	 53.20	0	692841..693716	+	291	189025859	msrA	TPASS_0633	-	protein-methionine-S-oxide reductase
624	 51.17	0	693835..696306	+	823	189025860	lig	TPASS_0634	-	DNA ligase
625	 51.10	0	696341..697111	-	256	189025861	-	TPASS_0636	-	hypothetical protein
626	 52.68	0	697149..698099	-	316	189025862	miaA	TPASS_0637	-	tRNA delta(2)-isopentenylpyrophosphate transferase
627	 55.40	0	698323..698757	-	144	189025863	-	TPASS_0638	-	hypothetical protein
628	 55.47	0	699177..701141	+	654	189025864	mcp3	TPASS_0639	-	methyl-accepting chemotaxis protein
629	 51.54	0	701165..703009	+	614	189025865	mcp4	TPASS_0640	-	methyl-accepting chemotaxis protein
630	 49.89	0	703027..704355	-	442	189025866	hisS	TPASS_0641	-	histidyl-tRNA synthetase
631	 49.69	0	704496..706256	+	586	189025867	manB	TPASS_0642	-	phosphomannomutase
632	 46.60	-1	706253..706900	+	215	189025868	dnaQ	TPASS_0643	-	DNA polymerase III, subunit epsilon
633	 47.39	-1	706897..708483	-	528	189025869	lysS1	TPASS_0644	-	lysyl-tRNA synthetase
634	 55.37	0	708514..708690	-	58	189025870	-	TPASS_0645	-	hypothetical protein
635	 49.96	0	708749..710071	-	440	189025871	-	TPASS_0646	-	hypothetical protein
636	 49.41	0	709983..711263	-	426	189025872	serS	TPASS_0647	-	seryl-tRNA synthetase
637	 50.61	0	711313..713361	-	682	189025873	-	TPASS_0648	-	hypothetical protein
638	 47.37	-1	713306..714103	-	265	189025874	tlyC	TPASS_0649	-	hemolysin
639	 49.69	0	714091..714573	-	160	189025875	-	TPASS_0650	-	hypothetical protein
640	 52.20	0	714579..716990	-	803	189025876	-	TPASS_0651	-	hypothetical integral membrane protein
641	 54.04	0	717166..718305	+	379	189025877	potA	TPASS_0652	-	spermidine/putrescine ABC transporter, ATP-binding protein
642	 55.11	0	718302..719201	+	299	189025878	potB	TPASS_0653	-	spermidine/putrescine ABC transporter, permease protein
643	 50.06	0	719194..720012	+	272	189025879	potC	TPASS_0654	-	spermidine/putrescine ABC transporter, permease protein
644	 47.56	-1	720048..721094	+	348	189025880	potD	TPASS_0655	-	spermidine/putrescine ABC transporter, periplasmic binding protein
645	 55.88	0	721063..721164	+	33	189025881	-	TPASS_0656	-	hypothetical protein
646	 49.10	0	721149..721370	-	73	189025882	csrA	TPASS_0657	-	carbon storage regulator
647	 48.57	0	721364..721816	-	150	189025883	-	TPASS_0658	-	possible transmembrane protein
648	 51.96	0	721835..723085	-	416	189025884	flgL	TPASS_0659	-	flagellar hook-associated protein 3
649	 51.17	0	723119..724996	-	625	189025885	flgK	TPASS_0660	-	flagellar hook-associated protein 1
650	 55.36	0	725102..725614	-	170	189025886	-	TPASS_0661	-	hypothetical protein
651	 53.35	0	725737..726735	-	332	189025887	cbbA	TPASS_0662	-	fructose-bisphosphate aldolase
652	 54.73	0	727002..727730	+	242	189025888	-	TPASS_0663	-	possible outer membrane protein
653	 54.55	0	727727..728452	+	241	189025889	flaA2	TPASS_0664	-	flagellar filament outer layer protein
654	 57.54	+1	728470..729225	-	251	189025890	-	TPASS_0665	-	hypothetical protein
655	 53.74	0	729222..729515	-	97	189025891	-	TPASS_0666	-	hypothetical protein
656	 50.18	0	729559..731226	-	555	189025892	udk	TPASS_0667	-	uridine kinase
657	 44.61	-1	731457..732059	-	200	189025893	-	TPASS_0668	-	hypothetical integral membrane protein
658	 44.38	-1	732056..735568	-	1170	189025894	dnaE	TPASS_0669	-	DNA polymerase III, subunit alpha
659	 54.41	0	735722..736912	-	396	189025895	ddlA	TPASS_0670	-	D-alanine--D-alanine ligase
660	 49.95	0	736914..737948	-	344	189025896	-	TPASS_0671	-	possible sn-1,2-diacylglycerol cholinephosphotransferase
661	 51.91	0	737979..739367	-	462	189025897	glyS	TPASS_0672	-	glycyl-tRNA synthetase
662	 56.32	0	739502..741115	-	537	189025898	gltX	TPASS_0673	-	glutamyl-tRNA synthetase
663	 63.38	+2	741293..741901	+	202	189025899	-	TPASS_0674	-	hypothetical protein
664	 53.95	0	741907..742905	+	332	189025900	-	TPASS_0675	-	hypothetical protein
665	 60.57	+1	742917..743195	-	92	189025901	-	TPASS_0676	-	hypothetical protein
666	 58.95	+1	743217..743825	-	202	189025902	-	TPASS_0677	-	hypothetical protein
667	 59.85	+1	744079..745002	+	307	189025903	-	TPASS_0678	-	hypothetical protein
668	 52.83	0	744999..745316	+	105	189025904	-	TPASS_0679	-	hypothetical protein
669	 52.88	0	745357..746415	-	352	189025905	gcp	TPASS_0680	-	o-sialoglycoprotein endopeptidase
670	 55.82	0	746466..747599	-	377	189025906	alr	TPASS_0681	-	alanine racemase
671	 57.05	0	747628..748230	-	200	189025907	ftsJ	TPASS_0682	-	cell division protein
672	 53.88	0	748323..749417	+	364	189025908	-	TPASS_0683	-	octaprenyl-diphosphate synthase
673	 54.62	0	749710..750921	+	403	189025909	mglB2	TPASS_0684	-	methylgalactoside ABC transporter, periplasmic galactose-binding protein
674	 50.70	0	751041..752531	+	496	189025910	mglA	TPASS_0685	-	methylgalactoside ABC transporter, ATP binding protein
675	 51.94	0	752546..754141	+	531	189025911	mglC	TPASS_0686	-	methylgalactoside ABC transporter, permease protein
676	 42.50	-2	754269..756329	-	686	189025912	recG	TPASS_0687	-	DNA recombinase
677	 38.95	-2	756385..757398	-	337	189025913	mccF	TPASS_0688	-	immunity protein
678	 43.82	-2	757399..758781	-	460	189025914	-	TPASS_0689	-	GTP-binding protein
679	 44.50	-1	758817..759398	-	193	189025915	-	TPASS_0690	-	hypothetical protein
680	 46.77	-1	759391..760149	-	252	189025916	-	TPASS_0691	-	hypothetical protein
681	 51.06	0	760177..761400	-	407	189025917	recA	TPASS_0692	-	protein RecA
682	 56.69	0	761661..762983	-	440	189025918	-	TPASS_0693	-	hypothetical protein
683	 58.55	+1	763143..763820	+	225	189025919	-	TPASS_0694	-	possible 5,10-methenyltetrahydrofolate synthetase
684	 59.87	+1	763908..765701	+	597	189025920	-	TPASS_0695	-	possible phosphoribosylglycinamide formyltransferase
685	 54.48	0	765689..766525	-	278	189025921	-	TPASS_0696	-	possible nicotinamidase
686	 56.49	0	766587..767195	-	202	189025922	-	TPASS_0697	-	hypothetical protein
687	 53.11	0	767226..767771	-	181	189025923	-	TPASS_0698	-	hypothetical protein
688	 54.95	0	767768..767878	-	36	189025924	-	TPASS_0699	-	hypothetical protein
689	 57.00	0	767884..768276	-	130	189025925	-	TPASS_0700	-	hypothetical protein
690	 51.47	0	768414..768617	-	67	189025926	-	TPASS_0701	-	possible DNA-directed RNA polymerase
52.88	MEAN

4.36	STD DEV
