IslandPath Analysis: Treponema pallidum subsp. pallidum SS14

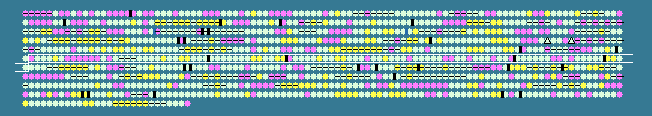

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.36
Treponema pallidum subsp. pallidum SS14, complete genome - 1..1139457
1028 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
502	 48.56	0	544482..545729	+	415	189025738	clpX	TPASS_0508	-	ATP-dependent Clp protease subunit X
503	 51.32	0	545826..546392	+	188	189025739	ahpC	TPASS_0509	-	alkyl hydroperoxide reductase
504	 52.20	0	546573..548390	-	605	189025740	lepA	TPASS_0510	-	GTP-binding membrane protein
505	 49.76	0	548433..549059	+	208	189025741	carD	TPASS_0511	-	transcription factor
506	 57.69	+1	549056..550303	+	415	189025742	-	TPASS_0512	-	hypothetical protein
507	 50.96	0	550377..551777	+	466	189025743	trkA	TPASS_0513	-	K+ transport protein
508	 47.31	-1	551891..554773	+	960	189025744	uvrA	TPASS_0514	-	excinuclease ABC, subunit A
509	 42.20	-2	554770..557745	+	991	189025745	-	TPASS_0515	-	hypothetical protein
510	 41.87	-2	557759..559339	-	526	189025746	mviN	TPASS_0516	-	virulence factor
511	 46.87	-1	559336..559926	-	196	189025747	ruvC	TPASS_0517	-	Holliday junction nuclease, subunit C
512	 49.21	0	559908..560600	-	230	189025748	-	TPASS_0518	-	hypothetical protein
513	 42.99	-2	560597..561973	-	458	189025749	atoC	TPASS_0519	-	response regulatory protein
514	 49.61	0	563168..564439	-	423	189025750	-	TPASS_0521	-	possible DNA polymerase III, gamma and tau subunits
515	 45.62	-1	564450..564929	-	159	189025751	-	TPASS_0522	-	hypothetical protein
516	 52.90	0	564926..566080	-	384	189025752	murG	TPASS_0523	-	UDP-N-glucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
517	 52.04	0	566084..568729	-	881	189025753	lon2	TPASS_0524	-	ATP-dependent protease LA
518	 49.82	0	568865..569428	+	187	189025754	efp	TPASS_0525	-	translation elongation factor P
519	 49.48	0	569576..571582	+	668	189025755	hrpA	TPASS_0526	-	ATP-dependent helicase
520	 52.70	0	571630..572259	-	209	189025756	atpD2	TPASS_0527	-	V-type ATPase, subunit D
521	 51.98	0	572354..573796	-	480	189025757	atpB2	TPASS_0528	-	V-type ATPase, subunit B
522	 54.68	0	573793..575610	-	605	189025758	atpA2	TPASS_0529	-	V-type ATPase, subunit A
523	 55.50	0	575607..576233	-	208	189025759	-	TPASS_0530	-	possible V-type ATPase, subunit E
524	 57.23	0	576239..576577	-	112	189025760	-	TPASS_0531	-	possible V-type ATPase, subunit F
525	 53.41	0	577197..578561	-	454	189025761	atpI2	TPASS_0533	-	V-type ATPase, subunit I
526	 54.87	0	578554..579579	-	341	189025762	-	TPASS_0534	-	hypothetical protein
527	 60.09	+1	579583..579795	-	70	189025763	-	TPASS_0535	-	hypothetical protein
528	 57.96	+1	579936..580337	-	133	189025764	-	TPASS_0536	-	hypothetical protein
529	 56.27	0	580487..581236	-	249	189025765	tpi	TPASS_0537	-	triosephosphate isomerase
530	 53.97	0	581387..582646	-	419	189025766	pgk	TPASS_0538	-	phosphoglycerate kinase
531	 51.35	0	582618..582839	+	73	189025767	-	TPASS_0539	-	hypothetical protein
532	 50.27	0	583120..583491	+	123	189025768	spoIIAA2	TPASS_0540	-	anti-sigma F factor antagonist
533	 55.10	0	583621..584580	+	319	189025769	era	TPASS_0541	-	GTP-binding protein
534	 53.08	0	584577..586298	-	573	189025770	-	TPASS_0542	-	pyrophosphate--fructose 6-phosphate 1-phosphotransferase, beta subunit
535	 52.05	0	586358..587041	-	227	189025771	ruvA	TPASS_0543	-	Holliday junction DNA helicase, subunit A
536	 50.93	0	587083..588957	-	624	189025772	-	TPASS_0544	-	hypothetical protein
537	 51.17	0	588982..590046	-	354	189025773	mglB1	TPASS_0545	-	methylgalactoside ABC transporter, periplasmic galactose-binding protein
538	 55.17	0	590131..592131	-	666	189025774	-	TPASS_0546	-	possible periplasmic serine protease
539	 64.37	+2	591843..592973	-	376	189025775	lytB	TPASS_0547	-	penicillin tolerance protein
540	 57.02	0	593117..594433	+	438	189025776	-	TPASS_0548	-	hypothetical protein
541	 55.26	0	594531..596975	+	814	189025777	clpC	TPASS_0549	-	ATP-dependent Clp protease, subunit C
542	 56.18	0	597016..598503	-	495	189025778	thdF	TPASS_0550	-	thiophene and furan oxidation protein
543	 57.12	0	598507..599595	-	362	189025779	-	TPASS_0551	-	phosphatase
544	 57.12	0	599608..600141	-	177	189025780	-	TPASS_0552	-	hypothetical protein
545	 47.69	-1	600385..601596	+	403	189025781	-	TPASS_0553	-	hypothetical integral membrane protein
546	 54.41	0	601631..602299	+	222	189025782	gph2	TPASS_0554	-	phosphoglycolate phosphatase
547	 54.49	0	602363..603553	-	396	189025783	-	TPASS_0555	-	possible glutamate/aspartate transporter
548	 53.98	0	603776..604768	-	330	189025784	asnA	TPASS_0556	-	asparagine synthetase
549	 51.82	0	604873..605586	+	237	189025785	-	TPASS_0557	-	hypothetical protein
550	 56.55	0	605616..606524	+	302	189025786	-	TPASS_0558	-	hypothetical integral membrane protein
551	 55.39	0	606586..607791	+	401	189025787	-	TPASS_0559	-	hypothetical protein
552	 54.73	0	607844..609829	-	661	189025788	tktA	TPASS_0560	-	transketolase A
553	 59.39	+1	609940..610791	-	283	189025789	-	TPASS_0561	-	hypothetical protein
554	 57.08	0	610962..612098	+	378	189025790	spsE	TPASS_0562	-	spore coat polysaccharide biosynthesis protein
555	 55.80	0	612089..612502	+	137	189025791	-	TPASS_0563	-	hypothetical protein
556	 51.69	0	612499..614535	+	678	189025792	-	TPASS_0564	-	hypothetical protein
557	 50.29	0	614417..615637	-	406	189025793	-	TPASS_0565	-	hypothetical protein
558	 45.50	-1	615648..617135	-	495	189025794	algI	TPASS_0566	-	alginate O-acetylation protein
559	 50.24	0	617167..617787	-	206	189025795	-	TPASS_0567	-	hypothetical protein
560	 54.98	0	617866..618498	-	210	189025796	eda	TPASS_0568	-	4-hydroxy-2-oxoglutarate aldolase/2-dehydro-3-deoxyphosphogluconate aldolase
561	 56.52	0	618620..620944	-	774	189025797	-	TPASS_0569	-	aminopeptidase P
562	 56.03	0	620969..621814	-	281	189025798	-	TPASS_0570	-	hypothetical protein
563	 55.71	0	621841..622506	-	221	189025799	-	TPASS_0571	-	protein Tp70
564	 56.23	0	622524..623606	-	360	189025800	-	TPASS_0572	-	hypothetical protein
565	 44.09	-2	623597..623689	+	30	189025801	-	TPASS_0573	-	hypothetical protein
566	 53.95	0	623716..625020	-	434	189025802	-	TPASS_0574	-	carboxypeptidase, 47 kDa
567	 56.01	0	627252..628358	+	368	189025803	prfB	TPASS_0576	-	peptide chain release factor 2
568	 55.99	0	628250..630094	+	614	189025804	-	TPASS_0577	-	hypothetical protein
569	 54.39	0	630101..630988	+	295	189025805	ftsY	TPASS_0578	-	cell division protein
570	 52.77	0	630985..631761	+	258	189025806	-	TPASS_0579	-	hypothetical protein
571	 46.90	-1	631754..633043	+	429	189025807	-	TPASS_0580	-	hypothetical integral membrane protein
572	 46.70	-1	633036..633716	+	226	189025808	-	TPASS_0581	-	ABC transporter, ATP-binding protein
573	 50.81	0	633713..635200	+	495	189025809	-	TPASS_0582	-	hypothetical integral membrane protein
574	 52.38	0	635184..635309	-	41	189025810	-	TPASS_0583	-	hypothetical protein
575	 48.65	0	635296..636705	+	469	189025811	-	TPASS_0584	-	hypothetical protein
576	 54.50	0	636698..638341	+	547	189025812	oppA	TPASS_0585	-	oligopeptide ABC transporter, periplasmic binding protein
577	 53.55	0	638430..641066	+	878	189025813	leuS	TPASS_0586	-	leucyl-tRNA synthetase
578	 54.55	0	641046..641276	-	76	189025814	-	TPASS_0587	-	hypothetical protein
579	 48.24	-1	641303..642067	-	254	189025815	-	TPASS_0588	-	hypothetical protein
580	 49.81	0	642155..642421	-	88	189025816	ptsH	TPASS_0589	-	phosphocarrier protein HPr
581	 49.57	0	642393..642509	-	38	189025817	-	TPASS_0590	-	hypothetical protein
582	 48.12	-1	642466..643425	-	319	189025818	ptsK	TPASS_0591	-	HPr kinase
583	 52.10	0	644188..645690	+	500	189025819	-	TPASS_0592	-	hypothetical protein
584	 55.11	0	645627..647660	+	677	189025820	-	TPASS_0593	-	hypothetical protein
585	 52.22	0	647747..648355	-	202	189025821	-	TPASS_0594	-	hypothetical protein
586	 52.04	0	648383..649018	-	211	189025822	adk	TPASS_0595	-	adenylate kinase
587	 56.33	0	649042..650154	-	370	189025823	pcnB	TPASS_0596	-	polynucleotide adenylyltransferase
588	 50.82	0	650262..652325	-	687	189025824	-	TPASS_0598	-	hypothetical protein
589	 48.10	-1	652362..653018	-	218	189025825	-	TPASS_0599	-	hypothetical protein
590	 48.26	-1	653025..654377	-	450	189025826	-	TPASS_0600	-	possible zinc protease
591	 52.52	0	654374..655525	-	383	189025827	dxr	TPASS_0601	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
592	 48.50	-1	655501..656364	-	287	189025828	cdsA	TPASS_0602	-	phosphatidate cytidylyltransferase
593	 52.98	0	656361..657047	-	228	189025829	-	TPASS_0603	-	hypothetical protein
594	 52.90	0	657053..657604	-	183	189025830	-	TPASS_0604	-	ribosome recycling factor
595	 55.90	0	657708..658580	-	290	189025831	tsf	TPASS_0605	-	translation elongation factor TS
596	 50.00	0	658671..659546	-	291	189025832	rpsB	TPASS_0606	-	ribosomal protein S2
597	 54.42	0	659515..659661	-	48	189025833	-	TPASS_0607	-	hypothetical protein
598	 58.02	+1	659911..660801	-	296	189025834	-	TPASS_0608	-	hypothetical protein
599	 59.29	+1	661119..662690	+	523	189025835	asnS	TPASS_0609	-	asparaginyl-tRNA synthetase
600	 54.85	0	662700..664781	+	693	189025836	tprH	TPASS_0610	-	protein TprH
601	 54.74	0	664923..665702	+	259	189025837	-	TPASS_0611	-	ABC transporter, ATP-binding protein
52.88	MEAN

4.36	STD DEV
