IslandPathversion 1.0

IslandPath Analysis: Treponema pallidum subsp. pallidum SS14

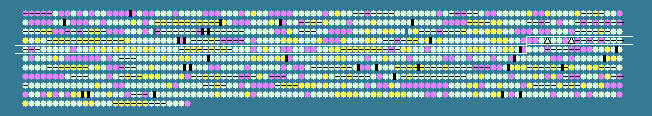

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.36
Treponema pallidum subsp. pallidum SS14, complete genome - 1..1139457
1028 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
385	 45.83	-1	413813..414628	+	271	189025621	ftsQ	TPASS_0388	-	cell division protein
386	 49.32	0	414641..415885	+	414	189025622	ftsA	TPASS_0389	-	cell division protein
387	 50.28	0	415931..417187	+	418	189025623	ftsZ	TPASS_0390	-	cell division protein
388	 50.38	0	417184..418104	+	306	189025624	codV	TPASS_0391	-	integrase/recombinase
389	 50.62	0	417887..418846	+	319	189025625	-	TPASS_0392	-	hypothetical protein
390	 49.72	0	418843..419751	+	302	189025626	smf	TPASS_0393	-	protein Smf
391	 47.86	-1	419784..421979	+	731	189025627	topA	TPASS_0394	-	DNA topoisomerase I
392	 51.79	0	421972..422865	+	297	189025628	xprB	TPASS_0395	-	integrase/recombinase
393	 48.18	-1	423013..423423	+	136	189025629	flgB	TPASS_0396	-	flagellar basal-body rod protein
394	 50.77	0	423508..423897	+	129	189025630	flgC	TPASS_0397	-	flagellar basal-body rod protein
395	 48.00	-1	423953..424327	+	124	189025631	fliE	TPASS_0398	-	flagellar hook-basal body complex protein
396	 50.12	0	424444..426147	+	567	189025632	fliF	TPASS_0399	-	flagellar basal-body M ring protein
397	 45.51	-1	426152..427210	+	352	189025633	fliG2	TPASS_0400	-	flagellar motor switch protein
398	 51.08	0	427258..428187	+	309	189025634	fliH	TPASS_0401	-	flagellar assembly protein
399	 55.36	0	428215..429558	+	447	189025635	fliI	TPASS_0402	-	flagellum-specific ATP synthase
400	 53.64	0	429587..430039	+	150	189025636	-	TPASS_0403	-	possible flagellar protein
401	 54.68	0	430036..430569	-	177	189025637	-	TPASS_0404	-	hypothetical protein
402	 48.22	-1	430566..431015	-	149	189025638	-	TPASS_0405	-	possible protein McbG
403	 53.16	0	431206..432012	+	268	189025639	murI	TPASS_0406	-	glutamate racemase
404	 56.15	0	432140..432814	+	224	189025640	gph1	TPASS_0407	-	phosphoglycolate phosphatase
405	 50.35	0	432893..436147	+	1084	189025641	-	TPASS_0408	-	hypothetical protein
406	 52.15	0	436187..436372	+	61	189025642	-	TPASS_0409	-	hypothetical protein
407	 53.60	0	436637..438388	+	583	189025643	secD	TPASS_0410	-	protein-export membrane protein
408	 54.24	0	438385..439647	+	420	189025644	secF	TPASS_0411	-	protein-export membrane protein
409	 47.39	-1	439723..440028	-	101	189025645	-	TPASS_0412	-	hypothetical protein
410	 54.50	0	440047..441945	-	632	189025646	-	TPASS_0413	-	phosphoglucomutase
411	 56.19	0	442048..443403	+	451	189025647	dagA	TPASS_0414	-	D-alanine glycine permease
412	 59.36	+1	443384..443917	+	177	189025648	-	TPASS_0415	-	hypothetical protein
413	 55.04	0	443864..445222	-	452	189025649	ffh	TPASS_0416	-	signal recognition particle protein
414	 57.38	+1	445215..446894	-	559	189025650	cutE	TPASS_0417	-	apolipoprotein N-acyltransferase
415	 54.52	0	446921..448114	+	397	189025651	-	TPASS_0418	-	galactokinase
416	 58.51	+1	448111..448674	+	187	189025652	-	TPASS_0419	-	possible survival protein
417	 58.77	+1	448655..448882	+	75	189025653	-	TPASS_0420	-	hypothetical protein
418	 55.41	0	449016..451067	+	683	189025654	-	TPASS_0421	-	hypothetical protein
419	 57.21	0	451051..452076	+	341	189025655	-	TPASS_0422	-	hypothetical protein
420	 55.64	0	452101..452907	+	268	189025656	-	TPASS_0423	-	hypothetical protein
421	 56.65	0	453110..453808	+	232	189025657	-	TPASS_0424	-	possible V-type ATPase, subunit E
422	 60.15	+1	453786..454046	+	86	189025658	-	TPASS_0425	-	hypothetical protein
423	 54.01	0	454188..455957	+	589	189025659	atpA1	TPASS_0426	-	V-type ATPase, subunit A
424	 50.89	0	455961..457253	+	430	189025660	atpB1	TPASS_0427	-	V-type ATPase, subunit B
425	 50.56	0	457265..457885	+	206	189025661	atpD1	TPASS_0428	-	V-type ATPase, subunit D
426	 53.24	0	457882..459750	+	622	189025662	atpI1	TPASS_0429	-	V-type ATPase, subunit I
427	 54.37	0	459787..460209	+	140	189025663	atpK1	TPASS_0430	-	V-type ATPase, subunit K
428	 57.54	+1	460243..461064	+	273	189025664	-	TPASS_0431	-	hypothetical protein
429	 56.70	0	461107..461658	+	183	189025665	-	TPASS_0432	-	hypothetical protein
430	 61.16	+1	461713..463527	+	604	189025666	arp	TPASS_0433	-	acidic repeat protein
431	 55.84	0	463624..464094	-	156	189025667	tpp17	TPASS_0435	-	lipoprotein, 17 kDa
432	 59.10	+1	464225..465307	-	360	189025668	-	TPASS_0436	-	hypothetical protein
433	 53.86	0	465273..465803	-	176	189025669	-	TPASS_0437	-	hypothetical protein
434	 58.40	+1	465833..466642	+	269	189025670	-	TPASS_0438	-	hypothetical protein
435	 54.39	0	466729..467241	+	170	189025671	cheW2	TPASS_0439	-	purine-binding chemotaxis protein
436	 56.34	0	467331..468482	+	383	189025672	-	TPASS_0440	-	possible spore coat polysaccharide biosynthesis protein
437	 53.81	0	468479..469396	+	305	189025673	-	TPASS_0441	-	hypothetical protein
438	 55.11	0	469389..471110	+	573	189025674	recN	TPASS_0442	-	DNA repair protein
439	 48.30	-1	471052..471906	+	284	189025675	-	TPASS_0443	-	hypothetical protein
440	 55.59	0	471912..472940	+	342	189025676	-	TPASS_0444	-	hypothetical protein
441	 59.52	+1	473076..473705	+	209	189025677	thiJ	TPASS_0445	-	4-methyl-5(b-hydroxyethyl)-thiazole monophosphate biosynthesis enzyme
442	 52.02	0	473747..474961	+	404	189025678	gcpE	TPASS_0446	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
443	 50.58	0	474958..476082	+	374	189025679	-	TPASS_0447	-	hypothetical protein
444	 44.78	-1	476140..477222	+	360	189025680	-	TPASS_0448	-	possible uracil phosphoribosyltransferase
445	 43.99	-2	477226..477816	+	196	189025681	-	TPASS_0449	-	hypothetical protein
446	 49.42	0	477953..480004	+	683	189025682	fusA1	TPASS_0450	-	translation elongation factor G
447	 51.37	0	479993..480175	-	60	189025683	-	TPASS_0451	-	hypothetical protein
448	 48.84	0	480454..483729	+	1091	189025684	ileS	TPASS_0452	-	isoleucyl-tRNA synthetase
449	 46.30	-1	483716..484579	+	287	189025685	-	TPASS_0453	-	hypothetical protein
450	 55.80	0	484929..485618	-	229	189025686	-	TPASS_0454	-	hypothetical protein
451	 52.74	0	485615..486619	-	334	189025687	-	TPASS_0455	-	hypothetical protein
452	 59.23	+1	486676..487992	-	438	189025688	-	TPASS_0456	-	hypothetical protein
453	 58.02	+1	488060..489841	+	593	189025689	-	TPASS_0457	-	hypothetical protein
454	 58.55	+1	489932..490510	+	192	189025690	-	TPASS_0458	-	hypothetical protein
455	 59.67	+1	490539..491324	+	261	189025691	-	TPASS_0459	-	hypothetical protein
456	 59.04	+1	491367..492074	+	235	189025692	-	TPASS_0460	-	hypothetical protein
457	 57.78	+1	492075..492434	+	119	189025693	-	TPASS_0461	-	hypothetical protein
458	 56.47	0	492639..493481	+	280	189025694	-	TPASS_0462	-	hypothetical protein
459	 56.76	0	493486..493818	+	110	189025695	-	TPASS_0463	-	hypothetical protein
460	 61.62	+2	493877..494629	-	250	189025696	-	TPASS_0464	-	hypothetical protein
461	 55.44	0	494626..495498	-	290	189025697	-	TPASS_0465	-	hypothetical protein
462	 45.73	-1	495431..496600	-	389	189025698	-	TPASS_0466	-	hypothetical protein
463	 53.01	0	496591..496839	+	82	189025699	-	TPASS_0467	-	hypothetical protein
464	 57.65	+1	496809..498761	-	650	189025700	-	TPASS_0468	-	hypothetical protein
465	 60.30	+1	498754..499695	-	313	189025701	-	TPASS_0470	-	hypothetical protein
466	 53.69	0	499687..501096	+	469	189025702	-	TPASS_0471	-	hypothetical protein
467	 50.72	0	501109..503184	-	691	189025703	uvrC	TPASS_0472	-	excinuclease ABC, subunit C
468	 48.99	0	503259..503903	-	214	189025704	-	TPASS_0473	-	hypothetical protein
469	 52.17	0	503968..504705	-	245	189025705	-	TPASS_0474	-	hypothetical protein
470	 53.73	0	504846..506453	-	535	189025706	gpi	TPASS_0475	-	glucose-6-phosphate isomerase
471	 52.41	0	506517..507863	-	448	189025707	ack	TPASS_0476	-	acetate kinase
472	 56.34	0	507930..508655	-	241	189025708	-	TPASS_0477	-	possible glucose-6-phosphate 1-dehydrogenase
473	 55.56	0	508716..510263	-	515	189025709	zwf	TPASS_0478	-	glucose-6-phosphate 1-dehydrogenase
474	 56.30	0	510336..511010	-	224	189025710	-	TPASS_0479	-	hypothetical protein
475	 56.44	0	511122..511610	+	162	189025711	-	TPASS_0480	-	hypothetical protein
476	 56.90	0	511642..513075	+	477	189025712	-	TPASS_0481	-	hypothetical protein
477	 60.31	+1	513042..513890	+	282	189025713	-	TPASS_0482	-	hypothetical protein
478	 52.44	0	513956..515080	-	374	189025714	-	TPASS_0483	-	hypothetical protein/fibronectin-binding protein
479	 55.06	0	515067..517082	-	671	189025715	-	TPASS_0484	-	hypothetical protein
480	 52.30	0	516976..518820	-	614	189025716	-	TPASS_0485	-	adenylate cyclase
481	 60.09	+1	518817..520412	-	531	189025717	-	TPASS_0486	-	antigen, p83/100
482	 59.57	+1	520501..522078	-	525	189025718	-	TPASS_0487	-	hypothetical protein
483	 54.73	0	522306..524843	+	845	189025719	mcp2	TPASS_0488	-	methyl-accepting chemotaxis protein
484	 48.50	-1	525291..526259	+	322	189025720	-	TPASS_0489	-	hypothetical protein
52.88	MEAN

4.36	STD DEV
