IslandPath Analysis: Treponema pallidum subsp. pallidum SS14

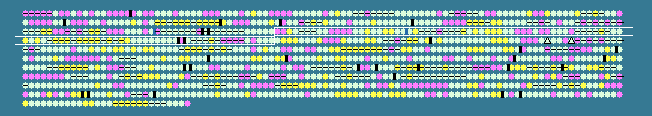

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.36
Treponema pallidum subsp. pallidum SS14, complete genome - 1..1139457
1028 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
243	 46.49	-1	259161..260954	+	597	189025479	-	TPASS_0246	-	hypothetical protein
244	 48.23	-1	261005..262078	+	357	189025480	amiA	TPASS_0247	-	N-acetylmuramoyl-L-alanine amidase
245	 56.54	0	262145..262549	+	134	189025481	-	TPASS_0248	-	hypothetical protein
246	 54.42	0	262628..263680	+	350	189025482	flaA1	TPASS_0249	-	flagellar filament outer layer protein
247	 54.82	0	263731..263958	+	75	189025483	-	TPASS_0250a	-	hypothetical protein
248	 55.90	0	263793..264080	+	95	189025484	rpsT	TPASS_0250b	-	ribosomal protein S20
249	 54.72	0	264112..264429	+	105	189025485	-	TPASS_0251	-	DNA-binding protein II
250	 54.42	0	264419..266059	+	546	189025486	-	TPASS_0252	-	possible apolipoprotein N-acyltransferase
251	 51.93	0	266050..266463	+	137	189025487	-	TPASS_0253	-	hypothetical protein
252	 48.97	0	266700..268259	+	519	189025488	rho	TPASS_0254	-	transcription termination factor Rho
253	 49.02	0	268378..268581	+	67	189025489	rpmE	TPASS_0255	-	ribosomal protein L31
254	 47.77	-1	268626..269276	+	216	189025490	pgsA	TPASS_0256	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
255	 48.27	-1	269373..270443	+	356	189025491	glpQ	TPASS_0257	-	glycerophosphoryldiester phosphodiesterase
256	 52.88	0	270509..271219	-	236	189025492	-	TPASS_0258	-	hypothetical protein
257	 53.76	0	271298..271909	+	203	189025493	-	TPASS_0259	-	hypothetical protein
258	 56.94	0	272040..273386	-	448	189025494	-	TPASS_0260	-	hypothetical protein
259	 54.50	0	273501..274544	+	347	189025495	-	TPASS_0261	-	possible catabolite gene activator
260	 51.85	0	274522..275196	+	224	189025496	crp	TPASS_0262	-	catabolite gene activator
261	 57.98	+1	275211..276995	+	594	189025497	-	TPASS_0263	-	hypothetical protein
262	 56.77	0	277000..277656	+	218	189025498	deoC	TPASS_0264	-	deoxyribose-phosphate aldolase
263	 54.90	0	278088..279455	-	455	189025499	braC	TPASS_0265	-	amino acid ABC transporter, permease protein
264	 53.17	0	279506..279631	+	41	189025500	-	TPASS_0266	-	hypothetical protein
265	 51.37	0	284740..285105	+	121	189025501	-	TPASS_0267	-	hypothetical protein
266	 58.26	+1	285102..285755	+	217	189025502	-	TPASS_0268	-	hypothetical protein
267	 50.38	0	285765..287213	+	482	189025503	-	TPASS_0269	-	hypothetical protein
268	 54.84	0	287287..288723	+	478	189025504	pcnA	TPASS_0270	-	polynucleotide adenylyltransferase
269	 53.13	0	288720..289694	-	324	189025505	parB	TPASS_0271	-	chromosome partitioning protein
270	 48.16	-1	289681..290442	-	253	189025506	parA	TPASS_0272	-	chromosome partitioning protein
271	 53.54	0	290575..291366	+	263	189025507	-	TPASS_0273	-	hypothetical protein
272	 56.09	0	291404..291904	-	166	189025508	-	TPASS_0274	-	possible deoxycytidylate deaminase
273	 50.93	0	291993..292742	-	249	189025509	-	TPASS_0275	-	possible UDP-N-acetyl-D-mannosamine transferase
274	 56.72	0	292721..293605	-	294	189025510	-	TPASS_0276	-	hypothetical protein
275	 50.48	0	293778..295124	-	448	189025511	ctp	TPASS_0277	-	carboxyl-terminal protease
276	 61.24	+1	295252..295380	+	42	189025512	-	TPASS_0278	-	hypothetical protein
277	 55.25	0	295426..298017	+	863	189025513	rpsA	TPASS_0279	-	ribosomal protein S1
278	 58.91	+1	298014..298142	+	42	189025514	-	TPASS_0280	-	hypothetical protein
279	 58.14	+1	298159..298287	+	42	189025515	-	TPASS_0281	-	hypothetical protein
280	 59.44	+1	298280..298999	+	239	189025516	-	TPASS_0282	-	hypothetical protein
281	 51.67	0	299177..299656	+	159	189025517	kdtB	TPASS_0283	-	lipopolysaccharide core biosynthesis protein
282	 54.55	0	299761..300420	+	219	189025518	-	TPASS_0284	-	hypothetical protein
283	 48.80	0	300360..301439	+	359	189025519	-	TPASS_0285	-	hypothetical protein
284	 48.09	-1	301411..301776	+	121	189025520	-	TPASS_0286	-	hypothetical protein
285	 45.51	-1	301743..302366	+	207	189025521	-	TPASS_0287	-	hypothetical protein
286	 52.32	0	302366..303313	+	315	189025522	spsF	TPASS_0288	-	spore coat polysaccharide biosynthesis protein F
287	 48.10	-1	303336..304940	+	534	189025523	-	TPASS_0289	-	hypothetical protein
288	 46.40	-1	304995..305828	+	277	189025524	-	TPASS_0290	-	hypothetical protein
289	 50.68	0	305865..306746	+	293	189025525	-	TPASS_0291	-	hypothetical protein
290	 49.84	0	306737..307990	+	417	189025526	tpn50	TPASS_0292	-	outer membrane protein TpN50
291	 55.37	0	308002..308178	+	58	189025527	-	TPASS_0293	-	hypothetical protein
292	 47.31	-1	308156..309421	+	421	189025528	prs	TPASS_0294	-	phosphoribosyl pyrophosphate synthetase
293	 52.53	0	309440..310684	+	414	189025529	xylB	TPASS_0295	-	carhohydrate kinase
294	 51.89	0	310770..311405	+	211	189025530	-	TPASS_0296	-	hypothetical protein
295	 53.38	0	311369..312181	+	270	189025531	-	TPASS_0297	-	hypothetical protein
296	 54.84	0	312314..313345	+	343	189025532	tpn38b	TPASS_0298	-	exported protein TpN38b
297	 64.44	+2	313342..313566	+	74	189025533	-	TPASS_0299	-	hypothetical protein
298	 53.38	0	313551..315101	+	516	189025534	rbsA1	TPASS_0300	-	ribose/galactose ABC transporter, ATP-binding protein
299	 50.79	0	315098..316231	+	377	189025535	-	TPASS_0301	-	hypothetical integral membrane protein
300	 55.41	0	316222..317163	+	313	189025536	-	TPASS_0302	-	hypothetical integral membrane protein
301	 57.52	+1	317150..319096	-	648	189025537	mutL	TPASS_0303	-	DNA mismatch repair protein MutL
302	 56.27	0	319109..322225	-	1038	189025538	-	TPASS_0304	-	hypothetical protein
303	 58.25	+1	322152..323885	+	577	189025539	pyrG	TPASS_0305	-	CTP synthase
304	 53.66	0	324050..324664	+	204	189025540	rpsD	TPASS_0306	-	ribosomal protein S4
305	 55.39	0	324751..325779	+	342	189025541	-	TPASS_0307	-	hypothetical protein
306	 56.52	0	325754..326719	+	321	189025542	hisJ	TPASS_0308	-	amino acid ABC transporter, periplasmic binding protein
307	 57.14	0	326785..327603	+	272	189025543	-	TPASS_0309	-	amino acid ABC transporter, periplasmic binding protein
308	 59.11	+1	327572..327955	+	127	189025544	-	TPASS_0310	-	hypothetical protein
309	 55.56	0	327934..328077	-	47	189025545	-	TPASS_0311	-	hypothetical protein
310	 60.75	+1	328061..329074	+	337	189025546	-	TPASS_0312	-	hypothetical protein
311	 56.75	0	329165..331453	+	762	189025547	tprE	TPASS_0313	-	protein TprE
312	 59.18	+1	331510..331656	-	48	189025548	-	TPASS_0314	-	hypothetical protein
313	 60.80	+1	331679..332326	-	215	189025549	-	TPASS_0315	-	hypothetical protein
314	 56.27	0	333573..335843	-	756	189025550	tprG	TPASS_0317	-	protein TprG
315	 61.67	+2	335795..335974	-	59	189025551	-	TPASS_0318	-	hypothetical protein
316	 54.43	0	336003..337064	+	353	189025552	tmpC	TPASS_0319	-	membrane lipoprotein TmpC
317	 58.33	+1	337074..337229	+	51	189025553	-	TPASS_0320	-	hypothetical protein
318	 56.87	0	337305..338906	+	533	189025554	rbsA2	TPASS_0321	-	ribose/galactose ABC transporter, ATP-binding protein
319	 55.36	0	338816..340018	+	400	189025555	rbsC1	TPASS_0322	-	ribose/galactose ABC transporter, permease protein
320	 53.10	0	340015..340965	+	316	189025556	rbsC2	TPASS_0323	-	ribose/galactose ABC transporter, permease protein
321	 55.83	0	341069..342526	+	485	189025557	-	TPASS_0324	-	hypothetical protein
322	 54.53	0	342508..345474	+	988	189025558	-	TPASS_0325	-	hypothetical protein
323	 52.19	0	345456..348017	+	853	189025559	-	TPASS_0326	-	outer membrane protein
324	 51.06	0	348074..348592	+	172	189025560	ompH	TPASS_0327	-	cationic outer membrane protein
325	 54.09	0	348648..351350	+	900	189025561	mutS	TPASS_0328	-	DNA mismatch repair protein MutS
326	 54.38	0	351468..353192	+	574	189025562	glyA	TPASS_0329	-	serine hydroxymethyltransferase
327	 45.91	-1	353166..354962	-	598	189025563	-	TPASS_0330	-	possible cell division protein
328	 55.21	0	355192..356658	-	488	189025564	gnd	TPASS_0331	-	phosphogluconate dehydrogenase
329	 50.79	0	356674..356799	+	41	189025565	-	TPASS_0332	-	hypothetical protein
330	 50.22	0	356837..357529	+	230	189025566	-	TPASS_0333	-	hypothetical protein
331	 55.50	0	357554..358771	+	405	189025567	-	TPASS_0334	-	hypothetical protein
332	 57.83	+1	358768..359310	-	180	189025568	-	TPASS_0335	-	hypothetical protein
333	 51.91	0	359153..360853	+	566	189025569	-	TPASS_0336	-	possible protein ComE
334	 48.02	-1	360834..361691	+	285	189025570	ksgA	TPASS_0337	-	dimethyladenosine transferase
335	 49.28	0	361709..362197	+	162	189025571	-	TPASS_0338	-	hypothetical protein
336	 48.39	-1	362209..363204	+	331	189025572	-	TPASS_0339	-	hypothetical protein
337	 46.91	-1	363190..364662	-	490	189025573	folC	TPASS_0340	-	folylpolyglutamate synthetase
338	 49.79	0	364681..366126	+	481	189025574	murC	TPASS_0341	-	UDP-N-acetylmuramate--alanine ligase
339	 48.31	-1	366247..366807	+	186	189025575	cmk	TPASS_0342	-	cytidylate kinase
340	 49.52	0	366801..367634	+	277	189025576	-	TPASS_0343	-	possible A/G-specific adenine glycosylase
341	 49.66	0	367639..371061	-	1140	189025577	trcF	TPASS_0344	-	transcription-repair coupling factor
342	 50.73	0	371214..372305	+	363	189025578	mraY	TPASS_0345	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
52.88	MEAN

4.36	STD DEV
