IslandPath Analysis: Treponema pallidum subsp. pallidum SS14

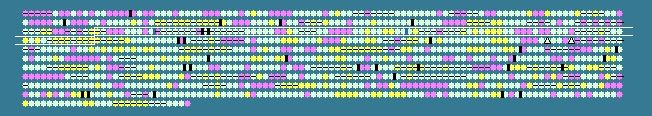

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.36
Treponema pallidum subsp. pallidum SS14, complete genome - 1..1139457
1028 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
213	 57.62	+1	219152..219814	+	220	189025449	grpE	TPASS_0215	-	chaperone protein GrpE
214	 51.57	0	219930..221837	+	635	189025450	dnaK	TPASS_0216	-	heat shock protein 70
215	 46.39	-1	223384..224853	+	489	189025451	-	TPASS_0218	-	possible sigma factor SigB regulation protein
216	 41.67	-2	224857..227004	+	715	189025452	-	TPASS_0219	-	possible sigma factor SigB regulation protein
217	 48.62	0	227033..227359	+	108	189025453	spoIIAA1	TPASS_0220	-	anti-sigma F factor antagonist
218	 55.94	0	227360..228142	+	260	189025454	-	TPASS_0221	-	possible D,D-carboxypeptidase
219	 52.57	0	228152..228598	+	148	189025455	-	TPASS_0222	-	hypothetical protein
220	 53.29	0	228866..230173	+	435	189025456	-	TPASS_0223	-	aspartate aminotransferase TpAAT
221	 48.57	0	230210..230314	+	34	189025457	-	TPASS_0224	-	hypothetical protein
222	 51.42	0	230360..231100	+	246	189025458	-	TPASS_0225	-	leucine-rich repeat protein TpLRR
223	 49.05	0	236252..236938	-	228	189025459	-	TPASS_0226	-	hypothetical protein
224	 52.86	0	236991..237758	-	255	189025460	-	TPASS_0227	-	cobalt ABC transporter, ATP-binding protein
225	 55.64	0	237825..238640	-	271	189025461	-	TPASS_0228	-	possible biotin synthase
226	 55.52	0	238584..239417	+	277	189025462	-	TPASS_0229	-	DNA polymerase, bacteriophage-type
227	 56.33	0	239422..241395	+	657	189025463	priA	TPASS_0230	-	primosomal protein N
228	 54.99	0	241496..242146	+	216	189025464	-	TPASS_0231	-	hypothetical protein
229	 55.56	0	242246..242362	+	38	189025465	-	TPASS_0232	-	hypothetical protein
230	 45.05	-1	242393..242938	+	181	189025466	-	TPASS_0233	-	possible anti-sigma F factor antagonist
231	 49.71	0	243173..243343	+	56	189025467	rpmG	TPASS_0234	-	ribosomal protein L33
232	 53.89	0	243493..243672	+	59	189025468	secE	TPASS_0235	-	preprotein translocase subunit
233	 52.87	0	243682..244239	+	185	189025469	nusG	TPASS_0236	-	transcription antitermination protein
234	 54.20	0	244346..244786	+	146	189025470	rplK	TPASS_0237	-	ribosomal protein L11
235	 53.74	0	244783..245463	+	226	189025471	rplA	TPASS_0238	-	ribosomal protein L1
236	 54.70	0	245465..246007	+	180	189025472	rplJ	TPASS_0239	-	ribosomal protein L10
237	 52.05	0	246116..246505	+	129	189025473	rplL	TPASS_0240	-	ribosomal protein L7/L12
238	 49.93	0	246768..250304	+	1178	189025474	rpoB	TPASS_0241	-	DNA-directed RNA polymerase, beta subunit
239	 50.60	0	250317..254567	+	1416	189025475	rpoC	TPASS_0242	-	DNA-directed RNA polymerase, beta subunit
240	 54.40	0	254670..255044	+	124	189025476	rpsL	TPASS_0243	-	ribosomal protein S12
241	 54.99	0	255066..255536	+	156	189025477	rpsG	TPASS_0244	-	ribosomal protein S7
242	 52.00	0	255560..259015	+	1151	189025478	-	TPASS_0245	-	hypothetical protein
243	 46.49	-1	259161..260954	+	597	189025479	-	TPASS_0246	-	hypothetical protein
244	 48.23	-1	261005..262078	+	357	189025480	amiA	TPASS_0247	-	N-acetylmuramoyl-L-alanine amidase
245	 56.54	0	262145..262549	+	134	189025481	-	TPASS_0248	-	hypothetical protein
246	 54.42	0	262628..263680	+	350	189025482	flaA1	TPASS_0249	-	flagellar filament outer layer protein
247	 54.82	0	263731..263958	+	75	189025483	-	TPASS_0250a	-	hypothetical protein
248	 55.90	0	263793..264080	+	95	189025484	rpsT	TPASS_0250b	-	ribosomal protein S20
249	 54.72	0	264112..264429	+	105	189025485	-	TPASS_0251	-	DNA-binding protein II
250	 54.42	0	264419..266059	+	546	189025486	-	TPASS_0252	-	possible apolipoprotein N-acyltransferase
251	 51.93	0	266050..266463	+	137	189025487	-	TPASS_0253	-	hypothetical protein
252	 48.97	0	266700..268259	+	519	189025488	rho	TPASS_0254	-	transcription termination factor Rho
253	 49.02	0	268378..268581	+	67	189025489	rpmE	TPASS_0255	-	ribosomal protein L31
254	 47.77	-1	268626..269276	+	216	189025490	pgsA	TPASS_0256	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
255	 48.27	-1	269373..270443	+	356	189025491	glpQ	TPASS_0257	-	glycerophosphoryldiester phosphodiesterase
256	 52.88	0	270509..271219	-	236	189025492	-	TPASS_0258	-	hypothetical protein
257	 53.76	0	271298..271909	+	203	189025493	-	TPASS_0259	-	hypothetical protein
258	 56.94	0	272040..273386	-	448	189025494	-	TPASS_0260	-	hypothetical protein
259	 54.50	0	273501..274544	+	347	189025495	-	TPASS_0261	-	possible catabolite gene activator
260	 51.85	0	274522..275196	+	224	189025496	crp	TPASS_0262	-	catabolite gene activator
261	 57.98	+1	275211..276995	+	594	189025497	-	TPASS_0263	-	hypothetical protein
262	 56.77	0	277000..277656	+	218	189025498	deoC	TPASS_0264	-	deoxyribose-phosphate aldolase
263	 54.90	0	278088..279455	-	455	189025499	braC	TPASS_0265	-	amino acid ABC transporter, permease protein
264	 53.17	0	279506..279631	+	41	189025500	-	TPASS_0266	-	hypothetical protein
265	 51.37	0	284740..285105	+	121	189025501	-	TPASS_0267	-	hypothetical protein
266	 58.26	+1	285102..285755	+	217	189025502	-	TPASS_0268	-	hypothetical protein
267	 50.38	0	285765..287213	+	482	189025503	-	TPASS_0269	-	hypothetical protein
268	 54.84	0	287287..288723	+	478	189025504	pcnA	TPASS_0270	-	polynucleotide adenylyltransferase
269	 53.13	0	288720..289694	-	324	189025505	parB	TPASS_0271	-	chromosome partitioning protein
270	 48.16	-1	289681..290442	-	253	189025506	parA	TPASS_0272	-	chromosome partitioning protein
271	 53.54	0	290575..291366	+	263	189025507	-	TPASS_0273	-	hypothetical protein
272	 56.09	0	291404..291904	-	166	189025508	-	TPASS_0274	-	possible deoxycytidylate deaminase
273	 50.93	0	291993..292742	-	249	189025509	-	TPASS_0275	-	possible UDP-N-acetyl-D-mannosamine transferase
274	 56.72	0	292721..293605	-	294	189025510	-	TPASS_0276	-	hypothetical protein
275	 50.48	0	293778..295124	-	448	189025511	ctp	TPASS_0277	-	carboxyl-terminal protease
276	 61.24	+1	295252..295380	+	42	189025512	-	TPASS_0278	-	hypothetical protein
277	 55.25	0	295426..298017	+	863	189025513	rpsA	TPASS_0279	-	ribosomal protein S1
278	 58.91	+1	298014..298142	+	42	189025514	-	TPASS_0280	-	hypothetical protein
279	 58.14	+1	298159..298287	+	42	189025515	-	TPASS_0281	-	hypothetical protein
280	 59.44	+1	298280..298999	+	239	189025516	-	TPASS_0282	-	hypothetical protein
281	 51.67	0	299177..299656	+	159	189025517	kdtB	TPASS_0283	-	lipopolysaccharide core biosynthesis protein
282	 54.55	0	299761..300420	+	219	189025518	-	TPASS_0284	-	hypothetical protein
283	 48.80	0	300360..301439	+	359	189025519	-	TPASS_0285	-	hypothetical protein
284	 48.09	-1	301411..301776	+	121	189025520	-	TPASS_0286	-	hypothetical protein
285	 45.51	-1	301743..302366	+	207	189025521	-	TPASS_0287	-	hypothetical protein
286	 52.32	0	302366..303313	+	315	189025522	spsF	TPASS_0288	-	spore coat polysaccharide biosynthesis protein F
287	 48.10	-1	303336..304940	+	534	189025523	-	TPASS_0289	-	hypothetical protein
288	 46.40	-1	304995..305828	+	277	189025524	-	TPASS_0290	-	hypothetical protein
289	 50.68	0	305865..306746	+	293	189025525	-	TPASS_0291	-	hypothetical protein
290	 49.84	0	306737..307990	+	417	189025526	tpn50	TPASS_0292	-	outer membrane protein TpN50
291	 55.37	0	308002..308178	+	58	189025527	-	TPASS_0293	-	hypothetical protein
292	 47.31	-1	308156..309421	+	421	189025528	prs	TPASS_0294	-	phosphoribosyl pyrophosphate synthetase
293	 52.53	0	309440..310684	+	414	189025529	xylB	TPASS_0295	-	carhohydrate kinase
294	 51.89	0	310770..311405	+	211	189025530	-	TPASS_0296	-	hypothetical protein
295	 53.38	0	311369..312181	+	270	189025531	-	TPASS_0297	-	hypothetical protein
296	 54.84	0	312314..313345	+	343	189025532	tpn38b	TPASS_0298	-	exported protein TpN38b
297	 64.44	+2	313342..313566	+	74	189025533	-	TPASS_0299	-	hypothetical protein
298	 53.38	0	313551..315101	+	516	189025534	rbsA1	TPASS_0300	-	ribose/galactose ABC transporter, ATP-binding protein
299	 50.79	0	315098..316231	+	377	189025535	-	TPASS_0301	-	hypothetical integral membrane protein
300	 55.41	0	316222..317163	+	313	189025536	-	TPASS_0302	-	hypothetical integral membrane protein
301	 57.52	+1	317150..319096	-	648	189025537	mutL	TPASS_0303	-	DNA mismatch repair protein MutL
302	 56.27	0	319109..322225	-	1038	189025538	-	TPASS_0304	-	hypothetical protein
303	 58.25	+1	322152..323885	+	577	189025539	pyrG	TPASS_0305	-	CTP synthase
304	 53.66	0	324050..324664	+	204	189025540	rpsD	TPASS_0306	-	ribosomal protein S4
305	 55.39	0	324751..325779	+	342	189025541	-	TPASS_0307	-	hypothetical protein
306	 56.52	0	325754..326719	+	321	189025542	hisJ	TPASS_0308	-	amino acid ABC transporter, periplasmic binding protein
307	 57.14	0	326785..327603	+	272	189025543	-	TPASS_0309	-	amino acid ABC transporter, periplasmic binding protein
308	 59.11	+1	327572..327955	+	127	189025544	-	TPASS_0310	-	hypothetical protein
309	 55.56	0	327934..328077	-	47	189025545	-	TPASS_0311	-	hypothetical protein
310	 60.75	+1	328061..329074	+	337	189025546	-	TPASS_0312	-	hypothetical protein
311	 56.75	0	329165..331453	+	762	189025547	tprE	TPASS_0313	-	protein TprE
312	 59.18	+1	331510..331656	-	48	189025548	-	TPASS_0314	-	hypothetical protein
52.88	MEAN

4.36	STD DEV
