IslandPathversion 1.0

IslandPath Analysis: Treponema pallidum subsp. pallidum SS14

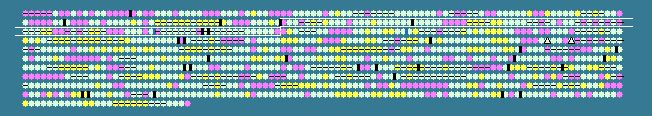

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.36
Treponema pallidum subsp. pallidum SS14, complete genome - 1..1139457
1028 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
144	 44.89	-1	170462..172321	-	619	189025380	-	TPASS_0147	-	possible alpha-amylase 1
145	 51.30	0	172318..172896	-	192	189025381	-	TPASS_0148	-	hypothetical protein
146	 50.17	0	172890..173483	-	197	189025382	-	TPASS_0149	-	hypothetical protein
147	 49.15	0	173476..173943	-	155	189025383	-	TPASS_0150	-	hypothetical protein
148	 54.51	0	173927..174946	-	339	189025384	-	TPASS_0151	-	hypothetical integral membrane protein
149	 57.41	+1	174933..176477	-	514	189025385	rnfC	TPASS_0152	-	nitrogen fixation protein
150	 54.88	0	176553..177044	-	163	189025386	-	TPASS_0153	-	hypothetical protein
151	 58.57	+1	177269..178306	+	345	189025387	-	TPASS_0154	-	hypothetical protein
152	 52.33	0	178312..179427	+	371	189025388	-	TPASS_0155	-	fibronectin binding protein
153	 51.11	0	179468..179872	-	134	189025389	-	TPASS_0156	-	hypothetical protein
154	 50.17	0	179869..180771	-	300	189025390	-	TPASS_0157	-	hypothetical protein
155	 48.76	0	180768..181454	-	228	189025391	-	TPASS_0158	-	hypothetical protein
156	 51.51	0	181458..182486	-	342	189025392	-	TPASS_0159	-	hypothetical protein
157	 55.99	0	182602..184455	-	617	189025393	proS	TPASS_0160	-	prolyl-tRNA synthetase
158	 55.91	0	184458..184550	-	30	189025394	-	TPASS_0161	-	hypothetical protein
159	 58.59	+1	184567..185619	-	350	189025395	ruvB	TPASS_0162	-	Holliday junction DNA helicase, subunit B
160	 53.51	0	185794..186720	+	308	189025396	troA	TPASS_0163	-	ABC transporter, periplasmic binding protein
161	 53.43	0	186868..187668	+	266	189025397	troB	TPASS_0164	-	ABC transporter, ATP-binding protein
162	 51.62	0	187640..188536	+	298	189025398	troC	TPASS_0165	-	ABC transporter, permease protein
163	 52.26	0	188540..189643	+	367	189025399	troD	TPASS_0166	-	ABC transporter, permease protein
164	 50.87	0	189653..190114	+	153	189025400	troR	TPASS_0167	-	cation-activated repressor protein
165	 51.46	0	190194..190949	+	251	189025401	pgm	TPASS_0168	-	phosphoglycerate mutase
166	 55.56	0	191173..191271	+	32	189025402	-	TPASS_0169	-	hypothetical protein
167	 54.81	0	191268..192077	+	269	189025403	pfs	TPASS_0170	-	protein Pfs
168	 52.68	0	192177..192605	+	142	189025404	tpp15	TPASS_0171	-	lipoprotein, 15 kDa
169	 54.73	0	192753..193280	-	175	189025405	-	TPASS_0172	-	hypothetical protein
170	 50.88	0	193315..193998	-	227	189025406	-	TPASS_0173	-	hypothetical protein
171	 44.25	-1	193967..194809	-	280	189025407	-	TPASS_0174	-	hypothetical protein
172	 43.60	-2	194559..195191	-	210	189025408	-	TPASS_0175	-	hypothetical protein
173	 45.69	-1	195222..195488	-	88	189025409	-	TPASS_0176	-	hypothetical protein
174	 48.74	0	195485..196795	-	436	189025410	-	TPASS_0177	-	hypothetical protein
175	 57.93	+1	196889..197815	-	308	189025411	-	TPASS_0178	-	hypothetical protein
176	 60.83	+1	197815..199698	-	627	189025412	-	TPASS_0179	-	hypothetical protein
177	 59.12	+1	199640..199798	-	52	189025413	-	TPASS_0180	-	hypothetical protein
178	 56.08	0	199791..200234	+	147	189025414	-	TPASS_0181	-	hypothetical protein
179	 60.26	+1	200074..200853	+	259	189025415	-	TPASS_0182	-	hypothetical protein
180	 56.62	0	200856..201701	-	281	189025416	-	TPASS_0183	-	hypothetical protein
181	 55.27	0	201706..202170	-	154	189025417	smpB	TPASS_0184	-	small protein B
182	 53.39	0	202258..202965	+	235	189025418	sip	TPASS_0185	-	signal peptidase I
183	 54.48	0	203020..204201	+	393	189025419	-	TPASS_0186	-	possible oxygen-independent coproporphyrinogen III oxidase
184	 51.88	0	204265..205752	+	495	189025420	tuf	TPASS_0187	-	translation elongation factor TU
185	 52.75	0	205824..206132	+	102	189025421	rpsJ	TPASS_0188	-	ribosomal protein S10
186	 54.07	0	206179..206805	+	208	189025422	rplC	TPASS_0189	-	ribosomal protein L3
187	 49.31	0	206819..207469	+	216	189025423	rplD	TPASS_0190	-	ribosomal protein L4
188	 52.28	0	207456..207740	+	94	189025424	rplW	TPASS_0191	-	ribosomal protein L23
189	 56.20	0	207796..208617	+	273	189025425	rplB	TPASS_0192	-	ribosomal protein L2
190	 47.22	-1	208627..208914	+	95	189025426	rpsS	TPASS_0193	-	ribosomal protein S19
191	 52.80	0	208923..209297	+	124	189025427	rplV	TPASS_0194	-	ribosomal protein L22
192	 51.34	0	209281..210024	+	247	189025428	rpsC	TPASS_0195	-	ribosomal protein S3
193	 52.86	0	210028..210447	+	139	189025429	rplP	TPASS_0196	-	ribosomal protein L16
194	 45.21	-1	210462..210680	+	72	189025430	rpmC	TPASS_0197	-	ribosomal protein L29
195	 52.94	0	210695..210949	+	84	189025431	rpsQ	TPASS_0198	-	ribosomal protein S17
196	 48.51	-1	210962..211330	+	122	189025432	rplN	TPASS_0199	-	ribosomal protein L14
197	 50.64	0	211342..211653	+	103	189025433	rplX	TPASS_0200	-	ribosomal protein L24
198	 46.42	-1	211650..212207	+	185	189025434	rplE	TPASS_0201	-	ribosomal protein L5
199	 53.76	0	212219..212404	+	61	189025435	rpsN	TPASS_0202	-	ribosomal protein S14
200	 49.12	0	212420..212818	+	132	189025436	rpsH	TPASS_0203	-	ribosomal protein S8
201	 51.85	0	212828..213367	+	179	189025437	rplF	TPASS_0204	-	ribosomal protein L6
202	 49.86	0	213376..213738	+	120	189025438	rplR	TPASS_0205	-	ribosomal protein L18
203	 51.83	0	213747..214265	+	172	189025439	rpsE	TPASS_0206a	-	ribosomal protein S5
204	 56.99	0	214268..214453	+	61	189025440	rpmD	TPASS_0206b	-	ribosomal protein L30
205	 56.71	0	214453..214914	+	153	189025441	rplO	TPASS_0207	-	ribosomal protein L15
206	 49.08	0	214922..216274	+	450	189025442	secY	TPASS_0208	-	preprotein translocase subunit
207	 40.35	-2	216279..216392	+	37	189025443	rpmJ1	TPASS_0209	-	ribosomal protein L36
208	 46.99	-1	216408..216773	+	121	189025444	rpsM	TPASS_0210	-	ribosomal protein S13
209	 52.23	0	216791..217171	+	126	189025445	rpsK	TPASS_0211	-	ribosomal protein S11
210	 49.34	0	217186..218241	+	351	189025446	rpoA	TPASS_0212	-	DNA-directed RNA polymerase, alpha subunit
211	 52.32	0	218231..218725	+	164	189025447	rplQ	TPASS_0213	-	ribosomal protein L17
212	 57.58	+1	218749..218946	+	65	189025448	-	TPASS_0214	-	hypothetical protein
213	 57.62	+1	219152..219814	+	220	189025449	grpE	TPASS_0215	-	chaperone protein GrpE
214	 51.57	0	219930..221837	+	635	189025450	dnaK	TPASS_0216	-	heat shock protein 70
215	 46.39	-1	223384..224853	+	489	189025451	-	TPASS_0218	-	possible sigma factor SigB regulation protein
216	 41.67	-2	224857..227004	+	715	189025452	-	TPASS_0219	-	possible sigma factor SigB regulation protein
217	 48.62	0	227033..227359	+	108	189025453	spoIIAA1	TPASS_0220	-	anti-sigma F factor antagonist
218	 55.94	0	227360..228142	+	260	189025454	-	TPASS_0221	-	possible D,D-carboxypeptidase
219	 52.57	0	228152..228598	+	148	189025455	-	TPASS_0222	-	hypothetical protein
220	 53.29	0	228866..230173	+	435	189025456	-	TPASS_0223	-	aspartate aminotransferase TpAAT
221	 48.57	0	230210..230314	+	34	189025457	-	TPASS_0224	-	hypothetical protein
222	 51.42	0	230360..231100	+	246	189025458	-	TPASS_0225	-	leucine-rich repeat protein TpLRR
223	 49.05	0	236252..236938	-	228	189025459	-	TPASS_0226	-	hypothetical protein
224	 52.86	0	236991..237758	-	255	189025460	-	TPASS_0227	-	cobalt ABC transporter, ATP-binding protein
225	 55.64	0	237825..238640	-	271	189025461	-	TPASS_0228	-	possible biotin synthase
226	 55.52	0	238584..239417	+	277	189025462	-	TPASS_0229	-	DNA polymerase, bacteriophage-type
227	 56.33	0	239422..241395	+	657	189025463	priA	TPASS_0230	-	primosomal protein N
228	 54.99	0	241496..242146	+	216	189025464	-	TPASS_0231	-	hypothetical protein
229	 55.56	0	242246..242362	+	38	189025465	-	TPASS_0232	-	hypothetical protein
230	 45.05	-1	242393..242938	+	181	189025466	-	TPASS_0233	-	possible anti-sigma F factor antagonist
231	 49.71	0	243173..243343	+	56	189025467	rpmG	TPASS_0234	-	ribosomal protein L33
232	 53.89	0	243493..243672	+	59	189025468	secE	TPASS_0235	-	preprotein translocase subunit
233	 52.87	0	243682..244239	+	185	189025469	nusG	TPASS_0236	-	transcription antitermination protein
234	 54.20	0	244346..244786	+	146	189025470	rplK	TPASS_0237	-	ribosomal protein L11
235	 53.74	0	244783..245463	+	226	189025471	rplA	TPASS_0238	-	ribosomal protein L1
236	 54.70	0	245465..246007	+	180	189025472	rplJ	TPASS_0239	-	ribosomal protein L10
237	 52.05	0	246116..246505	+	129	189025473	rplL	TPASS_0240	-	ribosomal protein L7/L12
238	 49.93	0	246768..250304	+	1178	189025474	rpoB	TPASS_0241	-	DNA-directed RNA polymerase, beta subunit
239	 50.60	0	250317..254567	+	1416	189025475	rpoC	TPASS_0242	-	DNA-directed RNA polymerase, beta subunit
240	 54.40	0	254670..255044	+	124	189025476	rpsL	TPASS_0243	-	ribosomal protein S12
241	 54.99	0	255066..255536	+	156	189025477	rpsG	TPASS_0244	-	ribosomal protein S7
242	 52.00	0	255560..259015	+	1151	189025478	-	TPASS_0245	-	hypothetical protein
243	 46.49	-1	259161..260954	+	597	189025479	-	TPASS_0246	-	hypothetical protein
52.88	MEAN

4.36	STD DEV
