IslandPath Analysis: Treponema pallidum subsp. pallidum SS14

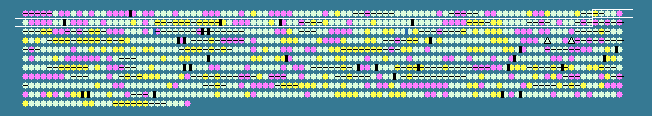

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.36
Treponema pallidum subsp. pallidum SS14, complete genome - 1..1139457
1028 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
96	 60.22	+1	106716..107366	-	216	189025332	-	TPASS_0098	-	possible heat-shock protein
97	 55.56	0	107370..108125	-	251	189025333	smbA	TPASS_0099	-	uridylate kinase
98	 54.89	0	108320..108922	+	200	189025334	-	TPASS_0100	-	possible thioredoxin
99	 55.35	0	108915..109709	+	264	189025335	ccdA	TPASS_0101	-	cytochrome c biogenesis protein
100	 45.09	-1	109747..111720	-	657	189025336	rep	TPASS_0102	-	Rep helicase, single-stranded DNA-dependent ATPase
101	 52.74	0	111785..113608	+	607	189025337	-	TPASS_0103	-	possible ATP-dependent DNA helicase
102	 48.43	-1	113855..115636	+	593	189025338	ushA	TPASS_0104	-	5'-nucleotidase
103	 44.76	-1	115803..118796	+	997	189025339	polA	TPASS_0105	-	DNA polymerase I
104	 49.18	0	118828..120360	-	510	189025340	-	TPASS_0106	-	possible carnitine transporter
105	 47.02	-1	120341..121918	-	525	189025341	licC	TPASS_0107	-	protein LicC
106	 51.08	0	122272..123657	-	461	189025342	pfk	TPASS_0108	-	pyrophosphate--fructose 6-phosphate 1-phosphotransferase
107	 55.29	0	123759..124637	-	292	189025343	-	TPASS_0109	-	possible rRNA methylase
108	 49.60	0	125178..126911	+	577	189025344	-	TPASS_0110	-	hypothetical protein
109	 47.90	-1	126971..128398	+	475	189025345	rpoN	TPASS_0111	-	RNA polymerase sigma-54 factor
110	 46.86	-1	128395..129747	-	450	189025346	pepC	TPASS_0112	-	aminopeptidase C
111	 46.61	-1	129889..130875	+	328	189025347	hflK	TPASS_0113	-	Lambda CII stability-governing protein
112	 49.60	0	130880..131875	+	331	189025348	hflC	TPASS_0114	-	Lambda CII stability-governing protein
113	 54.32	0	131900..132709	-	269	189025349	thiD	TPASS_0115	-	phosphomethypyrimidine kinase
114	 45.34	-1	132860..134866	+	668	189025350	uvrB	TPASS_0116	-	excinuclease ABC, subunit B
115	 56.09	0	134898..136694	-	598	189025351	tprC	TPASS_0117	-	protein TprC
116	 55.61	0	136774..138039	-	421	189025352	-	TPASS_0118	-	hypothetical protein
117	 55.15	0	138137..138796	-	219	189025353	yaeE	TPASS_0119	-	amino acid ABC transporter, permease protein
118	 51.98	0	138796..139605	-	269	189025354	-	TPASS_0120	-	amino acid ABC transporter, ATP-binding protein
119	 57.21	0	139735..140802	+	355	189025355	-	TPASS_0121	-	hypothetical protein
120	 53.96	0	141022..142878	-	618	189025356	pckA	TPASS_0122	-	phosphoenolpyruvate carboxykinase
121	 48.89	0	142984..145554	+	856	189025357	-	TPASS_0123	-	hypothetical protein
122	 52.57	0	145568..146674	+	368	189025358	-	TPASS_0124	-	possible GTP-binding protein
123	 56.60	0	146751..147545	+	264	189025359	exoA	TPASS_0125	-	exodeoxyribonuclease
124	 59.13	+1	147609..148484	-	291	189025360	-	TPASS_0126	-	hypothetical protein
125	 54.86	0	149847..150227	+	126	189025361	-	TPASS_0127	-	hypothetical protein
126	 62.64	+2	150729..151076	+	115	189025362	-	TPASS_0128	-	hypothetical protein
127	 59.54	+1	151061..151537	+	158	189025363	-	TPASS_0129	-	hypothetical protein
128	 58.81	+1	151866..152285	-	139	189025364	-	TPASS_0130	-	hypothetical protein
129	 56.09	0	152357..154153	-	598	189025365	tprD	TPASS_0131	-	protein TprD
130	 65.38	+2	154331..154408	-	25	189025366	-	TPASS_0132	-	hypothetical protein
131	 56.77	0	154393..155625	-	410	189025367	-	TPASS_0133	-	hypothetical protein
132	 57.29	+1	155622..156752	-	376	189025368	-	TPASS_0134	-	hypothetical protein
133	 59.02	+1	156704..157645	-	313	189025369	-	TPASS_0135	-	hypothetical protein
134	 60.72	+1	157985..159463	+	492	189025370	-	TPASS_0136	-	hypothetical protein
135	 53.62	0	159442..159579	+	45	189025371	-	TPASS_0137	-	hypothetical protein
136	 49.05	0	159716..160453	-	245	189025372	-	TPASS_0138	-	hypothetical protein
137	 48.05	-1	160461..161153	-	230	189025373	-	TPASS_0139	-	hypothetical protein
138	 47.16	-1	161193..162920	-	575	189025374	ntpJ	TPASS_0140	-	K+ transport protein
139	 55.99	0	163092..163625	+	177	189025375	dat	TPASS_0141	-	methylated-DNA-protein-cysteine S-methyltransferase
140	 51.73	0	163576..164238	-	220	189025376	-	TPASS_0142	-	possible thiamine ABC transporter, ATP-binding protein
141	 53.20	0	164231..166012	-	593	189025377	-	TPASS_0143	-	possible thiamine ABC transporter, permease protein
142	 57.74	+1	165970..166977	-	335	189025378	-	TPASS_0144	-	possible thiamine ABC transporter, thiamine-binding periplasmic protein
143	 53.83	0	167087..169057	+	656	189025379	-	TPASS_0145	-	long-chain-fatty-acid--CoA ligase
144	 44.89	-1	170462..172321	-	619	189025380	-	TPASS_0147	-	possible alpha-amylase 1
145	 51.30	0	172318..172896	-	192	189025381	-	TPASS_0148	-	hypothetical protein
146	 50.17	0	172890..173483	-	197	189025382	-	TPASS_0149	-	hypothetical protein
147	 49.15	0	173476..173943	-	155	189025383	-	TPASS_0150	-	hypothetical protein
148	 54.51	0	173927..174946	-	339	189025384	-	TPASS_0151	-	hypothetical integral membrane protein
149	 57.41	+1	174933..176477	-	514	189025385	rnfC	TPASS_0152	-	nitrogen fixation protein
150	 54.88	0	176553..177044	-	163	189025386	-	TPASS_0153	-	hypothetical protein
151	 58.57	+1	177269..178306	+	345	189025387	-	TPASS_0154	-	hypothetical protein
152	 52.33	0	178312..179427	+	371	189025388	-	TPASS_0155	-	fibronectin binding protein
153	 51.11	0	179468..179872	-	134	189025389	-	TPASS_0156	-	hypothetical protein
154	 50.17	0	179869..180771	-	300	189025390	-	TPASS_0157	-	hypothetical protein
155	 48.76	0	180768..181454	-	228	189025391	-	TPASS_0158	-	hypothetical protein
156	 51.51	0	181458..182486	-	342	189025392	-	TPASS_0159	-	hypothetical protein
157	 55.99	0	182602..184455	-	617	189025393	proS	TPASS_0160	-	prolyl-tRNA synthetase
158	 55.91	0	184458..184550	-	30	189025394	-	TPASS_0161	-	hypothetical protein
159	 58.59	+1	184567..185619	-	350	189025395	ruvB	TPASS_0162	-	Holliday junction DNA helicase, subunit B
160	 53.51	0	185794..186720	+	308	189025396	troA	TPASS_0163	-	ABC transporter, periplasmic binding protein
161	 53.43	0	186868..187668	+	266	189025397	troB	TPASS_0164	-	ABC transporter, ATP-binding protein
162	 51.62	0	187640..188536	+	298	189025398	troC	TPASS_0165	-	ABC transporter, permease protein
163	 52.26	0	188540..189643	+	367	189025399	troD	TPASS_0166	-	ABC transporter, permease protein
164	 50.87	0	189653..190114	+	153	189025400	troR	TPASS_0167	-	cation-activated repressor protein
165	 51.46	0	190194..190949	+	251	189025401	pgm	TPASS_0168	-	phosphoglycerate mutase
166	 55.56	0	191173..191271	+	32	189025402	-	TPASS_0169	-	hypothetical protein
167	 54.81	0	191268..192077	+	269	189025403	pfs	TPASS_0170	-	protein Pfs
168	 52.68	0	192177..192605	+	142	189025404	tpp15	TPASS_0171	-	lipoprotein, 15 kDa
169	 54.73	0	192753..193280	-	175	189025405	-	TPASS_0172	-	hypothetical protein
170	 50.88	0	193315..193998	-	227	189025406	-	TPASS_0173	-	hypothetical protein
171	 44.25	-1	193967..194809	-	280	189025407	-	TPASS_0174	-	hypothetical protein
172	 43.60	-2	194559..195191	-	210	189025408	-	TPASS_0175	-	hypothetical protein
173	 45.69	-1	195222..195488	-	88	189025409	-	TPASS_0176	-	hypothetical protein
174	 48.74	0	195485..196795	-	436	189025410	-	TPASS_0177	-	hypothetical protein
175	 57.93	+1	196889..197815	-	308	189025411	-	TPASS_0178	-	hypothetical protein
176	 60.83	+1	197815..199698	-	627	189025412	-	TPASS_0179	-	hypothetical protein
177	 59.12	+1	199640..199798	-	52	189025413	-	TPASS_0180	-	hypothetical protein
178	 56.08	0	199791..200234	+	147	189025414	-	TPASS_0181	-	hypothetical protein
179	 60.26	+1	200074..200853	+	259	189025415	-	TPASS_0182	-	hypothetical protein
180	 56.62	0	200856..201701	-	281	189025416	-	TPASS_0183	-	hypothetical protein
181	 55.27	0	201706..202170	-	154	189025417	smpB	TPASS_0184	-	small protein B
182	 53.39	0	202258..202965	+	235	189025418	sip	TPASS_0185	-	signal peptidase I
183	 54.48	0	203020..204201	+	393	189025419	-	TPASS_0186	-	possible oxygen-independent coproporphyrinogen III oxidase
184	 51.88	0	204265..205752	+	495	189025420	tuf	TPASS_0187	-	translation elongation factor TU
185	 52.75	0	205824..206132	+	102	189025421	rpsJ	TPASS_0188	-	ribosomal protein S10
186	 54.07	0	206179..206805	+	208	189025422	rplC	TPASS_0189	-	ribosomal protein L3
187	 49.31	0	206819..207469	+	216	189025423	rplD	TPASS_0190	-	ribosomal protein L4
188	 52.28	0	207456..207740	+	94	189025424	rplW	TPASS_0191	-	ribosomal protein L23
189	 56.20	0	207796..208617	+	273	189025425	rplB	TPASS_0192	-	ribosomal protein L2
190	 47.22	-1	208627..208914	+	95	189025426	rpsS	TPASS_0193	-	ribosomal protein S19
191	 52.80	0	208923..209297	+	124	189025427	rplV	TPASS_0194	-	ribosomal protein L22
192	 51.34	0	209281..210024	+	247	189025428	rpsC	TPASS_0195	-	ribosomal protein S3
193	 52.86	0	210028..210447	+	139	189025429	rplP	TPASS_0196	-	ribosomal protein L16
194	 45.21	-1	210462..210680	+	72	189025430	rpmC	TPASS_0197	-	ribosomal protein L29
195	 52.94	0	210695..210949	+	84	189025431	rpsQ	TPASS_0198	-	ribosomal protein S17
52.88	MEAN

4.36	STD DEV
