IslandPathversion 1.0

IslandPath Analysis: Treponema pallidum subsp. pallidum SS14

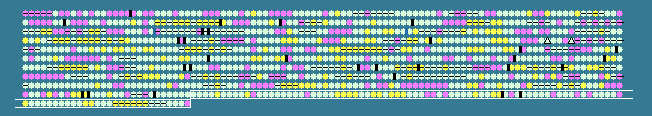

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.36
Treponema pallidum subsp. pallidum SS14, complete genome - 1..1139457
1028 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
929	 56.34	0	1026165..1026629	-	154	189026165	-	TPASS_0942	-	hypothetical protein
930	 51.23	0	1026635..1027081	-	148	189026166	fliS	TPASS_0943	-	flagellar protein
931	 53.20	0	1027130..1028302	-	390	189026167	-	TPASS_0944	-	hypothetical protein
932	 54.34	0	1028473..1029129	-	218	189026168	cfxE	TPASS_0945	-	ribulose-phosphate 3-epimerase
933	 57.25	+1	1029281..1029949	+	222	189026169	gidB	TPASS_0946	-	glucose-inhibited division protein B
934	 52.47	0	1029994..1030641	-	215	189026170	cyp	TPASS_0947	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-binding
935	 51.44	0	1030638..1031333	-	231	189026171	jag	TPASS_0948	-	spoIIIJ-associated protein
936	 51.30	0	1031349..1033346	-	665	189026172	-	TPASS_0949	-	membrane protein
937	 55.79	0	1033622..1033906	-	94	189026173	-	TPASS_0950	-	hypothetical protein
938	 59.62	+1	1033910..1034065	-	51	189026174	rpmH	TPASS_0951	-	ribosomal protein L34
939	 48.94	0	1034185..1035222	-	345	189026175	-	TPASS_0952	-	possible lipase
940	 56.09	0	1035304..1036494	-	396	189026176	traB	TPASS_0953	-	pheromone shutdown protein
941	 53.38	0	1036581..1038017	-	478	189026177	-	TPASS_0954	-	hypothetical protein
942	 53.85	0	1038089..1038361	-	90	189026178	-	TPASS_0955	-	hypothetical protein
943	 56.07	0	1038457..1039428	+	323	189026179	-	TPASS_0956	-	hypothetical protein
944	 50.15	0	1039519..1040547	+	342	189026180	tp33	TPASS_0957	-	protein Tp33
945	 52.66	0	1040579..1042477	+	632	189026181	dctM	TPASS_0958	-	dicarboxylate transporter
946	 54.36	0	1042546..1042935	-	129	189026182	-	TPASS_0959	-	hypothetical protein
947	 52.96	0	1042947..1043741	-	264	189026183	flgG1	TPASS_0960	-	flagellar basal-body rod protein
948	 47.18	-1	1043817..1044632	-	271	189026184	flgG2	TPASS_0961	-	flagellar basal-body rod protein
949	 50.77	0	1044718..1045950	-	410	189026185	-	TPASS_0962	-	hypothetical integral membrane protein
950	 52.36	0	1046061..1047290	-	409	189026186	-	TPASS_0963	-	hypothetical integral membrane protein
951	 54.80	0	1047280..1047987	-	235	189026187	-	TPASS_0964	-	ABC transporter, ATP-binding protein
952	 53.17	0	1047987..1048949	-	320	189026188	-	TPASS_0965	-	possible membrane fusion protein
953	 58.72	+1	1048974..1050608	-	544	189026189	-	TPASS_0966	-	hypothetical protein
954	 60.23	+1	1050655..1052208	-	517	189026190	-	TPASS_0967	-	hypothetical protein
955	 59.89	+1	1052205..1053827	-	540	189026191	-	TPASS_0968	-	hypothetical protein
956	 57.41	+1	1053824..1055443	-	539	189026192	-	TPASS_0969	-	hypothetical protein
957	 55.56	0	1055440..1055556	-	38	189026193	-	TPASS_0970	-	hypothetical protein
958	 55.12	0	1055578..1056192	-	204	189026194	tpd	TPASS_0971	-	membrane antigen, pathogen-specific
959	 59.09	+1	1056348..1057694	-	448	189026195	-	TPASS_0972	-	hypothetical integral membrane protein
960	 57.82	+1	1057782..1059443	+	553	189026196	pheS	TPASS_0973	-	phenylalanyl-tRNA synthetase, subunit alpha
961	 56.03	0	1059495..1059776	-	93	189026197	-	TPASS_0974	-	hypothetical protein
962	 59.39	+1	1059828..1060652	-	274	189026198	-	TPASS_0975	-	hypothetical protein
963	 58.62	+1	1060700..1062079	+	459	189026199	-	TPASS_0976	-	hypothetical protein
964	 56.91	0	1062066..1062926	+	286	189026200	-	TPASS_0977	-	hypothetical protein
965	 50.17	0	1062923..1063516	+	197	189026201	lsp	TPASS_0978	-	signal peptidase II
966	 51.68	0	1063686..1064459	+	257	189026202	-	TPASS_0979	-	hypothetical protein
967	 54.55	0	1064467..1065489	+	340	189026203	ntrB	TPASS_0980	-	histidine phosphokinase/phophatase
968	 48.97	0	1065549..1066712	+	387	189026204	-	TPASS_0981	-	possible sensory transduction histidine kinase
969	 46.89	-1	1066728..1067354	+	208	189026205	-	TPASS_0982	-	possible protein GlpG
970	 53.14	0	1067344..1068060	+	238	189026206	-	TPASS_0983	-	hypothetical protein
971	 48.28	-1	1068084..1070003	-	639	189026207	htpG	TPASS_0984	-	heat shock protein 90
972	 54.28	0	1070147..1071955	+	602	189026208	aspS	TPASS_0985	-	aspartyl-tRNA synthetase
973	 53.22	0	1072011..1072895	+	294	189026209	-	TPASS_0986	-	hypothetical integral membrane protein
974	 54.97	0	1072941..1073111	-	56	189026210	-	TPASS_0987	-	hypothetical protein
975	 51.97	0	1073178..1074014	+	278	189026211	-	TPASS_0988	-	hypothetical integral membrane protein
976	 57.39	+1	1074050..1074922	-	290	189026212	-	TPASS_0989	-	protein P26
977	 52.77	0	1074969..1078070	+	1033	189026213	-	TPASS_0990	-	hypothetical protein
978	 54.09	0	1078134..1078292	+	52	189026214	-	TPASS_0991	-	rubredoxin
979	 61.81	+2	1078325..1078612	+	95	189026215	-	TPASS_0992	-	hypothetical protein
980	 58.20	+1	1078749..1079705	-	318	189026216	-	TPASS_0993	-	possible rare lipoprotein A
981	 54.69	0	1080061..1080870	+	269	189026217	-	TPASS_0994	-	hypothetical protein
982	 46.08	-1	1080946..1082232	+	428	189026218	-	TPASS_0995	-	cyclic nucleotide binding protein
983	 50.40	0	1082315..1083931	-	538	189026219	-	TPASS_0996	-	hypothetical protein
984	 51.03	0	1084088..1085884	-	598	189026220	sppA	TPASS_0997	-	protease IV
985	 50.50	0	1085918..1087420	-	500	189026221	-	TPASS_0998	-	sodium/proton-dependent alanine transporter
986	 52.79	0	1087492..1089891	+	799	189026222	-	TPASS_0999	-	possible cell division protein
987	 53.27	0	1090069..1090740	+	223	189026223	-	TPASS_1000	-	hypothetical protein
988	 51.95	0	1090880..1092061	-	393	189026224	-	TPASS_1001	-	hypothetical protein
989	 49.33	0	1092075..1092743	-	222	189026225	-	TPASS_1002	-	hypothetical protein
990	 52.99	0	1092938..1093975	+	345	189026226	-	TPASS_1003	-	hypothetical protein
991	 55.94	0	1093998..1094603	-	201	189026227	recR	TPASS_1004	-	recombination protein RecR
992	 50.44	0	1094677..1096395	-	572	189026228	dnaZX	TPASS_1005	-	DNA polymerase III, subunits gamma and tau
993	 48.38	-1	1096454..1098367	-	637	189026229	gyrB	TPASS_1006	-	DNA gyrase, subunit B
994	 52.18	0	1098476..1099393	-	305	189026230	thyX	TPASS_1007	-	thymidylate synthase-complementing protein
995	 47.64	-1	1099436..1101973	-	845	189026231	nrdA	TPASS_1008	-	ribonucleoside-diphosphate reductase, subunit alpha
996	 52.01	0	1102100..1103170	-	356	189026232	gpsA	TPASS_1009	-	glycerol-3-phosphate dehydrogenase
997	 51.11	0	1103267..1103716	-	149	189026233	ndk	TPASS_1010	-	nucleoside-diphosphate kinase
998	 50.25	0	1103842..1104450	-	202	189026234	pth	TPASS_1011	-	peptidyl-tRNA hydrolase
999	 50.11	0	1104485..1105420	-	311	189026235	sigA	TPASS_1012	-	RNA polymerase sigma-43 factor
1000	 47.94	-1	1105625..1105891	+	88	189026236	groES	TPASS_1013	-	chaperonin GroES
1001	 56.38	0	1105902..1107836	-	644	189026237	-	TPASS_1014	-	hypothetical protein
1002	 53.29	0	1107802..1108227	-	141	189026238	nusB	TPASS_1015	-	N utilization substance protein B
1003	 49.45	0	1108224..1109309	-	361	189026239	tpn39b	TPASS_1016	-	basic membrane protein
1004	 54.51	0	1109382..1111199	-	605	189026240	alaS	TPASS_1017	-	alanyl-tRNA synthetase
1005	 53.00	0	1111371..1112885	+	504	189026241	-	TPASS_1018	-	hypothetical protein
1006	 54.05	0	1112907..1113350	+	147	189026242	gatC	TPASS_1019	-	glu-tRNA amidotransferase, subunit C
1007	 55.69	0	1113351..1114871	+	506	189026243	gatA	TPASS_1020	-	glu-tRNA amidotransferase, subunit A
1008	 52.16	0	1114864..1116393	+	509	189026244	gatB	TPASS_1021	-	glu-tRNA amidotransferase, subunit B
1009	 49.78	0	1116489..1117856	-	455	189026245	sms	TPASS_1022	-	DNA repair protein
1010	 54.55	0	1117903..1118397	-	164	189026246	recX	TPASS_1023	-	protein RecX
1011	 57.95	+1	1118525..1118914	-	129	189026247	rpsI	TPASS_1024	-	ribosomal protein S9
1012	 56.64	0	1118930..1119358	-	142	189026248	rplM	TPASS_1025	-	ribosomal protein L13
1013	 53.50	0	1119791..1121560	+	589	189026249	-	TPASS_1026	-	possible oligoendopeptidase F
1014	 54.57	0	1121682..1122458	+	258	189026250	udp	TPASS_1027	-	uridine phosphorylase
1015	 55.39	0	1122474..1124486	-	670	189026251	uvrD	TPASS_1028	-	DNA helicase II
1016	 61.28	+1	1124569..1125255	-	228	189026252	-	TPASS_1029	-	hypothetical protein
1017	 61.94	+2	1125413..1125772	-	119	189026253	-	TPASS_1030	-	hypothetical protein
1018	 58.12	+1	1125800..1127344	+	514	189026254	tprL	TPASS_1031	-	protein TprL
1019	 69.43	+2	1127412..1127846	-	144	189026255	-	TPASS_1032	-	hypothetical protein
1020	 61.75	+2	1127858..1128793	-	311	189026256	-	TPASS_1033	-	hypothetical protein
1021	 62.67	+2	1128867..1129892	+	341	189026257	-	TPASS_1034	-	hypothetical integral membrane protein
1022	 53.61	0	1129889..1132759	-	956	189026258	valS	TPASS_1035	-	valyl-tRNA synthetase
1023	 50.40	0	1132912..1135290	+	792	189026259	-	TPASS_1036	-	cation-transporting ATPase, P-type
1024	 49.51	0	1135380..1136096	-	238	189026260	hlyIII	TPASS_1037	-	hemolysin III
1025	 50.75	0	1136255..1136788	-	177	189026261	tpF1	TPASS_1038	-	bacterioferrin TpF1
1026	 53.40	0	1137015..1137587	+	190	189026262	apt	TPASS_1039	-	adenine phosphoribosyltransferase
1027	 52.18	0	1137610..1138665	-	351	189026263	lysS2	TPASS_1040	-	lysyl-tRNA synthetase
1028	 47.48	-1	1138665..1139378	-	237	189026264	clpP2	TPASS_1041	-	ATP-dependent Clp protease proteolytic component
52.88	MEAN

4.36	STD DEV
