IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

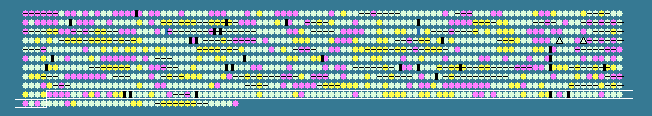

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.88   STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
905	 48.41	-1	989925..990176	+	83	15639896	-	TP0911	-	hypothetical protein
906	 47.54	-1	990189..991511	+	440	15639897	-	TP0912	-	hypothetical protein
907	 48.82	0	991495..991875	+	126	15639898	-	TP0913	-	hypothetical protein
908	 47.80	-1	992047..992433	+	128	15639899	-	TP0914	-	hypothetical protein
909	 49.81	0	992507..993841	+	444	15639900	-	TP0915	-	hypothetical protein
910	 55.81	0	993898..994026	+	42	15639901	-	TP0916	-	hypothetical protein
911	 48.37	-1	994010..995359	+	449	15639902	-	TP0917	-	Mg2+ transport protein (mgtE)
912	 61.50	+1	995374..996147	+	257	15639903	-	TP0918	-	hypothetical protein
913	 49.06	0	996173..996490	-	105	15639904	-	TP0919	-	thioredoxin (trx)
914	 54.57	0	996713..999142	+	809	15639905	-	TP0920	-	hypothetical protein
915	 49.40	0	999250..1000587	+	445	15639906	-	TP0921	-	NADH oxidase
916	 65.21	+2	1000721..1001614	-	297	15639907	-	TP0922	-	hypothetical protein
917	 56.57	0	1001653..1002672	-	339	15639908	-	TP0923	-	hypothetical protein
918	 55.54	0	1002996..1005332	+	778	15639909	-	TP0924	-	tex protein (tex)
919	 53.06	0	1005699..1006139	+	146	15639910	-	TP0925	-	flavodoxin
920	 56.27	0	1006290..1007828	-	512	15639911	-	TP0926	-	signal peptidase I, putative
921	 52.79	0	1007920..1008510	+	196	15639912	-	TP0927	-	hypothetical protein
922	 59.38	+1	1008605..1009345	+	246	15639913	-	TP0928	-	hypothetical protein
923	 55.25	0	1009357..1010127	+	256	15639914	-	TP0929	-	hypothetical protein
924	 50.64	0	1010151..1011872	+	573	15639915	-	TP0930	-	hypothetical protein
925	 46.19	-1	1011956..1013386	-	476	15639916	-	TP0931	-	hypothetical protein
926	 53.76	0	1013396..1013488	-	30	15639917	-	TP0932	-	hypothetical protein
927	 51.32	0	1013498..1015120	-	540	15639918	-	TP0933	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase (murE)
928	 49.18	0	1015256..1016479	+	407	15639919	-	TP0934	-	glutamate transporter, putative
929	 50.37	0	1016472..1017410	-	312	15639920	-	TP0935	-	N-acetylphosphinothricin-tripetide-deacetylase, putative
930	 52.23	0	1017604..1018677	-	357	15639921	-	TP0936	-	hemolysin, putative
931	 53.62	0	1018849..1019484	-	211	15639922	-	TP0937	-	hypothetical protein
932	 55.11	0	1019481..1020311	-	276	15639923	-	TP0938	-	hypothetical protein
933	 51.48	0	1020376..1023930	-	1184	15639924	-	TP0939	-	pyruvate oxidoreductase
934	 54.61	0	1023946..1024086	-	46	15639925	-	TP0940	-	hypothetical protein
935	 50.29	0	1024125..1024643	-	172	15639926	-	TP0941	-	hypothetical protein
936	 56.34	0	1024720..1025184	-	154	15639927	-	TP0942	-	hypothetical protein
937	 51.23	0	1025190..1025636	-	148	15639928	-	TP0943	-	flagellar protein (fliS)
938	 53.20	0	1025685..1026857	-	390	15639929	-	TP0944	-	hypothetical protein
939	 54.34	0	1027028..1027684	-	218	15639930	-	TP0945	-	ribulose-phosphate 3-epimerase (cfxE)
940	 57.25	+1	1027836..1028504	+	222	15639931	-	TP0946	-	glucose-inhibited division protein B (gidB)
941	 52.47	0	1028549..1029196	-	215	15639932	-	TP0947	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-binding (cyp)
942	 51.44	0	1029193..1029888	-	231	15639933	-	TP0948	-	spoIIIJ-associated protein (jag)
943	 51.30	0	1029904..1031901	-	665	15639934	-	TP0949	-	putative inner membrane protein translocase component YidC
944	 49.82	0	1031772..1032056	-	94	15640031	-	TP0949a	-	hypothetical protein
945	 55.77	0	1032053..1032459	-	135	15640027	-	TP0950a	-	RNAse P, protein component
946	 59.62	+1	1032465..1032620	-	51	15639935	rpmH	TP0951	-	50S ribosomal protein L34
947	 49.04	0	1032740..1033777	-	345	15639936	-	TP0952	-	lipase, putative
948	 56.09	0	1033859..1035049	-	396	15639937	-	TP0953	-	pheromone shutdown protein (traB)
949	 53.38	0	1035136..1036572	-	478	15639938	-	TP0954	-	hypothetical protein
950	 53.85	0	1036644..1036916	-	90	15639939	-	TP0955	-	hypothetical protein
951	 56.07	0	1037012..1037983	+	323	15639940	-	TP0956	-	hypothetical protein
952	 50.15	0	1038074..1039102	+	342	15639941	-	TP0957	-	Tp33 protein
953	 52.61	0	1039134..1041032	+	632	15639942	-	TP0958	-	dicarboxylate transporter (dctM)
954	 54.36	0	1041101..1041490	-	129	15639943	-	TP0959	-	hypothetical protein
955	 52.96	0	1041502..1042296	-	264	15639944	flgG	TP0960	-	flagellar basal body rod protein FlgG
956	 47.18	-1	1042372..1043187	-	271	15639945	-	TP0961	-	flagellar basal-body rod protein (flgG-2)
957	 50.77	0	1043273..1044505	-	410	15639946	-	TP0962	-	hypothetical protein
958	 52.36	0	1044616..1045845	-	409	15639947	-	TP0963	-	hypothetical protein
959	 54.80	0	1045835..1046542	-	235	15639948	-	TP0964	-	ABC transporter, ATP-binding protein
960	 53.17	0	1046542..1047504	-	320	15639949	-	TP0965	-	membrane fusion protein, putative
961	 58.84	+1	1047529..1049163	-	544	15639950	-	TP0966	-	hypothetical protein
962	 60.23	+1	1049210..1050763	-	517	15639951	-	TP0967	-	hypothetical protein
963	 59.95	+1	1050760..1052382	-	540	15639952	-	TP0968	-	hypothetical protein
964	 57.41	+1	1052379..1053998	-	539	15639953	-	TP0969	-	hypothetical protein
965	 55.56	0	1053995..1054111	-	38	15639954	-	TP0970	-	hypothetical protein
966	 55.12	0	1054133..1054747	-	204	15639955	-	TP0971	-	membrane antigen, pathogen-specific (tpd)
967	 59.09	+1	1054903..1056249	-	448	15639956	-	TP0972	-	hypothetical protein
968	 57.76	+1	1056337..1057998	+	553	15639957	pheS	TP0973	-	phenylalanyl-tRNA synthetase subunit alpha
969	 56.03	0	1058050..1058331	-	93	15639958	-	TP0974	-	hypothetical protein
970	 59.39	+1	1058383..1059207	-	274	15639959	-	TP0975	-	hypothetical protein
971	 58.62	+1	1059255..1060634	+	459	15639960	-	TP0976	-	hypothetical protein
972	 56.91	0	1060621..1061481	+	286	15639961	-	TP0977	-	hypothetical protein
973	 50.00	0	1061478..1062071	+	197	15639962	lspA	TP0978	-	signal peptidase II
974	 51.68	0	1062241..1063014	+	257	15639963	-	TP0979	-	hypothetical protein
975	 54.55	0	1063022..1064044	+	340	15639964	-	TP0980	-	histidine phosphokinase/phophatase (ntrB)
976	 48.97	0	1064104..1065267	+	387	15639965	-	TP0981	-	sensory transduction histidine kinase, putative
977	 46.89	-1	1065283..1065909	+	208	15639966	-	TP0982	-	glpG protein, putative
978	 53.14	0	1065899..1066615	+	238	15639967	-	TP0983	-	hypothetical protein
979	 48.28	-1	1066639..1068558	-	639	15639968	-	TP0984	-	heat shock protein 90
980	 54.28	0	1068702..1070510	+	602	15639969	aspS	TP0985	-	aspartyl-tRNA synthetase
981	 53.22	0	1070566..1071450	+	294	15639970	-	TP0986	-	hypothetical protein
982	 54.97	0	1071496..1071666	-	56	15639971	-	TP0987	-	hypothetical protein
983	 51.97	0	1071733..1072569	+	278	15639972	-	TP0988	-	hypothetical protein
984	 57.39	+1	1072605..1073477	-	290	15639973	-	TP0989	-	P26
985	 52.77	0	1073524..1076625	+	1033	15639974	-	TP0990	-	hypothetical protein
986	 54.09	0	1076689..1076847	+	52	15639975	-	TP0991	-	rubredoxin
987	 61.81	+2	1076880..1077167	+	95	15639976	-	TP0992	-	hypothetical protein
988	 58.20	+1	1077304..1078260	-	318	15639977	-	TP0993	-	rare lipoprotein A, putative
989	 54.69	0	1078616..1079425	+	269	15639978	-	TP0994	-	hypothetical protein
990	 46.15	-1	1079501..1080787	+	428	15639979	-	TP0995	-	cyclic nucleotide binding protein
991	 50.40	0	1080870..1082486	-	538	15639980	-	TP0996	-	hypothetical protein
992	 51.03	0	1082643..1084439	-	598	15639981	-	TP0997	-	protease IV (sppA)
993	 50.50	0	1084473..1085975	-	500	15639982	-	TP0998	-	sodium/proton-dependent alanine transporter
994	 52.79	0	1086047..1088446	+	799	15639983	-	TP0999	-	cell division protein, putative
995	 53.27	0	1088624..1089295	+	223	15639984	-	TP1000	-	hypothetical protein
996	 51.95	0	1089435..1090616	-	393	15639985	-	TP1001	-	hypothetical protein
997	 49.33	0	1090630..1091298	-	222	15639986	-	TP1002	-	hypothetical protein
998	 52.99	0	1091493..1092530	+	345	15639987	-	TP1003	-	hypothetical protein
999	 55.94	0	1092553..1093158	-	201	15639988	-	TP1004	-	recombination protein (recR)
1000	 50.44	0	1093232..1094950	-	572	15639989	-	TP1005	-	DNA polymerase III subunits gamma and tau
1001	 48.38	-1	1095009..1096922	-	637	15639990	-	TP1006	-	DNA gyrase, subunit B (gyrB)
1002	 52.18	0	1097031..1097948	-	305	15639991	thyX	TP1007	-	FAD-dependent thymidylate synthase
1003	 47.64	-1	1097991..1100528	-	845	15639992	-	TP1008	-	ribonucleotide-diphosphate reductase subunit alpha
1004	 52.01	0	1100655..1101725	-	356	15639993	gpsA	TP1009	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
52.88	MEAN

4.31	STD DEV
