IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

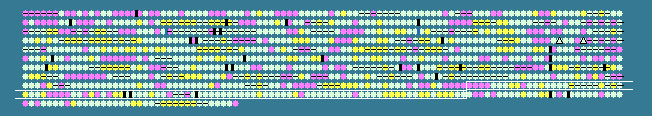

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.88   STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
875	 46.84	-1	957919..958725	-	268	15639866	-	TP0881	-	ABC transporter, ATP-binding protein (natA)
876	 42.91	-2	958804..960306	-	500	15639867	-	TP0882	-	hypothetical protein
877	 37.89	-2	960272..961369	-	365	15639868	-	TP0883	-	hypothetical protein
878	 45.09	-1	961387..962475	-	362	15639869	-	TP0884	-	hypothetical protein
879	 56.24	0	962505..962945	-	146	15639870	-	TP0885	-	deoxyuridine 5'-triphosphate nucleotidohydrolase (dut)
880	 53.53	0	962942..965050	-	702	15639871	-	TP0886	-	polynucleotide phosphorylase/polyadenylase
881	 53.33	0	965198..965467	-	89	15639872	rpsO	TP0887	-	30S ribosomal protein S15
882	 60.51	+1	965483..966310	-	275	15639873	-	TP0888	-	riboflavin kinase/FMN adenylyltransferase (ribF)
883	 56.40	0	966314..967414	-	366	15639874	-	TP0889	-	tRNA pseudouridine 55 synthase (truB)
884	 49.08	0	967392..967772	-	126	15639875	-	TP0890	-	ribosome-binding factor A (rbfA)
885	 52.87	0	967769..970297	-	842	15639876	infB	TP0891	-	translation initiation factor IF-2
886	 49.66	0	970473..971930	-	485	15639877	nusA	TP0892	-	transcription elongation factor NusA
887	 58.17	+1	971980..972450	-	156	15639878	-	TP0893	-	hypothetical protein
888	 51.22	0	972625..973647	-	340	15639879	-	TP0894	-	hypothetical protein
889	 53.85	0	973654..974160	-	168	15639880	-	TP0895	-	hypothetical protein
890	 49.67	0	974182..974334	-	50	15639881	-	TP0896	-	hypothetical protein
891	 51.32	0	974316..975833	-	505	15639882	-	TP0897	-	TPR protein K (tprK)
892	 57.98	+1	975830..979549	-	1239	15639883	-	TP0898	-	ATP-dependent nuclease, subunit A, putative
893	 53.74	0	979546..980133	-	195	15639884	-	TP0899	-	hypothetical protein
894	 55.81	0	980112..982505	-	797	15639885	-	TP0900	-	hypothetical protein
895	 51.31	0	982544..983956	-	470	15639886	-	TP0901	-	hypothetical protein
896	 55.78	0	983997..984878	-	293	15639887	-	TP0902	-	carboxylesterase (est)
897	 57.72	+1	984880..986478	+	532	15639888	-	TP0903	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase (murD)
898	 50.00	0	986471..986722	+	83	15639889	-	TP0904	-	hypothetical protein
899	 59.95	+1	986685..987056	+	123	15639890	-	TP0905	-	ribosomal protein S16 (rpsP)
900	 55.56	0	987065..987307	+	80	15639891	-	TP0906	-	hypothetical protein
901	 57.14	0	987370..987894	+	174	15639892	-	TP0907	-	hypothetical protein
902	 55.64	0	987891..988643	+	250	15639893	trmD	TP0908	-	tRNA (guanine-N(1)-)-methyltransferase
903	 52.15	0	988615..988986	+	123	15639894	rplS	TP0909	-	50S ribosomal protein L19
904	 57.11	0	988983..989903	+	306	15639895	-	TP0910	-	hypothetical protein
905	 48.41	-1	989925..990176	+	83	15639896	-	TP0911	-	hypothetical protein
906	 47.54	-1	990189..991511	+	440	15639897	-	TP0912	-	hypothetical protein
907	 48.82	0	991495..991875	+	126	15639898	-	TP0913	-	hypothetical protein
908	 47.80	-1	992047..992433	+	128	15639899	-	TP0914	-	hypothetical protein
909	 49.81	0	992507..993841	+	444	15639900	-	TP0915	-	hypothetical protein
910	 55.81	0	993898..994026	+	42	15639901	-	TP0916	-	hypothetical protein
911	 48.37	-1	994010..995359	+	449	15639902	-	TP0917	-	Mg2+ transport protein (mgtE)
912	 61.50	+1	995374..996147	+	257	15639903	-	TP0918	-	hypothetical protein
913	 49.06	0	996173..996490	-	105	15639904	-	TP0919	-	thioredoxin (trx)
914	 54.57	0	996713..999142	+	809	15639905	-	TP0920	-	hypothetical protein
915	 49.40	0	999250..1000587	+	445	15639906	-	TP0921	-	NADH oxidase
916	 65.21	+2	1000721..1001614	-	297	15639907	-	TP0922	-	hypothetical protein
917	 56.57	0	1001653..1002672	-	339	15639908	-	TP0923	-	hypothetical protein
918	 55.54	0	1002996..1005332	+	778	15639909	-	TP0924	-	tex protein (tex)
919	 53.06	0	1005699..1006139	+	146	15639910	-	TP0925	-	flavodoxin
920	 56.27	0	1006290..1007828	-	512	15639911	-	TP0926	-	signal peptidase I, putative
921	 52.79	0	1007920..1008510	+	196	15639912	-	TP0927	-	hypothetical protein
922	 59.38	+1	1008605..1009345	+	246	15639913	-	TP0928	-	hypothetical protein
923	 55.25	0	1009357..1010127	+	256	15639914	-	TP0929	-	hypothetical protein
924	 50.64	0	1010151..1011872	+	573	15639915	-	TP0930	-	hypothetical protein
925	 46.19	-1	1011956..1013386	-	476	15639916	-	TP0931	-	hypothetical protein
926	 53.76	0	1013396..1013488	-	30	15639917	-	TP0932	-	hypothetical protein
927	 51.32	0	1013498..1015120	-	540	15639918	-	TP0933	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase (murE)
928	 49.18	0	1015256..1016479	+	407	15639919	-	TP0934	-	glutamate transporter, putative
929	 50.37	0	1016472..1017410	-	312	15639920	-	TP0935	-	N-acetylphosphinothricin-tripetide-deacetylase, putative
930	 52.23	0	1017604..1018677	-	357	15639921	-	TP0936	-	hemolysin, putative
931	 53.62	0	1018849..1019484	-	211	15639922	-	TP0937	-	hypothetical protein
932	 55.11	0	1019481..1020311	-	276	15639923	-	TP0938	-	hypothetical protein
933	 51.48	0	1020376..1023930	-	1184	15639924	-	TP0939	-	pyruvate oxidoreductase
934	 54.61	0	1023946..1024086	-	46	15639925	-	TP0940	-	hypothetical protein
935	 50.29	0	1024125..1024643	-	172	15639926	-	TP0941	-	hypothetical protein
936	 56.34	0	1024720..1025184	-	154	15639927	-	TP0942	-	hypothetical protein
937	 51.23	0	1025190..1025636	-	148	15639928	-	TP0943	-	flagellar protein (fliS)
938	 53.20	0	1025685..1026857	-	390	15639929	-	TP0944	-	hypothetical protein
939	 54.34	0	1027028..1027684	-	218	15639930	-	TP0945	-	ribulose-phosphate 3-epimerase (cfxE)
940	 57.25	+1	1027836..1028504	+	222	15639931	-	TP0946	-	glucose-inhibited division protein B (gidB)
941	 52.47	0	1028549..1029196	-	215	15639932	-	TP0947	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-binding (cyp)
942	 51.44	0	1029193..1029888	-	231	15639933	-	TP0948	-	spoIIIJ-associated protein (jag)
943	 51.30	0	1029904..1031901	-	665	15639934	-	TP0949	-	putative inner membrane protein translocase component YidC
944	 49.82	0	1031772..1032056	-	94	15640031	-	TP0949a	-	hypothetical protein
945	 55.77	0	1032053..1032459	-	135	15640027	-	TP0950a	-	RNAse P, protein component
946	 59.62	+1	1032465..1032620	-	51	15639935	rpmH	TP0951	-	50S ribosomal protein L34
947	 49.04	0	1032740..1033777	-	345	15639936	-	TP0952	-	lipase, putative
948	 56.09	0	1033859..1035049	-	396	15639937	-	TP0953	-	pheromone shutdown protein (traB)
949	 53.38	0	1035136..1036572	-	478	15639938	-	TP0954	-	hypothetical protein
950	 53.85	0	1036644..1036916	-	90	15639939	-	TP0955	-	hypothetical protein
951	 56.07	0	1037012..1037983	+	323	15639940	-	TP0956	-	hypothetical protein
952	 50.15	0	1038074..1039102	+	342	15639941	-	TP0957	-	Tp33 protein
953	 52.61	0	1039134..1041032	+	632	15639942	-	TP0958	-	dicarboxylate transporter (dctM)
954	 54.36	0	1041101..1041490	-	129	15639943	-	TP0959	-	hypothetical protein
955	 52.96	0	1041502..1042296	-	264	15639944	flgG	TP0960	-	flagellar basal body rod protein FlgG
956	 47.18	-1	1042372..1043187	-	271	15639945	-	TP0961	-	flagellar basal-body rod protein (flgG-2)
957	 50.77	0	1043273..1044505	-	410	15639946	-	TP0962	-	hypothetical protein
958	 52.36	0	1044616..1045845	-	409	15639947	-	TP0963	-	hypothetical protein
959	 54.80	0	1045835..1046542	-	235	15639948	-	TP0964	-	ABC transporter, ATP-binding protein
960	 53.17	0	1046542..1047504	-	320	15639949	-	TP0965	-	membrane fusion protein, putative
961	 58.84	+1	1047529..1049163	-	544	15639950	-	TP0966	-	hypothetical protein
962	 60.23	+1	1049210..1050763	-	517	15639951	-	TP0967	-	hypothetical protein
963	 59.95	+1	1050760..1052382	-	540	15639952	-	TP0968	-	hypothetical protein
964	 57.41	+1	1052379..1053998	-	539	15639953	-	TP0969	-	hypothetical protein
965	 55.56	0	1053995..1054111	-	38	15639954	-	TP0970	-	hypothetical protein
966	 55.12	0	1054133..1054747	-	204	15639955	-	TP0971	-	membrane antigen, pathogen-specific (tpd)
967	 59.09	+1	1054903..1056249	-	448	15639956	-	TP0972	-	hypothetical protein
968	 57.76	+1	1056337..1057998	+	553	15639957	pheS	TP0973	-	phenylalanyl-tRNA synthetase subunit alpha
969	 56.03	0	1058050..1058331	-	93	15639958	-	TP0974	-	hypothetical protein
970	 59.39	+1	1058383..1059207	-	274	15639959	-	TP0975	-	hypothetical protein
971	 58.62	+1	1059255..1060634	+	459	15639960	-	TP0976	-	hypothetical protein
972	 56.91	0	1060621..1061481	+	286	15639961	-	TP0977	-	hypothetical protein
973	 50.00	0	1061478..1062071	+	197	15639962	lspA	TP0978	-	signal peptidase II
974	 51.68	0	1062241..1063014	+	257	15639963	-	TP0979	-	hypothetical protein
52.88	MEAN

4.31	STD DEV
