IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

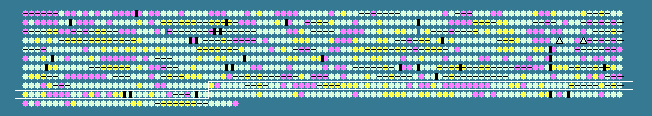

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.88   STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
832	 57.90	+1	906186..907964	+	592	15639823	-	TP0837	-	threonyl-tRNA synthetase (thrS)
833	 46.55	-1	908013..909677	-	554	15639824	-	TP0838	-	ABC transporter, ATP-binding protein
834	 50.50	0	909752..910759	-	335	15639825	-	TP0839	-	hypothetical protein
835	 49.78	0	910864..913113	+	749	15639826	-	TP0840	-	hypothetical protein
836	 52.81	0	913175..914632	-	485	15639827	-	TP0841	-	periplasmic serine protease DO (htrA-2)
837	 55.08	0	914944..915711	-	255	15639828	-	TP0842	-	methionine aminopeptidase (map)
838	 54.67	0	915835..916659	-	274	15639829	-	TP0843	-	heat shock protein, putative
839	 54.89	0	916752..917804	+	350	15639830	-	TP0844	-	glyceraldehyde 3-phosphate dehydrogenase (gap)
840	 61.93	+2	917859..918449	-	196	15639831	-	TP0845	-	P23 protein, putative
841	 53.82	0	918430..918756	-	108	15639832	-	TP0846	-	hypothetical protein
842	 50.30	0	918756..919091	-	111	15639833	-	TP0847	-	hypothetical protein
843	 52.30	0	919085..919453	-	122	15639834	rplT	TP0848	-	50S ribosomal protein L20
844	 45.27	-1	919486..919686	-	66	15639835	rpmI	TP0849	-	50S ribosomal protein L35
845	 51.48	0	919739..920278	-	179	15639836	infC	TP0850	-	translation initiation factor IF-3
846	 47.03	-1	920441..922615	+	724	15639837	-	TP0851	-	hypothetical protein
847	 48.45	-1	922644..923642	-	332	15639838	-	TP0852	-	prolipoprotein diacylglyceryl transferase
848	 46.97	-1	923793..924929	-	378	15639839	-	TP0853	-	ATP-binding protein (ylxH-2)
849	 48.52	-1	924984..929585	-	1533	15639840	-	TP0854	-	hypothetical protein
850	 56.26	0	929582..932965	-	1127	15639841	-	TP0855	-	hypothetical protein
851	 58.49	+1	933121..934098	+	325	15639842	-	TP0856	-	hypothetical protein
852	 64.49	+2	934101..934421	-	106	15639843	-	TP0857	-	hypothetical protein
853	 57.95	+1	934406..935632	+	408	15639844	-	TP0858	-	hypothetical protein
854	 64.52	+2	935714..936412	+	232	15639845	-	TP0859	-	hypothetical protein
855	 59.20	+1	936477..937199	+	240	15639846	-	TP0860	-	hypothetical protein
856	 56.87	0	937274..939181	-	635	15639847	-	TP0861	-	glucosamine-fructose-6-phosphate aminotransferase (glmS)
857	 54.09	0	939418..940212	-	264	15639848	-	TP0862	-	peptidyl-prolyl cis-trans isomerase, FKBP-type, 22 kDa (fklB)
858	 57.94	+1	940347..941630	+	427	15639849	-	TP0863	-	nitrogen fixation protein (nifS-2)
859	 55.58	0	941689..943329	-	546	15639850	-	TP0864	-	hypothetical protein
860	 54.51	0	943363..944802	-	479	15639851	-	TP0865	-	hypothetical protein
861	 56.99	0	946794..946979	-	61	15639852	-	TP0867	-	hypothetical protein
862	 54.47	0	947148..948008	+	286	15639853	-	TP0868	-	flagellar filament 34.5 kDa core protein (flaB1)
863	 55.27	0	948023..948259	+	78	15639854	-	TP0869	-	hypothetical protein
864	 53.50	0	948287..949144	+	285	15639855	-	TP0870	-	flagellar filament 31 kDa core protein (flaB3)
865	 46.30	-1	949205..949366	-	53	15639856	-	TP0871	-	hypothetical protein
866	 53.94	0	949442..951610	+	722	15639857	fliD	TP0872	-	flagellar hook-associated protein FliD
867	 46.60	-1	951622..952224	+	200	15639858	-	TP0873	-	hypothetical protein
868	 46.38	-1	952221..952496	+	91	15639859	-	TP0874	-	hypothetical protein
869	 56.86	0	952536..952943	+	135	15639860	-	TP0875	-	hypothetical protein
870	 52.40	0	952990..953655	+	221	15639861	-	TP0876	-	hypothetical protein
871	 43.35	-2	953660..954757	+	365	15639862	-	TP0877	-	hypothetical protein
872	 44.06	-2	954770..955720	-	316	15639863	-	TP0878	-	hypothetical protein
873	 43.45	-2	955726..957207	-	493	15639864	-	TP0879	-	hypothetical protein
874	 42.15	-2	957204..957929	-	241	15639865	-	TP0880	-	membrane spanning protein, putative
875	 46.84	-1	957919..958725	-	268	15639866	-	TP0881	-	ABC transporter, ATP-binding protein (natA)
876	 42.91	-2	958804..960306	-	500	15639867	-	TP0882	-	hypothetical protein
877	 37.89	-2	960272..961369	-	365	15639868	-	TP0883	-	hypothetical protein
878	 45.09	-1	961387..962475	-	362	15639869	-	TP0884	-	hypothetical protein
879	 56.24	0	962505..962945	-	146	15639870	-	TP0885	-	deoxyuridine 5'-triphosphate nucleotidohydrolase (dut)
880	 53.53	0	962942..965050	-	702	15639871	-	TP0886	-	polynucleotide phosphorylase/polyadenylase
881	 53.33	0	965198..965467	-	89	15639872	rpsO	TP0887	-	30S ribosomal protein S15
882	 60.51	+1	965483..966310	-	275	15639873	-	TP0888	-	riboflavin kinase/FMN adenylyltransferase (ribF)
883	 56.40	0	966314..967414	-	366	15639874	-	TP0889	-	tRNA pseudouridine 55 synthase (truB)
884	 49.08	0	967392..967772	-	126	15639875	-	TP0890	-	ribosome-binding factor A (rbfA)
885	 52.87	0	967769..970297	-	842	15639876	infB	TP0891	-	translation initiation factor IF-2
886	 49.66	0	970473..971930	-	485	15639877	nusA	TP0892	-	transcription elongation factor NusA
887	 58.17	+1	971980..972450	-	156	15639878	-	TP0893	-	hypothetical protein
888	 51.22	0	972625..973647	-	340	15639879	-	TP0894	-	hypothetical protein
889	 53.85	0	973654..974160	-	168	15639880	-	TP0895	-	hypothetical protein
890	 49.67	0	974182..974334	-	50	15639881	-	TP0896	-	hypothetical protein
891	 51.32	0	974316..975833	-	505	15639882	-	TP0897	-	TPR protein K (tprK)
892	 57.98	+1	975830..979549	-	1239	15639883	-	TP0898	-	ATP-dependent nuclease, subunit A, putative
893	 53.74	0	979546..980133	-	195	15639884	-	TP0899	-	hypothetical protein
894	 55.81	0	980112..982505	-	797	15639885	-	TP0900	-	hypothetical protein
895	 51.31	0	982544..983956	-	470	15639886	-	TP0901	-	hypothetical protein
896	 55.78	0	983997..984878	-	293	15639887	-	TP0902	-	carboxylesterase (est)
897	 57.72	+1	984880..986478	+	532	15639888	-	TP0903	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase (murD)
898	 50.00	0	986471..986722	+	83	15639889	-	TP0904	-	hypothetical protein
899	 59.95	+1	986685..987056	+	123	15639890	-	TP0905	-	ribosomal protein S16 (rpsP)
900	 55.56	0	987065..987307	+	80	15639891	-	TP0906	-	hypothetical protein
901	 57.14	0	987370..987894	+	174	15639892	-	TP0907	-	hypothetical protein
902	 55.64	0	987891..988643	+	250	15639893	trmD	TP0908	-	tRNA (guanine-N(1)-)-methyltransferase
903	 52.15	0	988615..988986	+	123	15639894	rplS	TP0909	-	50S ribosomal protein L19
904	 57.11	0	988983..989903	+	306	15639895	-	TP0910	-	hypothetical protein
905	 48.41	-1	989925..990176	+	83	15639896	-	TP0911	-	hypothetical protein
906	 47.54	-1	990189..991511	+	440	15639897	-	TP0912	-	hypothetical protein
907	 48.82	0	991495..991875	+	126	15639898	-	TP0913	-	hypothetical protein
908	 47.80	-1	992047..992433	+	128	15639899	-	TP0914	-	hypothetical protein
909	 49.81	0	992507..993841	+	444	15639900	-	TP0915	-	hypothetical protein
910	 55.81	0	993898..994026	+	42	15639901	-	TP0916	-	hypothetical protein
911	 48.37	-1	994010..995359	+	449	15639902	-	TP0917	-	Mg2+ transport protein (mgtE)
912	 61.50	+1	995374..996147	+	257	15639903	-	TP0918	-	hypothetical protein
913	 49.06	0	996173..996490	-	105	15639904	-	TP0919	-	thioredoxin (trx)
914	 54.57	0	996713..999142	+	809	15639905	-	TP0920	-	hypothetical protein
915	 49.40	0	999250..1000587	+	445	15639906	-	TP0921	-	NADH oxidase
916	 65.21	+2	1000721..1001614	-	297	15639907	-	TP0922	-	hypothetical protein
917	 56.57	0	1001653..1002672	-	339	15639908	-	TP0923	-	hypothetical protein
918	 55.54	0	1002996..1005332	+	778	15639909	-	TP0924	-	tex protein (tex)
919	 53.06	0	1005699..1006139	+	146	15639910	-	TP0925	-	flavodoxin
920	 56.27	0	1006290..1007828	-	512	15639911	-	TP0926	-	signal peptidase I, putative
921	 52.79	0	1007920..1008510	+	196	15639912	-	TP0927	-	hypothetical protein
922	 59.38	+1	1008605..1009345	+	246	15639913	-	TP0928	-	hypothetical protein
923	 55.25	0	1009357..1010127	+	256	15639914	-	TP0929	-	hypothetical protein
924	 50.64	0	1010151..1011872	+	573	15639915	-	TP0930	-	hypothetical protein
925	 46.19	-1	1011956..1013386	-	476	15639916	-	TP0931	-	hypothetical protein
926	 53.76	0	1013396..1013488	-	30	15639917	-	TP0932	-	hypothetical protein
927	 51.32	0	1013498..1015120	-	540	15639918	-	TP0933	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase (murE)
928	 49.18	0	1015256..1016479	+	407	15639919	-	TP0934	-	glutamate transporter, putative
929	 50.37	0	1016472..1017410	-	312	15639920	-	TP0935	-	N-acetylphosphinothricin-tripetide-deacetylase, putative
930	 52.23	0	1017604..1018677	-	357	15639921	-	TP0936	-	hemolysin, putative
931	 53.62	0	1018849..1019484	-	211	15639922	-	TP0937	-	hypothetical protein
52.88	MEAN

4.31	STD DEV
