IslandPathversion 1.0

IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

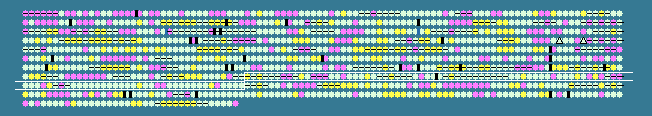

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
738	 57.74	+1	806765..807895	-	376	15639729	obgE	TP0742	-	GTPase ObgE
739	 54.17	0	808013..808276	-	87	15639730	rpmA	TP0743	-	50S ribosomal protein L27
740	 56.88	0	808307..808633	-	108	15639731	-	TP0744	-	hypothetical protein
741	 51.89	0	808646..808963	-	105	15639732	rplU	TP0745	-	50S ribosomal protein L21
742	 51.03	0	809070..811775	-	901	15639733	-	TP0746	-	pyruvate phosphate dikinase
743	 50.14	0	811785..812819	-	344	15639734	-	TP0747	-	hypothetical protein
744	 48.31	-1	812908..814944	-	678	15639735	-	TP0748	-	cytoplasmic filament protein A (cfpA)
745	 37.84	-2	814922..815143	-	73	15639736	-	TP0749	-	hypothetical protein
746	 52.23	0	815113..815784	+	223	15639737	-	TP0750	-	hypothetical protein
747	 56.58	0	815821..816534	+	237	15639738	-	TP0751	-	hypothetical protein
748	 54.59	0	816672..817814	-	380	15639739	-	TP0752	-	hypothetical protein
749	 47.72	-1	817895..818179	-	94	15639740	-	TP0753	-	hypothetical protein
750	 48.80	0	818176..819546	-	456	15639741	-	TP0754	-	hypothetical protein
751	 48.43	-1	819588..820130	-	180	15639742	-	TP0755	-	PTS system, nitrogen regulatory IIA component (ptsN-2)
752	 55.31	0	820330..821289	-	319	15639743	-	TP0756	-	methionyl-tRNA formyltransferase (fmt)
753	 55.42	0	821293..821781	-	162	15639744	-	TP0757	-	polypeptide deformylase (def)
754	 48.57	-1	821822..822031	-	69	15639745	rpsU	TP0758	-	30S ribosomal protein S21
755	 54.17	0	822150..822269	+	39	15639746	-	TP0759	-	hypothetical protein
756	 54.26	0	822226..824184	+	652	15639747	-	TP0760	-	penicillin-binding protein (pbp-3)
757	 53.81	0	824165..825043	+	292	15639748	-	TP0761	-	hypothetical protein
758	 57.70	+1	825072..826253	+	393	15639749	-	TP0762	-	hypothetical protein
759	 53.93	0	826315..827256	-	313	15639750	-	TP0763	-	hypothetical protein
760	 53.74	0	827215..828390	+	391	15639751	-	TP0764	-	hypothetical protein
761	 52.95	0	828372..830201	-	609	15639752	-	TP0765	-	cell division protein (ftsH)
762	 57.60	+1	830604..831485	+	293	15639753	-	TP0766	-	hypothetical protein
763	 52.97	0	831696..833783	+	695	15639754	-	TP0767	-	elongation factor G
764	 56.07	0	833922..834959	+	345	15639755	-	TP0768	-	membrane protein (tmpA)
765	 55.83	0	834956..835933	+	325	15639756	-	TP0769	-	outer membrane protein (tmpB)
766	 53.49	0	835978..837927	+	649	15639757	-	TP0770	-	ATP-dependent RNA helicase
767	 46.30	-1	837948..839729	-	593	15639758	-	TP0771	-	hypothetical protein
768	 50.67	0	839733..840557	+	274	15639759	-	TP0772	-	hypothetical protein
769	 55.72	0	840597..841793	-	398	15639760	-	TP0773	-	periplasmic serine protease DO (htrA-1)
770	 50.67	0	842138..842812	+	224	15639761	-	TP0774	-	Mg2+ transport protein (mgtC)
771	 55.19	0	842892..843527	+	211	15639762	-	TP0775	-	endonuclease III (nth)
772	 57.27	+1	843604..844380	-	258	15639763	-	TP0776	-	hypothetical protein
773	 49.78	0	844433..844657	-	74	15639764	-	TP0777	-	hypothetical protein
774	 53.95	0	844726..845637	-	303	15639765	-	TP0778	-	mazG protein (mazG)
775	 50.39	0	845634..846278	-	214	15639766	-	TP0779	-	dedA protein (dedA)
776	 55.39	0	846325..848364	-	679	15639767	nadE	TP0780	-	NAD synthetase
777	 54.33	0	848401..848862	-	153	15639768	-	TP0781	-	hypothetical protein
778	 51.58	0	848908..849351	-	147	15639769	-	TP0782	-	hypothetical protein
779	 51.76	0	849380..850513	-	377	15639770	-	TP0783	-	hypothetical protein
780	 54.83	0	850679..851278	+	199	15639771	-	TP0784	-	hypothetical protein
781	 49.78	0	851275..851961	+	228	15639772	-	TP0785	-	hypothetical protein
782	 52.24	0	852093..852806	+	237	15639773	-	TP0786	-	ABC transporter, ATP-binding protein, putative
783	 51.43	0	852853..853272	-	139	15639774	-	TP0787	-	hypothetical protein
784	 58.14	+1	853354..854244	+	296	15639775	-	TP0788	-	hypothetical protein
785	 50.97	0	854257..855033	-	258	15639776	-	TP0789	-	hypothetical protein
786	 50.28	0	855052..857718	-	888	15639777	-	TP0790	-	antibiotic transport protein, putative
787	 54.07	0	857861..858106	-	81	15639778	-	TP0791	-	hypothetical protein
788	 52.96	0	858092..858952	+	286	15639779	-	TP0792	-	flagellar filament 33 kDa core protein (flaB2)
789	 49.38	0	859031..860650	+	539	15639780	-	TP0793	-	hypothetical protein
790	 53.23	0	860687..861877	-	396	15639781	-	TP0794	-	S-adenosylmethionine synthetase
791	 55.35	0	861931..862089	+	52	15639782	-	TP0795	-	hypothetical protein
792	 56.11	0	862078..863166	-	362	15639783	-	TP0796	-	hypothetical protein
793	 56.69	0	863226..864017	-	263	15639784	-	TP0797	-	1-pyrroline-5-carboxylate reductase (proC)
794	 53.86	0	864068..866503	-	811	15639785	metG	TP0798	-	methionyl-tRNA synthetase
795	 46.41	-1	866536..866688	+	50	15639786	-	TP0799	-	hypothetical protein
796	 57.84	+1	866831..868303	+	490	15639787	-	TP0800	-	serine-type D-Ala-D-Ala carboxypeptidase (dacC)
797	 48.85	0	868364..870793	-	809	15639788	-	TP0801	-	ATP-dependent Clp protease subunit A (clpA)
798	 55.15	0	870839..871168	+	109	15639789	-	TP0802	-	hypothetical protein
799	 49.38	0	871182..872390	+	402	15639790	-	TP0803	-	hypothetical protein
800	 47.85	-1	872468..873631	+	387	15639791	-	TP0804	-	sugar ABC transporter, ATP-binding protein (ugpC)
801	 55.53	0	873482..875761	-	759	15639792	-	TP0805	-	exoribonuclease II (rnb)
802	 55.64	0	875758..877254	-	498	15639793	-	TP0806	-	femA protein, putative
803	 55.03	0	877383..877571	+	62	15639794	rpmF	TP0807	-	50S ribosomal protein L32
804	 48.10	-1	877632..877868	+	78	15639795	-	TP0808	-	acyl carrier protein (acpP)
805	 56.86	0	877865..878629	+	254	15639796	-	TP0809	-	ribonuclease III (rnc)
806	 55.04	0	878660..879571	+	303	15639797	-	TP0810	-	DNA adenine methyltransferase (dam)
807	 44.44	-1	879642..879767	-	41	15639798	-	TP0811	-	hypothetical protein
808	 55.01	0	881178..882464	-	428	15639799	-	TP0813	-	hypothetical protein
809	 53.14	0	882687..883610	+	307	15639800	-	TP0814	-	thioredoxin reductase (trxB)
810	 52.13	0	883732..884715	+	327	15639801	-	TP0815	-	hypothetical protein
811	 52.10	0	884787..885452	-	221	15639802	-	TP0816	-	hypothetical protein
812	 52.35	0	885590..886888	-	432	15639803	-	TP0817	-	enolase (eno)
813	 52.29	0	886885..887037	-	50	15639804	-	TP0818	-	hypothetical protein
814	 51.23	0	887064..887996	-	310	15639805	-	TP0819	-	ribonuclease Z
815	 55.77	0	888024..888794	-	256	15639806	-	TP0820	-	hypothetical protein
816	 53.90	0	888890..889696	-	268	15639807	-	TP0821	-	lipoprotein (tpn32)
817	 55.30	0	889777..890682	-	301	15639808	-	TP0822	-	hypothetical protein
818	 55.30	0	890770..891156	-	128	15639809	-	TP0823	-	desulfoferrodoxin (rbo)
819	 56.05	0	891553..893445	+	630	15639810	-	TP0824	-	1-deoxy-D-xylulose-5-phosphate synthase
820	 62.90	+2	893442..893627	+	61	15639811	-	TP0825	-	hypothetical protein
821	 51.09	0	893614..894435	+	273	15639812	-	TP0826	-	hypothetical protein
822	 53.44	0	894098..895375	+	425	15639813	-	TP0827	-	hypothetical protein
823	 49.21	0	895372..895749	+	125	15639814	-	TP0828	-	holo-acyl-carrier protein synthase (acpS)
824	 45.76	-1	895746..896630	+	294	15639815	-	TP0829	-	hypothetical protein
825	 50.89	0	896627..897469	+	280	15639816	truA	TP0830	-	tRNA pseudouridine synthase A
826	 50.17	0	897479..899248	-	589	15639817	argS	TP0831	-	arginyl-tRNA synthetase
827	 55.88	0	899271..900086	-	271	15639818	-	TP0832	-	hypothetical protein
828	 56.02	0	900153..900875	+	240	15639819	-	TP0833	-	hypothetical protein
829	 51.88	0	900932..902182	-	416	15639820	-	TP0834	-	tyrosyl-tRNA synthetase (tyrS)
830	 53.37	0	902269..905073	-	934	15639821	-	TP0835	-	ankyrin, putative
831	 53.09	0	905214..906038	-	274	15639822	-	TP0836	-	hypothetical protein
832	 57.90	+1	906186..907964	+	592	15639823	-	TP0837	-	threonyl-tRNA synthetase (thrS)
833	 46.55	-1	908013..909677	-	554	15639824	-	TP0838	-	ABC transporter, ATP-binding protein
834	 50.50	0	909752..910759	-	335	15639825	-	TP0839	-	hypothetical protein
835	 49.78	0	910864..913113	+	749	15639826	-	TP0840	-	hypothetical protein
836	 52.81	0	913175..914632	-	485	15639827	-	TP0841	-	periplasmic serine protease DO (htrA-2)
837	 55.08	0	914944..915711	-	255	15639828	-	TP0842	-	methionine aminopeptidase (map)
52.88	MEAN

4.31	STD DEV
