IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

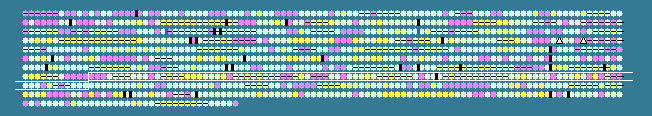

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
712	 43.73	-2	784772..785569	-	265	15639703	-	TP0716	-	flagellar biosynthetic protein (fliR)
713	 47.72	-1	785582..785866	-	94	15639704	-	TP0717	-	flagellar biosynthetic protein (fliQ)
714	 48.53	-1	785885..786700	-	271	15639705	fliP	TP0718	-	flagellar biosynthesis protein FliP
715	 55.77	0	786697..787485	-	262	15639706	-	TP0719	-	hypothetical protein
716	 52.53	0	787421..788467	-	348	15639707	-	TP0720	-	flagellar motor switch protein (fliY)
717	 51.30	0	788460..789494	-	344	15639708	fliM	TP0721	-	flagellar motor switch protein FliM
718	 50.46	0	789516..790064	-	182	15639709	fliL	TP0722	-	flagellar basal body-associated protein FliL
719	 55.56	0	790043..790177	-	44	15639710	-	TP0723	-	hypothetical protein
720	 51.88	0	790174..790890	-	238	15639711	motB	TP0724	-	flagellar motor protein MotB
721	 51.28	0	790896..791675	-	259	15639712	-	TP0725	-	flagellar motor rotation protein (motA)
722	 45.45	-1	791691..791888	-	65	15639713	-	TP0726	-	flagellar protein (flbD)
723	 50.65	0	791946..793337	-	463	15639714	flgE	TP0727	-	flagellar hook protein FlgE
724	 53.90	0	793408..793869	-	153	15639715	flgD	TP0728	-	flagellar basal body rod modification protein
725	 62.65	+2	793945..795588	-	547	15639716	-	TP0729	-	hypothetical protein
726	 55.37	0	795557..796654	+	365	15639717	-	TP0730	-	hypothetical protein
727	 58.93	+1	796674..797384	+	236	15639718	-	TP0731	-	hypothetical protein
728	 62.03	+2	797349..798296	-	315	15639719	-	TP0732	-	methylenetetrahydrofolate dehydrogenase (folD)
729	 59.24	+1	798392..799051	+	219	15639720	-	TP0733	-	hypothetical protein
730	 57.41	+1	799084..799785	-	233	15639721	-	TP0734	-	purine nucleoside phosphorylase (deoD)
731	 55.11	0	799867..801423	-	518	15639722	-	TP0735	-	putative oxidoreductase
732	 51.72	0	801426..802268	-	280	15639723	-	TP0736	-	ferredoxin--NADP(+) reductase subunit alpha
733	 52.17	0	802502..803812	+	436	15639724	-	TP0737	-	sugar ABC transporter, periplasmic binding protein (msmE)
734	 58.93	+1	803858..804193	-	111	15639725	-	TP0738	-	hypothetical protein
735	 45.86	-1	804190..805386	-	398	15639726	-	TP0739	-	hypothetical protein
736	 55.38	0	805460..806026	-	188	15639727	-	TP0740	-	hypothetical protein
737	 55.28	0	806154..806768	-	204	15639728	-	TP0741	-	hypothetical protein
738	 57.74	+1	806765..807895	-	376	15639729	obgE	TP0742	-	GTPase ObgE
739	 54.17	0	808013..808276	-	87	15639730	rpmA	TP0743	-	50S ribosomal protein L27
740	 56.88	0	808307..808633	-	108	15639731	-	TP0744	-	hypothetical protein
741	 51.89	0	808646..808963	-	105	15639732	rplU	TP0745	-	50S ribosomal protein L21
742	 51.03	0	809070..811775	-	901	15639733	-	TP0746	-	pyruvate phosphate dikinase
743	 50.14	0	811785..812819	-	344	15639734	-	TP0747	-	hypothetical protein
744	 48.31	-1	812908..814944	-	678	15639735	-	TP0748	-	cytoplasmic filament protein A (cfpA)
745	 37.84	-2	814922..815143	-	73	15639736	-	TP0749	-	hypothetical protein
746	 52.23	0	815113..815784	+	223	15639737	-	TP0750	-	hypothetical protein
747	 56.58	0	815821..816534	+	237	15639738	-	TP0751	-	hypothetical protein
748	 54.59	0	816672..817814	-	380	15639739	-	TP0752	-	hypothetical protein
749	 47.72	-1	817895..818179	-	94	15639740	-	TP0753	-	hypothetical protein
750	 48.80	0	818176..819546	-	456	15639741	-	TP0754	-	hypothetical protein
751	 48.43	-1	819588..820130	-	180	15639742	-	TP0755	-	PTS system, nitrogen regulatory IIA component (ptsN-2)
752	 55.31	0	820330..821289	-	319	15639743	-	TP0756	-	methionyl-tRNA formyltransferase (fmt)
753	 55.42	0	821293..821781	-	162	15639744	-	TP0757	-	polypeptide deformylase (def)
754	 48.57	-1	821822..822031	-	69	15639745	rpsU	TP0758	-	30S ribosomal protein S21
755	 54.17	0	822150..822269	+	39	15639746	-	TP0759	-	hypothetical protein
756	 54.26	0	822226..824184	+	652	15639747	-	TP0760	-	penicillin-binding protein (pbp-3)
757	 53.81	0	824165..825043	+	292	15639748	-	TP0761	-	hypothetical protein
758	 57.70	+1	825072..826253	+	393	15639749	-	TP0762	-	hypothetical protein
759	 53.93	0	826315..827256	-	313	15639750	-	TP0763	-	hypothetical protein
760	 53.74	0	827215..828390	+	391	15639751	-	TP0764	-	hypothetical protein
761	 52.95	0	828372..830201	-	609	15639752	-	TP0765	-	cell division protein (ftsH)
762	 57.60	+1	830604..831485	+	293	15639753	-	TP0766	-	hypothetical protein
763	 52.97	0	831696..833783	+	695	15639754	-	TP0767	-	elongation factor G
764	 56.07	0	833922..834959	+	345	15639755	-	TP0768	-	membrane protein (tmpA)
765	 55.83	0	834956..835933	+	325	15639756	-	TP0769	-	outer membrane protein (tmpB)
766	 53.49	0	835978..837927	+	649	15639757	-	TP0770	-	ATP-dependent RNA helicase
767	 46.30	-1	837948..839729	-	593	15639758	-	TP0771	-	hypothetical protein
768	 50.67	0	839733..840557	+	274	15639759	-	TP0772	-	hypothetical protein
769	 55.72	0	840597..841793	-	398	15639760	-	TP0773	-	periplasmic serine protease DO (htrA-1)
770	 50.67	0	842138..842812	+	224	15639761	-	TP0774	-	Mg2+ transport protein (mgtC)
771	 55.19	0	842892..843527	+	211	15639762	-	TP0775	-	endonuclease III (nth)
772	 57.27	+1	843604..844380	-	258	15639763	-	TP0776	-	hypothetical protein
773	 49.78	0	844433..844657	-	74	15639764	-	TP0777	-	hypothetical protein
774	 53.95	0	844726..845637	-	303	15639765	-	TP0778	-	mazG protein (mazG)
775	 50.39	0	845634..846278	-	214	15639766	-	TP0779	-	dedA protein (dedA)
776	 55.39	0	846325..848364	-	679	15639767	nadE	TP0780	-	NAD synthetase
777	 54.33	0	848401..848862	-	153	15639768	-	TP0781	-	hypothetical protein
778	 51.58	0	848908..849351	-	147	15639769	-	TP0782	-	hypothetical protein
779	 51.76	0	849380..850513	-	377	15639770	-	TP0783	-	hypothetical protein
780	 54.83	0	850679..851278	+	199	15639771	-	TP0784	-	hypothetical protein
781	 49.78	0	851275..851961	+	228	15639772	-	TP0785	-	hypothetical protein
782	 52.24	0	852093..852806	+	237	15639773	-	TP0786	-	ABC transporter, ATP-binding protein, putative
783	 51.43	0	852853..853272	-	139	15639774	-	TP0787	-	hypothetical protein
784	 58.14	+1	853354..854244	+	296	15639775	-	TP0788	-	hypothetical protein
785	 50.97	0	854257..855033	-	258	15639776	-	TP0789	-	hypothetical protein
786	 50.28	0	855052..857718	-	888	15639777	-	TP0790	-	antibiotic transport protein, putative
787	 54.07	0	857861..858106	-	81	15639778	-	TP0791	-	hypothetical protein
788	 52.96	0	858092..858952	+	286	15639779	-	TP0792	-	flagellar filament 33 kDa core protein (flaB2)
789	 49.38	0	859031..860650	+	539	15639780	-	TP0793	-	hypothetical protein
790	 53.23	0	860687..861877	-	396	15639781	-	TP0794	-	S-adenosylmethionine synthetase
791	 55.35	0	861931..862089	+	52	15639782	-	TP0795	-	hypothetical protein
792	 56.11	0	862078..863166	-	362	15639783	-	TP0796	-	hypothetical protein
793	 56.69	0	863226..864017	-	263	15639784	-	TP0797	-	1-pyrroline-5-carboxylate reductase (proC)
794	 53.86	0	864068..866503	-	811	15639785	metG	TP0798	-	methionyl-tRNA synthetase
795	 46.41	-1	866536..866688	+	50	15639786	-	TP0799	-	hypothetical protein
796	 57.84	+1	866831..868303	+	490	15639787	-	TP0800	-	serine-type D-Ala-D-Ala carboxypeptidase (dacC)
797	 48.85	0	868364..870793	-	809	15639788	-	TP0801	-	ATP-dependent Clp protease subunit A (clpA)
798	 55.15	0	870839..871168	+	109	15639789	-	TP0802	-	hypothetical protein
799	 49.38	0	871182..872390	+	402	15639790	-	TP0803	-	hypothetical protein
800	 47.85	-1	872468..873631	+	387	15639791	-	TP0804	-	sugar ABC transporter, ATP-binding protein (ugpC)
801	 55.53	0	873482..875761	-	759	15639792	-	TP0805	-	exoribonuclease II (rnb)
802	 55.64	0	875758..877254	-	498	15639793	-	TP0806	-	femA protein, putative
803	 55.03	0	877383..877571	+	62	15639794	rpmF	TP0807	-	50S ribosomal protein L32
804	 48.10	-1	877632..877868	+	78	15639795	-	TP0808	-	acyl carrier protein (acpP)
805	 56.86	0	877865..878629	+	254	15639796	-	TP0809	-	ribonuclease III (rnc)
806	 55.04	0	878660..879571	+	303	15639797	-	TP0810	-	DNA adenine methyltransferase (dam)
807	 44.44	-1	879642..879767	-	41	15639798	-	TP0811	-	hypothetical protein
808	 55.01	0	881178..882464	-	428	15639799	-	TP0813	-	hypothetical protein
809	 53.14	0	882687..883610	+	307	15639800	-	TP0814	-	thioredoxin reductase (trxB)
810	 52.13	0	883732..884715	+	327	15639801	-	TP0815	-	hypothetical protein
811	 52.10	0	884787..885452	-	221	15639802	-	TP0816	-	hypothetical protein
52.88	MEAN

4.31	STD DEV
