IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

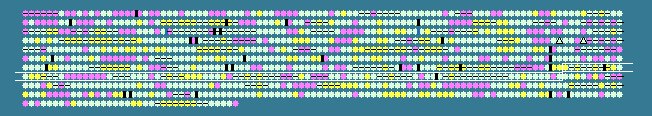

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.88   STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
691	 59.87	+1	762460..764253	+	597	15639682	-	TP0695	-	phosphoribosylglycinamide formyltransferase, putative
692	 54.48	0	764241..765077	-	278	15639683	-	TP0696	-	nicotinamidase, putative
693	 56.49	0	765139..765747	-	202	15639684	-	TP0697	-	hypothetical protein
694	 53.11	0	765778..766323	-	181	15639685	-	TP0698	-	hypothetical protein
695	 55.86	0	766320..766430	-	36	15639686	-	TP0699	-	hypothetical protein
696	 57.00	0	766436..766828	-	130	15639687	-	TP0700	-	hypothetical protein
697	 51.47	0	766966..767169	-	67	15639688	-	TP0701	-	DNA-directed RNA polymerase, putative
698	 60.34	+1	767339..767875	-	178	15639689	-	TP0702	-	hypothetical protein
699	 57.71	+1	767890..768570	-	226	15639690	-	TP0703	-	hypothetical protein
700	 53.23	0	768570..770690	-	706	15639691	-	TP0704	-	single-stranded-DNA-specific exonuclease (recJ)
701	 55.56	0	770833..773487	-	884	15639692	-	TP0705	-	penicillin-binding protein (pbp-2)
702	 56.42	0	773784..774710	-	308	15639693	-	TP0706	-	hypothetical protein
703	 63.54	+2	774772..775251	-	159	15639694	-	TP0707	-	hypothetical protein
704	 58.33	+1	775317..775832	+	171	15639695	-	TP0708	-	hypothetical protein
705	 50.82	0	775888..776676	+	262	15639696	-	TP0709	-	RNA polymerase sigma factor WhiG
706	 52.31	0	776685..778655	+	656	15639697	-	TP0710	-	hypothetical protein
707	 53.05	0	778692..779264	+	190	15639698	-	TP0711	-	hypothetical protein
708	 44.15	-2	779279..780193	-	304	15639699	-	TP0712	-	ATP-binding protein (ylxH-1)
709	 42.85	-2	780165..781478	-	437	15639700	-	TP0713	-	flagellar-associated GTP-binding protein (flhF)
710	 42.98	-2	781513..783636	-	707	15639701	flhA	TP0714	-	flagellar biosynthesis protein FlhA
711	 41.56	-2	783645..784775	-	376	15639702	flhB	TP0715	-	flagellar biosynthesis protein FlhB
712	 43.73	-2	784772..785569	-	265	15639703	-	TP0716	-	flagellar biosynthetic protein (fliR)
713	 47.72	-1	785582..785866	-	94	15639704	-	TP0717	-	flagellar biosynthetic protein (fliQ)
714	 48.53	-1	785885..786700	-	271	15639705	fliP	TP0718	-	flagellar biosynthesis protein FliP
715	 55.77	0	786697..787485	-	262	15639706	-	TP0719	-	hypothetical protein
716	 52.53	0	787421..788467	-	348	15639707	-	TP0720	-	flagellar motor switch protein (fliY)
717	 51.30	0	788460..789494	-	344	15639708	fliM	TP0721	-	flagellar motor switch protein FliM
718	 50.46	0	789516..790064	-	182	15639709	fliL	TP0722	-	flagellar basal body-associated protein FliL
719	 55.56	0	790043..790177	-	44	15639710	-	TP0723	-	hypothetical protein
720	 51.88	0	790174..790890	-	238	15639711	motB	TP0724	-	flagellar motor protein MotB
721	 51.28	0	790896..791675	-	259	15639712	-	TP0725	-	flagellar motor rotation protein (motA)
722	 45.45	-1	791691..791888	-	65	15639713	-	TP0726	-	flagellar protein (flbD)
723	 50.65	0	791946..793337	-	463	15639714	flgE	TP0727	-	flagellar hook protein FlgE
724	 53.90	0	793408..793869	-	153	15639715	flgD	TP0728	-	flagellar basal body rod modification protein
725	 62.65	+2	793945..795588	-	547	15639716	-	TP0729	-	hypothetical protein
726	 55.37	0	795557..796654	+	365	15639717	-	TP0730	-	hypothetical protein
727	 58.93	+1	796674..797384	+	236	15639718	-	TP0731	-	hypothetical protein
728	 62.03	+2	797349..798296	-	315	15639719	-	TP0732	-	methylenetetrahydrofolate dehydrogenase (folD)
729	 59.24	+1	798392..799051	+	219	15639720	-	TP0733	-	hypothetical protein
730	 57.41	+1	799084..799785	-	233	15639721	-	TP0734	-	purine nucleoside phosphorylase (deoD)
731	 55.11	0	799867..801423	-	518	15639722	-	TP0735	-	putative oxidoreductase
732	 51.72	0	801426..802268	-	280	15639723	-	TP0736	-	ferredoxin--NADP(+) reductase subunit alpha
733	 52.17	0	802502..803812	+	436	15639724	-	TP0737	-	sugar ABC transporter, periplasmic binding protein (msmE)
734	 58.93	+1	803858..804193	-	111	15639725	-	TP0738	-	hypothetical protein
735	 45.86	-1	804190..805386	-	398	15639726	-	TP0739	-	hypothetical protein
736	 55.38	0	805460..806026	-	188	15639727	-	TP0740	-	hypothetical protein
737	 55.28	0	806154..806768	-	204	15639728	-	TP0741	-	hypothetical protein
738	 57.74	+1	806765..807895	-	376	15639729	obgE	TP0742	-	GTPase ObgE
739	 54.17	0	808013..808276	-	87	15639730	rpmA	TP0743	-	50S ribosomal protein L27
740	 56.88	0	808307..808633	-	108	15639731	-	TP0744	-	hypothetical protein
741	 51.89	0	808646..808963	-	105	15639732	rplU	TP0745	-	50S ribosomal protein L21
742	 51.03	0	809070..811775	-	901	15639733	-	TP0746	-	pyruvate phosphate dikinase
743	 50.14	0	811785..812819	-	344	15639734	-	TP0747	-	hypothetical protein
744	 48.31	-1	812908..814944	-	678	15639735	-	TP0748	-	cytoplasmic filament protein A (cfpA)
745	 37.84	-2	814922..815143	-	73	15639736	-	TP0749	-	hypothetical protein
746	 52.23	0	815113..815784	+	223	15639737	-	TP0750	-	hypothetical protein
747	 56.58	0	815821..816534	+	237	15639738	-	TP0751	-	hypothetical protein
748	 54.59	0	816672..817814	-	380	15639739	-	TP0752	-	hypothetical protein
749	 47.72	-1	817895..818179	-	94	15639740	-	TP0753	-	hypothetical protein
750	 48.80	0	818176..819546	-	456	15639741	-	TP0754	-	hypothetical protein
751	 48.43	-1	819588..820130	-	180	15639742	-	TP0755	-	PTS system, nitrogen regulatory IIA component (ptsN-2)
752	 55.31	0	820330..821289	-	319	15639743	-	TP0756	-	methionyl-tRNA formyltransferase (fmt)
753	 55.42	0	821293..821781	-	162	15639744	-	TP0757	-	polypeptide deformylase (def)
754	 48.57	-1	821822..822031	-	69	15639745	rpsU	TP0758	-	30S ribosomal protein S21
755	 54.17	0	822150..822269	+	39	15639746	-	TP0759	-	hypothetical protein
756	 54.26	0	822226..824184	+	652	15639747	-	TP0760	-	penicillin-binding protein (pbp-3)
757	 53.81	0	824165..825043	+	292	15639748	-	TP0761	-	hypothetical protein
758	 57.70	+1	825072..826253	+	393	15639749	-	TP0762	-	hypothetical protein
759	 53.93	0	826315..827256	-	313	15639750	-	TP0763	-	hypothetical protein
760	 53.74	0	827215..828390	+	391	15639751	-	TP0764	-	hypothetical protein
761	 52.95	0	828372..830201	-	609	15639752	-	TP0765	-	cell division protein (ftsH)
762	 57.60	+1	830604..831485	+	293	15639753	-	TP0766	-	hypothetical protein
763	 52.97	0	831696..833783	+	695	15639754	-	TP0767	-	elongation factor G
764	 56.07	0	833922..834959	+	345	15639755	-	TP0768	-	membrane protein (tmpA)
765	 55.83	0	834956..835933	+	325	15639756	-	TP0769	-	outer membrane protein (tmpB)
766	 53.49	0	835978..837927	+	649	15639757	-	TP0770	-	ATP-dependent RNA helicase
767	 46.30	-1	837948..839729	-	593	15639758	-	TP0771	-	hypothetical protein
768	 50.67	0	839733..840557	+	274	15639759	-	TP0772	-	hypothetical protein
769	 55.72	0	840597..841793	-	398	15639760	-	TP0773	-	periplasmic serine protease DO (htrA-1)
770	 50.67	0	842138..842812	+	224	15639761	-	TP0774	-	Mg2+ transport protein (mgtC)
771	 55.19	0	842892..843527	+	211	15639762	-	TP0775	-	endonuclease III (nth)
772	 57.27	+1	843604..844380	-	258	15639763	-	TP0776	-	hypothetical protein
773	 49.78	0	844433..844657	-	74	15639764	-	TP0777	-	hypothetical protein
774	 53.95	0	844726..845637	-	303	15639765	-	TP0778	-	mazG protein (mazG)
775	 50.39	0	845634..846278	-	214	15639766	-	TP0779	-	dedA protein (dedA)
776	 55.39	0	846325..848364	-	679	15639767	nadE	TP0780	-	NAD synthetase
777	 54.33	0	848401..848862	-	153	15639768	-	TP0781	-	hypothetical protein
778	 51.58	0	848908..849351	-	147	15639769	-	TP0782	-	hypothetical protein
779	 51.76	0	849380..850513	-	377	15639770	-	TP0783	-	hypothetical protein
780	 54.83	0	850679..851278	+	199	15639771	-	TP0784	-	hypothetical protein
781	 49.78	0	851275..851961	+	228	15639772	-	TP0785	-	hypothetical protein
782	 52.24	0	852093..852806	+	237	15639773	-	TP0786	-	ABC transporter, ATP-binding protein, putative
783	 51.43	0	852853..853272	-	139	15639774	-	TP0787	-	hypothetical protein
784	 58.14	+1	853354..854244	+	296	15639775	-	TP0788	-	hypothetical protein
785	 50.97	0	854257..855033	-	258	15639776	-	TP0789	-	hypothetical protein
786	 50.28	0	855052..857718	-	888	15639777	-	TP0790	-	antibiotic transport protein, putative
787	 54.07	0	857861..858106	-	81	15639778	-	TP0791	-	hypothetical protein
788	 52.96	0	858092..858952	+	286	15639779	-	TP0792	-	flagellar filament 33 kDa core protein (flaB2)
789	 49.38	0	859031..860650	+	539	15639780	-	TP0793	-	hypothetical protein
790	 53.23	0	860687..861877	-	396	15639781	-	TP0794	-	S-adenosylmethionine synthetase
52.88	MEAN

4.31	STD DEV
