IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

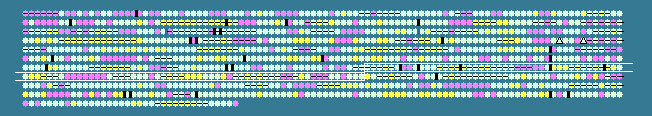

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
658	 53.35	0	724283..725281	-	332	15639649	-	TP0662	-	fructose-bisphosphate aldolase
659	 54.73	0	725548..726276	+	242	15639650	-	TP0663	-	outer membrane protein, putative
660	 54.55	0	726273..726998	+	241	15639651	-	TP0664	-	flagellar filament outer layer protein (flaA-2)
661	 57.54	+1	727016..727771	-	251	15639652	-	TP0665	-	hypothetical protein
662	 53.74	0	727768..728061	-	97	15639653	-	TP0666	-	hypothetical protein
663	 50.24	0	728105..729772	-	555	15639654	-	TP0667	-	uridine kinase (udk)
664	 44.66	-1	730003..730611	-	202	15639655	-	TP0668	-	hypothetical protein
665	 44.38	-1	730608..734120	-	1170	15639656	dnaE	TP0669	-	DNA polymerase III subunit alpha
666	 54.41	0	734274..735464	-	396	15639657	-	TP0670	-	D-alanine--D-alanine ligase (ddlA)
667	 49.95	0	735466..736500	-	344	15639658	-	TP0671	-	sn-1,2-diacylglycerol cholinephosphotransferase, putative
668	 51.91	0	736531..737919	-	462	15639659	-	TP0672	-	glycyl-tRNA synthetase
669	 56.32	0	738054..739667	-	537	15639660	gltX	TP0673	-	glutamyl-tRNA synthetase
670	 63.38	+2	739845..740453	+	202	15639661	-	TP0674	-	hypothetical protein
671	 53.95	0	740459..741457	+	332	15639662	-	TP0675	-	hypothetical protein
672	 60.57	+1	741469..741747	-	92	15639663	-	TP0676	-	hypothetical protein
673	 58.95	+1	741769..742377	-	202	15639664	-	TP0677	-	hypothetical protein
674	 59.85	+1	742631..743554	+	307	15639665	-	TP0678	-	hypothetical protein
675	 52.83	0	743551..743868	+	105	15639666	-	TP0679	-	hypothetical protein
676	 52.88	0	743909..744967	-	352	15639667	-	TP0680	-	O-sialoglycoprotein endopeptidase
677	 56.52	0	745018..746091	-	357	15639668	-	TP0681	-	alanine racemase (alr)
678	 57.05	0	746180..746782	-	200	15639669	-	TP0682	-	cell division protein (ftsJ)
679	 53.88	0	746875..747969	+	364	15639670	-	TP0683	-	octaprenyl-diphosphate synthase
680	 54.62	0	748262..749473	+	403	15639671	-	TP0684	-	methylgalactoside ABC transporter, periplasmic galactose-binding protein (mglB-2)
681	 50.70	0	749593..751083	+	496	15639672	-	TP0685	-	methylgalactoside ABC transporter, ATP binding protein (mglA)
682	 51.94	0	751098..752693	+	531	15639673	-	TP0686	-	methylgalactoside ABC transporter, permease protein (mglC)
683	 42.50	-2	752821..754881	-	686	15639674	-	TP0687	-	DNA recombinase (recG)
684	 38.95	-2	754937..755950	-	337	15639675	-	TP0688	-	immunity protein (mccF)
685	 43.82	-2	755951..757333	-	460	15639676	engA	TP0689	-	GTP-binding protein EngA
686	 44.50	-1	757369..757950	-	193	15639677	-	TP0690	-	hypothetical protein
687	 46.77	-1	757943..758701	-	252	15639678	-	TP0691	-	hypothetical protein
688	 51.06	0	758729..759952	-	407	15639679	-	TP0692	-	recA protein (recA)
689	 56.69	0	760213..761535	-	440	15639680	-	TP0693	-	hypothetical protein
690	 58.55	+1	761695..762372	+	225	15639681	-	TP0694	-	5,10-methenyltetrahydrofolate synthetase, putative
691	 59.87	+1	762460..764253	+	597	15639682	-	TP0695	-	phosphoribosylglycinamide formyltransferase, putative
692	 54.48	0	764241..765077	-	278	15639683	-	TP0696	-	nicotinamidase, putative
693	 56.49	0	765139..765747	-	202	15639684	-	TP0697	-	hypothetical protein
694	 53.11	0	765778..766323	-	181	15639685	-	TP0698	-	hypothetical protein
695	 55.86	0	766320..766430	-	36	15639686	-	TP0699	-	hypothetical protein
696	 57.00	0	766436..766828	-	130	15639687	-	TP0700	-	hypothetical protein
697	 51.47	0	766966..767169	-	67	15639688	-	TP0701	-	DNA-directed RNA polymerase, putative
698	 60.34	+1	767339..767875	-	178	15639689	-	TP0702	-	hypothetical protein
699	 57.71	+1	767890..768570	-	226	15639690	-	TP0703	-	hypothetical protein
700	 53.23	0	768570..770690	-	706	15639691	-	TP0704	-	single-stranded-DNA-specific exonuclease (recJ)
701	 55.56	0	770833..773487	-	884	15639692	-	TP0705	-	penicillin-binding protein (pbp-2)
702	 56.42	0	773784..774710	-	308	15639693	-	TP0706	-	hypothetical protein
703	 63.54	+2	774772..775251	-	159	15639694	-	TP0707	-	hypothetical protein
704	 58.33	+1	775317..775832	+	171	15639695	-	TP0708	-	hypothetical protein
705	 50.82	0	775888..776676	+	262	15639696	-	TP0709	-	RNA polymerase sigma factor WhiG
706	 52.31	0	776685..778655	+	656	15639697	-	TP0710	-	hypothetical protein
707	 53.05	0	778692..779264	+	190	15639698	-	TP0711	-	hypothetical protein
708	 44.15	-2	779279..780193	-	304	15639699	-	TP0712	-	ATP-binding protein (ylxH-1)
709	 42.85	-2	780165..781478	-	437	15639700	-	TP0713	-	flagellar-associated GTP-binding protein (flhF)
710	 42.98	-2	781513..783636	-	707	15639701	flhA	TP0714	-	flagellar biosynthesis protein FlhA
711	 41.56	-2	783645..784775	-	376	15639702	flhB	TP0715	-	flagellar biosynthesis protein FlhB
712	 43.73	-2	784772..785569	-	265	15639703	-	TP0716	-	flagellar biosynthetic protein (fliR)
713	 47.72	-1	785582..785866	-	94	15639704	-	TP0717	-	flagellar biosynthetic protein (fliQ)
714	 48.53	-1	785885..786700	-	271	15639705	fliP	TP0718	-	flagellar biosynthesis protein FliP
715	 55.77	0	786697..787485	-	262	15639706	-	TP0719	-	hypothetical protein
716	 52.53	0	787421..788467	-	348	15639707	-	TP0720	-	flagellar motor switch protein (fliY)
717	 51.30	0	788460..789494	-	344	15639708	fliM	TP0721	-	flagellar motor switch protein FliM
718	 50.46	0	789516..790064	-	182	15639709	fliL	TP0722	-	flagellar basal body-associated protein FliL
719	 55.56	0	790043..790177	-	44	15639710	-	TP0723	-	hypothetical protein
720	 51.88	0	790174..790890	-	238	15639711	motB	TP0724	-	flagellar motor protein MotB
721	 51.28	0	790896..791675	-	259	15639712	-	TP0725	-	flagellar motor rotation protein (motA)
722	 45.45	-1	791691..791888	-	65	15639713	-	TP0726	-	flagellar protein (flbD)
723	 50.65	0	791946..793337	-	463	15639714	flgE	TP0727	-	flagellar hook protein FlgE
724	 53.90	0	793408..793869	-	153	15639715	flgD	TP0728	-	flagellar basal body rod modification protein
725	 62.65	+2	793945..795588	-	547	15639716	-	TP0729	-	hypothetical protein
726	 55.37	0	795557..796654	+	365	15639717	-	TP0730	-	hypothetical protein
727	 58.93	+1	796674..797384	+	236	15639718	-	TP0731	-	hypothetical protein
728	 62.03	+2	797349..798296	-	315	15639719	-	TP0732	-	methylenetetrahydrofolate dehydrogenase (folD)
729	 59.24	+1	798392..799051	+	219	15639720	-	TP0733	-	hypothetical protein
730	 57.41	+1	799084..799785	-	233	15639721	-	TP0734	-	purine nucleoside phosphorylase (deoD)
731	 55.11	0	799867..801423	-	518	15639722	-	TP0735	-	putative oxidoreductase
732	 51.72	0	801426..802268	-	280	15639723	-	TP0736	-	ferredoxin--NADP(+) reductase subunit alpha
733	 52.17	0	802502..803812	+	436	15639724	-	TP0737	-	sugar ABC transporter, periplasmic binding protein (msmE)
734	 58.93	+1	803858..804193	-	111	15639725	-	TP0738	-	hypothetical protein
735	 45.86	-1	804190..805386	-	398	15639726	-	TP0739	-	hypothetical protein
736	 55.38	0	805460..806026	-	188	15639727	-	TP0740	-	hypothetical protein
737	 55.28	0	806154..806768	-	204	15639728	-	TP0741	-	hypothetical protein
738	 57.74	+1	806765..807895	-	376	15639729	obgE	TP0742	-	GTPase ObgE
739	 54.17	0	808013..808276	-	87	15639730	rpmA	TP0743	-	50S ribosomal protein L27
740	 56.88	0	808307..808633	-	108	15639731	-	TP0744	-	hypothetical protein
741	 51.89	0	808646..808963	-	105	15639732	rplU	TP0745	-	50S ribosomal protein L21
742	 51.03	0	809070..811775	-	901	15639733	-	TP0746	-	pyruvate phosphate dikinase
743	 50.14	0	811785..812819	-	344	15639734	-	TP0747	-	hypothetical protein
744	 48.31	-1	812908..814944	-	678	15639735	-	TP0748	-	cytoplasmic filament protein A (cfpA)
745	 37.84	-2	814922..815143	-	73	15639736	-	TP0749	-	hypothetical protein
746	 52.23	0	815113..815784	+	223	15639737	-	TP0750	-	hypothetical protein
747	 56.58	0	815821..816534	+	237	15639738	-	TP0751	-	hypothetical protein
748	 54.59	0	816672..817814	-	380	15639739	-	TP0752	-	hypothetical protein
749	 47.72	-1	817895..818179	-	94	15639740	-	TP0753	-	hypothetical protein
750	 48.80	0	818176..819546	-	456	15639741	-	TP0754	-	hypothetical protein
751	 48.43	-1	819588..820130	-	180	15639742	-	TP0755	-	PTS system, nitrogen regulatory IIA component (ptsN-2)
752	 55.31	0	820330..821289	-	319	15639743	-	TP0756	-	methionyl-tRNA formyltransferase (fmt)
753	 55.42	0	821293..821781	-	162	15639744	-	TP0757	-	polypeptide deformylase (def)
754	 48.57	-1	821822..822031	-	69	15639745	rpsU	TP0758	-	30S ribosomal protein S21
755	 54.17	0	822150..822269	+	39	15639746	-	TP0759	-	hypothetical protein
756	 54.26	0	822226..824184	+	652	15639747	-	TP0760	-	penicillin-binding protein (pbp-3)
757	 53.81	0	824165..825043	+	292	15639748	-	TP0761	-	hypothetical protein
52.88	MEAN

4.31	STD DEV
