IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

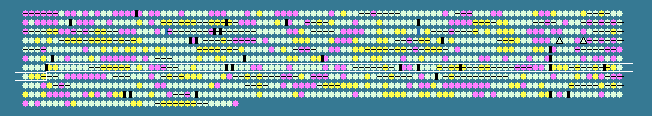

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
605	 58.02	+1	658457..659347	-	296	15639596	-	TP0608	-	hypothetical protein
606	 59.29	+1	659665..661236	+	523	15639597	asnC	TP0609	-	asparaginyl-tRNA synthetase
607	 54.80	0	661246..663327	+	693	15639598	-	TP0610	-	TPR protein H (tprH)
608	 54.74	0	663469..664248	+	259	15639599	-	TP0611	-	ABC transporter, ATP-binding protein
609	 52.08	0	664329..665768	+	479	15639600	-	TP0612	-	hypothetical protein
610	 52.83	0	665795..666943	+	382	15639601	-	TP0613	-	hypothetical protein
611	 54.40	0	666940..668154	+	404	15639602	-	TP0614	-	nitrogen fixation protein (nifS-1)
612	 54.05	0	668205..668648	+	147	15639603	-	TP0615	-	nitrogen fixation protein (nifU)
613	 55.16	0	668669..669433	+	254	15639604	-	TP0616	-	ribose 5-phosphate isomerase (rpiA)
614	 59.14	+1	669460..669738	-	92	15639605	-	TP0617	-	hypothetical protein
615	 60.83	+1	669834..670193	-	119	15639606	-	TP0618	-	hypothetical protein
616	 60.76	+1	670249..671061	-	270	15639607	-	TP0619	-	hypothetical protein
617	 57.43	+1	671058..672887	-	609	15639608	-	TP0620	-	TPR protein I (tprI)
618	 56.43	0	672945..675221	-	758	15639609	-	TP0621	-	TPR protein J (tprJ)
619	 55.39	0	675281..677062	-	593	15639610	-	TP0622	-	hypothetical protein
620	 60.13	+1	676479..678818	+	779	15639611	-	TP0623	-	membrane-bound lytic murein transglycosylase D (dniR)
621	 55.00	0	678822..680252	+	476	15639612	-	TP0624	-	hypothetical protein
622	 49.27	0	680252..681004	+	250	15639613	-	TP0625	-	hypothetical protein
623	 49.15	0	681001..682176	+	391	15639614	-	TP0626	-	exonuclease, putative
624	 46.56	-1	682173..685316	+	1047	15639615	-	TP0627	-	exonuclease (sbcC)
625	 51.55	0	685313..686794	+	493	15639616	-	TP0628	-	nicotinate phosphoribosyltransferase
626	 56.36	0	686965..687789	+	274	15639617	-	TP0629	-	hypothetical protein
627	 49.78	0	687959..688870	+	303	15639618	-	TP0630	-	chemotaxis protein methyltransferase (cheR)
628	 53.38	0	688917..690128	+	403	15639619	-	TP0631	-	protein-glutamate methylesterase (cheB)
629	 56.61	0	690233..691246	+	337	15639620	-	TP0632	-	tryptophanyl-tRNA synthetase
630	 53.20	0	691387..692262	+	291	15639621	-	TP0633	-	bifunctional methionine sulfoxide reductase B/A protein
631	 51.17	0	692381..694852	+	823	15639622	-	TP0634	-	DNA ligase (lig)
632	 51.10	0	694887..695657	-	256	15639623	-	TP0636	-	hypothetical protein
633	 52.68	0	695695..696645	-	316	15639624	miaA	TP0637	-	tRNA delta(2)-isopentenylpyrophosphate transferase
634	 55.40	0	696869..697303	-	144	15639625	-	TP0638	-	hypothetical protein
635	 55.47	0	697723..699687	+	654	15639626	-	TP0639	-	methyl-accepting chemotaxis protein (mcp2-2)
636	 51.49	0	699711..701555	+	614	15639627	-	TP0640	-	methyl-accepting chemotaxis protein (mcp2-3)
637	 49.89	0	701573..702901	-	442	15639628	hisS	TP0641	-	histidyl-tRNA synthetase
638	 49.69	0	703042..704802	+	586	15639629	-	TP0642	-	phosphomannomutase (manB)
639	 46.60	-1	704799..705446	+	215	15639630	-	TP0643	-	DNA polymerase III, subunit epsilon (dnaQ)
640	 47.45	-1	705443..707029	-	528	15639631	lysK	TP0644	-	lysyl-tRNA synthetase
641	 55.37	0	707060..707236	-	58	15639632	-	TP0645	-	hypothetical protein
642	 49.96	0	707295..708617	-	440	15639633	-	TP0646	-	hypothetical protein
643	 49.41	0	708529..709809	-	426	15639634	-	TP0647	-	seryl-tRNA synthetase
644	 50.61	0	709859..711907	-	682	15639635	-	TP0648	-	hypothetical protein
645	 47.37	-1	711852..712649	-	265	15639636	-	TP0649	-	hemolysin (tlyC)
646	 49.69	0	712637..713119	-	160	15639637	-	TP0650	-	putative metalloprotease
647	 52.20	0	713125..715536	-	803	15639638	-	TP0651	-	hypothetical protein
648	 54.04	0	715712..716851	+	379	15639639	-	TP0652	-	spermidine/putrescine ABC transporter, ATP-binding protein (potA)
649	 55.11	0	716848..717747	+	299	15639640	-	TP0653	-	spermidine/putrescine ABC transporter, permease protein (potB)
650	 50.06	0	717740..718558	+	272	15639641	-	TP0654	-	spermidine/putrescine ABC transporter, permease protein (potC)
651	 47.56	-1	718594..719640	+	348	15639642	-	TP0655	-	spermidine/putrescine ABC transporter, periplasmic binding protein (potD)
652	 55.88	0	719609..719710	+	33	15639643	-	TP0656	-	hypothetical protein
653	 49.10	0	719695..719916	-	73	15639644	-	TP0657	-	carbon storage regulator (csrA)
654	 48.57	-1	719910..720362	-	150	15639645	-	TP0658	-	flagellar assembly protein FliW
655	 51.96	0	720381..721631	-	416	15639646	-	TP0659	-	flagellar hook-associated protein FlgL
656	 51.17	0	721665..723542	-	625	15639647	flgK	TP0660	-	flagellar hook-associated protein FlgK
657	 55.36	0	723648..724160	-	170	15639648	-	TP0661	-	hypothetical protein
658	 53.35	0	724283..725281	-	332	15639649	-	TP0662	-	fructose-bisphosphate aldolase
659	 54.73	0	725548..726276	+	242	15639650	-	TP0663	-	outer membrane protein, putative
660	 54.55	0	726273..726998	+	241	15639651	-	TP0664	-	flagellar filament outer layer protein (flaA-2)
661	 57.54	+1	727016..727771	-	251	15639652	-	TP0665	-	hypothetical protein
662	 53.74	0	727768..728061	-	97	15639653	-	TP0666	-	hypothetical protein
663	 50.24	0	728105..729772	-	555	15639654	-	TP0667	-	uridine kinase (udk)
664	 44.66	-1	730003..730611	-	202	15639655	-	TP0668	-	hypothetical protein
665	 44.38	-1	730608..734120	-	1170	15639656	dnaE	TP0669	-	DNA polymerase III subunit alpha
666	 54.41	0	734274..735464	-	396	15639657	-	TP0670	-	D-alanine--D-alanine ligase (ddlA)
667	 49.95	0	735466..736500	-	344	15639658	-	TP0671	-	sn-1,2-diacylglycerol cholinephosphotransferase, putative
668	 51.91	0	736531..737919	-	462	15639659	-	TP0672	-	glycyl-tRNA synthetase
669	 56.32	0	738054..739667	-	537	15639660	gltX	TP0673	-	glutamyl-tRNA synthetase
670	 63.38	+2	739845..740453	+	202	15639661	-	TP0674	-	hypothetical protein
671	 53.95	0	740459..741457	+	332	15639662	-	TP0675	-	hypothetical protein
672	 60.57	+1	741469..741747	-	92	15639663	-	TP0676	-	hypothetical protein
673	 58.95	+1	741769..742377	-	202	15639664	-	TP0677	-	hypothetical protein
674	 59.85	+1	742631..743554	+	307	15639665	-	TP0678	-	hypothetical protein
675	 52.83	0	743551..743868	+	105	15639666	-	TP0679	-	hypothetical protein
676	 52.88	0	743909..744967	-	352	15639667	-	TP0680	-	O-sialoglycoprotein endopeptidase
677	 56.52	0	745018..746091	-	357	15639668	-	TP0681	-	alanine racemase (alr)
678	 57.05	0	746180..746782	-	200	15639669	-	TP0682	-	cell division protein (ftsJ)
679	 53.88	0	746875..747969	+	364	15639670	-	TP0683	-	octaprenyl-diphosphate synthase
680	 54.62	0	748262..749473	+	403	15639671	-	TP0684	-	methylgalactoside ABC transporter, periplasmic galactose-binding protein (mglB-2)
681	 50.70	0	749593..751083	+	496	15639672	-	TP0685	-	methylgalactoside ABC transporter, ATP binding protein (mglA)
682	 51.94	0	751098..752693	+	531	15639673	-	TP0686	-	methylgalactoside ABC transporter, permease protein (mglC)
683	 42.50	-2	752821..754881	-	686	15639674	-	TP0687	-	DNA recombinase (recG)
684	 38.95	-2	754937..755950	-	337	15639675	-	TP0688	-	immunity protein (mccF)
685	 43.82	-2	755951..757333	-	460	15639676	engA	TP0689	-	GTP-binding protein EngA
686	 44.50	-1	757369..757950	-	193	15639677	-	TP0690	-	hypothetical protein
687	 46.77	-1	757943..758701	-	252	15639678	-	TP0691	-	hypothetical protein
688	 51.06	0	758729..759952	-	407	15639679	-	TP0692	-	recA protein (recA)
689	 56.69	0	760213..761535	-	440	15639680	-	TP0693	-	hypothetical protein
690	 58.55	+1	761695..762372	+	225	15639681	-	TP0694	-	5,10-methenyltetrahydrofolate synthetase, putative
691	 59.87	+1	762460..764253	+	597	15639682	-	TP0695	-	phosphoribosylglycinamide formyltransferase, putative
692	 54.48	0	764241..765077	-	278	15639683	-	TP0696	-	nicotinamidase, putative
693	 56.49	0	765139..765747	-	202	15639684	-	TP0697	-	hypothetical protein
694	 53.11	0	765778..766323	-	181	15639685	-	TP0698	-	hypothetical protein
695	 55.86	0	766320..766430	-	36	15639686	-	TP0699	-	hypothetical protein
696	 57.00	0	766436..766828	-	130	15639687	-	TP0700	-	hypothetical protein
697	 51.47	0	766966..767169	-	67	15639688	-	TP0701	-	DNA-directed RNA polymerase, putative
698	 60.34	+1	767339..767875	-	178	15639689	-	TP0702	-	hypothetical protein
699	 57.71	+1	767890..768570	-	226	15639690	-	TP0703	-	hypothetical protein
700	 53.23	0	768570..770690	-	706	15639691	-	TP0704	-	single-stranded-DNA-specific exonuclease (recJ)
701	 55.56	0	770833..773487	-	884	15639692	-	TP0705	-	penicillin-binding protein (pbp-2)
702	 56.42	0	773784..774710	-	308	15639693	-	TP0706	-	hypothetical protein
703	 63.54	+2	774772..775251	-	159	15639694	-	TP0707	-	hypothetical protein
704	 58.33	+1	775317..775832	+	171	15639695	-	TP0708	-	hypothetical protein
52.88	MEAN

4.31	STD DEV
