IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

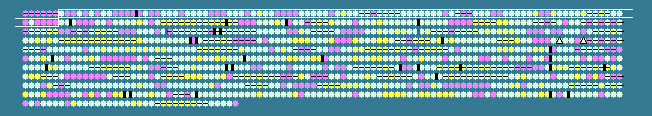

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
7	 50.69	0	7317..7967	+	216	15639002	-	TP0007	-	hypothetical protein
8	 48.15	-1	7991..8260	+	89	15639003	-	TP0008	-	hypothetical protein
9	 47.62	-1	10237..10362	+	41	15639004	-	TP0010	-	hypothetical protein
10	 52.55	0	10396..12378	+	660	15639005	-	TP0011	-	TPR protein B (tprB)
11	 48.02	-1	12372..12548	+	58	15639006	-	TP0012	-	hypothetical protein
12	 50.45	0	12545..13210	+	221	15639007	-	TP0013	-	hypothetical protein
13	 48.93	0	13167..13775	+	202	15639008	-	TP0014	-	hypothetical protein
14	 50.08	0	13966..15780	+	604	15639009	pheT	TP0015	-	phenylalanyl-tRNA synthetase subunit beta
15	 50.27	0	15743..18316	+	857	15639010	-	TP0016	-	ATP-dependent protease LA (lon-1)
16	 48.21	-1	18404..19351	+	315	15639011	-	TP0017	-	hypothetical protein
17	 45.14	-1	19418..21391	+	657	15639012	-	TP0018	-	transcription elongation factor
18	 45.40	-1	21558..22046	+	162	15639013	-	TP0019	-	transcription elongation factor (greA)
19	 49.39	0	22046..24169	+	707	15639014	-	TP0020	-	76K protein
20	 42.70	-2	25107..25373	+	88	15639015	-	TP0021	-	hypothetical protein
21	 50.02	0	25328..27496	+	722	15639016	-	TP0022	-	hypothetical protein
22	 47.45	-1	27557..28888	+	443	15639017	-	TP0023	-	sodium- and chloride- dependent transporter
23	 45.15	-1	29068..29778	+	236	15639018	-	TP0024	-	hypothetical protein
24	 50.39	0	29857..32928	-	1023	15639019	-	TP0025	-	hypothetical protein
25	 52.20	0	32957..33979	-	340	15639020	-	TP0026	-	flagellar motor switch protein (fliG-1)
26	 51.39	0	34205..35428	+	407	15639021	-	TP0027	-	hemolysin, putative
27	 49.05	0	35442..36803	+	453	15639022	-	TP0028	-	hemolysin, putative
28	 50.08	0	36911..38188	+	425	15639023	-	TP0029	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
29	 50.15	0	38307..39941	+	544	15639024	groEL	TP0030	-	chaperonin GroEL
30	 56.27	0	40005..40283	+	92	15639025	-	TP0031	-	hypothetical protein
31	 51.06	0	40280..41080	-	266	15639026	-	TP0032	-	hypothetical protein
32	 43.63	-2	41077..41688	-	203	15639027	-	TP0033	-	hypothetical protein
33	 48.58	0	41789..42739	-	316	15639028	-	TP0034	-	ABC transporter, periplasmic binding protein
34	 47.84	-1	42937..43653	+	238	15639029	-	TP0035	-	ABC transporter, ATP-binding protein
35	 52.18	0	43653..44453	+	266	15639030	-	TP0036	-	ABC transporter, permease protein
36	 51.51	0	44562..45557	-	331	15639031	-	TP0037	-	D-specific D-2-hydroxyacid dehydrogenase
37	 54.23	0	45654..46706	-	350	15639032	-	TP0038	-	regulatory protein (pfoS/R)
38	 49.06	0	46755..46913	+	52	15639033	-	TP0039	-	hypothetical protein
39	 54.29	0	47591..49384	+	597	15639034	-	TP0040	-	methyl-accepting chemotaxis protein (mcp1)
40	 61.79	+2	49386..49508	+	40	15639035	-	TP0041	-	hypothetical protein
41	 55.41	0	49505..50437	+	310	15639036	-	TP0042	-	hypothetical protein
42	 51.62	0	50418..52550	+	710	15639037	-	TP0043	-	soluble lytic transglycosylase, putative
43	 49.34	0	52590..54482	+	630	15639038	-	TP0044	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
44	 43.33	-2	54538..55437	-	299	15639039	-	TP0045	-	adenosine deaminase
45	 49.00	0	55799..56500	-	233	15639040	-	TP0046	-	hypothetical protein
46	 46.74	-1	56518..57039	-	173	15639041	-	TP0047	-	hypothetical protein
47	 51.85	0	57045..57476	-	143	15639042	-	TP0048	-	hypothetical protein
48	 53.84	0	57498..58526	-	342	15639043	-	TP0049	-	hypothetical protein
49	 53.37	0	58819..59427	-	202	15639044	-	TP0050	-	hypothetical protein
50	 49.72	0	59578..60633	+	351	15639045	prfA	TP0051	-	peptide chain release factor 1
51	 55.21	0	60603..61649	+	348	15639046	-	TP0052	-	protoporphyrinogen oxidase (hemK)
52	 45.08	-1	61738..62793	-	351	15639047	nrdF	TP0053	-	ribonucleotide-diphosphate reductase subunit beta
53	 53.12	0	62964..63923	+	319	15639048	-	TP0054	-	hypothetical protein
54	 57.81	+1	64130..64366	+	78	15639049	-	TP0055	-	hypothetical protein
55	 54.04	0	64363..66144	+	593	15639050	-	TP0056	-	pyruvate carboxylase subunit B
56	 52.48	0	66156..67565	+	469	15639051	-	TP0057	-	oxaloacetate decarboxylase, subunit beta (oadB)
57	 53.00	0	67640..68956	-	438	15639052	-	TP0058	-	replicative DNA helicase (dnaB)
58	 53.95	0	68940..69167	-	75	15639053	-	TP0059	-	hypothetical protein
59	 47.98	-1	69173..69643	-	156	15639054	rplI	TP0060	-	50S ribosomal protein L9
60	 51.33	0	69749..70048	-	99	15639055	rpsR	TP0061	-	30S ribosomal protein S18
61	 53.86	0	70165..70695	-	176	15639056	-	TP0062	-	single-strand DNA binding protein (ssb)
62	 53.55	0	70704..70985	-	93	15639057	rpsF	TP0063	-	30S ribosomal protein S6
63	 49.65	0	71127..71702	+	191	15639058	-	TP0064	-	hypothetical protein
64	 49.83	0	71776..72363	+	195	15639059	-	TP0065	-	hypothetical protein
65	 52.06	0	72347..72661	+	104	15639060	-	TP0066	-	hypothetical protein
66	 50.34	0	72649..73830	+	393	15639061	-	TP0067	-	hypothetical protein
67	 53.18	0	74011..75033	+	340	15639062	-	TP0068	-	hypothetical protein
68	 52.54	0	75089..75619	-	176	15639063	-	TP0069	-	hypothetical protein
69	 52.97	0	75469..75855	-	128	15639064	-	TP0070	-	hypothetical protein
70	 49.87	0	75906..78542	-	878	15639065	-	TP0071	-	ATP-dependent Clp protease subunit B (clpB)
71	 48.72	0	78746..79018	+	90	15639066	-	TP0072	-	hypothetical protein
72	 52.46	0	79088..80629	-	513	15639067	-	TP0073	-	hypothetical protein
73	 55.11	0	80934..82343	+	469	15639068	-	TP0074	-	sugar ABC transporter, periplasmic binding protein (y4oP)
74	 49.38	0	82462..83352	+	296	15639069	-	TP0075	-	sugar ABC transporter, permease protein (y4oQ)
75	 48.42	-1	83392..84213	+	273	15639070	-	TP0076	-	sugar ABC transporter, permease protein (y4oR)
76	 50.28	0	84254..85870	+	538	15639071	-	TP0077	-	capsular polysaccharide biosynthesis protein (cap5D)
77	 50.04	0	85875..87113	+	412	15639072	-	TP0078	-	spore coat polysaccharide biosynthesis protein (spsC)
78	 50.11	0	87041..89263	+	740	15639073	-	TP0079	-	hypothetical protein
79	 42.95	-2	89260..89727	+	155	15639074	-	TP0080	-	quinoline 2-oxidoreductase
80	 46.64	-1	89734..90582	+	282	15639075	-	TP0081	-	hypothetical protein
81	 52.69	0	90629..92431	-	600	15639076	-	TP0082	-	formate hydrogenlyase transcriptional activator (fhlA)
82	 54.25	0	93177..94457	+	426	15639077	-	TP0083	-	hypothetical protein
83	 53.42	0	94437..94670	-	77	15639078	-	TP0084	-	hypothetical protein
84	 49.89	0	94784..95230	-	148	15639079	-	TP0085	-	PTS system, nitrogen regulatory IIA component (ptsN-1)
85	 53.65	0	95311..96255	+	314	15639080	-	TP0086	-	hypothetical protein
86	 57.41	+1	96258..96797	-	179	15639081	-	TP0087	-	hypothetical protein
87	 48.62	0	96781..97395	-	204	15639082	-	TP0088	-	hypothetical protein
88	 45.39	-1	97425..98660	-	411	15639083	-	TP0089	-	cyclic nucleotide binding protein
89	 57.75	+1	98743..99807	-	354	15639084	-	TP0090	-	UDP-N-acetylmuramate dehydrogenase (murB)
90	 54.51	0	99989..101551	+	520	15639085	-	TP0091	-	cysteinyl-tRNA synthetase (cysS)
91	 54.19	0	101622..102110	+	162	15639086	-	TP0092	-	RNA polymerase sigma-24 factor (rpoE)
92	 55.25	0	102094..102741	+	215	15639087	-	TP0093	-	hypothetical protein
93	 51.43	0	102879..103889	+	336	15639088	-	TP0094	-	phosphate acetyltransferase (pta)
94	 56.65	0	103889..105835	+	648	15639089	-	TP0095	-	hypothetical protein
95	 53.44	0	105909..106271	-	120	15639090	-	TP0096	-	dnaK suppressor, putative
96	 54.79	0	106441..106659	+	72	15639091	-	TP0097	-	translation initiation factor 1 (infA)
97	 60.22	+1	106719..107369	-	216	15639092	-	TP0098	-	heat-shock protein, putative
98	 55.56	0	107373..108128	-	251	15639093	pyrH	TP0099	-	uridylate kinase
99	 54.89	0	108323..108925	+	200	15639094	-	TP0100	-	thioredoxin, putative
100	 55.35	0	108918..109712	+	264	15639095	-	TP0101	-	cytochrome c biogenesis protein (ccdA)
101	 45.09	-1	109750..111723	-	657	15639096	-	TP0102	-	rep helicase, single-stranded DNA-dependent ATPase (rep)
102	 52.74	0	111788..113611	+	607	15639097	-	TP0103	-	ATP-dependent DNA helicase, putative
103	 48.43	-1	113858..115639	+	593	15639098	-	TP0104	-	5'-nucleotidase (ushA)
104	 44.76	-1	115806..118799	+	997	15639099	-	TP0105	-	DNA polymerase I (polA)
105	 49.18	0	118831..120363	-	510	15639100	-	TP0106	-	carnitine transporter, putative
106	 47.02	-1	120344..121921	-	525	15639101	-	TP0107	-	licC protein (licC)
52.88	MEAN

4.31	STD DEV
