IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

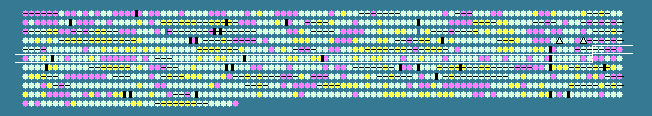

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
496	 53.33	0	530887..531876	+	329	15639487	-	TP0496	-	hypothetical protein
497	 50.82	0	531889..532923	+	344	15639488	-	TP0497	-	rod shape-determining protein (mreB)
498	 48.15	-1	532928..533791	+	287	15639489	-	TP0498	-	rod shape-determining protein (mreC)
499	 43.20	-2	533788..534294	+	168	15639490	-	TP0499	-	rod shape-determining protein (mreD)
500	 48.43	-1	534295..536169	+	624	15639491	-	TP0500	-	penicillin-binding protein (pbp-1)
501	 46.77	-1	536166..537467	+	433	15639492	-	TP0501	-	rod shape-determining protein (rodA)
502	 50.61	0	537493..538389	+	298	15639493	-	TP0502	-	hypothetical protein
503	 53.90	0	538368..538931	+	187	15639494	-	TP0503	-	hypothetical protein
504	 60.28	+1	538913..539053	+	46	15639495	-	TP0504	-	hypothetical protein
505	 53.63	0	539062..540396	-	444	15639496	-	TP0505	-	hexokinase (hxk)
506	 54.25	0	541131..542459	+	442	15639497	tig	TP0506	-	trigger factor
507	 52.94	0	542452..543063	+	203	15639498	-	TP0507	-	ATP-dependent Clp protease proteolytic component (clpP-1)
508	 48.56	-1	543050..544297	+	415	15639499	clpX	TP0508	-	ATP-dependent protease ATP-binding subunit
509	 51.32	0	544394..544960	+	188	15639500	-	TP0509	-	alkyl hydroperoxide reductase (ahpC)
510	 52.20	0	545141..546958	-	605	15639501	-	TP0510	-	GTP-binding protein LepA
511	 49.76	0	547001..547627	+	208	15639502	-	TP0511	-	transcription factor (carD)
512	 57.08	0	547672..548871	+	399	15639503	-	TP0512	-	hypothetical protein
513	 50.96	0	548945..550345	+	466	15639504	trkA	TP0513	-	potassium transporter peripheral membrane component
514	 47.31	-1	550459..553341	+	960	15639505	-	TP0514	-	excinuclease ABC, subunit A (uvrA)
515	 42.14	-2	553338..556313	+	991	15639506	-	TP0515	-	hypothetical protein
516	 41.87	-2	556327..557907	-	526	15639507	-	TP0516	-	virulence factor (mviN)
517	 46.87	-1	557904..558494	-	196	15639508	-	TP0517	-	Holliday junction nuclease (ruvC)
518	 49.21	0	558476..559168	-	230	15639509	-	TP0518	-	hypothetical protein
519	 42.99	-2	559165..560541	-	458	15639510	-	TP0519	-	response regulatory protein (atoC)
520	 49.53	0	561736..563007	-	423	15639511	-	TP0521	-	DNA polymerase III, gamma and tau subunits, putative
521	 45.62	-1	563018..563497	-	159	15639512	-	TP0522	-	hypothetical protein
522	 52.90	0	563494..564648	-	384	15639513	-	TP0523	-	UDP-N-glucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase (murG)
523	 52.04	0	564652..567297	-	881	15639514	-	TP0524	-	ATP-dependent protease LA (lon-2)
524	 49.82	0	567433..567996	+	187	15639515	-	TP0525	-	translation elongation factor P (efp)
525	 49.48	0	568144..570150	+	668	15639516	-	TP0526	-	ATP-dependent helicase (hrpA)
526	 52.70	0	570198..570827	-	209	15639517	-	TP0527	-	V-type ATPase, subunit D (atpD-2)
527	 51.98	0	570922..572364	-	480	15639518	-	TP0528	-	V-type ATP synthase subunit B
528	 54.62	0	572361..574178	-	605	15639519	-	TP0529	-	V-type ATP synthase subunit A
529	 55.50	0	574175..574801	-	208	15639520	-	TP0530	-	V-type ATPase, subunit E, putative
530	 57.23	+1	574807..575145	-	112	15639521	-	TP0531	-	V-type ATPase, subunit F, putative
531	 53.41	0	575765..577129	-	454	15639522	-	TP0533	-	V-type ATPase, subunit I (atpI-2)
532	 54.87	0	577122..578147	-	341	15639523	-	TP0534	-	hypothetical protein
533	 60.09	+1	578151..578363	-	70	15639524	-	TP0535	-	hypothetical protein
534	 57.96	+1	578504..578905	-	133	15639525	secG	TP0536	-	preprotein translocase subunit SecG
535	 56.27	0	579055..579804	-	249	15639526	-	TP0537	-	triosephosphate isomerase (tpi)
536	 53.97	0	579955..581214	-	419	15639527	pgk	TP0538	-	phosphoglycerate kinase
537	 51.35	0	581186..581407	+	73	15639528	-	TP0539	-	hypothetical protein
538	 50.27	0	581688..582059	+	123	15639529	-	TP0540	-	anti-sigma F factor antagonist (SpoIIAA-2)
539	 55.10	0	582189..583148	+	319	15639530	era	TP0541	-	GTP-binding protein Era
540	 53.08	0	583145..584866	-	573	15639531	-	TP0542	-	diphosphate--fructose-6-phosphate 1-phosphotransferase
541	 52.05	0	584926..585609	-	227	15639532	-	TP0543	-	Holliday junction DNA helicase (ruvA)
542	 50.94	0	585651..587519	-	622	15639533	-	TP0544	-	hypothetical protein
543	 51.17	0	587544..588608	-	354	15639534	-	TP0545	-	methylgalactoside ABC transporter, periplasmic galactose-binding protein (mglB-1)
544	 55.17	0	588693..590693	-	666	15639535	-	TP0546	-	periplasmic serine protease, putative
545	 64.19	+2	590405..591535	-	376	15639536	-	TP0547	-	penicillin tolerance protein (lytB)
546	 57.62	+1	591679..592983	+	434	15639537	-	TP0548	-	hypothetical protein
547	 55.26	0	593081..595525	+	814	15639538	-	TP0549	-	ATPase (clpC)
548	 56.18	0	595566..597053	-	495	15639539	trmE	TP0550	-	tRNA modification GTPase TrmE
549	 57.12	0	597057..598145	-	362	15639540	-	TP0551	-	phosphatase
550	 57.12	0	598158..598691	-	177	15639541	-	TP0552	-	hypothetical protein
551	 47.69	-1	598935..600146	+	403	15639542	-	TP0553	-	hypothetical protein
552	 54.56	0	600181..600849	+	222	15639543	-	TP0554	-	phosphoglycolate phosphatase (gph-2)
553	 54.49	0	600913..602103	-	396	15639544	-	TP0555	-	glutamate/ aspartate transporter, putative
554	 53.98	0	602326..603318	-	330	15639545	-	TP0556	-	asparagine synthetase AsnA
555	 51.82	0	603423..604136	+	237	15639546	-	TP0557	-	hypothetical protein
556	 56.44	0	604166..605074	+	302	15639547	-	TP0558	-	hypothetical protein
557	 55.39	0	605136..606341	+	401	15639548	-	TP0559	-	hypothetical protein
558	 54.78	0	606394..608379	-	661	15639549	-	TP0560	-	transketolase A (tktA)
559	 59.39	+1	608490..609341	-	283	15639550	-	TP0561	-	hypothetical protein
560	 57.08	0	609512..610648	+	378	15639551	-	TP0562	-	spore coat polysaccharide biosynthesis protein (spsE)
561	 55.80	0	610639..611052	+	137	15639552	-	TP0563	-	hypothetical protein
562	 51.69	0	611049..613085	+	678	15639553	-	TP0564	-	hypothetical protein
563	 50.29	0	612967..614187	-	406	15639554	-	TP0565	-	hypothetical protein
564	 45.50	-1	614198..615685	-	495	15639555	-	TP0566	-	alginate O-acetylation protein (algI)
565	 50.24	0	615717..616337	-	206	15639556	-	TP0567	-	hypothetical protein
566	 54.98	0	616416..617048	-	210	15639557	-	TP0568	-	4-hydroxy-2-oxoglutarate aldolase/2-dehydro-3-deoxyphosphogluconate aldolase (eda)
567	 56.47	0	617170..619494	-	774	15639558	-	TP0569	-	aminopeptidase P
568	 56.03	0	619519..620364	-	281	15639559	-	TP0570	-	hypothetical protein
569	 55.56	0	620391..621056	-	221	15639560	-	TP0571	-	Tp70 protein
570	 56.23	0	621074..622156	-	360	15639561	-	TP0572	-	hypothetical protein
571	 44.09	-2	622147..622239	+	30	15639562	-	TP0573	-	hypothetical protein
572	 54.02	0	622266..623570	-	434	15639563	-	TP0574	-	carboxypeptidase, 47 kDa
573	 56.01	0	625802..626908	+	368	15639564	-	TP0576	-	peptide chain release factor 2 (prfB)
574	 56.04	0	626800..628644	+	614	15639565	-	TP0577	-	hypothetical protein
575	 54.39	0	628651..629538	+	295	15639566	-	TP0578	-	cell division protein (ftsY)
576	 52.77	0	629535..630311	+	258	15639567	-	TP0579	-	hypothetical protein
577	 46.90	-1	630304..631593	+	429	15639568	-	TP0580	-	hypothetical protein
578	 46.70	-1	631586..632266	+	226	15639569	-	TP0581	-	ABC transporter, ATP-binding protein
579	 50.81	0	632263..633750	+	495	15639570	-	TP0582	-	hypothetical protein
580	 53.17	0	633734..633859	-	41	15639571	-	TP0583	-	hypothetical protein
581	 48.72	0	633846..635255	+	469	15639572	-	TP0584	-	hypothetical protein
582	 54.50	0	635248..636891	+	547	15639573	-	TP0585	-	oligopeptide ABC transporter, periplasmic binding protein (oppA)
583	 53.55	0	636980..639616	+	878	15639574	leuS	TP0586	-	leucyl-tRNA synthetase
584	 54.55	0	639596..639826	-	76	15639575	-	TP0587	-	hypothetical protein
585	 48.24	-1	639853..640617	-	254	15639576	-	TP0588	-	hypothetical protein
586	 49.81	0	640705..640971	-	88	15639577	-	TP0589	-	phosphocarrier protein HPr (ptsH)
587	 49.57	0	640943..641059	-	38	15639578	-	TP0590	-	ribosomal protein L36 (rpmJ-2)
588	 48.08	-1	641016..642005	-	329	161579585	-	TP0591	-	HPr kinase/phosphorylase
589	 52.10	0	642738..644240	+	500	15639580	-	TP0592	-	hypothetical protein
590	 55.11	0	644177..646210	+	677	15639581	-	TP0593	-	hypothetical protein
591	 52.05	0	646297..646905	-	202	15639582	-	TP0594	-	hypothetical protein
592	 52.04	0	646933..647568	-	211	15639583	-	TP0595	-	adenylate kinase (adk)
593	 56.33	0	647592..648704	-	370	15639584	-	TP0596	-	polynucleotide adenylyltransferase (pcnB)
594	 48.75	0	648812..649090	-	92	15639585	-	TP0597	-	hypothetical protein
595	 51.05	0	649054..650871	-	605	15639586	-	TP0598	-	hypothetical protein
52.88	MEAN

4.31	STD DEV
