IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

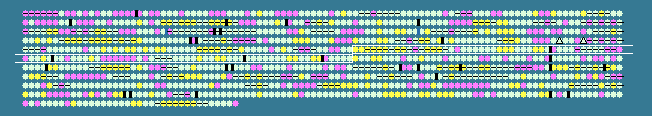

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
456	 59.23	+1	485077..486393	-	438	15639447	-	TP0456	-	hypothetical protein
457	 58.02	+1	486461..488242	+	593	15639448	-	TP0457	-	hypothetical protein
458	 58.55	+1	488333..488911	+	192	15639449	-	TP0458	-	hypothetical protein
459	 59.67	+1	488940..489725	+	261	15639450	-	TP0459	-	hypothetical protein
460	 59.04	+1	489768..490475	+	235	15639451	-	TP0460	-	hypothetical protein
461	 57.78	+1	490476..490835	+	119	15639452	-	TP0461	-	hypothetical protein
462	 56.11	0	491040..491882	+	280	15639453	-	TP0462	-	hypothetical protein
463	 56.76	0	491887..492219	+	110	15639454	-	TP0463	-	hypothetical protein
464	 61.62	+2	492278..493030	-	250	15639455	-	TP0464	-	hypothetical protein
465	 55.44	0	493027..493899	-	290	15639456	-	TP0465	-	hypothetical protein
466	 45.73	-1	493832..495001	-	389	15639457	-	TP0466	-	hypothetical protein
467	 53.01	0	494992..495240	+	82	15639458	-	TP0467	-	hypothetical protein
468	 56.87	0	495210..495740	-	176	15639459	-	TP0468	-	hypothetical protein
469	 57.65	+1	495698..497161	-	487	15639460	-	TP0469	-	hypothetical protein
470	 62.52	+2	497154..498263	-	369	15639461	-	TP0470	-	hypothetical protein
471	 53.62	0	498255..499664	+	469	15639462	-	TP0471	-	hypothetical protein
472	 50.72	0	499677..501752	-	691	15639463	-	TP0472	-	excinuclease ABC, subunit C (uvrC)
473	 48.84	0	501827..502471	-	214	15639464	-	TP0473	-	hypothetical protein
474	 52.17	0	502536..503273	-	245	15639465	-	TP0474	-	hypothetical protein
475	 53.73	0	503414..505021	-	535	15639466	pgi	TP0475	-	glucose-6-phosphate isomerase
476	 52.41	0	505085..506431	-	448	15639467	-	TP0476	-	acetate kinase (ack)
477	 56.34	0	506498..507223	-	241	15639468	-	TP0477	-	glucose-6-phosphate 1-dehydrogenase, putative
478	 55.56	0	507284..508831	-	515	15639469	-	TP0478	-	glucose-6-phosphate 1-dehydrogenase
479	 56.30	0	508904..509578	-	224	15639470	-	TP0479	-	hypothetical protein
480	 56.44	0	509690..510178	+	162	15639471	-	TP0480	-	hypothetical protein
481	 56.97	0	510210..511643	+	477	15639472	-	TP0481	-	hypothetical protein
482	 60.31	+1	511610..512458	+	282	15639473	-	TP0482	-	hypothetical protein
483	 52.44	0	512524..513648	-	374	15639474	-	TP0483	-	hypothetical protein
484	 55.06	0	513635..515650	-	671	15639475	-	TP0484	-	hypothetical protein
485	 52.36	0	515544..517388	-	614	15639476	-	TP0485	-	adenylate cyclase
486	 60.34	+1	517526..518980	-	484	15639477	-	TP0486	-	antigen, p83/100
487	 59.76	+1	519069..520646	-	525	15639478	-	TP0487	-	hypothetical protein
488	 54.77	0	520874..523411	+	845	15639479	-	TP0488	-	methyl-accepting chemotaxis protein (mcp2-1)
489	 48.50	-1	523859..524827	+	322	15639480	-	TP0489	-	hypothetical protein
490	 55.03	0	524824..525012	+	62	15639481	-	TP0490	-	hypothetical protein
491	 52.08	0	525019..526053	+	344	15639482	-	TP0491	-	hypothetical protein
492	 51.05	0	526077..527894	+	605	15639483	-	TP0492	-	DNA primase (dnaG)
493	 49.02	0	527891..529726	+	611	15639484	-	TP0493	-	RNA polymerase sigma factor RpoD
494	 52.07	0	529736..530557	+	273	15639485	-	TP0494	-	hypothetical protein
495	 54.67	0	530646..530795	-	49	15639486	-	TP0495	-	hypothetical protein
496	 53.33	0	530887..531876	+	329	15639487	-	TP0496	-	hypothetical protein
497	 50.82	0	531889..532923	+	344	15639488	-	TP0497	-	rod shape-determining protein (mreB)
498	 48.15	-1	532928..533791	+	287	15639489	-	TP0498	-	rod shape-determining protein (mreC)
499	 43.20	-2	533788..534294	+	168	15639490	-	TP0499	-	rod shape-determining protein (mreD)
500	 48.43	-1	534295..536169	+	624	15639491	-	TP0500	-	penicillin-binding protein (pbp-1)
501	 46.77	-1	536166..537467	+	433	15639492	-	TP0501	-	rod shape-determining protein (rodA)
502	 50.61	0	537493..538389	+	298	15639493	-	TP0502	-	hypothetical protein
503	 53.90	0	538368..538931	+	187	15639494	-	TP0503	-	hypothetical protein
504	 60.28	+1	538913..539053	+	46	15639495	-	TP0504	-	hypothetical protein
505	 53.63	0	539062..540396	-	444	15639496	-	TP0505	-	hexokinase (hxk)
506	 54.25	0	541131..542459	+	442	15639497	tig	TP0506	-	trigger factor
507	 52.94	0	542452..543063	+	203	15639498	-	TP0507	-	ATP-dependent Clp protease proteolytic component (clpP-1)
508	 48.56	-1	543050..544297	+	415	15639499	clpX	TP0508	-	ATP-dependent protease ATP-binding subunit
509	 51.32	0	544394..544960	+	188	15639500	-	TP0509	-	alkyl hydroperoxide reductase (ahpC)
510	 52.20	0	545141..546958	-	605	15639501	-	TP0510	-	GTP-binding protein LepA
511	 49.76	0	547001..547627	+	208	15639502	-	TP0511	-	transcription factor (carD)
512	 57.08	0	547672..548871	+	399	15639503	-	TP0512	-	hypothetical protein
513	 50.96	0	548945..550345	+	466	15639504	trkA	TP0513	-	potassium transporter peripheral membrane component
514	 47.31	-1	550459..553341	+	960	15639505	-	TP0514	-	excinuclease ABC, subunit A (uvrA)
515	 42.14	-2	553338..556313	+	991	15639506	-	TP0515	-	hypothetical protein
516	 41.87	-2	556327..557907	-	526	15639507	-	TP0516	-	virulence factor (mviN)
517	 46.87	-1	557904..558494	-	196	15639508	-	TP0517	-	Holliday junction nuclease (ruvC)
518	 49.21	0	558476..559168	-	230	15639509	-	TP0518	-	hypothetical protein
519	 42.99	-2	559165..560541	-	458	15639510	-	TP0519	-	response regulatory protein (atoC)
520	 49.53	0	561736..563007	-	423	15639511	-	TP0521	-	DNA polymerase III, gamma and tau subunits, putative
521	 45.62	-1	563018..563497	-	159	15639512	-	TP0522	-	hypothetical protein
522	 52.90	0	563494..564648	-	384	15639513	-	TP0523	-	UDP-N-glucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase (murG)
523	 52.04	0	564652..567297	-	881	15639514	-	TP0524	-	ATP-dependent protease LA (lon-2)
524	 49.82	0	567433..567996	+	187	15639515	-	TP0525	-	translation elongation factor P (efp)
525	 49.48	0	568144..570150	+	668	15639516	-	TP0526	-	ATP-dependent helicase (hrpA)
526	 52.70	0	570198..570827	-	209	15639517	-	TP0527	-	V-type ATPase, subunit D (atpD-2)
527	 51.98	0	570922..572364	-	480	15639518	-	TP0528	-	V-type ATP synthase subunit B
528	 54.62	0	572361..574178	-	605	15639519	-	TP0529	-	V-type ATP synthase subunit A
529	 55.50	0	574175..574801	-	208	15639520	-	TP0530	-	V-type ATPase, subunit E, putative
530	 57.23	+1	574807..575145	-	112	15639521	-	TP0531	-	V-type ATPase, subunit F, putative
531	 53.41	0	575765..577129	-	454	15639522	-	TP0533	-	V-type ATPase, subunit I (atpI-2)
532	 54.87	0	577122..578147	-	341	15639523	-	TP0534	-	hypothetical protein
533	 60.09	+1	578151..578363	-	70	15639524	-	TP0535	-	hypothetical protein
534	 57.96	+1	578504..578905	-	133	15639525	secG	TP0536	-	preprotein translocase subunit SecG
535	 56.27	0	579055..579804	-	249	15639526	-	TP0537	-	triosephosphate isomerase (tpi)
536	 53.97	0	579955..581214	-	419	15639527	pgk	TP0538	-	phosphoglycerate kinase
537	 51.35	0	581186..581407	+	73	15639528	-	TP0539	-	hypothetical protein
538	 50.27	0	581688..582059	+	123	15639529	-	TP0540	-	anti-sigma F factor antagonist (SpoIIAA-2)
539	 55.10	0	582189..583148	+	319	15639530	era	TP0541	-	GTP-binding protein Era
540	 53.08	0	583145..584866	-	573	15639531	-	TP0542	-	diphosphate--fructose-6-phosphate 1-phosphotransferase
541	 52.05	0	584926..585609	-	227	15639532	-	TP0543	-	Holliday junction DNA helicase (ruvA)
542	 50.94	0	585651..587519	-	622	15639533	-	TP0544	-	hypothetical protein
543	 51.17	0	587544..588608	-	354	15639534	-	TP0545	-	methylgalactoside ABC transporter, periplasmic galactose-binding protein (mglB-1)
544	 55.17	0	588693..590693	-	666	15639535	-	TP0546	-	periplasmic serine protease, putative
545	 64.19	+2	590405..591535	-	376	15639536	-	TP0547	-	penicillin tolerance protein (lytB)
546	 57.62	+1	591679..592983	+	434	15639537	-	TP0548	-	hypothetical protein
547	 55.26	0	593081..595525	+	814	15639538	-	TP0549	-	ATPase (clpC)
548	 56.18	0	595566..597053	-	495	15639539	trmE	TP0550	-	tRNA modification GTPase TrmE
549	 57.12	0	597057..598145	-	362	15639540	-	TP0551	-	phosphatase
550	 57.12	0	598158..598691	-	177	15639541	-	TP0552	-	hypothetical protein
551	 47.69	-1	598935..600146	+	403	15639542	-	TP0553	-	hypothetical protein
552	 54.56	0	600181..600849	+	222	15639543	-	TP0554	-	phosphoglycolate phosphatase (gph-2)
553	 54.49	0	600913..602103	-	396	15639544	-	TP0555	-	glutamate/ aspartate transporter, putative
554	 53.98	0	602326..603318	-	330	15639545	-	TP0556	-	asparagine synthetase AsnA
555	 51.82	0	603423..604136	+	237	15639546	-	TP0557	-	hypothetical protein
52.88	MEAN

4.31	STD DEV
