IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

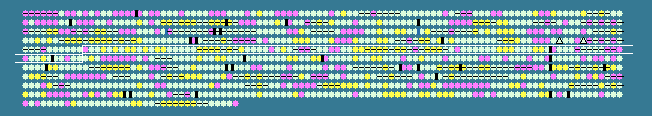

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
411	 47.39	-1	438543..438848	-	101	15639403	-	TP0412	-	hypothetical protein
412	 54.50	0	438867..440765	-	632	15639404	-	TP0413	-	phosphoglucomutase
413	 56.19	0	440868..442223	+	451	15639405	-	TP0414	-	D-alanine glycine permease (dagA)
414	 59.36	+1	442204..442737	+	177	15639406	-	TP0415	-	hypothetical protein
415	 55.04	0	442684..444042	-	452	15639407	-	TP0416	-	signal recognition particle protein (ffh)
416	 57.38	+1	444035..445714	-	559	15639408	lnt	TP0417	-	apolipoprotein N-acyltransferase
417	 54.52	0	445741..446934	+	397	15639409	-	TP0418	-	galactokinase
418	 58.51	+1	446931..447494	+	187	15639410	-	TP0419	-	survival protein, putative
419	 58.77	+1	447475..447702	+	75	15639411	-	TP0420	-	hypothetical protein
420	 55.41	0	447836..449887	+	683	15639412	-	TP0421	-	hypothetical protein
421	 57.21	+1	449871..450896	+	341	15639413	-	TP0422	-	hypothetical protein
422	 55.64	0	450921..451727	+	268	15639414	-	TP0423	-	hypothetical protein
423	 56.65	0	451930..452628	+	232	15639415	-	TP0424	-	V-type ATP synthase subunit E
424	 60.15	+1	452606..452866	+	86	15639416	-	TP0425	-	hypothetical protein
425	 54.01	0	453008..454777	+	589	15639417	-	TP0426	-	V-type ATP synthase subunit A
426	 50.89	0	454781..456073	+	430	15639418	-	TP0427	-	V-type ATP synthase subunit B
427	 50.56	0	456085..456705	+	206	15639419	-	TP0428	-	V-type ATP synthase subunit D
428	 53.24	0	456702..458570	+	622	15639420	-	TP0429	-	V-type ATP synthase subunit I
429	 54.14	0	458607..459029	+	140	15639421	-	TP0430	-	V-type ATP synthase subunit K
430	 57.42	+1	459063..459884	+	273	15639422	-	TP0431	-	hypothetical protein
431	 56.70	0	459927..460478	+	183	15639423	-	TP0432	-	hypothetical protein
432	 58.50	+1	460533..461303	+	256	15639424	-	TP0433	-	hypothetical protein
433	 59.80	+1	461245..461928	+	227	15639425	-	TP0434	-	hypothetical protein
434	 55.84	0	462025..462495	-	156	15639426	-	TP0435	-	lipoprotein, 17 kDa (tpp17)
435	 59.10	+1	462626..463708	-	360	15639427	-	TP0436	-	hypothetical protein
436	 53.86	0	463674..464204	-	176	15639428	-	TP0437	-	hypothetical protein
437	 58.40	+1	464234..465043	+	269	15639429	-	TP0438	-	hypothetical protein
438	 54.39	0	465130..465642	+	170	15639430	-	TP0439	-	purine-binding chemotaxis protein (cheW-2)
439	 56.34	0	465732..466883	+	383	15639431	-	TP0440	-	spore coat polysaccharide biosynthesis protein, putative
440	 53.81	0	466880..467797	+	305	15639432	-	TP0441	-	hypothetical protein
441	 55.11	0	467790..469511	+	573	15639433	-	TP0442	-	DNA repair protein (recN)
442	 48.19	-1	469453..470307	+	284	15639434	-	TP0443	-	hypothetical protein
443	 55.59	0	470313..471341	+	342	15639435	-	TP0444	-	hypothetical protein
444	 59.52	+1	471477..472106	+	209	15639436	-	TP0445	-	4-methyl-5(b-hydroxyethyl)-thiazole monophosphate biosynthesis enzyme (thiJ)
445	 52.02	0	472148..473362	+	404	15639437	-	TP0446	-	gcpE protein (gcpE)
446	 50.58	0	473359..474483	+	374	15639438	-	TP0447	-	hypothetical protein
447	 44.78	-1	474541..475623	+	360	15639439	-	TP0448	-	uracil phosphoribosyltransferase, putative
448	 44.16	-2	475627..476217	+	196	15639440	-	TP0449	-	hypothetical protein
449	 49.42	0	476354..478405	+	683	15639441	-	TP0450	-	elongation factor G
450	 51.37	0	478394..478576	-	60	15639442	-	TP0451	-	hypothetical protein
451	 51.26	0	478421..478777	+	118	15640030	-	TP0451a	-	permease
452	 48.84	0	478855..482130	+	1091	15639443	ileS	TP0452	-	isoleucyl-tRNA synthetase
453	 46.30	-1	482117..482980	+	287	15639444	-	TP0453	-	hypothetical protein
454	 55.80	0	483330..484019	-	229	15639445	-	TP0454	-	hypothetical protein
455	 52.74	0	484016..485020	-	334	15639446	-	TP0455	-	hypothetical protein
456	 59.23	+1	485077..486393	-	438	15639447	-	TP0456	-	hypothetical protein
457	 58.02	+1	486461..488242	+	593	15639448	-	TP0457	-	hypothetical protein
458	 58.55	+1	488333..488911	+	192	15639449	-	TP0458	-	hypothetical protein
459	 59.67	+1	488940..489725	+	261	15639450	-	TP0459	-	hypothetical protein
460	 59.04	+1	489768..490475	+	235	15639451	-	TP0460	-	hypothetical protein
461	 57.78	+1	490476..490835	+	119	15639452	-	TP0461	-	hypothetical protein
462	 56.11	0	491040..491882	+	280	15639453	-	TP0462	-	hypothetical protein
463	 56.76	0	491887..492219	+	110	15639454	-	TP0463	-	hypothetical protein
464	 61.62	+2	492278..493030	-	250	15639455	-	TP0464	-	hypothetical protein
465	 55.44	0	493027..493899	-	290	15639456	-	TP0465	-	hypothetical protein
466	 45.73	-1	493832..495001	-	389	15639457	-	TP0466	-	hypothetical protein
467	 53.01	0	494992..495240	+	82	15639458	-	TP0467	-	hypothetical protein
468	 56.87	0	495210..495740	-	176	15639459	-	TP0468	-	hypothetical protein
469	 57.65	+1	495698..497161	-	487	15639460	-	TP0469	-	hypothetical protein
470	 62.52	+2	497154..498263	-	369	15639461	-	TP0470	-	hypothetical protein
471	 53.62	0	498255..499664	+	469	15639462	-	TP0471	-	hypothetical protein
472	 50.72	0	499677..501752	-	691	15639463	-	TP0472	-	excinuclease ABC, subunit C (uvrC)
473	 48.84	0	501827..502471	-	214	15639464	-	TP0473	-	hypothetical protein
474	 52.17	0	502536..503273	-	245	15639465	-	TP0474	-	hypothetical protein
475	 53.73	0	503414..505021	-	535	15639466	pgi	TP0475	-	glucose-6-phosphate isomerase
476	 52.41	0	505085..506431	-	448	15639467	-	TP0476	-	acetate kinase (ack)
477	 56.34	0	506498..507223	-	241	15639468	-	TP0477	-	glucose-6-phosphate 1-dehydrogenase, putative
478	 55.56	0	507284..508831	-	515	15639469	-	TP0478	-	glucose-6-phosphate 1-dehydrogenase
479	 56.30	0	508904..509578	-	224	15639470	-	TP0479	-	hypothetical protein
480	 56.44	0	509690..510178	+	162	15639471	-	TP0480	-	hypothetical protein
481	 56.97	0	510210..511643	+	477	15639472	-	TP0481	-	hypothetical protein
482	 60.31	+1	511610..512458	+	282	15639473	-	TP0482	-	hypothetical protein
483	 52.44	0	512524..513648	-	374	15639474	-	TP0483	-	hypothetical protein
484	 55.06	0	513635..515650	-	671	15639475	-	TP0484	-	hypothetical protein
485	 52.36	0	515544..517388	-	614	15639476	-	TP0485	-	adenylate cyclase
486	 60.34	+1	517526..518980	-	484	15639477	-	TP0486	-	antigen, p83/100
487	 59.76	+1	519069..520646	-	525	15639478	-	TP0487	-	hypothetical protein
488	 54.77	0	520874..523411	+	845	15639479	-	TP0488	-	methyl-accepting chemotaxis protein (mcp2-1)
489	 48.50	-1	523859..524827	+	322	15639480	-	TP0489	-	hypothetical protein
490	 55.03	0	524824..525012	+	62	15639481	-	TP0490	-	hypothetical protein
491	 52.08	0	525019..526053	+	344	15639482	-	TP0491	-	hypothetical protein
492	 51.05	0	526077..527894	+	605	15639483	-	TP0492	-	DNA primase (dnaG)
493	 49.02	0	527891..529726	+	611	15639484	-	TP0493	-	RNA polymerase sigma factor RpoD
494	 52.07	0	529736..530557	+	273	15639485	-	TP0494	-	hypothetical protein
495	 54.67	0	530646..530795	-	49	15639486	-	TP0495	-	hypothetical protein
496	 53.33	0	530887..531876	+	329	15639487	-	TP0496	-	hypothetical protein
497	 50.82	0	531889..532923	+	344	15639488	-	TP0497	-	rod shape-determining protein (mreB)
498	 48.15	-1	532928..533791	+	287	15639489	-	TP0498	-	rod shape-determining protein (mreC)
499	 43.20	-2	533788..534294	+	168	15639490	-	TP0499	-	rod shape-determining protein (mreD)
500	 48.43	-1	534295..536169	+	624	15639491	-	TP0500	-	penicillin-binding protein (pbp-1)
501	 46.77	-1	536166..537467	+	433	15639492	-	TP0501	-	rod shape-determining protein (rodA)
502	 50.61	0	537493..538389	+	298	15639493	-	TP0502	-	hypothetical protein
503	 53.90	0	538368..538931	+	187	15639494	-	TP0503	-	hypothetical protein
504	 60.28	+1	538913..539053	+	46	15639495	-	TP0504	-	hypothetical protein
505	 53.63	0	539062..540396	-	444	15639496	-	TP0505	-	hexokinase (hxk)
506	 54.25	0	541131..542459	+	442	15639497	tig	TP0506	-	trigger factor
507	 52.94	0	542452..543063	+	203	15639498	-	TP0507	-	ATP-dependent Clp protease proteolytic component (clpP-1)
508	 48.56	-1	543050..544297	+	415	15639499	clpX	TP0508	-	ATP-dependent protease ATP-binding subunit
509	 51.32	0	544394..544960	+	188	15639500	-	TP0509	-	alkyl hydroperoxide reductase (ahpC)
510	 52.20	0	545141..546958	-	605	15639501	-	TP0510	-	GTP-binding protein LepA
52.88	MEAN

4.31	STD DEV
