IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

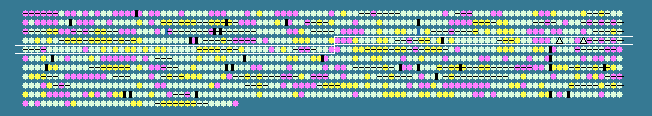

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
353	 47.21	-1	377970..378596	+	208	15639345	-	TP0354	-	thymidylate kinase (tmk)
354	 47.66	-1	378563..378946	-	127	15639346	-	TP0355	-	hypothetical protein
355	 47.80	-1	379151..379468	+	105	15639347	-	TP0356	-	RNA-binding protein, putative
356	 58.84	+1	379570..380310	+	246	15639348	-	TP0357	-	biotin--acetyl-CoA-carboxylase ligase (birA)
357	 51.87	0	380315..381895	-	526	15639349	-	TP0358	-	hypothetical protein
358	 52.52	0	381907..382542	-	211	15639350	-	TP0359	-	hypothetical protein
359	 54.80	0	382753..382929	+	58	15639351	-	TP0360	-	hypothetical protein
360	 57.60	+1	382926..383774	-	282	15639352	-	TP0361	-	lysophosphatidic acid acyltransferase, putative
361	 59.92	+1	383850..384086	+	78	15639353	-	TP0362	-	ribosomal protein L28 (rpmB)
362	 54.24	0	384578..387016	+	812	15639354	-	TP0363	-	chemotaxis histidine kinase (cheA)
363	 52.12	0	387010..388377	+	455	15639355	-	TP0364	-	purine-binding chemotaxis protein (cheW-1)
364	 52.26	0	388399..388863	+	154	15639356	-	TP0365	-	chemotaxis protein (cheX)
365	 48.28	-1	388876..389310	+	144	15639357	-	TP0366	-	chemotaxis response regulator (cheY)
366	 52.44	0	389614..392439	+	941	15639358	-	TP0367	-	chromosome segregation protein, putative
367	 59.23	+1	392439..392774	+	111	15639359	-	TP0368	-	hypothetical protein
368	 59.06	+1	392771..394321	+	516	15639360	-	TP0369	-	hypothetical protein
369	 50.60	0	394389..394805	-	138	15639361	-	TP0370	-	hypothetical protein
370	 58.11	+1	394779..395654	+	291	15639362	-	TP0371	-	hypothetical protein
371	 55.84	0	395776..396366	+	196	15639363	-	TP0372	-	50S ribosomal protein L25/general stress protein Ctc
372	 56.90	0	396426..397859	+	477	15639364	-	TP0373	-	hypothetical protein
373	 54.29	0	397795..400170	+	791	15639365	-	TP0374	-	hypothetical protein
374	 50.00	0	400328..400537	+	69	15639366	-	TP0375	-	hypothetical protein
375	 53.31	0	400853..401758	-	301	15639367	-	TP0376	-	hypothetical protein
376	 55.56	0	401827..401952	+	41	15639368	-	TP0377	-	hypothetical protein
377	 53.02	0	401949..402329	+	126	15639369	-	TP0378	-	flagellar protein, putative
378	 51.76	0	402404..405154	-	916	15639370	secA	TP0379	-	preprotein translocase subunit SecA
379	 54.81	0	405261..407081	-	606	15639371	-	TP0380	-	DNA repair helicase, putative
380	 54.11	0	407219..407935	-	238	15639372	-	TP0381	-	hypothetical protein
381	 58.54	+1	408019..408141	+	40	15639373	-	TP0382	-	hypothetical protein
382	 58.22	+1	408169..408618	+	149	15639374	-	TP0383	-	cell division protein MraZ
383	 59.56	+1	408615..409754	+	379	15639375	-	TP0384	-	hypothetical protein
384	 54.93	0	409767..410141	+	124	15639376	-	TP0385	-	hypothetical protein
385	 52.03	0	410125..411504	+	459	15639377	-	TP0386	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanine ligase (murF)
386	 42.34	-2	411501..412655	+	384	15639378	-	TP0387	-	cell division protein (ftsW)
387	 45.83	-1	412633..413448	+	271	15639379	-	TP0388	-	cell division protein (ftsQ)
388	 49.40	0	413461..414705	+	414	15639380	-	TP0389	-	cell division protein (ftsA)
389	 50.28	0	414751..416007	+	418	15639381	-	TP0390	-	cell division protein FtsZ
390	 50.38	0	416004..416924	+	306	15639382	-	TP0391	-	integrase/recombinase (codV)
391	 50.62	0	416707..417666	+	319	15639383	-	TP0392	-	hypothetical protein
392	 49.72	0	417663..418571	+	302	15639384	-	TP0393	-	smf protein (smf)
393	 47.81	-1	418604..420799	+	731	15639385	-	TP0394	-	DNA topoisomerase I (topA)
394	 51.79	0	420792..421685	+	297	15639386	-	TP0395	-	integrase/recombinase (xprB)
395	 48.18	-1	421833..422243	+	136	15639387	-	TP0396	-	flagellar basal-body rod protein (flgB)
396	 50.77	0	422328..422717	+	129	15639388	flgC	TP0397	-	flagellar basal body rod protein FlgC
397	 48.00	-1	422773..423147	+	124	15639389	fliE	TP0398	-	flagellar hook-basal body protein FliE
398	 50.12	0	423264..424967	+	567	15639390	fliF	TP0399	-	flagellar MS-ring protein
399	 45.51	-1	424972..426030	+	352	15639391	fliG	TP0400	-	flagellar motor switch protein G
400	 51.08	0	426078..427007	+	309	15639392	fliH	TP0401	-	flagellar assembly protein H
401	 55.36	0	427035..428378	+	447	15639393	-	TP0402	-	flagellum-specific ATP synthase (fliI)
402	 53.64	0	428407..428859	+	150	15639394	-	TP0403	-	flagellar protein, putative
403	 54.68	0	428856..429389	-	177	15639395	-	TP0404	-	hypothetical protein
404	 48.22	-1	429386..429835	-	149	15639396	-	TP0405	-	mcbG protein, putative
405	 53.16	0	430026..430832	+	268	15639397	-	TP0406	-	glutamate racemase (murI)
406	 56.15	0	430960..431634	+	224	15639398	-	TP0407	-	phosphoglycolate phosphatase (gph-1)
407	 50.32	0	431713..434967	+	1084	15639399	-	TP0408	-	hypothetical protein
408	 52.15	0	435007..435192	+	61	15639400	-	TP0409	-	hypothetical protein
409	 53.60	0	435457..437208	+	583	15639401	secD	TP0410	-	preprotein translocase subunit SecD
410	 54.24	0	437205..438467	+	420	15639402	secF	TP0411	-	preprotein translocase subunit SecF
411	 47.39	-1	438543..438848	-	101	15639403	-	TP0412	-	hypothetical protein
412	 54.50	0	438867..440765	-	632	15639404	-	TP0413	-	phosphoglucomutase
413	 56.19	0	440868..442223	+	451	15639405	-	TP0414	-	D-alanine glycine permease (dagA)
414	 59.36	+1	442204..442737	+	177	15639406	-	TP0415	-	hypothetical protein
415	 55.04	0	442684..444042	-	452	15639407	-	TP0416	-	signal recognition particle protein (ffh)
416	 57.38	+1	444035..445714	-	559	15639408	lnt	TP0417	-	apolipoprotein N-acyltransferase
417	 54.52	0	445741..446934	+	397	15639409	-	TP0418	-	galactokinase
418	 58.51	+1	446931..447494	+	187	15639410	-	TP0419	-	survival protein, putative
419	 58.77	+1	447475..447702	+	75	15639411	-	TP0420	-	hypothetical protein
420	 55.41	0	447836..449887	+	683	15639412	-	TP0421	-	hypothetical protein
421	 57.21	+1	449871..450896	+	341	15639413	-	TP0422	-	hypothetical protein
422	 55.64	0	450921..451727	+	268	15639414	-	TP0423	-	hypothetical protein
423	 56.65	0	451930..452628	+	232	15639415	-	TP0424	-	V-type ATP synthase subunit E
424	 60.15	+1	452606..452866	+	86	15639416	-	TP0425	-	hypothetical protein
425	 54.01	0	453008..454777	+	589	15639417	-	TP0426	-	V-type ATP synthase subunit A
426	 50.89	0	454781..456073	+	430	15639418	-	TP0427	-	V-type ATP synthase subunit B
427	 50.56	0	456085..456705	+	206	15639419	-	TP0428	-	V-type ATP synthase subunit D
428	 53.24	0	456702..458570	+	622	15639420	-	TP0429	-	V-type ATP synthase subunit I
429	 54.14	0	458607..459029	+	140	15639421	-	TP0430	-	V-type ATP synthase subunit K
430	 57.42	+1	459063..459884	+	273	15639422	-	TP0431	-	hypothetical protein
431	 56.70	0	459927..460478	+	183	15639423	-	TP0432	-	hypothetical protein
432	 58.50	+1	460533..461303	+	256	15639424	-	TP0433	-	hypothetical protein
433	 59.80	+1	461245..461928	+	227	15639425	-	TP0434	-	hypothetical protein
434	 55.84	0	462025..462495	-	156	15639426	-	TP0435	-	lipoprotein, 17 kDa (tpp17)
435	 59.10	+1	462626..463708	-	360	15639427	-	TP0436	-	hypothetical protein
436	 53.86	0	463674..464204	-	176	15639428	-	TP0437	-	hypothetical protein
437	 58.40	+1	464234..465043	+	269	15639429	-	TP0438	-	hypothetical protein
438	 54.39	0	465130..465642	+	170	15639430	-	TP0439	-	purine-binding chemotaxis protein (cheW-2)
439	 56.34	0	465732..466883	+	383	15639431	-	TP0440	-	spore coat polysaccharide biosynthesis protein, putative
440	 53.81	0	466880..467797	+	305	15639432	-	TP0441	-	hypothetical protein
441	 55.11	0	467790..469511	+	573	15639433	-	TP0442	-	DNA repair protein (recN)
442	 48.19	-1	469453..470307	+	284	15639434	-	TP0443	-	hypothetical protein
443	 55.59	0	470313..471341	+	342	15639435	-	TP0444	-	hypothetical protein
444	 59.52	+1	471477..472106	+	209	15639436	-	TP0445	-	4-methyl-5(b-hydroxyethyl)-thiazole monophosphate biosynthesis enzyme (thiJ)
445	 52.02	0	472148..473362	+	404	15639437	-	TP0446	-	gcpE protein (gcpE)
446	 50.58	0	473359..474483	+	374	15639438	-	TP0447	-	hypothetical protein
447	 44.78	-1	474541..475623	+	360	15639439	-	TP0448	-	uracil phosphoribosyltransferase, putative
448	 44.16	-2	475627..476217	+	196	15639440	-	TP0449	-	hypothetical protein
449	 49.42	0	476354..478405	+	683	15639441	-	TP0450	-	elongation factor G
450	 51.37	0	478394..478576	-	60	15639442	-	TP0451	-	hypothetical protein
451	 51.26	0	478421..478777	+	118	15640030	-	TP0451a	-	permease
452	 48.84	0	478855..482130	+	1091	15639443	ileS	TP0452	-	isoleucyl-tRNA synthetase
52.88	MEAN

4.31	STD DEV
