IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

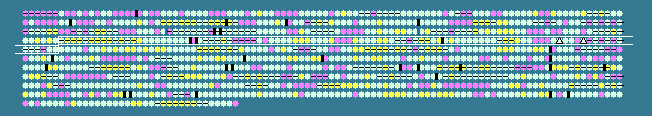

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
307	 55.39	0	323571..324599	+	342	15639299	-	TP0307	-	hypothetical protein
308	 56.52	0	324574..325539	+	321	15639300	-	TP0308	-	amino acid ABC transporter, periplasmic binding protein (hisJ)
309	 57.26	+1	325605..326423	+	272	15639301	-	TP0309	-	amino acid ABC transporter, periplasmic binding protein
310	 58.59	+1	326392..326775	+	127	15639302	-	TP0310	-	hypothetical protein
311	 55.56	0	326754..326897	-	47	15639303	-	TP0311	-	hypothetical protein
312	 60.75	+1	326881..327894	+	337	15639304	-	TP0312	-	hypothetical protein
313	 56.75	0	327985..330273	+	762	15639305	-	TP0313	-	TPR protein E (tprE)
314	 59.18	+1	330330..330476	-	48	15639306	-	TP0314	-	hypothetical protein
315	 60.80	+1	330499..331146	-	215	15639307	-	TP0315	-	hypothetical protein
316	 56.32	0	332393..334663	-	756	15639308	-	TP0317	-	TPR protein G (tprG)
317	 61.67	+2	334615..334794	-	59	15639309	-	TP0318	-	hypothetical protein
318	 54.33	0	334823..335884	+	353	15639310	-	TP0319	-	membrane lipoprotein (tmpC)
319	 58.33	+1	335894..336049	+	51	15639311	-	TP0320	-	hypothetical protein
320	 56.87	0	336125..337726	+	533	15639312	-	TP0321	-	ribose/galactose ABC transporter, ATP-binding protein (rbsA-2)
321	 55.36	0	337636..338838	+	400	15639313	-	TP0322	-	ribose/galactose ABC transporter, permease protein (rbsC-1)
322	 53.10	0	338835..339785	+	316	15639314	-	TP0323	-	ribose/galactose ABC transporter, permease protein (rbsC-2)
323	 55.83	0	339889..341346	+	485	15639315	-	TP0324	-	hypothetical protein
324	 54.53	0	341328..344294	+	988	15639316	-	TP0325	-	hypothetical protein
325	 52.19	0	344276..346837	+	853	15639317	-	TP0326	-	outer membrane protein
326	 51.06	0	346894..347412	+	172	15639318	-	TP0327	-	cationic outer membrane protein (ompH)
327	 54.09	0	347468..350170	+	900	15639319	-	TP0328	-	DNA mismatch repair protein
328	 54.38	0	350288..352012	+	574	15639320	-	TP0329	-	serine hydroxymethyltransferase
329	 45.85	-1	351986..353782	-	598	15639321	-	TP0330	-	cell division protein, putative
330	 55.21	0	354012..355478	-	488	15639322	-	TP0331	-	6-phosphogluconate dehydrogenase
331	 50.79	0	355494..355619	+	41	15639323	-	TP0332	-	hypothetical protein
332	 50.22	0	355657..356349	+	230	15639324	-	TP0333	-	hypothetical protein
333	 55.50	0	356374..357591	+	405	15639325	-	TP0334	-	hypothetical protein
334	 57.83	+1	357588..358130	-	180	15639326	-	TP0335	-	hypothetical protein
335	 51.91	0	357973..359673	+	566	15639327	-	TP0336	-	comE protein, putative
336	 48.02	-1	359654..360511	+	285	15639328	ksgA	TP0337	-	dimethyladenosine transferase
337	 49.28	0	360529..361017	+	162	15639329	-	TP0338	-	hypothetical protein
338	 48.39	-1	361029..362024	+	331	15639330	-	TP0339	-	hypothetical protein
339	 46.91	-1	362010..363482	-	490	15639331	-	TP0340	-	folylpolyglutamate synthetase (folC)
340	 49.79	0	363501..364946	+	481	15639332	murC	TP0341	-	UDP-N-acetylmuramate--L-alanine ligase
341	 48.31	-1	365067..365627	+	186	15639333	-	TP0342	-	cytidylate kinase
342	 49.52	0	365621..366454	+	277	15639334	-	TP0343	-	A/G-specific adenine glycosylase, putative
343	 49.63	0	366459..369881	-	1140	15639335	-	TP0344	-	transcription-repair coupling factor (trcF)
344	 50.73	0	370034..371125	+	363	15639336	-	TP0345	-	phospho-N-acetylmuramoyl-pentapeptide-transferase (mraY)
345	 54.84	0	371282..371983	+	233	15639337	-	TP0346	-	hypothetical protein
346	 57.40	+1	371952..372782	+	276	15639338	-	TP0347	-	hypothetical protein
347	 59.86	+1	372516..373925	-	469	15639339	-	TP0348	-	hypothetical protein
348	 57.63	+1	373895..374425	-	176	15639340	-	TP0349	-	peptidyl-prolyl cis-trans isomerase, FKBP-type (slyD)
349	 55.71	0	374639..375925	+	428	15639341	-	TP0350	-	glutamate-5-semialdehyde dehydrogenase (proA)
350	 55.89	0	375922..376812	+	296	15639342	-	TP0351	-	gamma-glutamyl kinase
351	 52.71	0	376944..377201	+	85	15639343	-	TP0352	-	hypothetical protein
352	 60.00	+1	377198..377707	-	169	15639344	-	TP0353	-	ribonuclease H (rnhA)
353	 47.21	-1	377970..378596	+	208	15639345	-	TP0354	-	thymidylate kinase (tmk)
354	 47.66	-1	378563..378946	-	127	15639346	-	TP0355	-	hypothetical protein
355	 47.80	-1	379151..379468	+	105	15639347	-	TP0356	-	RNA-binding protein, putative
356	 58.84	+1	379570..380310	+	246	15639348	-	TP0357	-	biotin--acetyl-CoA-carboxylase ligase (birA)
357	 51.87	0	380315..381895	-	526	15639349	-	TP0358	-	hypothetical protein
358	 52.52	0	381907..382542	-	211	15639350	-	TP0359	-	hypothetical protein
359	 54.80	0	382753..382929	+	58	15639351	-	TP0360	-	hypothetical protein
360	 57.60	+1	382926..383774	-	282	15639352	-	TP0361	-	lysophosphatidic acid acyltransferase, putative
361	 59.92	+1	383850..384086	+	78	15639353	-	TP0362	-	ribosomal protein L28 (rpmB)
362	 54.24	0	384578..387016	+	812	15639354	-	TP0363	-	chemotaxis histidine kinase (cheA)
363	 52.12	0	387010..388377	+	455	15639355	-	TP0364	-	purine-binding chemotaxis protein (cheW-1)
364	 52.26	0	388399..388863	+	154	15639356	-	TP0365	-	chemotaxis protein (cheX)
365	 48.28	-1	388876..389310	+	144	15639357	-	TP0366	-	chemotaxis response regulator (cheY)
366	 52.44	0	389614..392439	+	941	15639358	-	TP0367	-	chromosome segregation protein, putative
367	 59.23	+1	392439..392774	+	111	15639359	-	TP0368	-	hypothetical protein
368	 59.06	+1	392771..394321	+	516	15639360	-	TP0369	-	hypothetical protein
369	 50.60	0	394389..394805	-	138	15639361	-	TP0370	-	hypothetical protein
370	 58.11	+1	394779..395654	+	291	15639362	-	TP0371	-	hypothetical protein
371	 55.84	0	395776..396366	+	196	15639363	-	TP0372	-	50S ribosomal protein L25/general stress protein Ctc
372	 56.90	0	396426..397859	+	477	15639364	-	TP0373	-	hypothetical protein
373	 54.29	0	397795..400170	+	791	15639365	-	TP0374	-	hypothetical protein
374	 50.00	0	400328..400537	+	69	15639366	-	TP0375	-	hypothetical protein
375	 53.31	0	400853..401758	-	301	15639367	-	TP0376	-	hypothetical protein
376	 55.56	0	401827..401952	+	41	15639368	-	TP0377	-	hypothetical protein
377	 53.02	0	401949..402329	+	126	15639369	-	TP0378	-	flagellar protein, putative
378	 51.76	0	402404..405154	-	916	15639370	secA	TP0379	-	preprotein translocase subunit SecA
379	 54.81	0	405261..407081	-	606	15639371	-	TP0380	-	DNA repair helicase, putative
380	 54.11	0	407219..407935	-	238	15639372	-	TP0381	-	hypothetical protein
381	 58.54	+1	408019..408141	+	40	15639373	-	TP0382	-	hypothetical protein
382	 58.22	+1	408169..408618	+	149	15639374	-	TP0383	-	cell division protein MraZ
383	 59.56	+1	408615..409754	+	379	15639375	-	TP0384	-	hypothetical protein
384	 54.93	0	409767..410141	+	124	15639376	-	TP0385	-	hypothetical protein
385	 52.03	0	410125..411504	+	459	15639377	-	TP0386	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanine ligase (murF)
386	 42.34	-2	411501..412655	+	384	15639378	-	TP0387	-	cell division protein (ftsW)
387	 45.83	-1	412633..413448	+	271	15639379	-	TP0388	-	cell division protein (ftsQ)
388	 49.40	0	413461..414705	+	414	15639380	-	TP0389	-	cell division protein (ftsA)
389	 50.28	0	414751..416007	+	418	15639381	-	TP0390	-	cell division protein FtsZ
390	 50.38	0	416004..416924	+	306	15639382	-	TP0391	-	integrase/recombinase (codV)
391	 50.62	0	416707..417666	+	319	15639383	-	TP0392	-	hypothetical protein
392	 49.72	0	417663..418571	+	302	15639384	-	TP0393	-	smf protein (smf)
393	 47.81	-1	418604..420799	+	731	15639385	-	TP0394	-	DNA topoisomerase I (topA)
394	 51.79	0	420792..421685	+	297	15639386	-	TP0395	-	integrase/recombinase (xprB)
395	 48.18	-1	421833..422243	+	136	15639387	-	TP0396	-	flagellar basal-body rod protein (flgB)
396	 50.77	0	422328..422717	+	129	15639388	flgC	TP0397	-	flagellar basal body rod protein FlgC
397	 48.00	-1	422773..423147	+	124	15639389	fliE	TP0398	-	flagellar hook-basal body protein FliE
398	 50.12	0	423264..424967	+	567	15639390	fliF	TP0399	-	flagellar MS-ring protein
399	 45.51	-1	424972..426030	+	352	15639391	fliG	TP0400	-	flagellar motor switch protein G
400	 51.08	0	426078..427007	+	309	15639392	fliH	TP0401	-	flagellar assembly protein H
401	 55.36	0	427035..428378	+	447	15639393	-	TP0402	-	flagellum-specific ATP synthase (fliI)
402	 53.64	0	428407..428859	+	150	15639394	-	TP0403	-	flagellar protein, putative
403	 54.68	0	428856..429389	-	177	15639395	-	TP0404	-	hypothetical protein
404	 48.22	-1	429386..429835	-	149	15639396	-	TP0405	-	mcbG protein, putative
405	 53.16	0	430026..430832	+	268	15639397	-	TP0406	-	glutamate racemase (murI)
406	 56.15	0	430960..431634	+	224	15639398	-	TP0407	-	phosphoglycolate phosphatase (gph-1)
52.88	MEAN

4.31	STD DEV
