IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

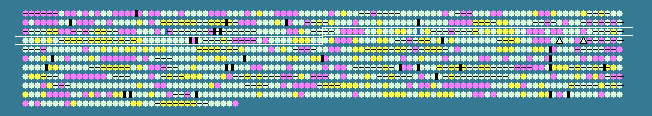

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
251	 54.72	0	262929..263246	+	105	15639243	-	TP0251	-	DNA-binding protein II
252	 54.36	0	263236..264876	+	546	15639244	-	TP0252	-	apolipoprotein N-acyltransferase, putative
253	 51.93	0	264867..265280	+	137	15639245	-	TP0253	-	hypothetical protein
254	 48.97	0	265517..267076	+	519	15639246	rho	TP0254	-	transcription termination factor Rho
255	 49.02	0	267195..267398	+	67	15639247	rpmE	TP0255	-	50S ribosomal protein L31
256	 47.77	-1	267443..268093	+	216	15639248	-	TP0256	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase (pgsA)
257	 48.27	-1	268190..269260	+	356	15639249	glpQ	TP0257	-	glycerophosphodiester phosphodiesterase
258	 52.60	0	269326..270036	-	236	15639250	-	TP0258	-	hypothetical protein
259	 53.76	0	270115..270726	+	203	15639251	-	TP0259	-	hypothetical protein
260	 56.94	0	270857..272203	-	448	15639252	-	TP0260	-	hypothetical protein
261	 54.50	0	272318..273361	+	347	15639253	-	TP0261	-	catabolite gene activator, putative
262	 51.85	0	273339..274013	+	224	15639254	-	TP0262	-	catabolite gene activator (Crp)
263	 57.98	+1	274028..275812	+	594	15639255	-	TP0263	-	hypothetical protein
264	 56.77	0	275817..276473	+	218	15639256	-	TP0264	-	deoxyribose-phosphate aldolase (deoC)
265	 54.97	0	276905..278272	-	455	15639257	-	TP0265	-	amino acid ABC transporter, permease protein (braC)
266	 53.17	0	278323..278448	+	41	15639258	-	TP0266	-	hypothetical protein
267	 51.37	0	283557..283922	+	121	15639259	-	TP0267	-	hypothetical protein
268	 58.26	+1	283919..284572	+	217	15639260	-	TP0268	-	hypothetical protein
269	 50.38	0	284582..286030	+	482	15639261	-	TP0269	-	hypothetical protein
270	 54.84	0	286104..287540	+	478	15639262	-	TP0270	-	polynucleotide adenylyltransferase (pcnA)
271	 53.13	0	287537..288511	-	324	15639263	-	TP0271	-	chromosome partitioning protein (parB)
272	 48.16	-1	288498..289259	-	253	15639264	-	TP0272	-	SpoOJ regulator (soj)
273	 53.54	0	289392..290183	+	263	15639265	-	TP0273	-	hypothetical protein
274	 56.09	0	290221..290721	-	166	15639266	-	TP0274	-	deoxycytidylate deaminase, putative
275	 50.93	0	290810..291559	-	249	15639267	-	TP0275	-	UDP-N-acetyl-D-mannosamine transferase, putative
276	 56.72	0	291538..292422	-	294	15639268	-	TP0276	-	hypothetical protein
277	 50.48	0	292595..293941	-	448	15639269	-	TP0277	-	carboxyl-terminal protease (CTP)
278	 61.24	+1	294069..294197	+	42	15639270	-	TP0278	-	hypothetical protein
279	 55.25	0	294243..296834	+	863	15639271	-	TP0279	-	bifunctional cytidylate kinase/ribosomal protein S1
280	 58.91	+1	296831..296959	+	42	15639272	-	TP0280	-	hypothetical protein
281	 58.14	+1	296976..297104	+	42	15639273	-	TP0281	-	hypothetical protein
282	 59.44	+1	297097..297816	+	239	15639274	-	TP0282	-	hypothetical protein
283	 51.67	0	297994..298473	+	159	15639275	-	TP0283	-	lipopolysaccharide core biosynthesis protein (kdtB)
284	 54.55	0	298578..299237	+	219	15639276	-	TP0284	-	hypothetical protein
285	 48.80	0	299177..300256	+	359	15639277	-	TP0285	-	hypothetical protein
286	 48.09	-1	300228..300593	+	121	15639278	-	TP0286	-	hypothetical protein
287	 45.67	-1	300560..301183	+	207	15639279	-	TP0287	-	hypothetical protein
288	 52.32	0	301183..302130	+	315	15639280	-	TP0288	-	spore coat polysaccharide biosynthesis protein (spsF)
289	 48.10	-1	302153..303757	+	534	15639281	-	TP0289	-	hypothetical protein
290	 46.40	-1	303812..304645	+	277	15639282	-	TP0290	-	hypothetical protein
291	 50.68	0	304682..305563	+	293	15639283	-	TP0291	-	hypothetical protein
292	 49.84	0	305554..306807	+	417	15639284	-	TP0292	-	outer membrane protein (tpn50)
293	 55.37	0	306819..306995	+	58	15639285	-	TP0293	-	hypothetical protein
294	 47.31	-1	306973..308238	+	421	15639286	-	TP0294	-	phosphoribosylpyrophosphate synthetase
295	 52.53	0	308257..309501	+	414	15639287	-	TP0295	-	carhohydrate kinase (xylB)
296	 51.89	0	309587..310222	+	211	15639288	-	TP0296	-	hypothetical protein
297	 53.51	0	310186..310998	+	270	15639289	-	TP0297	-	hypothetical protein
298	 54.84	0	311131..312162	+	343	15639290	-	TP0298	-	exported protein (tpn38b)
299	 64.44	+2	312159..312383	+	74	15639291	-	TP0299	-	hypothetical protein
300	 53.32	0	312368..313918	+	516	15639292	-	TP0300	-	ribose/galactose ABC transporter, ATP-binding protein (rbsA-1)
301	 50.79	0	313915..315048	+	377	15639293	-	TP0301	-	hypothetical protein
302	 55.41	0	315039..315980	+	313	15639294	-	TP0302	-	hypothetical protein
303	 57.52	+1	315967..317913	-	648	15639295	-	TP0303	-	DNA mismatch repair protein (mutL)
304	 56.31	0	317926..321045	-	1039	15639296	-	TP0304	-	hypothetical protein
305	 58.25	+1	320972..322705	+	577	15639297	-	TP0305	-	CTP synthetase
306	 53.66	0	322870..323484	+	204	15639298	rpsD	TP0306	-	30S ribosomal protein S4
307	 55.39	0	323571..324599	+	342	15639299	-	TP0307	-	hypothetical protein
308	 56.52	0	324574..325539	+	321	15639300	-	TP0308	-	amino acid ABC transporter, periplasmic binding protein (hisJ)
309	 57.26	+1	325605..326423	+	272	15639301	-	TP0309	-	amino acid ABC transporter, periplasmic binding protein
310	 58.59	+1	326392..326775	+	127	15639302	-	TP0310	-	hypothetical protein
311	 55.56	0	326754..326897	-	47	15639303	-	TP0311	-	hypothetical protein
312	 60.75	+1	326881..327894	+	337	15639304	-	TP0312	-	hypothetical protein
313	 56.75	0	327985..330273	+	762	15639305	-	TP0313	-	TPR protein E (tprE)
314	 59.18	+1	330330..330476	-	48	15639306	-	TP0314	-	hypothetical protein
315	 60.80	+1	330499..331146	-	215	15639307	-	TP0315	-	hypothetical protein
316	 56.32	0	332393..334663	-	756	15639308	-	TP0317	-	TPR protein G (tprG)
317	 61.67	+2	334615..334794	-	59	15639309	-	TP0318	-	hypothetical protein
318	 54.33	0	334823..335884	+	353	15639310	-	TP0319	-	membrane lipoprotein (tmpC)
319	 58.33	+1	335894..336049	+	51	15639311	-	TP0320	-	hypothetical protein
320	 56.87	0	336125..337726	+	533	15639312	-	TP0321	-	ribose/galactose ABC transporter, ATP-binding protein (rbsA-2)
321	 55.36	0	337636..338838	+	400	15639313	-	TP0322	-	ribose/galactose ABC transporter, permease protein (rbsC-1)
322	 53.10	0	338835..339785	+	316	15639314	-	TP0323	-	ribose/galactose ABC transporter, permease protein (rbsC-2)
323	 55.83	0	339889..341346	+	485	15639315	-	TP0324	-	hypothetical protein
324	 54.53	0	341328..344294	+	988	15639316	-	TP0325	-	hypothetical protein
325	 52.19	0	344276..346837	+	853	15639317	-	TP0326	-	outer membrane protein
326	 51.06	0	346894..347412	+	172	15639318	-	TP0327	-	cationic outer membrane protein (ompH)
327	 54.09	0	347468..350170	+	900	15639319	-	TP0328	-	DNA mismatch repair protein
328	 54.38	0	350288..352012	+	574	15639320	-	TP0329	-	serine hydroxymethyltransferase
329	 45.85	-1	351986..353782	-	598	15639321	-	TP0330	-	cell division protein, putative
330	 55.21	0	354012..355478	-	488	15639322	-	TP0331	-	6-phosphogluconate dehydrogenase
331	 50.79	0	355494..355619	+	41	15639323	-	TP0332	-	hypothetical protein
332	 50.22	0	355657..356349	+	230	15639324	-	TP0333	-	hypothetical protein
333	 55.50	0	356374..357591	+	405	15639325	-	TP0334	-	hypothetical protein
334	 57.83	+1	357588..358130	-	180	15639326	-	TP0335	-	hypothetical protein
335	 51.91	0	357973..359673	+	566	15639327	-	TP0336	-	comE protein, putative
336	 48.02	-1	359654..360511	+	285	15639328	ksgA	TP0337	-	dimethyladenosine transferase
337	 49.28	0	360529..361017	+	162	15639329	-	TP0338	-	hypothetical protein
338	 48.39	-1	361029..362024	+	331	15639330	-	TP0339	-	hypothetical protein
339	 46.91	-1	362010..363482	-	490	15639331	-	TP0340	-	folylpolyglutamate synthetase (folC)
340	 49.79	0	363501..364946	+	481	15639332	murC	TP0341	-	UDP-N-acetylmuramate--L-alanine ligase
341	 48.31	-1	365067..365627	+	186	15639333	-	TP0342	-	cytidylate kinase
342	 49.52	0	365621..366454	+	277	15639334	-	TP0343	-	A/G-specific adenine glycosylase, putative
343	 49.63	0	366459..369881	-	1140	15639335	-	TP0344	-	transcription-repair coupling factor (trcF)
344	 50.73	0	370034..371125	+	363	15639336	-	TP0345	-	phospho-N-acetylmuramoyl-pentapeptide-transferase (mraY)
345	 54.84	0	371282..371983	+	233	15639337	-	TP0346	-	hypothetical protein
346	 57.40	+1	371952..372782	+	276	15639338	-	TP0347	-	hypothetical protein
347	 59.86	+1	372516..373925	-	469	15639339	-	TP0348	-	hypothetical protein
348	 57.63	+1	373895..374425	-	176	15639340	-	TP0349	-	peptidyl-prolyl cis-trans isomerase, FKBP-type (slyD)
349	 55.71	0	374639..375925	+	428	15639341	-	TP0350	-	glutamate-5-semialdehyde dehydrogenase (proA)
350	 55.89	0	375922..376812	+	296	15639342	-	TP0351	-	gamma-glutamyl kinase
52.88	MEAN

4.31	STD DEV
