IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

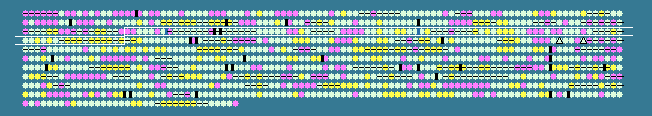

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
218	 41.67	-2	223674..225821	+	715	15639211	-	TP0219	-	sigma factor SigG regulation protein, putative
219	 48.62	0	225850..226176	+	108	15639212	-	TP0220	-	anti-sigma F factor antagonist (SpoIIAA-1)
220	 55.94	0	226177..226959	+	260	15639213	-	TP0221	-	D,D-carboxypeptidase, putative
221	 52.57	0	226969..227415	+	148	15639214	-	TP0222	-	hypothetical protein
222	 53.29	0	227683..228990	+	435	15639215	-	TP0223	-	hypothetical protein
223	 48.57	-1	229027..229131	+	34	15639216	-	TP0224	-	hypothetical protein
224	 51.42	0	229177..229917	+	246	15639217	-	TP0225	-	leucine-rich repeat-containing protein
225	 49.05	0	235069..235755	-	228	15639218	-	TP0226	-	hypothetical protein
226	 52.86	0	235808..236575	-	255	15639219	-	TP0227	-	cobalt ABC transporter, ATP-binding protein
227	 55.64	0	236642..237457	-	271	15639220	-	TP0228	-	biotin synthase, putative
228	 55.52	0	237401..238234	+	277	15639221	-	TP0229	-	DNA polymerase
229	 56.28	0	238239..240212	+	657	15639222	-	TP0230	-	primosomal protein N (priA)
230	 54.99	0	240313..240963	+	216	15639223	-	TP0231	-	hypothetical protein
231	 55.56	0	241063..241179	+	38	15639224	-	TP0232	-	hypothetical protein
232	 45.24	-1	241210..241755	+	181	15639225	-	TP0233	-	anti-sigma F factor antagonist, putative
233	 49.71	0	241990..242160	+	56	15639226	rpmG	TP0234	-	50S ribosomal protein L33
234	 53.89	0	242310..242489	+	59	15639227	secE	TP0235	-	preprotein translocase subunit SecE
235	 52.87	0	242499..243056	+	185	15639228	-	TP0236	-	transcription antitermination protein (nusG)
236	 54.20	0	243163..243603	+	146	15639229	rplK	TP0237	-	50S ribosomal protein L11
237	 53.74	0	243600..244280	+	226	15639230	rplA	TP0238	-	50S ribosomal protein L1
238	 54.70	0	244282..244824	+	180	15639231	rplJ	TP0239	-	50S ribosomal protein L10
239	 52.05	0	244933..245322	+	129	15639232	rplL	TP0240	-	50S ribosomal protein L7/L12
240	 49.93	0	245585..249121	+	1178	15639233	rpoB	TP0241	-	DNA-directed RNA polymerase subunit beta
241	 50.60	0	249134..253384	+	1416	15639234	-	TP0242	-	DNA-directed RNA polymerase subunit beta'
242	 54.40	0	253487..253861	+	124	15639235	rpsL	TP0243	-	30S ribosomal protein S12
243	 54.99	0	253883..254353	+	156	15639236	-	TP0244	-	30S ribosomal protein S7
244	 52.00	0	254377..257832	+	1151	15639237	-	TP0245	-	hypothetical protein
245	 46.49	-1	257978..259771	+	597	15639238	-	TP0246	-	hypothetical protein
246	 48.23	-1	259822..260895	+	357	15639239	-	TP0247	-	N-acetylmuramoyl-L-alanine amidase (amiA)
247	 56.54	0	260962..261366	+	134	15639240	-	TP0248	-	hypothetical protein
248	 54.42	0	261445..262497	+	350	15639241	-	TP0249	-	flagellar filament outer layer protein (flaA-1)
249	 54.82	0	262548..262775	+	75	15639242	-	TP0250	-	hypothetical protein
250	 55.90	0	262610..262897	+	95	15640029	rpsT	TP0250a	-	30S ribosomal protein S20
251	 54.72	0	262929..263246	+	105	15639243	-	TP0251	-	DNA-binding protein II
252	 54.36	0	263236..264876	+	546	15639244	-	TP0252	-	apolipoprotein N-acyltransferase, putative
253	 51.93	0	264867..265280	+	137	15639245	-	TP0253	-	hypothetical protein
254	 48.97	0	265517..267076	+	519	15639246	rho	TP0254	-	transcription termination factor Rho
255	 49.02	0	267195..267398	+	67	15639247	rpmE	TP0255	-	50S ribosomal protein L31
256	 47.77	-1	267443..268093	+	216	15639248	-	TP0256	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase (pgsA)
257	 48.27	-1	268190..269260	+	356	15639249	glpQ	TP0257	-	glycerophosphodiester phosphodiesterase
258	 52.60	0	269326..270036	-	236	15639250	-	TP0258	-	hypothetical protein
259	 53.76	0	270115..270726	+	203	15639251	-	TP0259	-	hypothetical protein
260	 56.94	0	270857..272203	-	448	15639252	-	TP0260	-	hypothetical protein
261	 54.50	0	272318..273361	+	347	15639253	-	TP0261	-	catabolite gene activator, putative
262	 51.85	0	273339..274013	+	224	15639254	-	TP0262	-	catabolite gene activator (Crp)
263	 57.98	+1	274028..275812	+	594	15639255	-	TP0263	-	hypothetical protein
264	 56.77	0	275817..276473	+	218	15639256	-	TP0264	-	deoxyribose-phosphate aldolase (deoC)
265	 54.97	0	276905..278272	-	455	15639257	-	TP0265	-	amino acid ABC transporter, permease protein (braC)
266	 53.17	0	278323..278448	+	41	15639258	-	TP0266	-	hypothetical protein
267	 51.37	0	283557..283922	+	121	15639259	-	TP0267	-	hypothetical protein
268	 58.26	+1	283919..284572	+	217	15639260	-	TP0268	-	hypothetical protein
269	 50.38	0	284582..286030	+	482	15639261	-	TP0269	-	hypothetical protein
270	 54.84	0	286104..287540	+	478	15639262	-	TP0270	-	polynucleotide adenylyltransferase (pcnA)
271	 53.13	0	287537..288511	-	324	15639263	-	TP0271	-	chromosome partitioning protein (parB)
272	 48.16	-1	288498..289259	-	253	15639264	-	TP0272	-	SpoOJ regulator (soj)
273	 53.54	0	289392..290183	+	263	15639265	-	TP0273	-	hypothetical protein
274	 56.09	0	290221..290721	-	166	15639266	-	TP0274	-	deoxycytidylate deaminase, putative
275	 50.93	0	290810..291559	-	249	15639267	-	TP0275	-	UDP-N-acetyl-D-mannosamine transferase, putative
276	 56.72	0	291538..292422	-	294	15639268	-	TP0276	-	hypothetical protein
277	 50.48	0	292595..293941	-	448	15639269	-	TP0277	-	carboxyl-terminal protease (CTP)
278	 61.24	+1	294069..294197	+	42	15639270	-	TP0278	-	hypothetical protein
279	 55.25	0	294243..296834	+	863	15639271	-	TP0279	-	bifunctional cytidylate kinase/ribosomal protein S1
280	 58.91	+1	296831..296959	+	42	15639272	-	TP0280	-	hypothetical protein
281	 58.14	+1	296976..297104	+	42	15639273	-	TP0281	-	hypothetical protein
282	 59.44	+1	297097..297816	+	239	15639274	-	TP0282	-	hypothetical protein
283	 51.67	0	297994..298473	+	159	15639275	-	TP0283	-	lipopolysaccharide core biosynthesis protein (kdtB)
284	 54.55	0	298578..299237	+	219	15639276	-	TP0284	-	hypothetical protein
285	 48.80	0	299177..300256	+	359	15639277	-	TP0285	-	hypothetical protein
286	 48.09	-1	300228..300593	+	121	15639278	-	TP0286	-	hypothetical protein
287	 45.67	-1	300560..301183	+	207	15639279	-	TP0287	-	hypothetical protein
288	 52.32	0	301183..302130	+	315	15639280	-	TP0288	-	spore coat polysaccharide biosynthesis protein (spsF)
289	 48.10	-1	302153..303757	+	534	15639281	-	TP0289	-	hypothetical protein
290	 46.40	-1	303812..304645	+	277	15639282	-	TP0290	-	hypothetical protein
291	 50.68	0	304682..305563	+	293	15639283	-	TP0291	-	hypothetical protein
292	 49.84	0	305554..306807	+	417	15639284	-	TP0292	-	outer membrane protein (tpn50)
293	 55.37	0	306819..306995	+	58	15639285	-	TP0293	-	hypothetical protein
294	 47.31	-1	306973..308238	+	421	15639286	-	TP0294	-	phosphoribosylpyrophosphate synthetase
295	 52.53	0	308257..309501	+	414	15639287	-	TP0295	-	carhohydrate kinase (xylB)
296	 51.89	0	309587..310222	+	211	15639288	-	TP0296	-	hypothetical protein
297	 53.51	0	310186..310998	+	270	15639289	-	TP0297	-	hypothetical protein
298	 54.84	0	311131..312162	+	343	15639290	-	TP0298	-	exported protein (tpn38b)
299	 64.44	+2	312159..312383	+	74	15639291	-	TP0299	-	hypothetical protein
300	 53.32	0	312368..313918	+	516	15639292	-	TP0300	-	ribose/galactose ABC transporter, ATP-binding protein (rbsA-1)
301	 50.79	0	313915..315048	+	377	15639293	-	TP0301	-	hypothetical protein
302	 55.41	0	315039..315980	+	313	15639294	-	TP0302	-	hypothetical protein
303	 57.52	+1	315967..317913	-	648	15639295	-	TP0303	-	DNA mismatch repair protein (mutL)
304	 56.31	0	317926..321045	-	1039	15639296	-	TP0304	-	hypothetical protein
305	 58.25	+1	320972..322705	+	577	15639297	-	TP0305	-	CTP synthetase
306	 53.66	0	322870..323484	+	204	15639298	rpsD	TP0306	-	30S ribosomal protein S4
307	 55.39	0	323571..324599	+	342	15639299	-	TP0307	-	hypothetical protein
308	 56.52	0	324574..325539	+	321	15639300	-	TP0308	-	amino acid ABC transporter, periplasmic binding protein (hisJ)
309	 57.26	+1	325605..326423	+	272	15639301	-	TP0309	-	amino acid ABC transporter, periplasmic binding protein
310	 58.59	+1	326392..326775	+	127	15639302	-	TP0310	-	hypothetical protein
311	 55.56	0	326754..326897	-	47	15639303	-	TP0311	-	hypothetical protein
312	 60.75	+1	326881..327894	+	337	15639304	-	TP0312	-	hypothetical protein
313	 56.75	0	327985..330273	+	762	15639305	-	TP0313	-	TPR protein E (tprE)
314	 59.18	+1	330330..330476	-	48	15639306	-	TP0314	-	hypothetical protein
315	 60.80	+1	330499..331146	-	215	15639307	-	TP0315	-	hypothetical protein
316	 56.32	0	332393..334663	-	756	15639308	-	TP0317	-	TPR protein G (tprG)
317	 61.67	+2	334615..334794	-	59	15639309	-	TP0318	-	hypothetical protein
52.88	MEAN

4.31	STD DEV
