IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

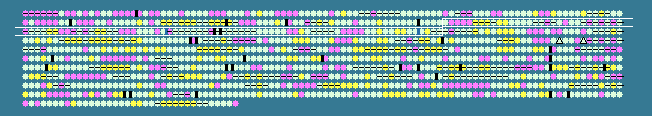

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.88 STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
171	 50.88	0	192132..192815	-	227	15639166	-	TP0173	-	hypothetical protein
172	 44.25	-2	192784..193626	-	280	15639167	-	TP0174	-	hypothetical protein
173	 43.60	-2	193376..194008	-	210	15639168	-	TP0175	-	hypothetical protein
174	 45.69	-1	194039..194305	-	88	15639169	-	TP0176	-	hypothetical protein
175	 48.74	0	194302..195612	-	436	15639170	-	TP0177	-	hypothetical protein
176	 57.82	+1	195706..196632	-	308	15639171	-	TP0178	-	hypothetical protein
177	 60.83	+1	196632..198515	-	627	15639172	-	TP0179	-	hypothetical protein
178	 59.12	+1	198457..198615	-	52	15639173	-	TP0180	-	hypothetical protein
179	 56.08	0	198608..199051	+	147	15639174	-	TP0181	-	hypothetical protein
180	 60.26	+1	198891..199670	+	259	15639175	-	TP0182	-	hypothetical protein
181	 56.62	0	199673..200518	-	281	15639176	-	TP0183	-	hypothetical protein
182	 55.27	0	200523..200987	-	154	161579587	smpB	TP0184	-	SsrA-binding protein
183	 53.39	0	201075..201782	+	235	15639178	-	TP0185	-	signal peptidase I (sip)
184	 54.48	0	201837..203018	+	393	15639179	-	TP0186	-	oxygen-independent coproporphyrinogen III oxidase, putative
185	 50.59	0	203382..204569	+	395	161579586	-	TP0187	-	elongation factor Tu
186	 52.75	0	204641..204949	+	102	15639181	rpsJ	TP0188	-	30S ribosomal protein S10
187	 54.07	0	204996..205622	+	208	15639182	rplC	TP0189	-	50S ribosomal protein L3
188	 49.31	0	205636..206286	+	216	15639183	rplD	TP0190	-	50S ribosomal protein L4
189	 52.28	0	206273..206557	+	94	15639184	rplW	TP0191	-	50S ribosomal protein L23
190	 56.20	0	206613..207434	+	273	15639185	rplB	TP0192	-	50S ribosomal protein L2
191	 47.22	-1	207444..207731	+	95	15639186	rpsS	TP0193	-	30S ribosomal protein S19
192	 52.80	0	207740..208114	+	124	15639187	rplV	TP0194	-	50S ribosomal protein L22
193	 51.34	0	208098..208841	+	247	15639188	rpsC	TP0195	-	30S ribosomal protein S3
194	 52.86	0	208845..209264	+	139	15639189	rplP	TP0196	-	50S ribosomal protein L16
195	 45.21	-1	209279..209497	+	72	15639190	-	TP0197	-	ribosomal protein L29 (rpmC)
196	 52.94	0	209512..209766	+	84	15639191	rpsQ	TP0198	-	30S ribosomal protein S17
197	 48.51	-1	209779..210147	+	122	15639192	rplN	TP0199	-	50S ribosomal protein L14
198	 50.64	0	210159..210470	+	103	15639193	rplX	TP0200	-	50S ribosomal protein L24
199	 46.42	-1	210467..211024	+	185	15639194	rplE	TP0201	-	50S ribosomal protein L5
200	 53.76	0	211036..211221	+	61	15639195	rpsN	TP0202	-	30S ribosomal protein S14
201	 49.12	0	211237..211635	+	132	15639196	rpsH	TP0203	-	30S ribosomal protein S8
202	 51.85	0	211645..212184	+	179	15639197	rplF	TP0204	-	50S ribosomal protein L6
203	 49.86	0	212193..212555	+	120	15639198	rplR	TP0205	-	50S ribosomal protein L18
204	 51.83	0	212564..213082	+	172	15639199	rpsE	TP0206	-	30S ribosomal protein S5
205	 56.99	0	213085..213270	+	61	15640028	rpmD	TP0206a	-	50S ribosomal protein L30
206	 56.71	0	213270..213731	+	153	15639200	rplO	TP0207	-	50S ribosomal protein L15
207	 49.08	0	213739..215091	+	450	15639201	secY	TP0208	-	preprotein translocase subunit SecY
208	 40.35	-2	215096..215209	+	37	15639202	rpmJ	TP0209	-	50S ribosomal protein L36
209	 46.99	-1	215225..215590	+	121	15639203	rpsM	TP0210	-	30S ribosomal protein S13
210	 52.23	0	215608..215988	+	126	15639204	-	TP0211	-	30S ribosomal protein S11
211	 49.34	0	216003..217058	+	351	15639205	-	TP0212	-	DNA-directed RNA polymerase subunit alpha
212	 52.32	0	217048..217542	+	164	15639206	rplQ	TP0213	-	50S ribosomal protein L17
213	 57.58	+1	217566..217763	+	65	15639207	-	TP0214	-	hypothetical protein
214	 57.62	+1	217969..218631	+	220	15639208	-	TP0215	-	grpE protein (grpE)
215	 51.57	0	218747..220654	+	635	15639209	dnaK	TP0216	-	molecular chaperone DnaK
216	 54.00	0	220775..222024	+	416	15640026	dnaJ	TP0217	-	heat shock protein
217	 46.39	-1	222201..223670	+	489	15639210	-	TP0218	-	sigma factor SigB regulation protein, putative
218	 41.67	-2	223674..225821	+	715	15639211	-	TP0219	-	sigma factor SigG regulation protein, putative
219	 48.62	0	225850..226176	+	108	15639212	-	TP0220	-	anti-sigma F factor antagonist (SpoIIAA-1)
220	 55.94	0	226177..226959	+	260	15639213	-	TP0221	-	D,D-carboxypeptidase, putative
221	 52.57	0	226969..227415	+	148	15639214	-	TP0222	-	hypothetical protein
222	 53.29	0	227683..228990	+	435	15639215	-	TP0223	-	hypothetical protein
223	 48.57	-1	229027..229131	+	34	15639216	-	TP0224	-	hypothetical protein
224	 51.42	0	229177..229917	+	246	15639217	-	TP0225	-	leucine-rich repeat-containing protein
225	 49.05	0	235069..235755	-	228	15639218	-	TP0226	-	hypothetical protein
226	 52.86	0	235808..236575	-	255	15639219	-	TP0227	-	cobalt ABC transporter, ATP-binding protein
227	 55.64	0	236642..237457	-	271	15639220	-	TP0228	-	biotin synthase, putative
228	 55.52	0	237401..238234	+	277	15639221	-	TP0229	-	DNA polymerase
229	 56.28	0	238239..240212	+	657	15639222	-	TP0230	-	primosomal protein N (priA)
230	 54.99	0	240313..240963	+	216	15639223	-	TP0231	-	hypothetical protein
231	 55.56	0	241063..241179	+	38	15639224	-	TP0232	-	hypothetical protein
232	 45.24	-1	241210..241755	+	181	15639225	-	TP0233	-	anti-sigma F factor antagonist, putative
233	 49.71	0	241990..242160	+	56	15639226	rpmG	TP0234	-	50S ribosomal protein L33
234	 53.89	0	242310..242489	+	59	15639227	secE	TP0235	-	preprotein translocase subunit SecE
235	 52.87	0	242499..243056	+	185	15639228	-	TP0236	-	transcription antitermination protein (nusG)
236	 54.20	0	243163..243603	+	146	15639229	rplK	TP0237	-	50S ribosomal protein L11
237	 53.74	0	243600..244280	+	226	15639230	rplA	TP0238	-	50S ribosomal protein L1
238	 54.70	0	244282..244824	+	180	15639231	rplJ	TP0239	-	50S ribosomal protein L10
239	 52.05	0	244933..245322	+	129	15639232	rplL	TP0240	-	50S ribosomal protein L7/L12
240	 49.93	0	245585..249121	+	1178	15639233	rpoB	TP0241	-	DNA-directed RNA polymerase subunit beta
241	 50.60	0	249134..253384	+	1416	15639234	-	TP0242	-	DNA-directed RNA polymerase subunit beta'
242	 54.40	0	253487..253861	+	124	15639235	rpsL	TP0243	-	30S ribosomal protein S12
243	 54.99	0	253883..254353	+	156	15639236	-	TP0244	-	30S ribosomal protein S7
244	 52.00	0	254377..257832	+	1151	15639237	-	TP0245	-	hypothetical protein
245	 46.49	-1	257978..259771	+	597	15639238	-	TP0246	-	hypothetical protein
246	 48.23	-1	259822..260895	+	357	15639239	-	TP0247	-	N-acetylmuramoyl-L-alanine amidase (amiA)
247	 56.54	0	260962..261366	+	134	15639240	-	TP0248	-	hypothetical protein
248	 54.42	0	261445..262497	+	350	15639241	-	TP0249	-	flagellar filament outer layer protein (flaA-1)
249	 54.82	0	262548..262775	+	75	15639242	-	TP0250	-	hypothetical protein
250	 55.90	0	262610..262897	+	95	15640029	rpsT	TP0250a	-	30S ribosomal protein S20
251	 54.72	0	262929..263246	+	105	15639243	-	TP0251	-	DNA-binding protein II
252	 54.36	0	263236..264876	+	546	15639244	-	TP0252	-	apolipoprotein N-acyltransferase, putative
253	 51.93	0	264867..265280	+	137	15639245	-	TP0253	-	hypothetical protein
254	 48.97	0	265517..267076	+	519	15639246	rho	TP0254	-	transcription termination factor Rho
255	 49.02	0	267195..267398	+	67	15639247	rpmE	TP0255	-	50S ribosomal protein L31
256	 47.77	-1	267443..268093	+	216	15639248	-	TP0256	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase (pgsA)
257	 48.27	-1	268190..269260	+	356	15639249	glpQ	TP0257	-	glycerophosphodiester phosphodiesterase
258	 52.60	0	269326..270036	-	236	15639250	-	TP0258	-	hypothetical protein
259	 53.76	0	270115..270726	+	203	15639251	-	TP0259	-	hypothetical protein
260	 56.94	0	270857..272203	-	448	15639252	-	TP0260	-	hypothetical protein
261	 54.50	0	272318..273361	+	347	15639253	-	TP0261	-	catabolite gene activator, putative
262	 51.85	0	273339..274013	+	224	15639254	-	TP0262	-	catabolite gene activator (Crp)
263	 57.98	+1	274028..275812	+	594	15639255	-	TP0263	-	hypothetical protein
264	 56.77	0	275817..276473	+	218	15639256	-	TP0264	-	deoxyribose-phosphate aldolase (deoC)
265	 54.97	0	276905..278272	-	455	15639257	-	TP0265	-	amino acid ABC transporter, permease protein (braC)
266	 53.17	0	278323..278448	+	41	15639258	-	TP0266	-	hypothetical protein
267	 51.37	0	283557..283922	+	121	15639259	-	TP0267	-	hypothetical protein
268	 58.26	+1	283919..284572	+	217	15639260	-	TP0268	-	hypothetical protein
269	 50.38	0	284582..286030	+	482	15639261	-	TP0269	-	hypothetical protein
270	 54.84	0	286104..287540	+	478	15639262	-	TP0270	-	polynucleotide adenylyltransferase (pcnA)
52.88	MEAN

4.31	STD DEV
