IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

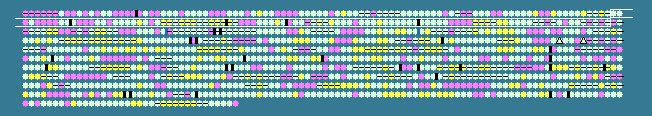

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.88   STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
99	 54.89	0	108323..108925	+	200	15639094	-	TP0100	-	thioredoxin, putative
100	 55.35	0	108918..109712	+	264	15639095	-	TP0101	-	cytochrome c biogenesis protein (ccdA)
101	 45.09	-1	109750..111723	-	657	15639096	-	TP0102	-	rep helicase, single-stranded DNA-dependent ATPase (rep)
102	 52.74	0	111788..113611	+	607	15639097	-	TP0103	-	ATP-dependent DNA helicase, putative
103	 48.43	-1	113858..115639	+	593	15639098	-	TP0104	-	5'-nucleotidase (ushA)
104	 44.76	-1	115806..118799	+	997	15639099	-	TP0105	-	DNA polymerase I (polA)
105	 49.18	0	118831..120363	-	510	15639100	-	TP0106	-	carnitine transporter, putative
106	 47.02	-1	120344..121921	-	525	15639101	-	TP0107	-	licC protein (licC)
107	 51.08	0	122275..123660	-	461	15639102	-	TP0108	-	diphosphate--fructose-6-phosphate 1-phosphotransferase
108	 55.29	0	123762..124640	-	292	15639103	-	TP0109	-	rRNA methylase, putative
109	 49.60	0	125181..126914	+	577	15639104	-	TP0110	-	hypothetical protein
110	 47.90	-1	126974..128401	+	475	15639105	-	TP0111	-	RNA polymerase sigma-54 factor (rpoN)
111	 46.86	-1	128398..129750	-	450	15639106	-	TP0112	-	aminopeptidase C (pepC)
112	 46.61	-1	129892..130878	+	328	15639107	-	TP0113	-	lambda CII stability-governing protein (hflK)
113	 49.60	0	130883..131878	+	331	15639108	-	TP0114	-	lambda CII stability-governing protein (hflC)
114	 54.44	0	131903..132712	-	269	15639109	-	TP0115	-	phosphomethypyrimidine kinase (thiD)
115	 45.34	-1	132863..134869	+	668	15639110	-	TP0116	-	excinuclease ABC subunit B
116	 56.26	0	134901..136697	-	598	15639111	-	TP0117	-	TPR protein C (tprC)
117	 55.61	0	136777..138042	-	421	15639112	-	TP0118	-	hypothetical protein
118	 55.15	0	138140..138799	-	219	15639113	-	TP0119	-	amino acid ABC transporter, permease protein (yaeE)
119	 51.98	0	138799..139608	-	269	15639114	-	TP0120	-	amino acid ABC transporter ATP-binding protein
120	 57.21	+1	139738..140805	+	355	15639115	-	TP0121	-	hypothetical protein
121	 53.96	0	141025..142881	-	618	15639116	-	TP0122	-	phosphoenolpyruvate carboxykinase
122	 48.89	0	142987..145557	+	856	15639117	-	TP0123	-	hypothetical protein
123	 52.57	0	145571..146677	+	368	15639118	-	TP0124	-	translation-associated GTPase
124	 56.60	0	146754..147548	+	264	15639119	-	TP0125	-	exodeoxyribonuclease (exoA)
125	 59.02	+1	147612..148487	-	291	15639120	-	TP0126	-	hypothetical protein
126	 55.94	0	148595..149284	+	229	15639121	-	TP0127	-	hypothetical protein
127	 62.64	+2	149473..149820	+	115	15639122	-	TP0128	-	hypothetical protein
128	 59.54	+1	149805..150281	+	158	15639123	-	TP0129	-	hypothetical protein
129	 58.81	+1	150610..151029	-	139	15639124	-	TP0130	-	hypothetical protein
130	 56.26	0	151101..152897	-	598	15639125	-	TP0131	-	TPR protein D (tprD)
131	 50.48	0	152942..153151	-	69	15639126	-	TP0132	-	hypothetical protein
132	 56.77	0	153136..154368	-	410	15639127	-	TP0133	-	hypothetical protein
133	 57.38	+1	154365..155495	-	376	15639128	-	TP0134	-	hypothetical protein
134	 59.13	+1	155447..156388	-	313	15639129	-	TP0135	-	hypothetical protein
135	 60.95	+1	156792..158279	+	495	15639130	-	TP0136	-	hypothetical protein
136	 53.62	0	158258..158395	+	45	15639131	-	TP0137	-	hypothetical protein
137	 49.05	0	158533..159270	-	245	15639132	-	TP0138	-	hypothetical protein
138	 48.05	-1	159278..159970	-	230	15639133	-	TP0139	-	hypothetical protein
139	 47.16	-1	160010..161737	-	575	15639134	-	TP0140	-	K+ transport protein (ntpJ)
140	 55.99	0	161909..162442	+	177	15639135	-	TP0141	-	methylated-DNA-protein-cysteine S-methyltransferase (dat)
141	 51.73	0	162393..163055	-	220	15639136	-	TP0142	-	thiamine ABC transporter, ATP-binding protein, putative
142	 53.20	0	163048..164829	-	593	15639137	-	TP0143	-	thiamine ABC transporter, permease protein, putative
143	 57.74	+1	164787..165794	-	335	15639138	-	TP0144	-	thiamine ABC transporter, thiamine-binding periplasmic protein, putative
144	 53.83	0	165904..167874	+	656	15639139	-	TP0145	-	long-chain-fatty-acid--CoA ligase
145	 44.84	-1	169279..171138	-	619	15639140	-	TP0147	-	alpha-amylase 1, putative
146	 51.30	0	171135..171713	-	192	15639141	-	TP0148	-	hypothetical protein
147	 50.17	0	171707..172300	-	197	15639142	-	TP0149	-	hypothetical protein
148	 49.15	0	172293..172760	-	155	15639143	-	TP0150	-	hypothetical protein
149	 54.51	0	172744..173763	-	339	15639144	-	TP0151	-	hypothetical protein
150	 57.41	+1	173750..175294	-	514	15639145	-	TP0152	-	nitrogen fixation protein (rnfC)
151	 54.88	0	175370..175861	-	163	15639146	-	TP0153	-	hypothetical protein
152	 58.57	+1	176086..177123	+	345	15639147	-	TP0154	-	hypothetical protein
153	 52.33	0	177129..178244	+	371	15639148	-	TP0155	-	hypothetical protein
154	 51.11	0	178285..178689	-	134	15639149	-	TP0156	-	hypothetical protein
155	 50.17	0	178686..179588	-	300	15639150	-	TP0157	-	hypothetical protein
156	 48.76	0	179585..180271	-	228	15639151	-	TP0158	-	hypothetical protein
157	 51.51	0	180275..181303	-	342	15639152	-	TP0159	-	hypothetical protein
158	 55.99	0	181419..183272	-	617	15639153	-	TP0160	-	prolyl-tRNA synthetase
159	 55.91	0	183275..183367	-	30	15639154	-	TP0161	-	hypothetical protein
160	 58.59	+1	183384..184436	-	350	15639155	ruvB	TP0162	-	Holliday junction DNA helicase B
161	 53.51	0	184611..185537	+	308	15639156	-	TP0163	-	ABC transporter, periplasmic binding protein (troA)
162	 53.43	0	185685..186485	+	266	15639157	-	TP0164	-	ABC transporter, ATP-binding protein (troB)
163	 51.62	0	186457..187353	+	298	15639158	-	TP0165	-	ABC transporter, permease protein (troC)
164	 52.26	0	187357..188460	+	367	15639159	-	TP0166	-	ABC transporter, permease protein (troD)
165	 50.87	0	188470..188931	+	153	15639160	-	TP0167	-	cation-activated repressor protein (troR)
166	 51.46	0	189011..189766	+	251	15639161	-	TP0168	-	phosphoglycerate mutase (pgm)
167	 55.56	0	189990..190088	+	32	15639162	-	TP0169	-	hypothetical protein
168	 54.81	0	190085..190894	+	269	15639163	-	TP0170	-	pfs protein (pfs)
169	 52.68	0	190994..191422	+	142	15639164	-	TP0171	-	lipoprotein, 15 kDa (tpp15)
170	 54.73	0	191570..192097	-	175	15639165	-	TP0172	-	hypothetical protein
171	 50.88	0	192132..192815	-	227	15639166	-	TP0173	-	hypothetical protein
172	 44.25	-2	192784..193626	-	280	15639167	-	TP0174	-	hypothetical protein
173	 43.60	-2	193376..194008	-	210	15639168	-	TP0175	-	hypothetical protein
174	 45.69	-1	194039..194305	-	88	15639169	-	TP0176	-	hypothetical protein
175	 48.74	0	194302..195612	-	436	15639170	-	TP0177	-	hypothetical protein
176	 57.82	+1	195706..196632	-	308	15639171	-	TP0178	-	hypothetical protein
177	 60.83	+1	196632..198515	-	627	15639172	-	TP0179	-	hypothetical protein
178	 59.12	+1	198457..198615	-	52	15639173	-	TP0180	-	hypothetical protein
179	 56.08	0	198608..199051	+	147	15639174	-	TP0181	-	hypothetical protein
180	 60.26	+1	198891..199670	+	259	15639175	-	TP0182	-	hypothetical protein
181	 56.62	0	199673..200518	-	281	15639176	-	TP0183	-	hypothetical protein
182	 55.27	0	200523..200987	-	154	161579587	smpB	TP0184	-	SsrA-binding protein
183	 53.39	0	201075..201782	+	235	15639178	-	TP0185	-	signal peptidase I (sip)
184	 54.48	0	201837..203018	+	393	15639179	-	TP0186	-	oxygen-independent coproporphyrinogen III oxidase, putative
185	 50.59	0	203382..204569	+	395	161579586	-	TP0187	-	elongation factor Tu
186	 52.75	0	204641..204949	+	102	15639181	rpsJ	TP0188	-	30S ribosomal protein S10
187	 54.07	0	204996..205622	+	208	15639182	rplC	TP0189	-	50S ribosomal protein L3
188	 49.31	0	205636..206286	+	216	15639183	rplD	TP0190	-	50S ribosomal protein L4
189	 52.28	0	206273..206557	+	94	15639184	rplW	TP0191	-	50S ribosomal protein L23
190	 56.20	0	206613..207434	+	273	15639185	rplB	TP0192	-	50S ribosomal protein L2
191	 47.22	-1	207444..207731	+	95	15639186	rpsS	TP0193	-	30S ribosomal protein S19
192	 52.80	0	207740..208114	+	124	15639187	rplV	TP0194	-	50S ribosomal protein L22
193	 51.34	0	208098..208841	+	247	15639188	rpsC	TP0195	-	30S ribosomal protein S3
194	 52.86	0	208845..209264	+	139	15639189	rplP	TP0196	-	50S ribosomal protein L16
195	 45.21	-1	209279..209497	+	72	15639190	-	TP0197	-	ribosomal protein L29 (rpmC)
196	 52.94	0	209512..209766	+	84	15639191	rpsQ	TP0198	-	30S ribosomal protein S17
197	 48.51	-1	209779..210147	+	122	15639192	rplN	TP0199	-	50S ribosomal protein L14
198	 50.64	0	210159..210470	+	103	15639193	rplX	TP0200	-	50S ribosomal protein L24
52.88	MEAN

4.31	STD DEV
