IslandPath Analysis: Treponema pallidum subsp. pallidum str. Nichols

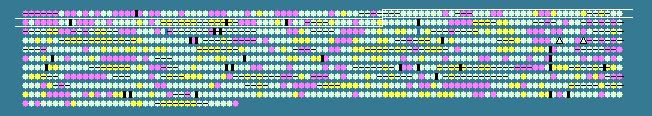

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.88   STD DEV: 4.31
Treponema pallidum subsp. pallidum str. Nichols, complete genome - 1..1138011
1036 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
61	 53.86	0	70165..70695	-	176	15639056	-	TP0062	-	single-strand DNA binding protein (ssb)
62	 53.55	0	70704..70985	-	93	15639057	rpsF	TP0063	-	30S ribosomal protein S6
63	 49.65	0	71127..71702	+	191	15639058	-	TP0064	-	hypothetical protein
64	 49.83	0	71776..72363	+	195	15639059	-	TP0065	-	hypothetical protein
65	 52.06	0	72347..72661	+	104	15639060	-	TP0066	-	hypothetical protein
66	 50.34	0	72649..73830	+	393	15639061	-	TP0067	-	hypothetical protein
67	 53.18	0	74011..75033	+	340	15639062	-	TP0068	-	hypothetical protein
68	 52.54	0	75089..75619	-	176	15639063	-	TP0069	-	hypothetical protein
69	 52.97	0	75469..75855	-	128	15639064	-	TP0070	-	hypothetical protein
70	 49.87	0	75906..78542	-	878	15639065	-	TP0071	-	ATP-dependent Clp protease subunit B (clpB)
71	 48.72	0	78746..79018	+	90	15639066	-	TP0072	-	hypothetical protein
72	 52.46	0	79088..80629	-	513	15639067	-	TP0073	-	hypothetical protein
73	 55.11	0	80934..82343	+	469	15639068	-	TP0074	-	sugar ABC transporter, periplasmic binding protein (y4oP)
74	 49.38	0	82462..83352	+	296	15639069	-	TP0075	-	sugar ABC transporter, permease protein (y4oQ)
75	 48.42	-1	83392..84213	+	273	15639070	-	TP0076	-	sugar ABC transporter, permease protein (y4oR)
76	 50.28	0	84254..85870	+	538	15639071	-	TP0077	-	capsular polysaccharide biosynthesis protein (cap5D)
77	 50.04	0	85875..87113	+	412	15639072	-	TP0078	-	spore coat polysaccharide biosynthesis protein (spsC)
78	 50.11	0	87041..89263	+	740	15639073	-	TP0079	-	hypothetical protein
79	 42.95	-2	89260..89727	+	155	15639074	-	TP0080	-	quinoline 2-oxidoreductase
80	 46.64	-1	89734..90582	+	282	15639075	-	TP0081	-	hypothetical protein
81	 52.69	0	90629..92431	-	600	15639076	-	TP0082	-	formate hydrogenlyase transcriptional activator (fhlA)
82	 54.25	0	93177..94457	+	426	15639077	-	TP0083	-	hypothetical protein
83	 53.42	0	94437..94670	-	77	15639078	-	TP0084	-	hypothetical protein
84	 49.89	0	94784..95230	-	148	15639079	-	TP0085	-	PTS system, nitrogen regulatory IIA component (ptsN-1)
85	 53.65	0	95311..96255	+	314	15639080	-	TP0086	-	hypothetical protein
86	 57.41	+1	96258..96797	-	179	15639081	-	TP0087	-	hypothetical protein
87	 48.62	0	96781..97395	-	204	15639082	-	TP0088	-	hypothetical protein
88	 45.39	-1	97425..98660	-	411	15639083	-	TP0089	-	cyclic nucleotide binding protein
89	 57.75	+1	98743..99807	-	354	15639084	-	TP0090	-	UDP-N-acetylmuramate dehydrogenase (murB)
90	 54.51	0	99989..101551	+	520	15639085	-	TP0091	-	cysteinyl-tRNA synthetase (cysS)
91	 54.19	0	101622..102110	+	162	15639086	-	TP0092	-	RNA polymerase sigma-24 factor (rpoE)
92	 55.25	0	102094..102741	+	215	15639087	-	TP0093	-	hypothetical protein
93	 51.43	0	102879..103889	+	336	15639088	-	TP0094	-	phosphate acetyltransferase (pta)
94	 56.65	0	103889..105835	+	648	15639089	-	TP0095	-	hypothetical protein
95	 53.44	0	105909..106271	-	120	15639090	-	TP0096	-	dnaK suppressor, putative
96	 54.79	0	106441..106659	+	72	15639091	-	TP0097	-	translation initiation factor 1 (infA)
97	 60.22	+1	106719..107369	-	216	15639092	-	TP0098	-	heat-shock protein, putative
98	 55.56	0	107373..108128	-	251	15639093	pyrH	TP0099	-	uridylate kinase
99	 54.89	0	108323..108925	+	200	15639094	-	TP0100	-	thioredoxin, putative
100	 55.35	0	108918..109712	+	264	15639095	-	TP0101	-	cytochrome c biogenesis protein (ccdA)
101	 45.09	-1	109750..111723	-	657	15639096	-	TP0102	-	rep helicase, single-stranded DNA-dependent ATPase (rep)
102	 52.74	0	111788..113611	+	607	15639097	-	TP0103	-	ATP-dependent DNA helicase, putative
103	 48.43	-1	113858..115639	+	593	15639098	-	TP0104	-	5'-nucleotidase (ushA)
104	 44.76	-1	115806..118799	+	997	15639099	-	TP0105	-	DNA polymerase I (polA)
105	 49.18	0	118831..120363	-	510	15639100	-	TP0106	-	carnitine transporter, putative
106	 47.02	-1	120344..121921	-	525	15639101	-	TP0107	-	licC protein (licC)
107	 51.08	0	122275..123660	-	461	15639102	-	TP0108	-	diphosphate--fructose-6-phosphate 1-phosphotransferase
108	 55.29	0	123762..124640	-	292	15639103	-	TP0109	-	rRNA methylase, putative
109	 49.60	0	125181..126914	+	577	15639104	-	TP0110	-	hypothetical protein
110	 47.90	-1	126974..128401	+	475	15639105	-	TP0111	-	RNA polymerase sigma-54 factor (rpoN)
111	 46.86	-1	128398..129750	-	450	15639106	-	TP0112	-	aminopeptidase C (pepC)
112	 46.61	-1	129892..130878	+	328	15639107	-	TP0113	-	lambda CII stability-governing protein (hflK)
113	 49.60	0	130883..131878	+	331	15639108	-	TP0114	-	lambda CII stability-governing protein (hflC)
114	 54.44	0	131903..132712	-	269	15639109	-	TP0115	-	phosphomethypyrimidine kinase (thiD)
115	 45.34	-1	132863..134869	+	668	15639110	-	TP0116	-	excinuclease ABC subunit B
116	 56.26	0	134901..136697	-	598	15639111	-	TP0117	-	TPR protein C (tprC)
117	 55.61	0	136777..138042	-	421	15639112	-	TP0118	-	hypothetical protein
118	 55.15	0	138140..138799	-	219	15639113	-	TP0119	-	amino acid ABC transporter, permease protein (yaeE)
119	 51.98	0	138799..139608	-	269	15639114	-	TP0120	-	amino acid ABC transporter ATP-binding protein
120	 57.21	+1	139738..140805	+	355	15639115	-	TP0121	-	hypothetical protein
121	 53.96	0	141025..142881	-	618	15639116	-	TP0122	-	phosphoenolpyruvate carboxykinase
122	 48.89	0	142987..145557	+	856	15639117	-	TP0123	-	hypothetical protein
123	 52.57	0	145571..146677	+	368	15639118	-	TP0124	-	translation-associated GTPase
124	 56.60	0	146754..147548	+	264	15639119	-	TP0125	-	exodeoxyribonuclease (exoA)
125	 59.02	+1	147612..148487	-	291	15639120	-	TP0126	-	hypothetical protein
126	 55.94	0	148595..149284	+	229	15639121	-	TP0127	-	hypothetical protein
127	 62.64	+2	149473..149820	+	115	15639122	-	TP0128	-	hypothetical protein
128	 59.54	+1	149805..150281	+	158	15639123	-	TP0129	-	hypothetical protein
129	 58.81	+1	150610..151029	-	139	15639124	-	TP0130	-	hypothetical protein
130	 56.26	0	151101..152897	-	598	15639125	-	TP0131	-	TPR protein D (tprD)
131	 50.48	0	152942..153151	-	69	15639126	-	TP0132	-	hypothetical protein
132	 56.77	0	153136..154368	-	410	15639127	-	TP0133	-	hypothetical protein
133	 57.38	+1	154365..155495	-	376	15639128	-	TP0134	-	hypothetical protein
134	 59.13	+1	155447..156388	-	313	15639129	-	TP0135	-	hypothetical protein
135	 60.95	+1	156792..158279	+	495	15639130	-	TP0136	-	hypothetical protein
136	 53.62	0	158258..158395	+	45	15639131	-	TP0137	-	hypothetical protein
137	 49.05	0	158533..159270	-	245	15639132	-	TP0138	-	hypothetical protein
138	 48.05	-1	159278..159970	-	230	15639133	-	TP0139	-	hypothetical protein
139	 47.16	-1	160010..161737	-	575	15639134	-	TP0140	-	K+ transport protein (ntpJ)
140	 55.99	0	161909..162442	+	177	15639135	-	TP0141	-	methylated-DNA-protein-cysteine S-methyltransferase (dat)
141	 51.73	0	162393..163055	-	220	15639136	-	TP0142	-	thiamine ABC transporter, ATP-binding protein, putative
142	 53.20	0	163048..164829	-	593	15639137	-	TP0143	-	thiamine ABC transporter, permease protein, putative
143	 57.74	+1	164787..165794	-	335	15639138	-	TP0144	-	thiamine ABC transporter, thiamine-binding periplasmic protein, putative
144	 53.83	0	165904..167874	+	656	15639139	-	TP0145	-	long-chain-fatty-acid--CoA ligase
145	 44.84	-1	169279..171138	-	619	15639140	-	TP0147	-	alpha-amylase 1, putative
146	 51.30	0	171135..171713	-	192	15639141	-	TP0148	-	hypothetical protein
147	 50.17	0	171707..172300	-	197	15639142	-	TP0149	-	hypothetical protein
148	 49.15	0	172293..172760	-	155	15639143	-	TP0150	-	hypothetical protein
149	 54.51	0	172744..173763	-	339	15639144	-	TP0151	-	hypothetical protein
150	 57.41	+1	173750..175294	-	514	15639145	-	TP0152	-	nitrogen fixation protein (rnfC)
151	 54.88	0	175370..175861	-	163	15639146	-	TP0153	-	hypothetical protein
152	 58.57	+1	176086..177123	+	345	15639147	-	TP0154	-	hypothetical protein
153	 52.33	0	177129..178244	+	371	15639148	-	TP0155	-	hypothetical protein
154	 51.11	0	178285..178689	-	134	15639149	-	TP0156	-	hypothetical protein
155	 50.17	0	178686..179588	-	300	15639150	-	TP0157	-	hypothetical protein
156	 48.76	0	179585..180271	-	228	15639151	-	TP0158	-	hypothetical protein
157	 51.51	0	180275..181303	-	342	15639152	-	TP0159	-	hypothetical protein
158	 55.99	0	181419..183272	-	617	15639153	-	TP0160	-	prolyl-tRNA synthetase
159	 55.91	0	183275..183367	-	30	15639154	-	TP0161	-	hypothetical protein
160	 58.59	+1	183384..184436	-	350	15639155	ruvB	TP0162	-	Holliday junction DNA helicase B
52.88	MEAN

4.31	STD DEV
