IslandPath Analysis: Treponema denticola ATCC 35405

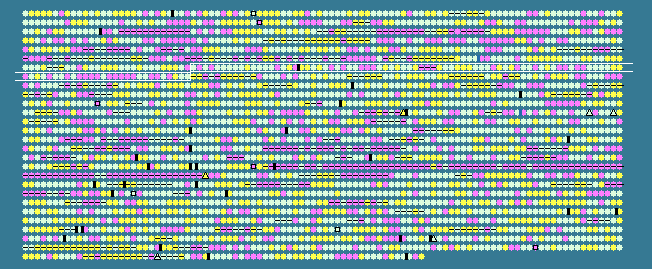

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.25   STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
629	 34.26	0	667571..667894	+	107	42526148	-	TDE0632	-	anti-anti-sigma factor
630	 31.09	-1	667918..668718	+	266	42526149	-	TDE0633	-	D-alanyl-D-alanine carboxypeptidase, putative
631	 36.30	0	668715..669659	-	314	42526150	-	TDE0634	-	cation efflux family protein
632	 29.93	-1	669757..670638	+	293	42526151	-	TDE0635	-	hypothetical protein
633	 40.14	0	670622..671590	-	322	42526152	-	TDE0636	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein
634	 39.64	0	671583..672581	-	332	42526153	-	TDE0637	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein
635	 37.69	0	672578..673540	-	320	42526154	-	TDE0638	-	oligopeptide/dipeptide ABC transporter, permease protein
636	 35.99	0	673543..674484	-	313	42526155	-	TDE0639	-	oligopeptide/dipeptide ABC transporter, permease protein
637	 35.53	0	674621..676855	-	744	42526156	-	TDE0640	-	methyl-accepting chemotaxis protein
638	 46.21	+1	677092..678372	-	426	42526157	murA	TDE0641	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
639	 37.16	0	678550..679254	-	234	42526158	-	TDE0642	-	hypothetical protein
640	 40.69	0	679306..679917	-	203	42526159	pth	TDE0643	-	peptidyl-tRNA hydrolase
641	 39.70	0	679929..680666	-	245	42526160	-	TDE0644	-	ABC transporter, ATP-binding protein
642	 35.84	0	680659..681375	-	238	42526161	-	TDE0645	-	hypothetical protein
643	 31.57	0	681332..681955	-	207	42526162	-	TDE0646	-	hypothetical protein
644	 34.93	0	682084..682899	+	271	42526163	cheR	TDE0647	-	chemotaxis protein methyltransferase
645	 44.33	+1	682940..684058	+	372	42526164	cheB	TDE0648	-	protein-glutamate methylesterase
646	 30.61	-1	684124..684453	-	109	42526165	-	TDE0649	-	hypothetical protein
647	 44.06	+1	684837..685871	+	344	42526166	-	TDE0650	-	hypothetical protein
648	 40.82	0	688317..689051	+	244	42526167	-	TDE0652	-	hypothetical protein
649	 39.29	0	689063..689734	+	223	42526168	-	TDE0653	-	hypothetical protein
650	 42.80	0	689746..690918	+	390	42526169	-	TDE0654	-	M20/M25/M40 family peptidase
651	 35.34	0	691061..691759	+	232	42526170	-	TDE0655	-	response regulator
652	 30.45	-1	691737..692810	+	357	42526171	-	TDE0656	-	sensor histidine kinase, putative
653	 38.19	0	692905..693666	+	253	42526172	-	TDE0657	-	ABC transporter, ATP-binding protein
654	 31.57	0	693694..695739	+	681	42526173	-	TDE0658	-	ABC transporter, permease protein
655	 37.43	0	695780..696292	-	170	42526174	-	TDE0659	-	hypothetical protein
656	 40.29	0	696369..697274	-	301	42526175	-	TDE0660	-	transcriptional regulator, putative
657	 28.33	-1	697336..697575	-	79	42526176	-	TDE0661	-	hypothetical protein
658	 32.58	0	697662..697925	-	87	42526177	-	TDE0662	-	hypothetical protein
659	 31.01	-1	697930..698187	-	85	42526178	-	TDE0663	-	hypothetical protein
660	 37.59	0	698520..699788	+	422	42526179	-	TDE0664	-	OmpA family protein
661	 44.90	+1	699882..703442	-	1186	42526180	-	TDE0665	-	pyruvate ferredoxin/flavodoxin oxidoreductase family protein
662	 40.49	0	703693..704433	+	246	42526181	sufC	TDE0666	-	FeS assembly ATPase SufC
663	 45.47	+1	704430..705896	+	488	42526182	sufB	TDE0667	-	FeS assembly protein SufB
664	 39.27	0	705899..707026	+	375	42526183	sufD	TDE0668	-	FeS assembly protein SufD
665	 34.36	0	707039..707917	-	292	42526184	-	TDE0669	-	hypothetical protein
666	 42.47	0	708078..710453	+	791	42526185	lon	TDE0670	-	ATP-dependent protease La
667	 30.95	-1	710761..711138	+	125	42526186	-	TDE0671	-	PilT domain-containing protein
668	 26.16	-1	711250..712071	+	273	42526187	-	TDE0672	-	hypothetical protein
669	 31.42	-1	712130..713173	+	347	42526188	-	TDE0673	-	hypothetical protein
670	 44.56	+1	713301..714137	+	278	42526189	-	TDE0674	-	hypothetical protein
671	 40.68	0	714134..714991	+	285	42526190	-	TDE0675	-	hypothetical protein
672	 39.52	0	715000..715419	+	139	42526191	-	TDE0676	-	hypothetical protein
673	 43.10	+1	715518..716111	+	197	42526192	-	TDE0677	-	hypothetical protein
674	 42.03	0	716154..716498	+	114	42526193	-	TDE0678	-	hypothetical protein
675	 43.43	+1	716485..717633	+	382	42526194	-	TDE0679	-	aminotransferase, class V
676	 39.53	0	717703..718944	-	413	42526195	secF	TDE0680	-	preprotein translocase subunit SecF
677	 40.48	0	718946..720709	-	587	42526196	secD	TDE0681	-	preprotein translocase subunit SecD
678	 40.10	0	720755..721168	-	137	42526197	yajC	TDE0682	-	preprotein translocase, YajC subunit
679	 30.77	-1	721277..721393	-	38	42526198	-	TDE0683	-	hypothetical protein
680	 41.48	0	721913..722710	-	265	42526199	-	TDE0685	-	short chain dehydrogenase/reductase family oxidoreductase
681	 39.96	0	722867..723817	+	316	42526200	purC	TDE0686	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
682	 41.46	0	723814..724293	+	159	42526201	-	TDE0687	-	phosphoribosylaminoimidazole carboxylase, PurE protein
683	 33.33	0	724312..725817	+	501	42526202	-	TDE0688	-	hypothetical protein
684	 34.83	0	725830..727032	+	400	42526203	mtnK	TDE0689	-	methylthioribose kinase
685	 39.42	0	727038..728138	+	366	42526204	trmU	TDE0690	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
686	 33.02	0	728202..729788	+	528	42526205	-	TDE0691	-	ABC transporter, ATP-binding/permease protein
687	 34.11	0	729852..729980	+	42	42526206	-	TDE0692	-	hypothetical protein
688	 43.21	+1	730082..730891	+	269	42526207	thiD	TDE0693	-	phosphomethylpyrimidine kinase
689	 38.16	0	731130..732062	+	310	42526208	-	TDE0694	-	ABC transporter, ATP-binding protein
690	 31.63	0	732062..733117	+	351	42526209	-	TDE0695	-	hypothetical protein
691	 29.39	-1	733104..734270	+	388	42526210	-	TDE0696	-	hypothetical protein
692	 35.29	0	734310..734462	-	50	42526211	-	TDE0697	-	hypothetical protein
693	 31.40	-1	734712..735125	-	137	42526212	-	TDE0698	-	PilT domain-containing protein
694	 31.62	0	735109..735342	-	77	42526213	-	TDE0699	-	hypothetical protein
695	 35.77	0	735421..736488	-	355	42526214	-	TDE0700	-	hypothetical protein
696	 39.23	0	736609..737337	-	242	42526215	-	TDE0701	-	hypothetical protein
697	 39.81	0	737334..738059	-	241	42526216	-	TDE0702	-	ABC transporter, ATP-binding protein
698	 39.56	0	738056..738280	-	74	42526217	-	TDE0703	-	AbrB family transcriptional regulator
699	 42.05	0	738519..739436	-	305	42526218	-	TDE0704	-	SPFH domain-containing protein/band 7 family protein
700	 42.15	0	739429..740358	-	309	42526219	-	TDE0705	-	SPFH domain-containing protein/band 7 family protein
701	 31.99	0	740560..741672	+	370	42526220	-	TDE0706	-	adenine-specific DNA modification methyltransferase
702	 37.22	0	741685..744000	+	771	42526221	-	TDE0707	-	hypothetical protein
703	 41.28	0	744040..744555	+	171	42526222	-	TDE0708	-	nitroreductase family protein
704	 38.16	0	744571..745524	-	317	42526223	msrA	TDE0709	-	bifunctional methionine sulfoxide reductase A/B protein
705	 22.44	-2	745572..745727	+	51	42526224	-	TDE0710	-	hypothetical protein
706	 40.45	0	745780..746271	-	163	42526225	-	TDE0711	-	hypothetical protein
707	 36.14	0	746271..747053	-	260	42526226	-	TDE0712	-	hypothetical protein
708	 31.63	0	747249..747776	+	175	42526227	-	TDE0713	-	NusG family transcription antitermination protein
709	 40.39	0	747773..749260	+	495	42526228	-	TDE0714	-	capsular polysaccharide biosynthesis protein
710	 30.06	-1	749267..750610	+	447	42526229	-	TDE0715	-	hypothetical protein
711	 29.15	-1	750968..751804	+	278	42526230	-	TDE0716	-	CAAX amino terminal protease family protein
712	 32.95	0	751919..752440	+	173	42526231	-	TDE0717	-	hypothetical protein
713	 32.84	0	753355..753558	+	67	42526232	-	TDE0718	-	hypothetical protein
714	 35.33	0	753602..755755	+	717	42526233	-	TDE0719	-	bacteriocin ABC transporter, ATP-binding/permease protein, putative
715	 29.05	-1	755752..756894	+	380	42526234	-	TDE0720	-	bacteriocin ABC transporter, bacteriocin-binding protein, putative
716	 25.18	-2	756891..758276	+	461	42526235	-	TDE0721	-	hypothetical protein
717	 30.41	-1	758659..759924	+	421	42526236	-	TDE0722	-	putative lipoprotein
718	 33.33	0	760444..761721	+	425	42526237	-	TDE0723	-	hypothetical protein
719	 28.66	-1	761993..763297	+	434	42526238	-	TDE0724	-	hypothetical protein
720	 39.88	0	763605..764780	+	391	42526239	-	TDE0725	-	exopolysaccharide biosynthesis protein
721	 34.87	0	764784..766871	+	695	42526240	-	TDE0726	-	aldehyde oxidase and xanthine dehydrogenase family protein
722	 33.12	0	766861..767340	+	159	42526241	-	TDE0727	-	iron-sulfur cluster-binding protein
723	 32.03	0	767346..768191	+	281	42526242	-	TDE0728	-	FAD-binding protein, putative
724	 35.30	0	768198..769214	-	338	42526243	-	TDE0729	-	hypothetical protein
725	 32.47	0	769286..770677	-	463	42526244	-	TDE0730	-	hypothetical protein
726	 40.94	0	770781..771437	-	218	42526245	-	TDE0731	-	hypothetical protein
727	 36.58	0	771498..772820	-	440	42526246	-	TDE0732	-	hypothetical protein
728	 36.23	0	772840..774186	-	448	42526247	-	TDE0733	-	hypothetical protein
37.25	MEAN

5.76	STD DEV
