IslandPath Analysis: Treponema denticola ATCC 35405

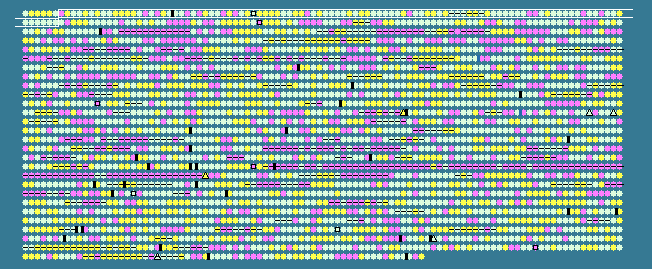

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.25 STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
7	 33.68	0	10014..10868	+	284	42525526	-	TDE0007	-	hypothetical protein
8	 43.24	+1	11031..13706	+	891	42525527	-	TDE0008	-	copper-translocating P-type ATPase
9	 39.17	0	13814..14635	-	273	42525528	-	TDE0009	-	hypothetical protein
10	 39.68	0	14720..15286	+	188	42525529	-	TDE0010	-	MutT/nudix family protein
11	 42.90	0	15548..16195	+	215	42525530	-	TDE0011	-	peroxiredoxin
12	 40.55	0	16308..17762	+	484	42525531	-	TDE0012	-	carbon starvation protein CstA, putative
13	 43.31	+1	17848..18729	-	293	42525532	folD	TDE0013	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
14	 40.29	0	18930..19547	+	205	42525533	-	TDE0014	-	hypothetical protein
15	 38.34	0	19567..20604	+	345	42525534	-	TDE0015	-	putative lipoprotein
16	 45.02	+1	20597..21922	+	441	42525535	-	TDE0016	-	recombination factor protein RarA
17	 41.79	0	21998..23026	-	342	42525536	-	TDE0017	-	hypothetical protein
18	 42.71	0	23163..23663	-	166	42525537	-	TDE0018	-	LysM domain-containing protein
19	 42.64	0	23755..25419	-	554	42525538	fhs	TDE0019	-	formate--tetrahydrofolate ligase
20	 39.23	0	25586..26941	+	451	42525539	glyS	TDE0020	-	glycyl-tRNA synthetase
21	 33.63	0	26954..27955	+	333	42525540	-	TDE0021	-	CDP-alcohol phosphatidyltransferase family protein
22	 35.26	0	28012..28581	+	189	42525541	-	TDE0022	-	hypothetical protein
23	 33.33	0	28613..29509	-	298	42525542	-	TDE0023	-	acetyltransferase
24	 41.82	0	29509..31182	-	557	42525543	-	TDE0024	-	glycosy hydrolase family protein
25	 36.17	0	31191..31649	-	152	42525544	-	TDE0025	-	hypothetical protein
26	 40.72	0	31916..33106	-	396	42525545	-	TDE0026	-	TraB family protein
27	 37.50	0	33093..34076	-	327	42525546	-	TDE0027	-	DHH superfamily protein, subfamily 1
28	 33.17	0	34146..36020	-	624	42525547	-	TDE0028	-	ABC transporter ATP-binding protein
29	 34.51	0	36034..37812	-	592	42525548	-	TDE0029	-	ABC transporter ATP-binding protein
30	 29.36	-1	38018..38797	-	259	42525549	-	TDE0030	-	prolipoprotein diacylglyceryl transferase, putative
31	 44.06	+1	38925..39185	-	86	42525550	-	TDE0031	-	hypothetical protein
32	 36.01	0	39321..40067	-	248	42525551	-	TDE0032	-	histidine kinase-related ATPase, putative
33	 34.86	0	40067..40786	-	239	42525552	-	TDE0033	-	DNA-binding response regulator
34	 26.02	-1	40803..41540	-	245	42525553	-	TDE0034	-	hypothetical protein
35	 41.27	0	41670..42110	-	146	42525554	-	TDE0035	-	acetyltransferase
36	 28.50	-1	42225..42617	-	130	42525555	-	TDE0036	-	hypothetical protein
37	 34.54	0	42641..42889	-	82	42525556	-	TDE0037	-	AbrB family transcriptional regulator
38	 47.65	+1	43126..44361	-	411	42525557	fabF	TDE0038	-	3-oxoacyl-(acyl-carrier-protein) synthase II
39	 34.85	0	44579..45763	-	394	42525558	-	TDE0039	-	ISTde1, transposase
40	 43.80	+1	45866..47518	-	550	42525559	-	TDE0040	-	AMP-binding protein
41	 44.00	+1	47637..48695	+	352	42525560	birA	TDE0041	-	birA bifunctional protein
42	 47.72	+1	48816..49823	+	335	42525561	pta	TDE0042	-	phosphate acetyltransferase
43	 42.83	0	49828..51711	+	627	42525562	-	TDE0043	-	TPR domain-containing protein
44	 38.02	0	51750..53222	-	490	42525563	-	TDE0044	-	ABC transporter, ATP-binding protein
45	 35.56	0	53359..55203	-	614	42525564	-	TDE0045	-	ABC transporter, ATP-binding protein
46	 46.26	+1	55298..55939	-	213	42525565	-	TDE0046	-	formiminotransferase-cyclodeaminase family protein
47	 44.69	+1	56010..57251	-	413	42525566	hutI	TDE0047	-	imidazolonepropionase
48	 30.82	-1	57277..57912	-	211	42525567	-	TDE0048	-	hypothetical protein
49	 36.48	0	58289..59179	-	296	42525568	-	TDE0049	-	hypothetical protein
50	 41.32	0	59373..60161	-	262	42525569	-	TDE0050	-	RNA methyltransferase
51	 40.19	0	60163..61314	-	383	42525570	-	TDE0051	-	alcohol dehydrogenase, iron-containing
52	 36.30	0	61445..61714	+	89	42525571	fliQ	TDE0052	-	flagellar biosynthetic protein FliQ
53	 39.25	0	61733..62527	+	264	42525572	fliR	TDE0053	-	flagellar biosynthetic protein FliR
54	 39.13	0	62524..63696	+	390	42525573	flhB	TDE0054	-	flagellar biosynthesis protein FlhB
55	 42.35	0	63705..65801	+	698	42525574	flhA	TDE0055	-	flagellar biosynthesis protein FlhA
56	 40.10	0	65846..66052	+	68	42525575	-	TDE0056	-	DNA-directed RNA polymerase, omega subunit, putative
57	 42.25	0	66075..67061	+	328	42525576	miaA-1	TDE0057	-	tRNA delta(2)-isopentenylpyrophosphate transferase
58	 43.54	+1	67126..67458	+	110	42525577	-	TDE0058	-	hypothetical protein
59	 39.81	0	67434..67541	+	35	42525578	-	TDE0059	-	hypothetical protein
60	 35.26	0	67617..67928	-	103	42525579	-	TDE0060	-	hypothetical protein
61	 37.92	0	67988..69034	-	348	42525580	-	TDE0061	-	fic family protein
62	 39.84	0	69230..69721	+	163	42525581	-	TDE0062	-	PTS system, IIA component
63	 36.46	0	69854..71389	+	511	42525582	-	TDE0063	-	hypothetical protein
64	 42.29	0	71425..72741	-	438	42525583	pfk	TDE0064	-	diphosphate--fructose-6-phosphate 1-phosphotransferase
65	 33.71	0	72912..73436	-	174	42525584	-	TDE0065	-	hypothetical protein
66	 34.69	0	73426..74016	-	196	42525585	-	TDE0066	-	hypothetical protein
67	 40.54	0	74031..75278	-	415	42525586	-	TDE0067	-	cyclic nucleotide-binding protein
68	 42.23	0	75437..76672	+	411	42525587	-	TDE0068	-	succinyl-diaminopimelate desuccinylase
69	 42.48	0	76691..77707	+	338	42525588	-	TDE0069	-	hypothetical protein
70	 34.90	0	77853..78680	+	275	42525589	-	TDE0070	-	sigma-70 family RNA polymerase sigma factor
71	 42.08	0	78742..80982	+	746	42525590	-	TDE0071	-	U32 family peptidase
72	 35.34	0	81061..83199	+	712	42525591	-	TDE0072	-	methyl-accepting chemotaxis protein
73	 35.71	0	83249..84172	-	307	42525592	-	TDE0073	-	riboflavin biosynthesis protein RibF, putative
74	 36.53	0	84246..85589	-	447	42525593	-	TDE0074	-	amino acid permease family protein
75	 41.83	0	85617..86663	-	348	42525594	-	TDE0075	-	sorbitol dehydrogenase, putative
76	 42.36	0	86679..87476	-	265	42525595	-	TDE0076	-	aldolase
77	 37.99	0	87512..88822	-	436	42525596	grdE-1	TDE0077	-	glycine reductase complex proprotein GrdE1
78	 40.84	0	88835..90166	-	443	42525597	grdB-1	TDE0078	-	glycine reductase complex selenoprotein GrdB1
79	 35.42	0	90185..90760	-	191	42525598	-	TDE0079	-	DNA-binding protein
80	 39.60	0	90818..92302	-	494	42525599	gbsA	TDE0080	-	betaine aldehyde dehydrogenase
81	 36.21	0	92643..94031	-	462	42525600	-	TDE0081	-	hypothetical protein
82	 37.74	0	94024..94341	-	105	42525601	-	TDE0082	-	MerR family transcriptional regulator
83	 40.32	0	94344..95774	-	476	42525602	engA	TDE0083	-	GTP-binding protein EngA
84	 39.78	0	95761..97545	-	594	42525603	ptsI	TDE0084	-	phosphoenolpyruvate-protein phosphotransferase
85	 33.27	0	97686..101105	-	1139	42525604	-	TDE0085	-	ATP-dependent DNA helicase UvrD
86	 32.45	0	101129..103966	-	945	42525605	-	TDE0086	-	hypothetical protein
87	 39.26	0	104079..105479	+	466	42525606	trkA	TDE0087	-	potassium transporter peripheral membrane component
88	 42.76	0	105487..106929	+	480	42525607	trkH	TDE0088	-	Trk system potassium uptake protein TrkH
89	 37.98	0	106965..108644	-	559	42525608	-	TDE0089	-	transglutaminase-like domain-containing protein
90	 34.84	0	108634..109296	-	220	42525609	-	TDE0090	-	hypothetical protein
91	 38.31	0	109280..109822	-	180	42525610	-	TDE0091	-	RNA polymerase sigma-24 factor, putative
92	 39.15	0	109867..111345	-	492	42525611	cysS	TDE0092	-	cysteinyl-tRNA synthetase
93	 39.20	0	111397..112368	+	323	42525612	-	TDE0093	-	UDP-N-acetylenolpyruvoylglucosamine reductase, putative
94	 24.00	-2	112359..112508	+	49	42525613	-	TDE0094	-	hypothetical protein
95	 34.03	0	112539..112682	+	47	42525614	-	TDE0095	-	hypothetical protein
96	 40.00	0	112863..114197	+	444	42525615	-	TDE0096	-	NADH oxidase
97	 28.57	-1	114337..114861	+	174	42525616	-	TDE0097	-	hypothetical protein
98	 34.44	0	114932..115651	-	239	42525617	-	TDE0098	-	hypothetical protein
99	 35.35	0	115788..117074	+	428	42525618	-	TDE0099	-	adenine-specific DNA modification methyltransferase
100	 41.30	0	117064..119034	-	656	42525619	-	TDE0100	-	hypothetical protein
101	 38.00	0	119107..121251	-	714	42525620	-	TDE0101	-	alpha-amylase family protein
102	 35.73	0	121315..122607	+	430	42525621	-	TDE0102	-	cyclic nucleotide-binding protein
103	 40.33	0	122634..123776	-	380	42525622	-	TDE0103	-	aminotransferase, class-V
104	 39.63	0	123773..124804	-	343	42525623	-	TDE0104	-	3-dehydroquinate synthase
105	 39.70	0	124822..125544	-	240	42525624	-	TDE0105	-	MTA/SAH nucleosidase
106	 39.50	0	125632..126636	-	334	42525625	-	TDE0106	-	hypothetical protein
37.25	MEAN

5.76	STD DEV
